from 4.999,00 €
As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we need 6 – 8 weeks after order confirmation to manufacture and ship available bikes.
Delivery time frame size XL: end of May 2025
The veloheld.farway Pinion Gravel is your new gravel bike for low-maintenance long gravel tours. Precisely manufactured in our frame construction workshop in Leipzig, it offers a robust yet comfortable CrMoly frame. With the Hibox gearbox, it is possible to use the 12-speed Pinion gearbox in conjunction with the low-maintenance Gates Carbon Drive belt drive with the drop bar.
With 28-inch wheels and 50 mm wide Schwalbe tires, it offers plenty of comfort and traction on any terrain. Like every veloheld bike, it can be customized and is therefore ready for your adventures on the long tour. All in all, the veloheld.farway Pinion Gravel perfectly combines robustness, low maintenance and comfort – ideal for explorers without compromise.
The frames are made with love and know-how from butted CrMoly tubes in our frame construction workshop in Leipzig.
The dropouts of the bike were printed from stainless steel to create veloheld.farway Pinion dropouts.
Series color too boring? Tell us your desired color and we will coat your individual veloheld.farway Pinion touring bike!

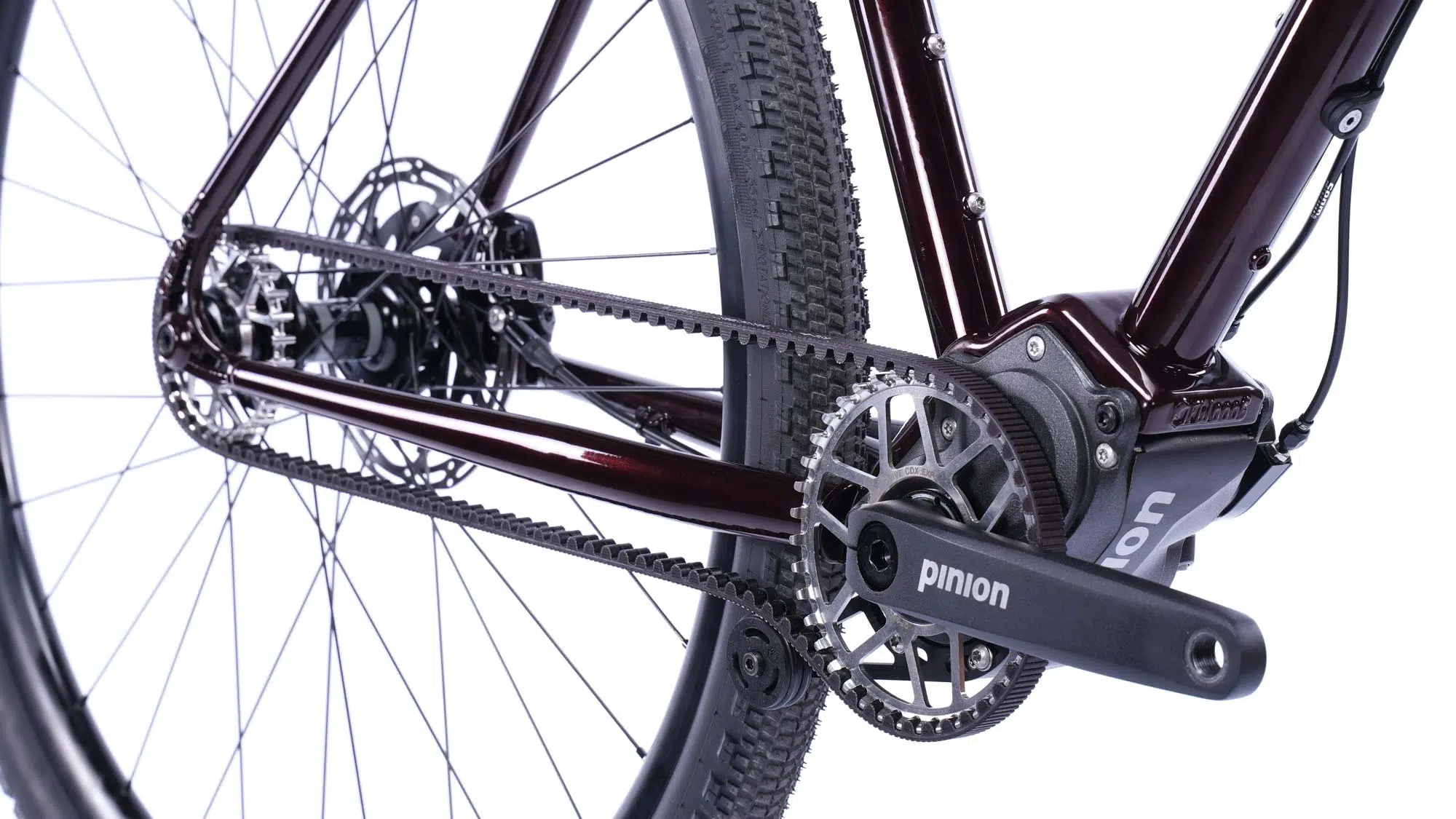

In order to efficiently transfer the enormous torque of the Pinion gearbox to the rear wheel via the Gates belt, the drive is tensioned directly behind the front pulley - the most stable solution for a rigid frame
With the Hibox shift box, it is possible to ride the low-maintenance 12-speed Pinion gearbox with SRAM shift/brake levers. This gives you the benefit of racing handlebars and hydraulic brakes.
The bike can be customized in many details. In addition to your desired frame and fork color, you can also customize the lighting system, mudguards, luggage rack and much more. Contact us and tell us what you want!
The frame is completely "Made in Germany". Welded in our frame construction workshop in Leipzig from butted 25CrMo4 tubes and 3D printed stainless steel dropouts and then powder-coated directly in Dresden.
double end-reinforced tubes made of 4130 CrMoly (25CrMo4) steel, TIG-welded, stable 44 mm head tube, stainless steel thru-axle dropouts with internal flat-mount disc brake mount and preparation for KSA 18 kickstand mount (with adapter), frame lock on dropout for Gates Carbon Drive, brake cable routed in down tube, external Pinion gear cable, 3 bottle cage mounts, eyelets on the top tube for the fixed mounting of a small bag
veloheld chromoly rigid fork, 4130 ChrMoly steel, 12×100 mm installation width, extra stable 1 1/8″ – 1.5″ tapered steerer tube, installation height 420 mm, 50 mm fork travel, side “triple cage” eyelets for mounting your luggage or lowrider luggage rack, flat-mount disc brake mount for max. 160 mm disk size
Pinion C1.12 gearshift
The C1.12 gearbox is the manual gearbox for everyday, leisure and touring riders. 12 finely graduated gears offer an outstanding range of ratios and unique shifting comfort. With a total gear ratio of 600 %, the C1.12 gearbox beats modern derailleur gears by far.
Gates CDX belt, 120t
front: 39t Gates Carbon Drive CenterTrack Front Sprocket
Rear: 34t Gates CenterTrack CDX Sprocket, both made of stainless steel for very long service life
Feel free to contact us for other translations.
Pinion Forge 2018, black, 170 mm
Forged crank arms made of lightweight aluminum in a flat design
without
SRAM Rival in conjunction with the Hibox for combination with the Pinion gearbox
SRAM Rival
SRAM brake rotor Centerline XR two-piece Rounded Edges 160 mm front and rear
Rim: DT Swiss G 540 disc, aluminum hollow chamber, 32h, black, rim width 24 mm
Hub: DT Swiss 370 VR hub, 32h
Rim: DT G 540 disc, aluminum hollow chamber, 32h, black, rim width 24 mm
Hub: Pinion singlespeed rear hub H3.R, 32h, black
Schwalbe G-One Overland, 50-622/28-2.00

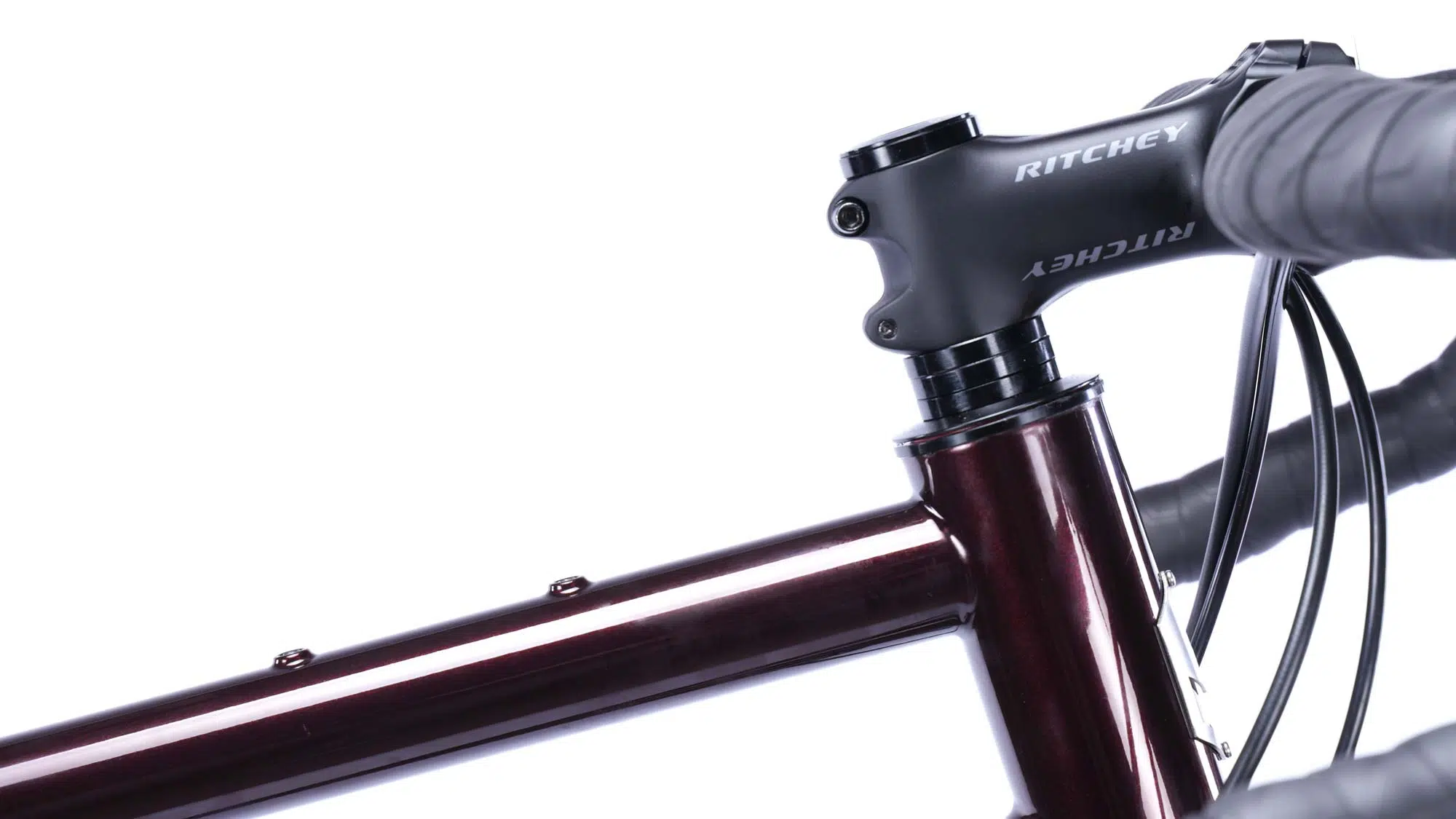

Ritchey WCS – black, 60 mm (S), 70 mm (M, L), 80 mm (XL)
Ritchey WCS VentureMax – black, 400 (S), 420 (M,L), 440 (XL) mm width
Acros AZX-245, flat, black, ZS44/28.6, EC44/40
veloheld, black
Ritchey WCS – black, ø 27.2 mm, 350 mm
SON Edelux II front and SON rear light with parking light function, black/silver and SON hub dynamo
Please contact us for your desired options.
Tubus Logo Evo, black, suitable for 26 kg luggage (support via hidden strut under the mudguard or also with 2 extra struts directly on the frame)
made of durable aluminum, powder-coated in frame color, 60 mm width
“Dragons Blood” glossy with silver decor
RAL powder coating of your choice in gloss or matt, decor in black or silver
from approx. 13.5 kg
For riding on paved roads, such as asphalt roads and cycle paths, paved forest roads, field paths and hiking trails where there are few or no obstacles such as roots, thresholds, stones and steps. The wheels are in constant contact with the ground or may briefly lose contact with the ground due to minor bumps. This category includes urban and city bikes as well as gravel bikes with racing handlebars. Read more…
Note: Technical changes, errors and omissions excepted.
| Rahmenhöhe | S | M | L | XL |
|---|---|---|---|---|
| für ca. Körpergröße in cm | 170 – 178 | 178 – 185 | 184 – 192 | 190 – 198 |
| für ca. Innenbeinlänge in cm | 75 - 80 | 79 - 84 | 83 - 88 | 87 - 93 |
| A Sitzrohrlänge | 480 | 510 | 540 | 570 |
| B Oberrohrlänge | 574 | 593 | 606 | 623 |
| C Radstand | 1087 | 1097 | 1106 | 1117 |
| D Steuerrohrlänge | 135 | 155 | 175 | 195 |
| E Lenkwinkel | 70,5° | 71° | 71,5° | 71,5° |
| F Sitzwinkel | 74° | 73,5° | 73,5° | 73° |
| G Kettenstrebenlänge | 457 | 457 | 457 | 457 |
| H Gabelvorbiegung | 50 | 50 | 50 | 50 |
| I ca. Tretlagerabsenkung | 80 | 80 | 80 | 80 |
| J Stack | 600 | 623 | 642 | 661 |
| K Reach | 400 | 408 | 415 | 420 |
| Überstandshöhe | 791 | 817 | 841 | 864 |
The bike is delivered almost fully assembled and safely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.
To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.
You will find all the exact assembly steps in the assembly instructions.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.
If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Please register your bike here within 3 months of purchase to receive the warranty.
The maximum permissible system weight for the veloheld.farway Pinion consisting of bicycle, rider and luggage should not exceed 140 kg for all frame sizes.
Yes, you can mount a KSA18 kickstand on the left dropout using an adapter. You can order it during the ordering process and we will fit it to the bike before shipping.
Send us your question via the contact form or use our other contact options and we will answer your questions.
Send us a message with your desired bike components or give us a call on +49 (0)351 212 952 95 and we will soon build you your ultimate veloheld dream bike!
