veloheld.lane Swing complete bike
from 2.499,00 €
- Shimano Alfine 8-speed, 11-speed or Rohloff Speedhub 14-speed hub gears
- low-maintenance Gates CDX CentreTrack belt drive
- super-bright SON LED lighting system
- available as a complete bike and as a frameset
- of course also in your desired colour
Delivery time
As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 10-12 weeks after order confirmation to manufacture and ship available wheels.

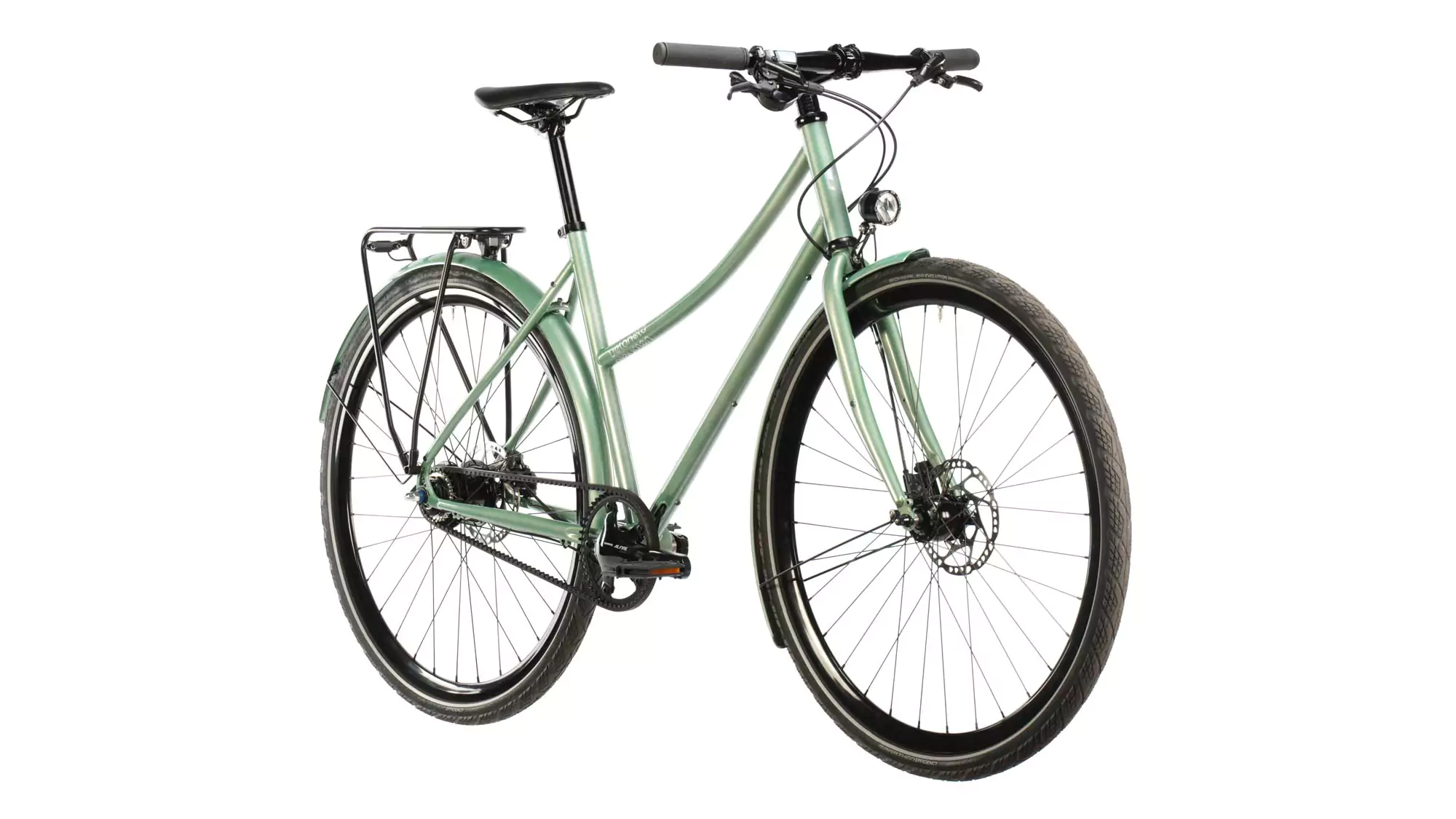

The veloheld.lane is your timeless all-in-one bike for your city and beyond! Lower entry and a more upright riding position – the Swing Step version is the more comfortable veloheld.lane.
With the low-maintenance Shimano Alfine 11-speed hub gears in combination with the oil-free Gates CentreTrack belt drive, you can enjoy your daily tours without any worries. Thanks to the bright SON lighting, commuting is no problem even in the dark.
And if the weather doesn’t play along, the long aluminium mudguards painted in the same colour as the frame ensure that you stay dry. Ready for your city or the surrounding countryside? Leave others behind and enjoy your own personal “rush hour”!
The veloheld.lane is also available with a high top tube or as a frameset (including fork and mudguards) – and of course in the colour of your choice!
In the wild!
Veloheldin Marit is 1.65 m tall and has an inside leg length of 77 cm and rides the frame height S. The special frame colour is "Candy Red".
Highlights
Efficient and easy to clean
The Shimano Alfine 11-speed hub gear with the low-maintenance Gates belt drive
For the big tour
The optional Rohloff Speedhub 14-speed gear hub
Frame
- Double butted tubes made of 4130 CroMoly steel, TIG-welded
- EBB eccentric bottom bracket for tensioning the belt
- Stainless steel dropouts with internal IS2000 disc brake mount and KSA 18 side stand mount
- Rohloff compatible with OEM2 torque support
- Shift and light cable internal routed in the down tube
- Anti-rust ED-Black coating in and on the frame
- larger diameter down tubes and top tube for frame heights L and XL for more rigidity,
- 2 x 2 bottle cage eyelets, 2 additional eyelets for pannier racks on the seat stays
Fork
- Double butted tubes made from 4130 CroMoly
- 1 1/8" steerer
- IS 2000 brake mount
- internally routed light cable
- Eyelets for front rack
Drive
Internal Gear hub
Shimano Alfine SG-S7000 11-speed hub gears
or
Rohloff Speedhub 14-speed hub gears

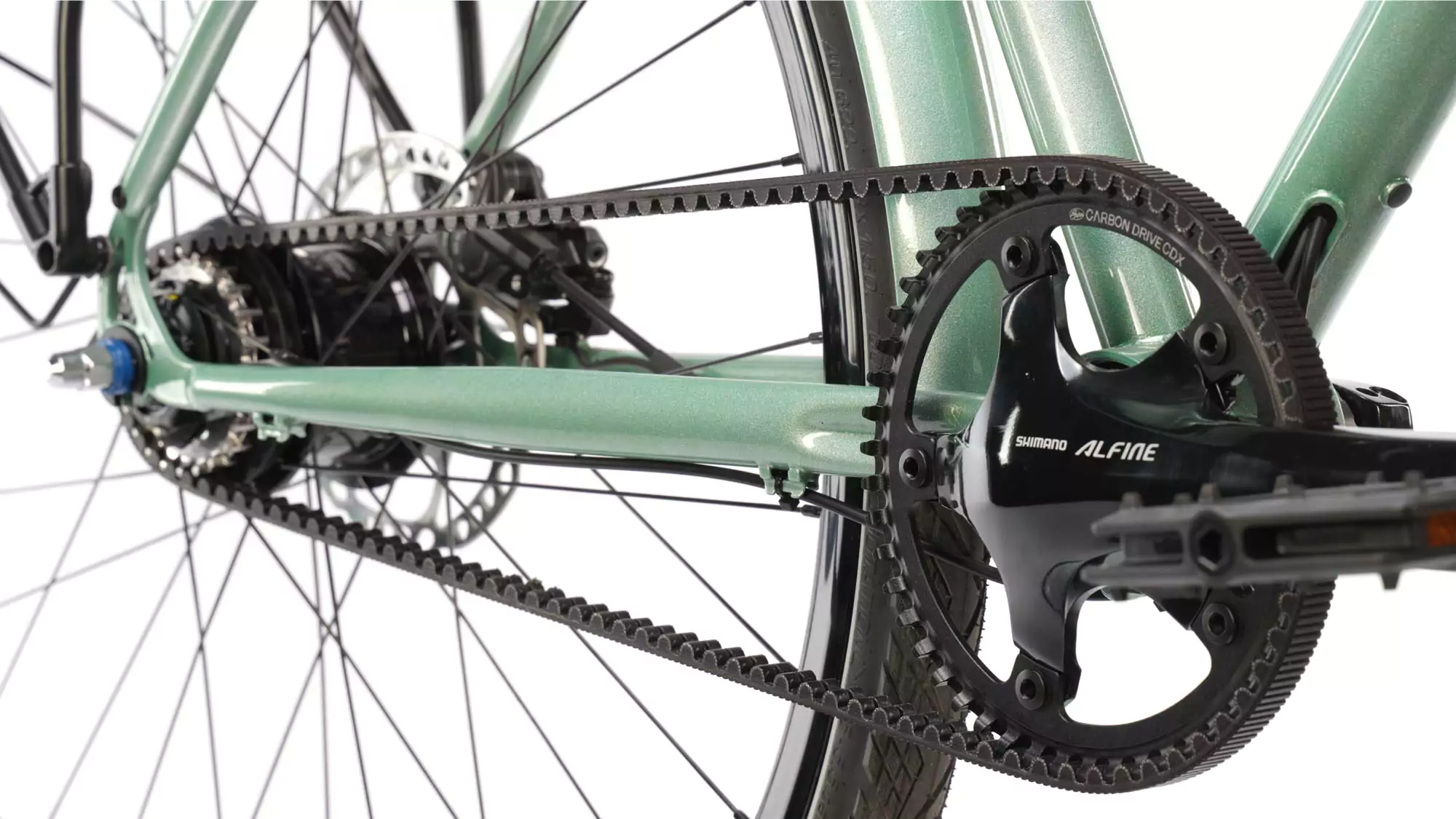

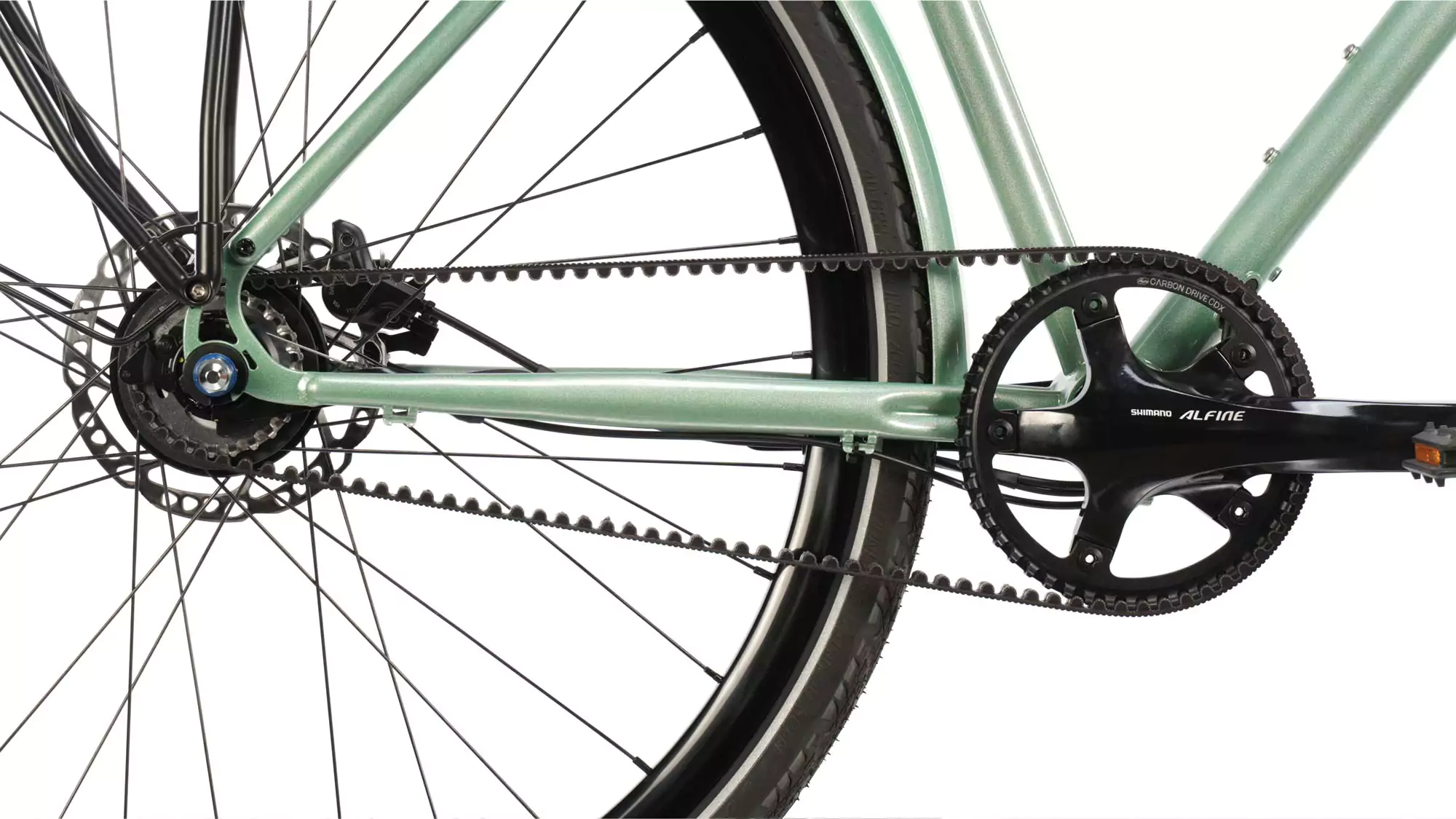

Belt Drive
Gates CenterTrack CDX belt
118t (Alfine) or 122t (Rohloff)
Pulley
Alfine:
front: 50t Gates Carbon Drive CenterTrack Front Sprocket, rear: 24t Gates CenterTrack CDX Sprocket
Rohloff:
front: 60t Gates Carbon Drive CenterTrack Front Sprocket, rear: 22t Gates CenterTrack CDX Sprocket

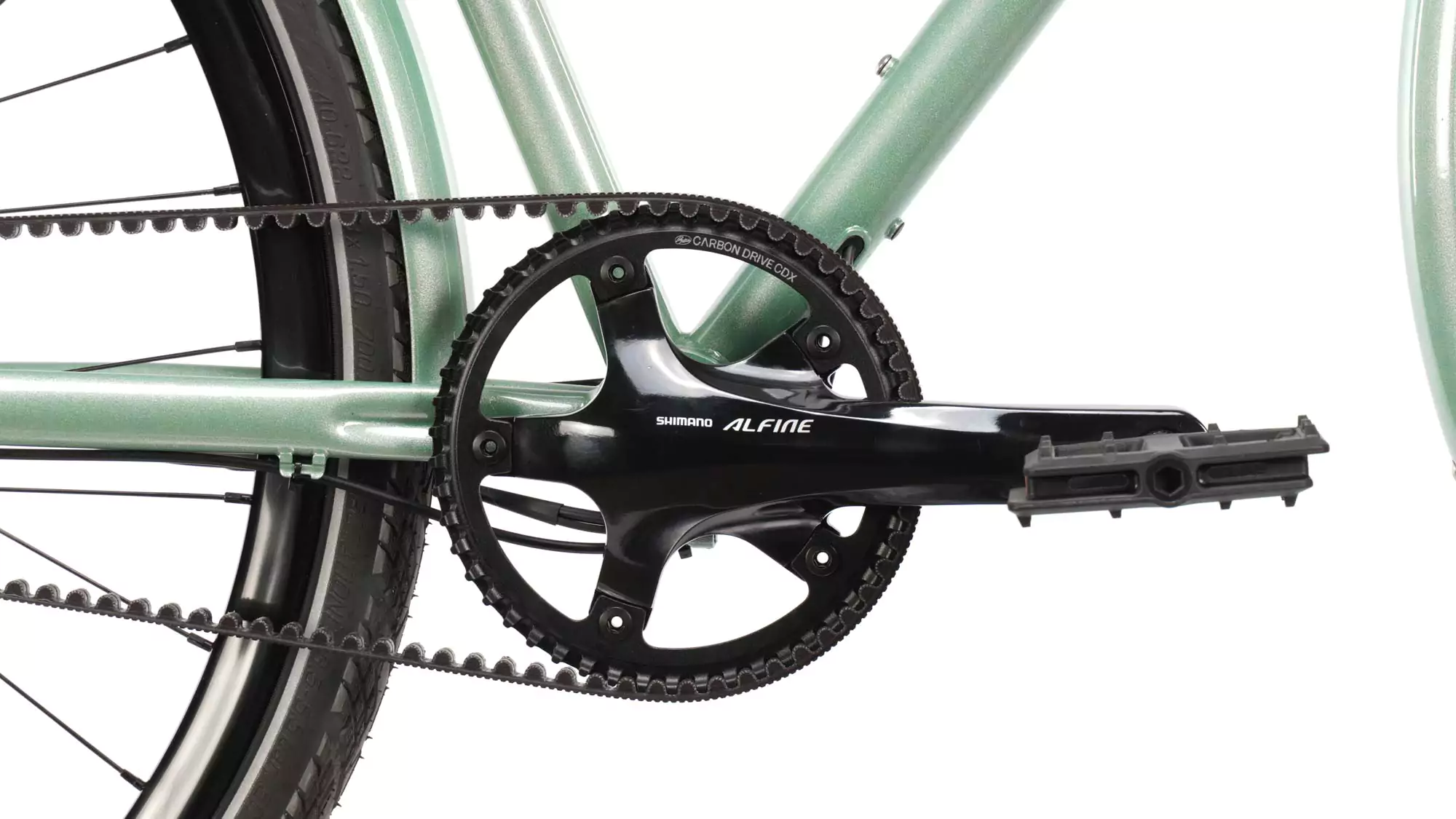

Cranks
Shimano Alfine, black or silver
Bottom Bracket
Shimano Hollowtech II BSA
Pedals
VP-538 – black plastic body, CroMo axle, industrial bearings

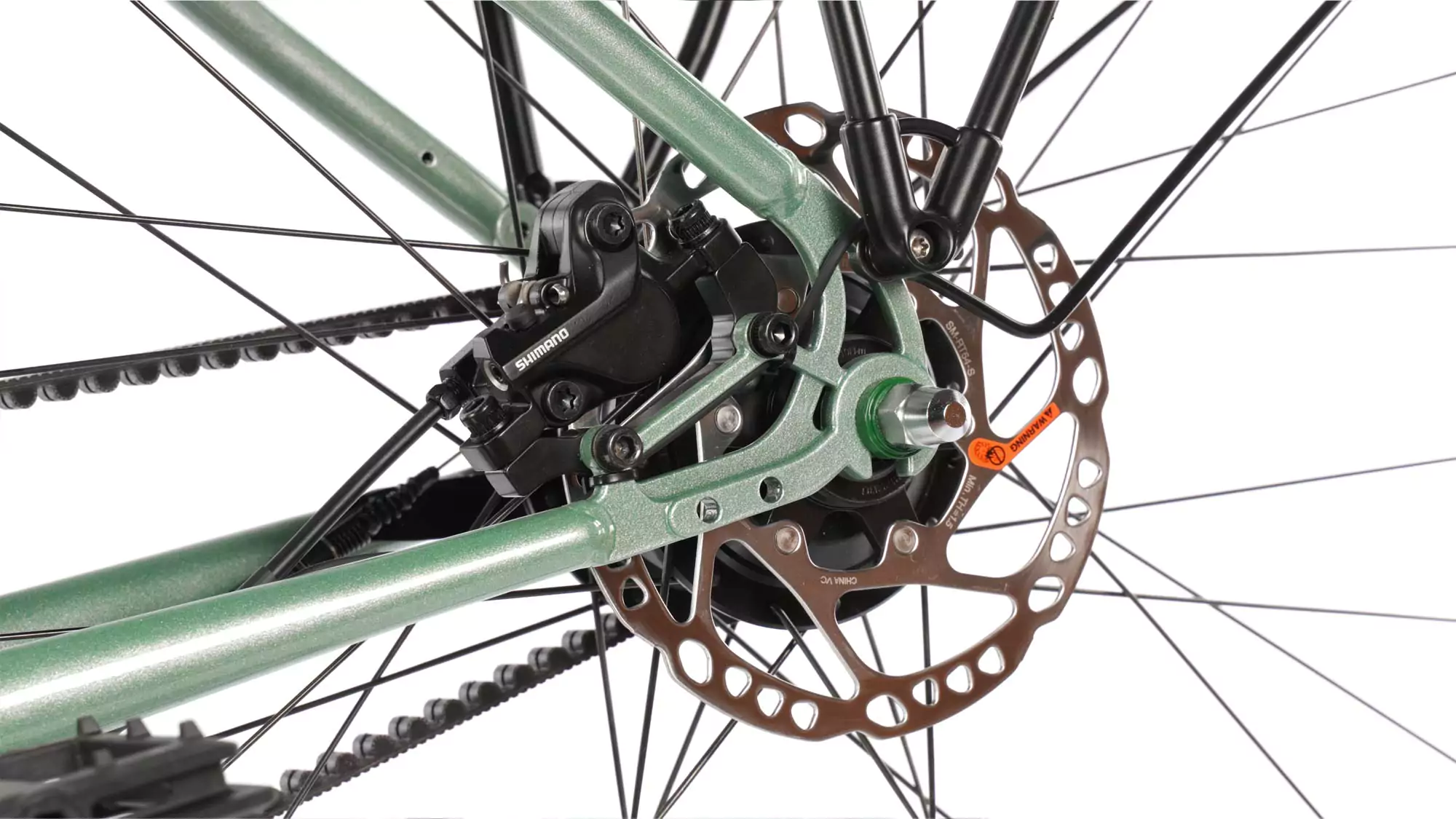

Brakes
Brake lever
Alfine:
Shimano BL-MT501
Rohloff:
Shimano BL-S7000
Brake body
Alfine:
Shimano BR-MT500
Rohloff:
Shimano BR-7000
Brake disk
Alfine:
Shimano SM-RT64
Rohloff:
Shimano SM-RT54 front and Hope Rohloff rear
Front and rear brake discs with 160 mm diameter
Wheels & tires
Front wheel
Rim: Kinlin XC-279, aluminum hollow chamber, 32h, black or silver
SON 28 hub dynamo 6V/3W, black or silver (Made in Germany, 5-year guarantee)
each available in black or silver
Rear wheel
Rim: Kinlin XC-279, aluminum hollow chamber, 32h
Shimano Alfine SG-S7000 11-speed hub
or
Rohloff Speedhub 500 14-speed hub
each available in black or silver
Tires
SCHWALBE Tour-/City tire 40-622, color: Black+Reflex

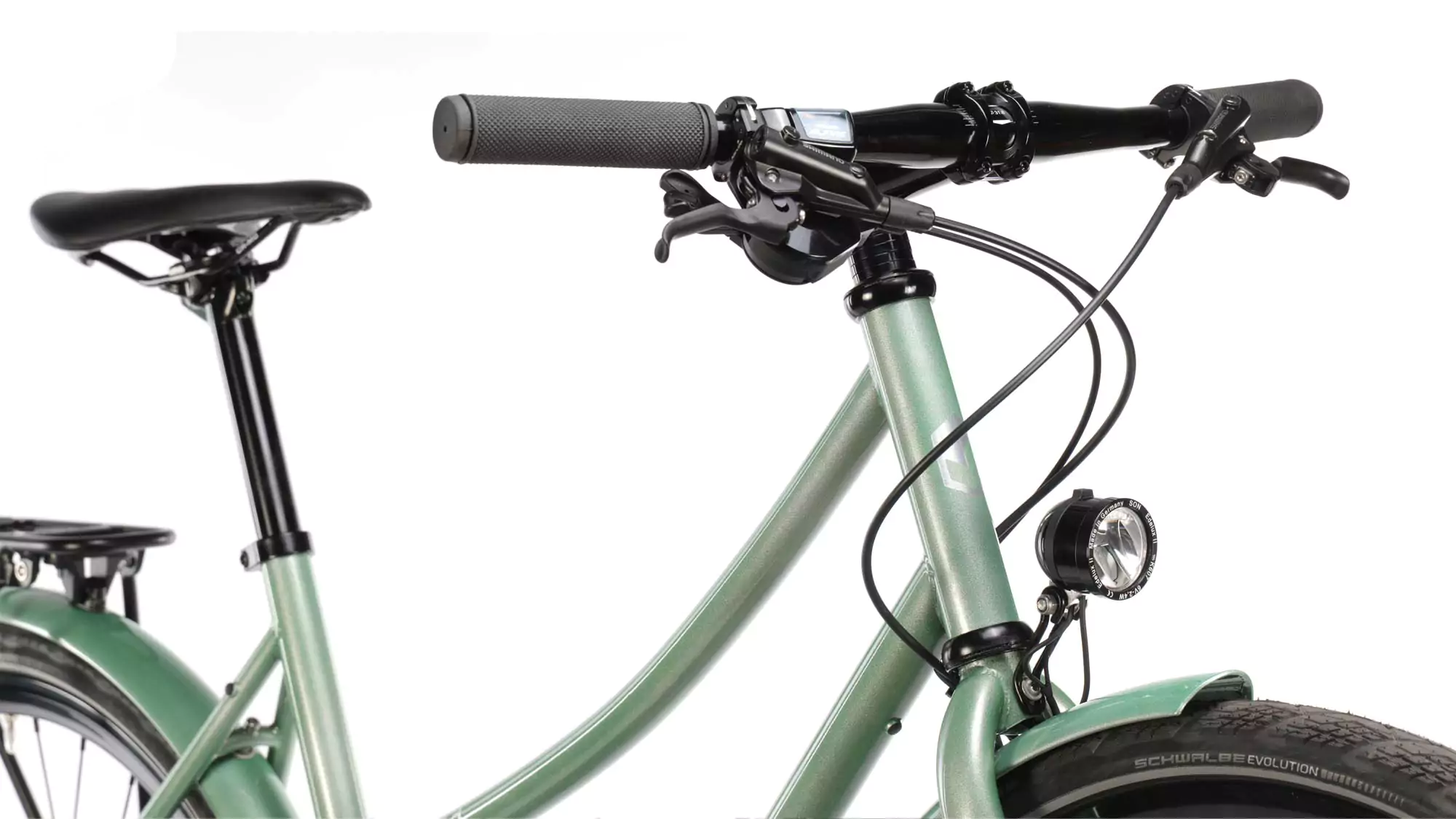

Cockpit
Stem
veloheld – black or silver, 80 mm (S), 90 mm (M, L)
6 spacers 0.5 mm each
Handlebar
veloheld arc bar – black or silver, 580 mm, ø 31.8 mm, 15°
Grips veloheld black
Headset
Acros AH-34; black or silver, 1 1/8″, sealed industrial bearings
Sitting
Saddle
veloheld, black
Seat post
veloheld aluminium, black or silver, ø 27.2 mm, 350 mm
Miscellaneous

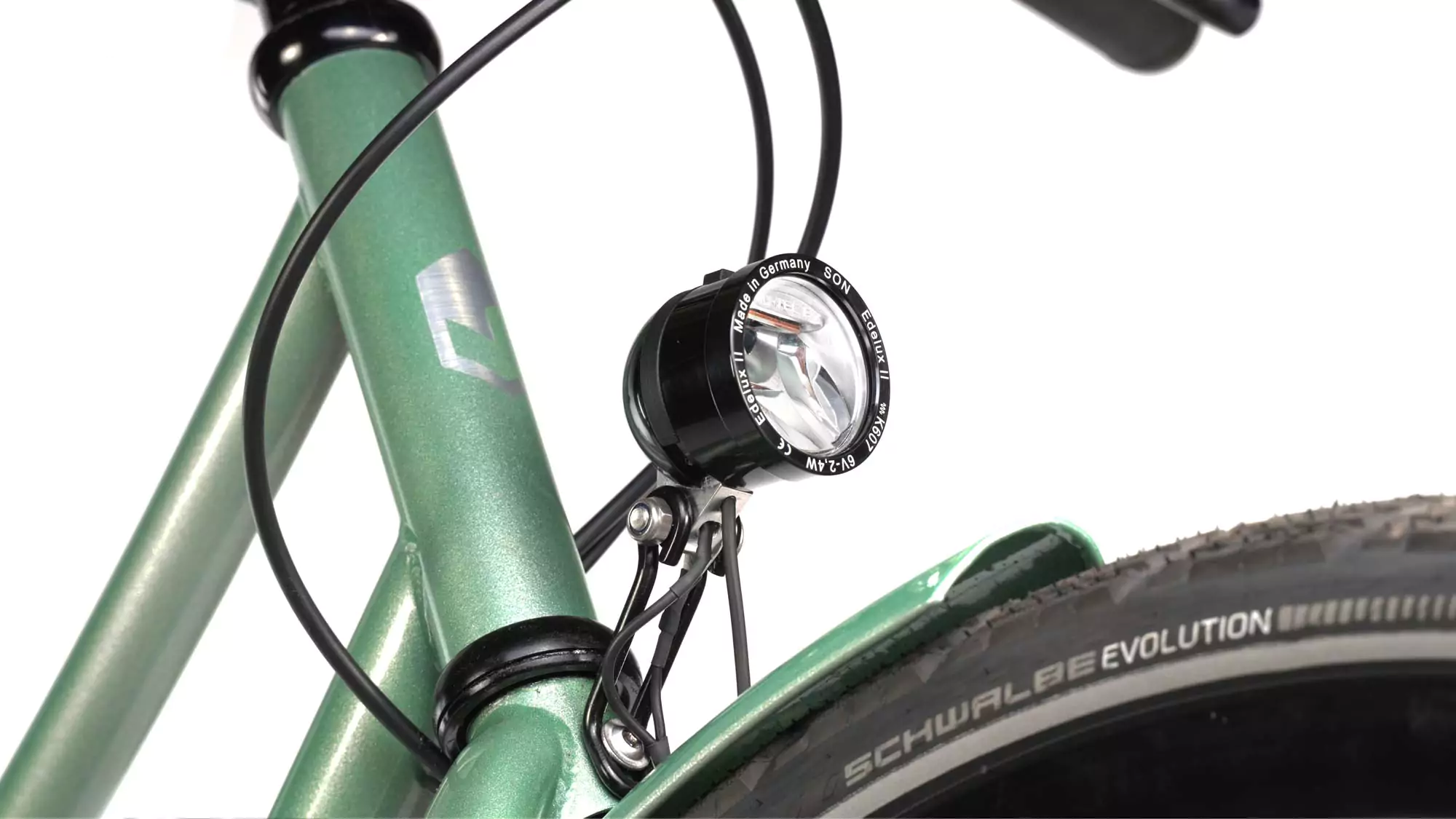

Lighting
SON Edelux II front and SON rear light with parking light function, black

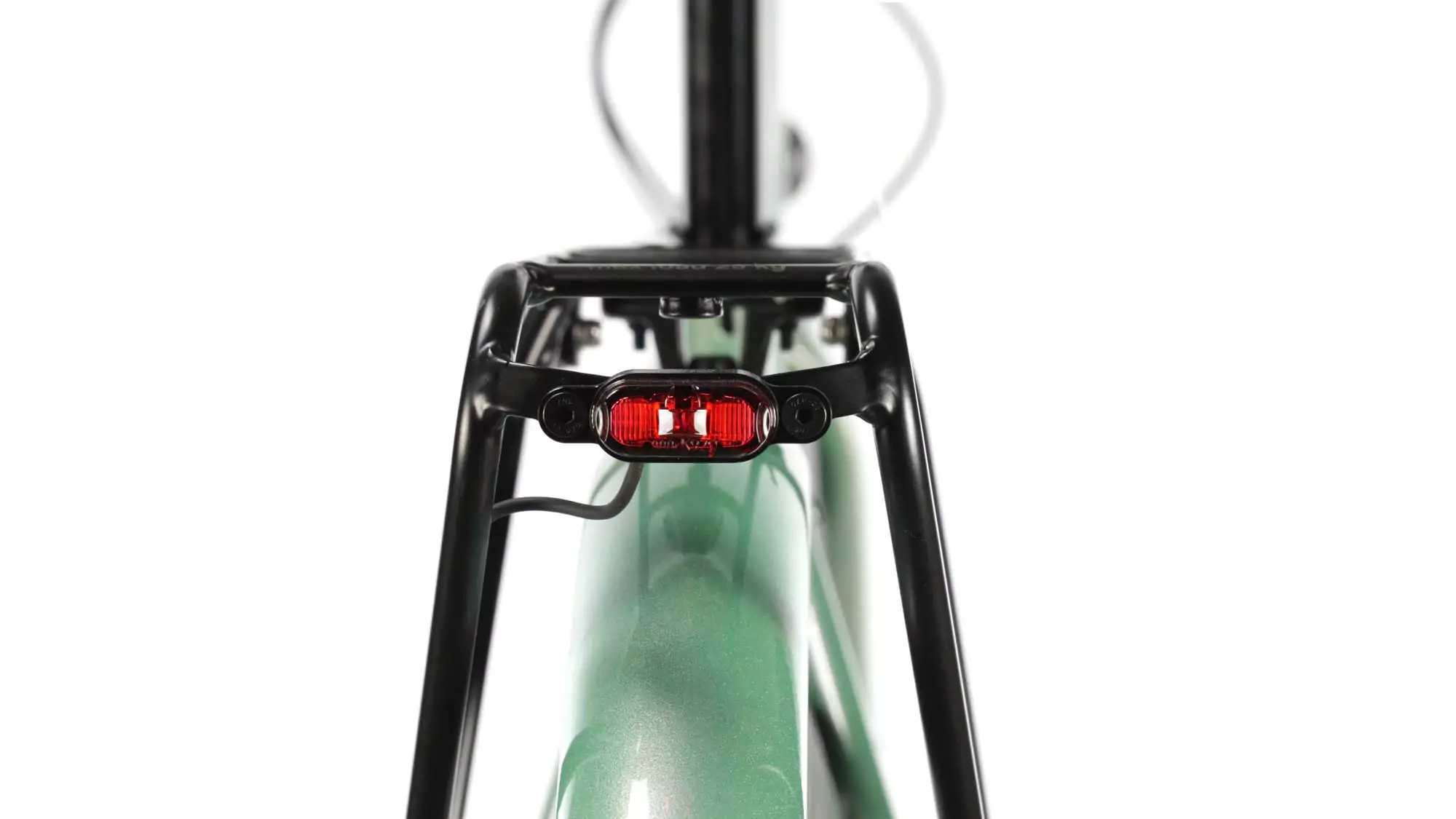

Rack
Racktime Spica integrated, black, suitable for 25 kg luggage
Mudguards
made of durable aluminum, powder-coated in frame color, 45mm width
Kickstand
incl. Hebie Fix 18 rear kickstand

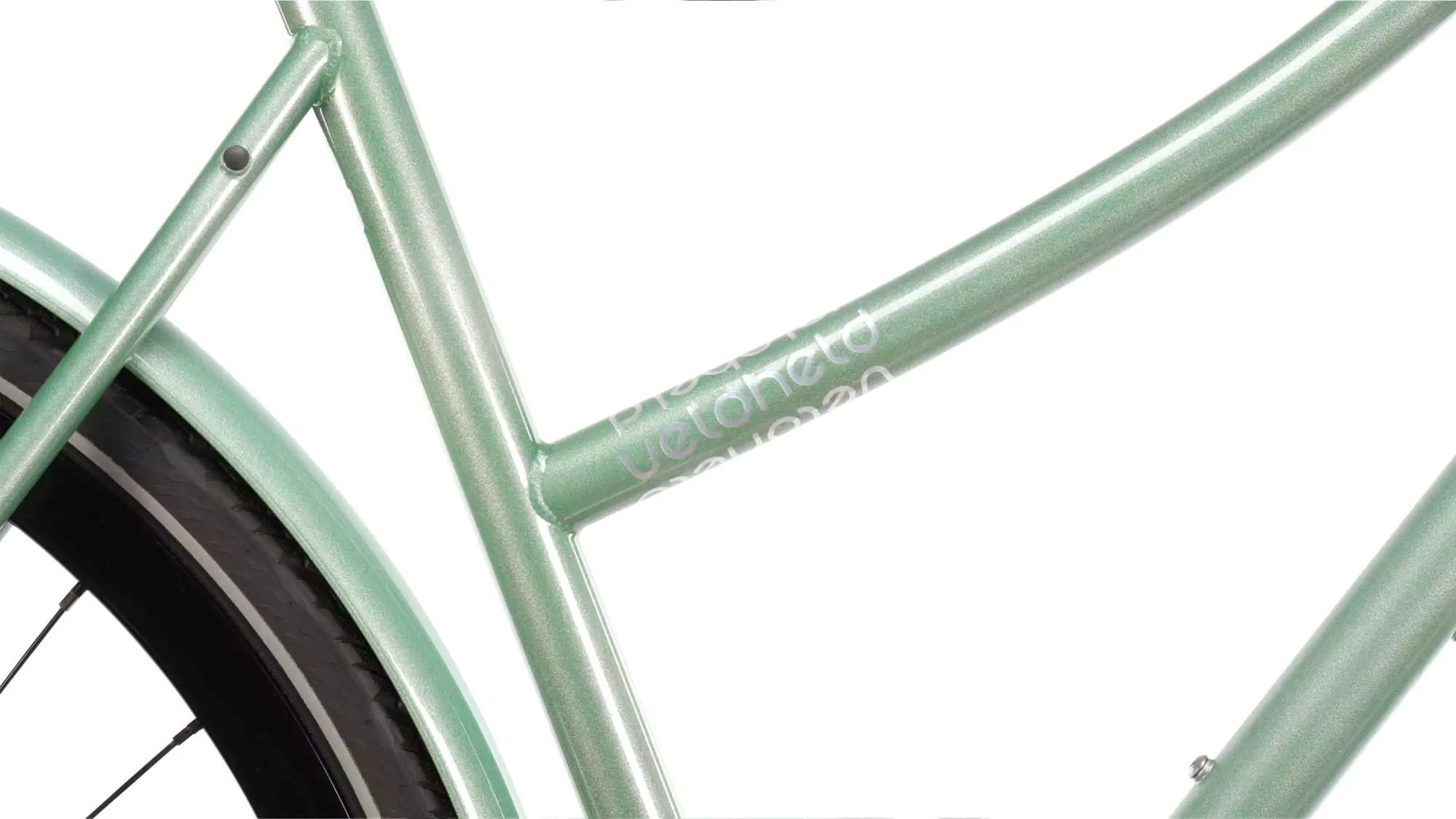

Colors
Standard colour
Frozen Tundra, glossy with silver decor
Custom color
RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.
If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.
Größen
S, M, L
Gewicht
ab ca. 13,6 kg
Classification
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Note
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
| Frame size | S | M | L |
|---|---|---|---|
| for approx. body height in cm | 160 - 170 | 170 - 180 | 180 - 190 |
| for approx. inside leg length in cm | 70 - 79 | 77 - 85 | 83 - 91 |
| A Seat tube length | 460 | 490 | 520 |
| B Top tube length | 565 | 580 | 595 |
| C Wheelbase | 1062 | 1072 | 1082 |
| D Head tube length | 150 | 170 | 190 |
| E Head tube angle | 70,5° | 71° | 71,5° |
| F Seat tube angle | 73° | 73° | 73° |
| G Chainstay length | 440 | 440 | 440 |
| H Fork offset | 51 | 51 | 51 |
| I approx. bottom bracket drop | 60 | 60 | 60 |
| J Stack | 577 | 598 | 619 |
| K Reach | 389 | 397 | 406 |
| Standover height | 660 | 690 | 715 |
Add a review
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.
To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.
You will find all the exact assembly steps in the assembly instructions.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.
If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Please register your bike here within 3 months of purchase to receive the warranty.
The maximum permissible system weight for the veloheld.lane consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes S and M and kg and 140 kg for frame sizes L and XL. Please note that the fork with a pannier rack may be loaded with max. 15 kg (7.5 kg per side) and the frame with a maximum of 25 kg via the carrier.
At the moment you can only mount a child seat directly on the veloheld.lane in the mid step version to mount a child seat directly on the seat tube. The veloheld.lane with high top tube is not approved for this.
Yes, you can mount a KSA18 kickstand directly on the left dropout. A Hebie Fix 18 kickstand is already fitted for you with the complete bike.
Send us your question via the contact form or use our other contact options and we will answer your questions.
