Original price was: 34,90 €.24,90 €Current price is: 24,90 €.
As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 5–7 weeks after order confirmation to manufacture and ship available bikes.
Perfect shifting on drop bars with the 12 electronic gears of the low-maintenance Pinion gearbox
Optional SON lighting with optimised cable routing
Frame: Axle length: 166 mm; thread length 15 mm; pitch M12x1.0
veloheld steel fork made of double-ended reinforced CrMo steel, 1 1/8″ – 1 1/2″ head tube, flat mount disc brake mount for 140 or 160 mm disc, mounting eyelets for attaching your luggage using “triple cages” or a front luggage rack (“lowrider rack”), mudguard mounting and internal light cable routing possible, installation dimensions: 12×100 mm incl. thru axle, max. load capacity: 5 kg per fork side
oder
veloheld carbon fork with tapered head tube, side “triple cage” eyelets for mounting your lightweight luggage (max. load capacity: 3 kg per fork side), flat mount disc brake mount for 140 or 160 mm discs, mounting eyelets for mudguards, internal brake and light cable routing, installation dimensions: 12×100 mm incl. thru axle and expander
DT Swiss 350 Hybrid single speed rear hub + 370 front hub (32 holes, for thru axle)
with DT Swiss G 540 rims (32 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and bike))
Optional with SON lighting:
SON 28 DYNAMO hub
Schwalbe G-ONE Allround, foldable, Tubeless Easy (delivered with inner tube), 45-622, bronze-skin
Max. approx. 50-622 (28″) or 54-584 (27.5″) mm wide tyres (depending on make and rim) possible in frame and fork without mudguards
Ritchey WCS C220 84D, Black blade
80 mm for frame height (XS, S), 90 mm (M, L), 100 mm (XL, XXL)
6 spacers
Ritchey WCS Butano, Blatte Black, Drop 115mm, Reach 73mm, Drop flare 18°, </spa
Ritchey WCS Butano, Blatte Black, Drop 115 mm, Reach 73 mm, Drop flare 18°, Backsweep 5°
Width: 400 mm (XS, S) , 420 (M, L), 440 (XL, XXL)
Includes Acros headset 1 1/8″ ZS44/28.6 top and EC 44/40 headset bottom
veloheld, black
Ritchey WCS Alloy Link, Blatte Black, 350 mm, setback 20 mm
S, M, L, XL
Mudguards: made of durable aluminium, powder-coated in frame colour, 50 mm wide (Please note that due to the compact geometry, especially with smaller frame sizes, contact with the foot may be possible when turning sharply, depending on the pedal system, shoe size and shoe shape.)
SON Edelux II with handlebar mount + SON rear light for saddle clamp
Beetle Juice
RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.
If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.
Complete bike from approx. 12.8 kg (frame height M
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.

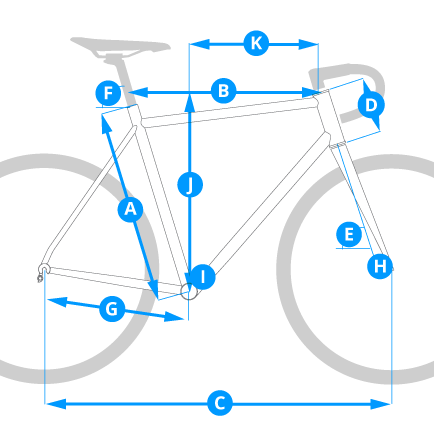

| Rahmenhöhe | S | M | L | XL |
|---|---|---|---|---|
| für ca. Körpergröße in cm | 164 – 174 | 173 – 182 | 181 – 188 | 187 – 193 |
| für ca. Innenbeinlänge in cm | 75 – 80 | 78 – 85 | 82 – 88 | ab 85 |
| A Sitzrohrlänge | 470 | 510 | 540 | 560 |
| B Oberrohrlänge | 541,5 | 563 | 579 | 594,5 |
| C Radstand | 1050 | 1063 | 1075 | 1087 |
| D Steuerrohrlänge | 130 | 150 | 170 | 190 |
| E Lenkwinkel | 70,5° | 71° | 71,5° | 72° |
| F Sitzwinkel | 74° | 73,5° | 73,5° | 73,5° |
| G Kettenstrebenlänge | 457 | 457 | 457 | 457 |
| H Gabelvorlauf | 50 | 50 | 50 | 50 |
| I Tretlagerabsenkung | 77 | 77 | 77 | 74 |
| J Stack | 564 | 584,5 | 605 | 623 |
| K Reach | 380 | 390 | 400 | 410 |
| Laufradgröße | 27.5" oder 28" | 27.5" oder 28" | 27.5" oder 28" | 27.5" oder 28" |
| Überstandshöhe | 749 | 783 | 809 | 823 |
| ca. Sitzhöhe ab Mitte Tretlager bis Satteloberkante | 664 - 708 | 690 - 752 | 726 - 779 | 752 - 812 |
The bike is delivered almost fully assembled and safely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information on assembly here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars and stem must be turned in the direction of travel, the pedals installed and your saddle height adjusted.
Alle genauen Schritte der Montage findest Du in der Aufbauanleitung.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first to make sure that they have the bike in stock and can prepare it for you if necessary.
Wenn Du das Rad direkt bei uns kaufst, kannst Du es nach Erhalt und Montage bei Dir zu Hause auf trockenem Untergrund direkt Probe fahren. Sollte es Dir wider Erwarten nicht gefallen und/oder passen, holen wir es wieder versandkostenfrei bei Dir ab. Dazu musst Du es nur wieder sicher in den Versandkarton packen und auf die Abholung warten. Achtung: Dies gilt nicht für individuell angefertigte Wunschräder.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Bitte registriere Dein Rad innerhalb von 3 Monaten nach Kauf hier, um die Garantie zu erhalten.
The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.
Yes, you can mount a KSA 18 kickstand directly on the frame at the left rear dropout.
Send us your question via the contact form or use our other contact options and we will answer your questions.
Send us a message with your desired bike components or give us a call on +49 (0)351 212 952 95 and we will soon build you your ultimate veloheld dream bike!
The veloheld.iconX Pinion isn't quite what you were looking for? Then take a look at these veloheld bikes
Complete bike in size S
Complete bike in size M
Complete bike in size S
Sale Bike in size S
Ready for everyday life + adventure - Gravel comfort bike with hub gears and belt drive
Elegant touring/city bike with Alfine or Rohloff + belt drive
Comfortable touring/city bike with hub gears + belt drive
Gravelbike Randonneur with full setup
Touring/travel bike with Pinion and Gates belt drive
Gravel Utility Bike with hub gear + belt drive
The optimum saddle width depends on the distance between your sit bones - this distributes the pressure evenly when riding and prevents pain.
This is how you can easily determine the width of the SQlanb saddle:
Prepare the measuring surface
Place corrugated cardboard or cardboard box (e.g. from a shipping box) on a stable surface – preferably without padding. You can also order the free home measurement kit from SQlab.
Carry out the measurement
Sit on the cardboard with your upper body straight. It is best to wear shorts or thin trousers.
Lean slightly forward, as is usual when gravel biking – rest your elbows on your thighs.
Mark your sit bone impressions
Stand up slowly – you should see two distinct dents. Measure the distance between the centers of the two marks in millimeters.
Calculate saddle width
Add +2 cm for the position on the gravel bike
➤ Example: Seat bone distance 120 mm + 20 mm = 140 mm saddle width
Select the appropriate saddle width
Select the corresponding value in the order process.
Our tip:
Although sit bones can get used to pressure loads in the long term, pain at the start of the season or with a new saddle is normal and often requires five to six rides to adjust. You should take a break of at least two days between these first rides to give irritated periosteum and muscle and tendon attachments time to recover.
The right handlebar width ensures comfort, control and riding enjoyment - especially on long distances and off-road.
The right handlebar width ensures comfort, control and riding enjoyment – especially on long distances and off-road.This is how you can easily determine it:
Our tip:
If you’re wavering between two widths, choose the narrower version for sportier riding – and the wider one for more comfort and control off-road.
