from 2.999,00 €
As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 6 - 8 weeks after order confirmation to manufacture and ship available bikes.

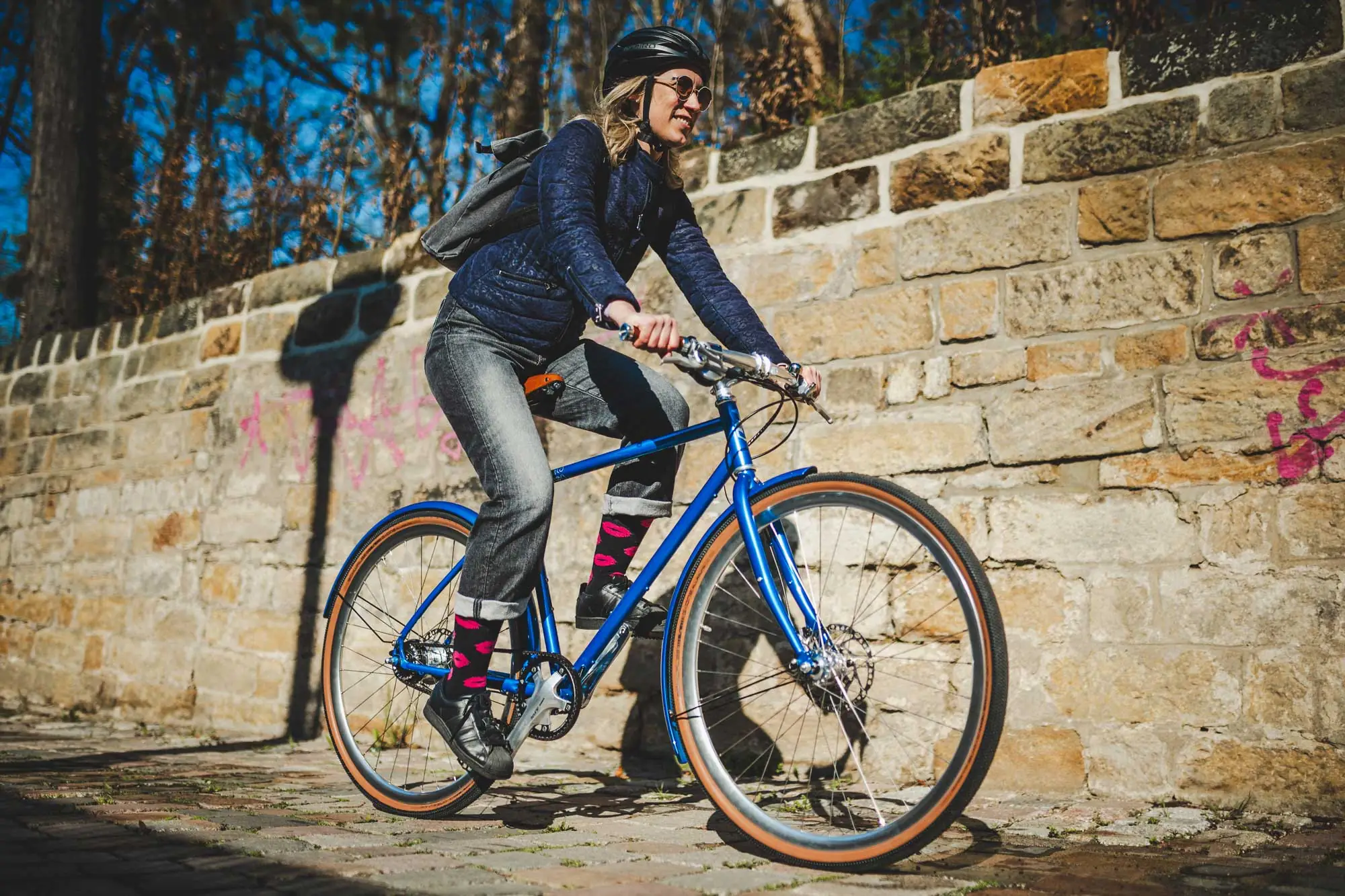

Whether for daily commuting, relaxed tours or quick errands – the veloheld.lane Blue Ltd can do it all. This limited edition special model comes in a beautiful blue colour, powder-coatedfrom frame to fork, and attracts everyone’s attention with its polishedsilver components.
The low-maintenance Shimano Alfine 11-speed hub gear ensures a relaxed ride.gear hub in combination with the oil-free Gates CentreTrack belt drive – quiet, clean and reliable
Even in the dark you are safe on the road thanks to the Lightskin lighting, powered by the SON hub dynamo.
And if the weather doesn’t play ball? No problem! The aluminium mudguards painted in the same colour as the frame keep you dry. The whole thing is rounded off with a Brooks leather saddle and matching grips, which are not only comfortable but also give the bike a classy touch.
Ready for your next urban adventure? The veloheld.lane Blue Ltd is waiting for you!
The Shimano Alfine 11-speed hub gear with the low-maintenance Gates belt drive for city and touring

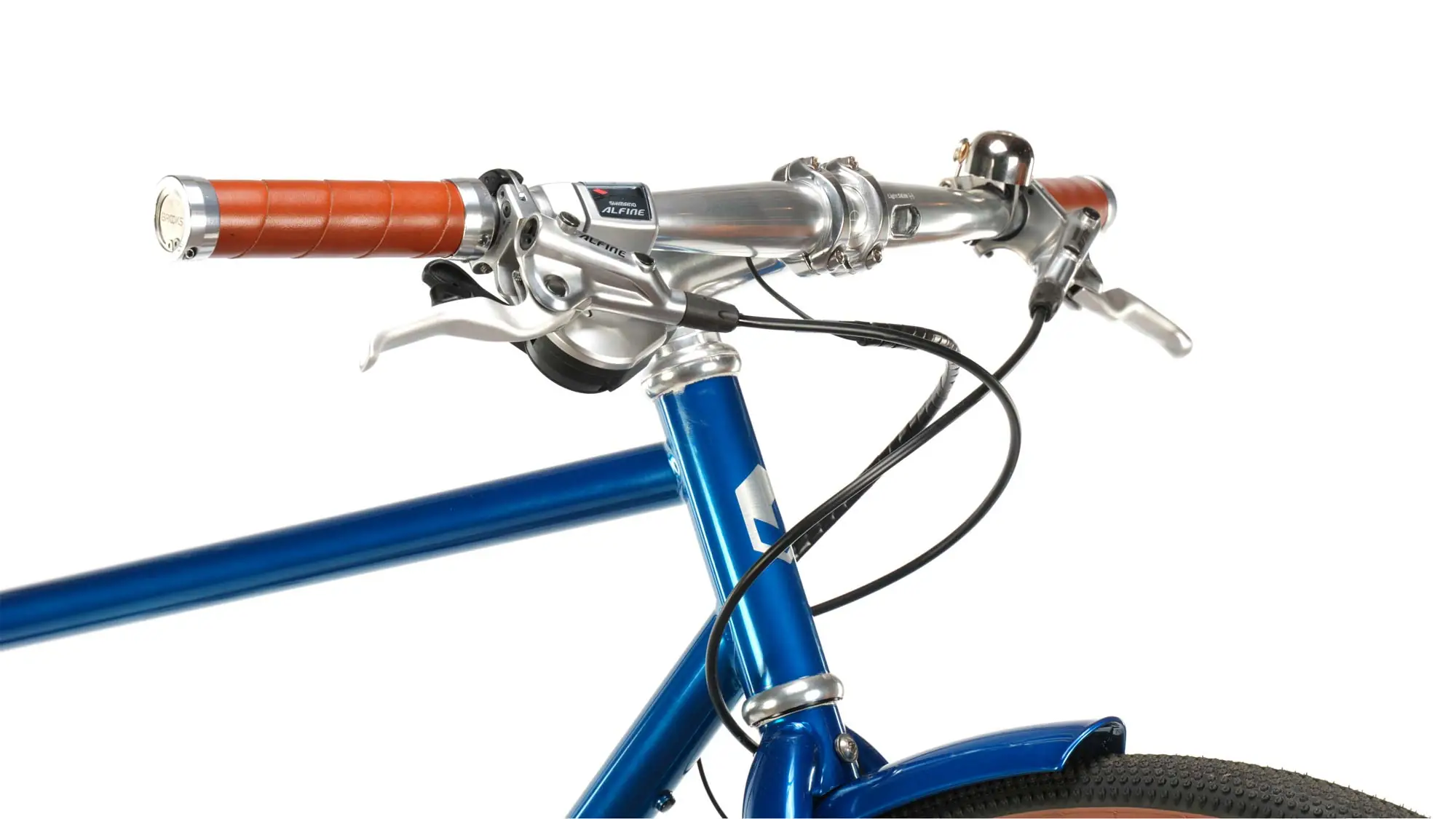

The LightSKIN lighting integrated into the handlebars and seat post ensures visibility on all your routes!
Shimano Alfine SG-S7000 11-speed gear hub, silver
Gates CenterTrack CDX belt, 118t
Alfine:
front: 50t Gates Carbon Drive CenterTrack Front Sprocket, rear: 24t Gates CenterTrack CDX Sprocket
Shimano Alfine, silver, 170 mm
Shimano Hollowtech II BSA
VP-538 – black plastic body, CroMo axle, industrial bearings
Shimano BL-S7000, silver
Shimano BR-S7000, silver
Shimano SM-RT64
Front and rear brake discs with 160 mm diameter
Rim: Radial D28, aluminium hollow chamber, 32h, silver
SON 28 hub dynamo 6V/3W, silver (Made in Germany, 5-year guarantee)
Rim: Radial D28, aluminium hollow chamber, 32h, silver
Shimano Alfine SG-S7000 11-speed hub, silver
SCHWALBE G-ONE ALLROUND 40-622, Performance, color: Black+Bronze
veloheld.stem – silver, 90 mm (S), 100 mm (M, L), 110 mm (XL)
6 spacers 0.5 mm each
LightSKIN S311D, silver, ø 27,2, 350 mm
Acros AH-34; silver, 1 1/8″, Sealed industrial bearings
Brooks B17, honey
LightSKIN S311D, silber, ø 27,2, 350 mm, ohne Schalter, permanent leuchtend
made of durable aluminum, powder-coated in frame color, 50 mm width
optional Tubus Fly, silver or in frame colour, suitable for max. 18 kg luggage
optional Hebie Fix 18 rear kickstand
Anodised blue, glossy with silver decor
S, M, L, XL
From approx. 13.6 kg
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
| Frame height | S | M | L | XL |
|---|---|---|---|---|
| for approx. body height in cm | 165 - 175 | 174 - 185 | 184 - 190 | 189 - 195 |
| for approx. inside leg length in cm | 77 - 81 | 82 - 87 | 86 - 91 | 90 - 96 |
| A Seat tube length | 510 | 540 | 570 | 600 |
| B Top tube length | 575 | 590 | 600 | 615 |
| C Wheelbase | 1066 | 1072 | 1076 | 1080 |
| D Head tube length | 135 | 165 | 185 | 205 |
| E Head angle | 71,5° | 72° | 72,5° | 73° |
| F Seat angle | 73,5° | 73° | 73° | 72,5° |
| G Chainstay length | 440 | 440 | 440 | 440 |
| H Fork offset | 51 | 51 | 51 | 51 |
| I ca. Bottom bracket drop | 60 | 60 | 60 | 60 |
| J Stack | 567 | 597 | 618 | 639 |
| K Reach | 407 | 408 | 411 | 414 |
| Standover height | 790 | 820 | 840 | 870 |
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.
To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.
You will find all the exact assembly steps in the assembly instructions.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.
If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Please register your bike here within 3 months of purchase to receive the warranty.
The maximum permissible system weight for the veloheld.lane consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes S and M and kg and 140 kg for frame sizes L and XL. Please note that the fork with a pannier rack may be loaded with max. 15 kg (7.5 kg per side) and the frame with a maximum of 25 kg via the carrier.
At the moment you can only mount a child seat directly on the veloheld.lane in the mid step version to mount a child seat directly on the seat tube. The veloheld.lane with high top tube is not approved for this.
Yes, you can mount a KSA18 kickstand directly on the left dropout. A Hebie Fix 18 kickstand is already fitted for you with the complete bike.
Send us your question via the contact form or use our other contact options and we will answer your questions.
Send us a message with your desired bike components or give us a call on +49 (0)351 212 952 95 and we will soon build you your ultimate veloheld dream bike!
