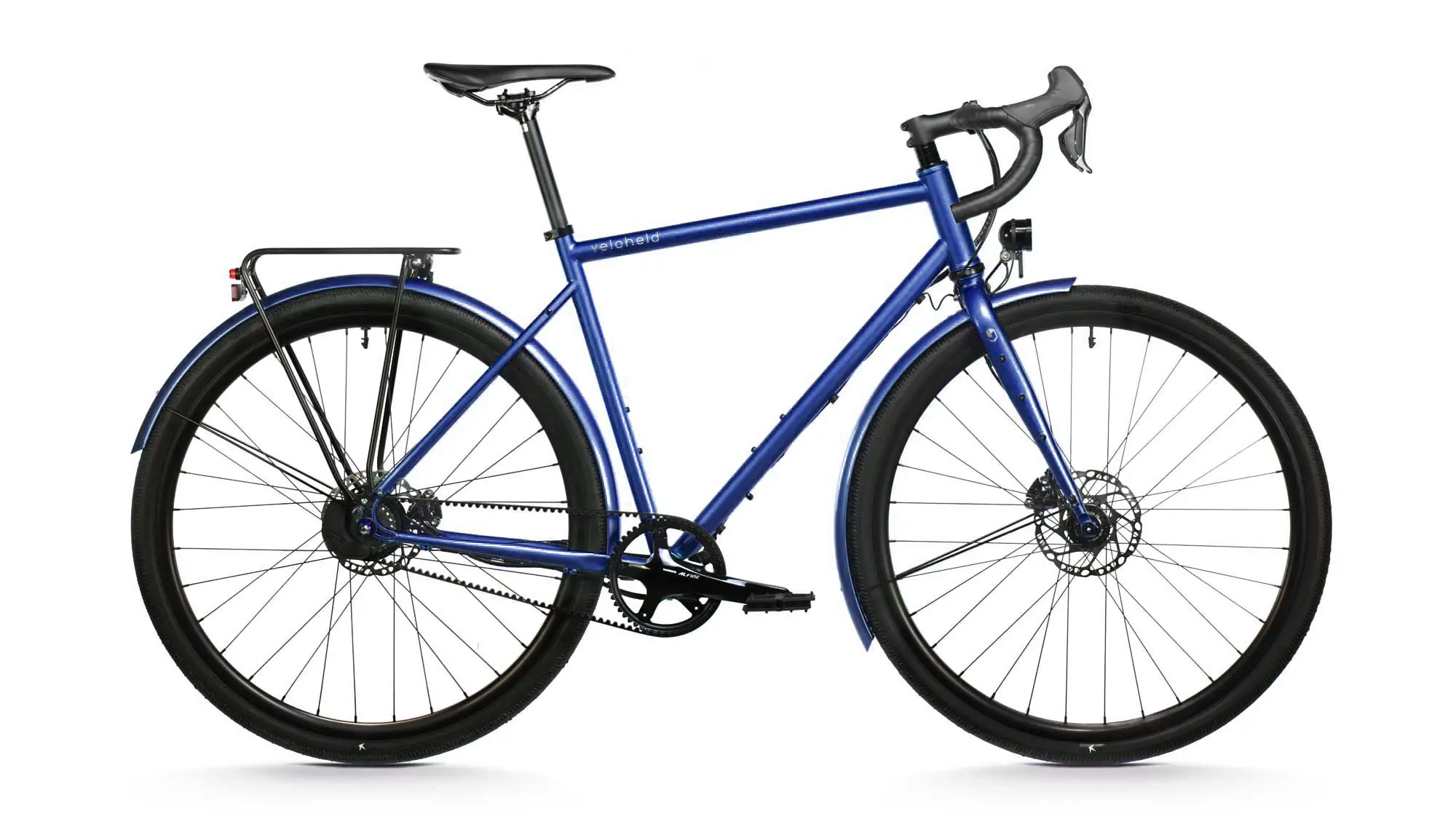

Name: veloheld.alleyX Tourist | VELOHELD
Price: 3099.00 EUR
Availability: InStock

Are you looking for a reliable everyday bike that not only impresses in city traffic, but is also fun on tours and gravel paths? Then the veloheld.alleyX Tourist is made for you. This bike combines urban style with complete suitability for everyday use and has everything you need for low-maintenance riding fun in everyday use: a robust, high-quality steel frame ensures a comfortable, stable ride – even on uneven roads.

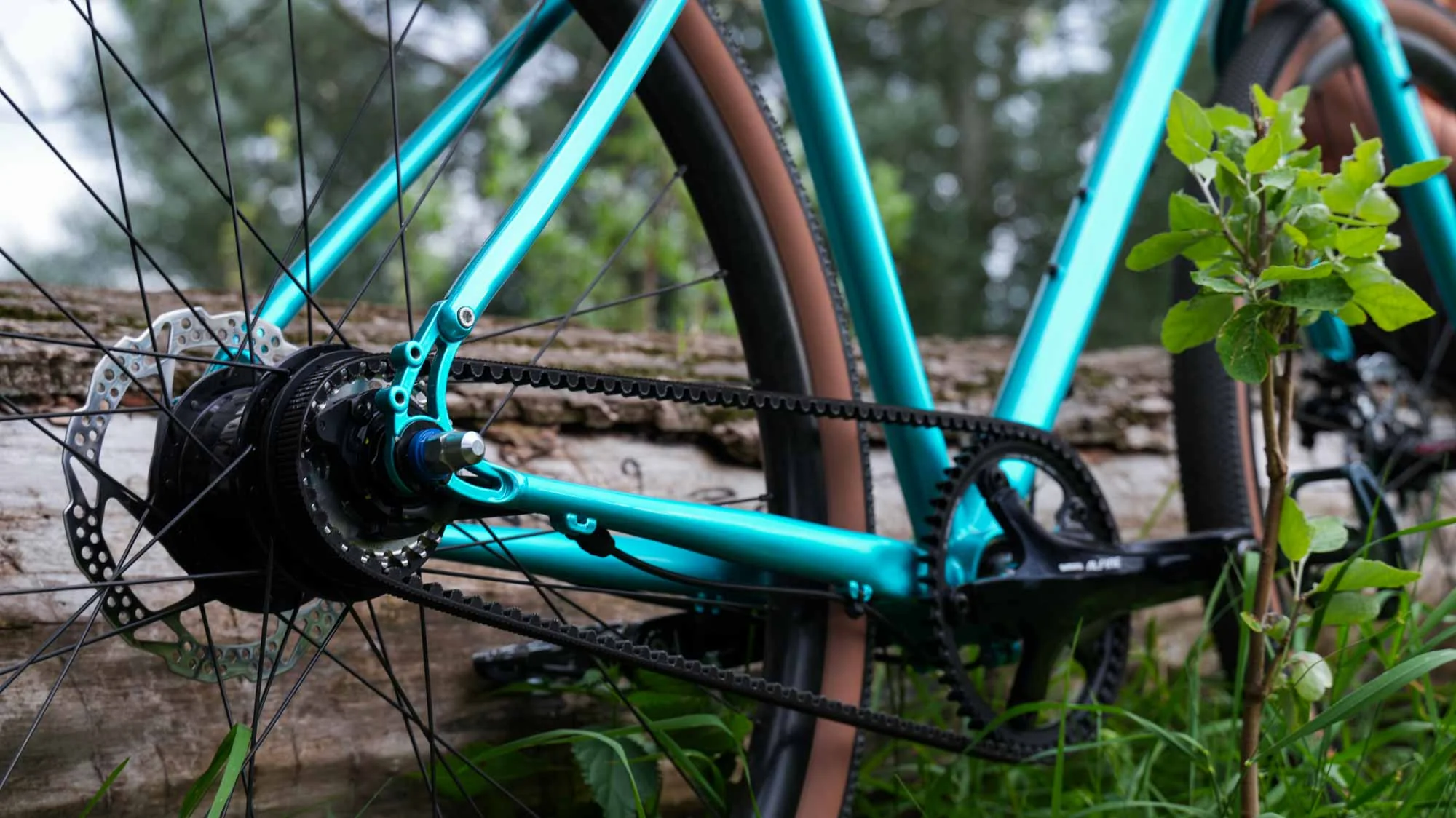

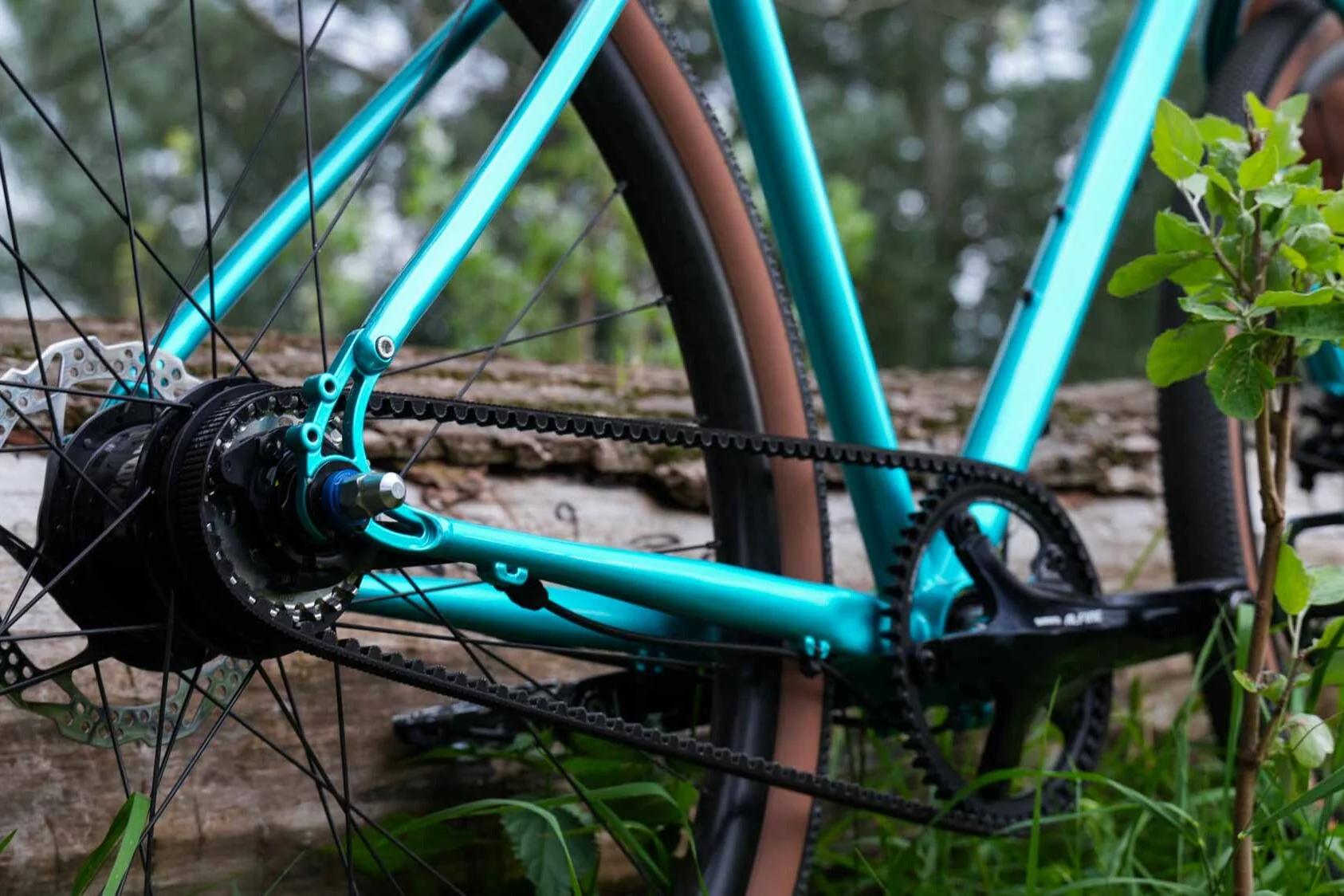

Equipped with mudguards, pannier rack and lighting system, you are safe and functional on the road in any weather. The Gates Carbon Drive belt drive runs quietly, cleanly and virtually maintenance-free, while the Shimano Alfine 11-speed gear hub shifts gears precisely and reliably – whether in the rain, on gravel or in heavy city traffic.

Whether you’re travelling to work every day, packing panniers at the weekend or spontaneously exploring new routes – the veloheld.alleyX Tourist is your comfortable companion for everyday life, travel and adventure.

In the wild!

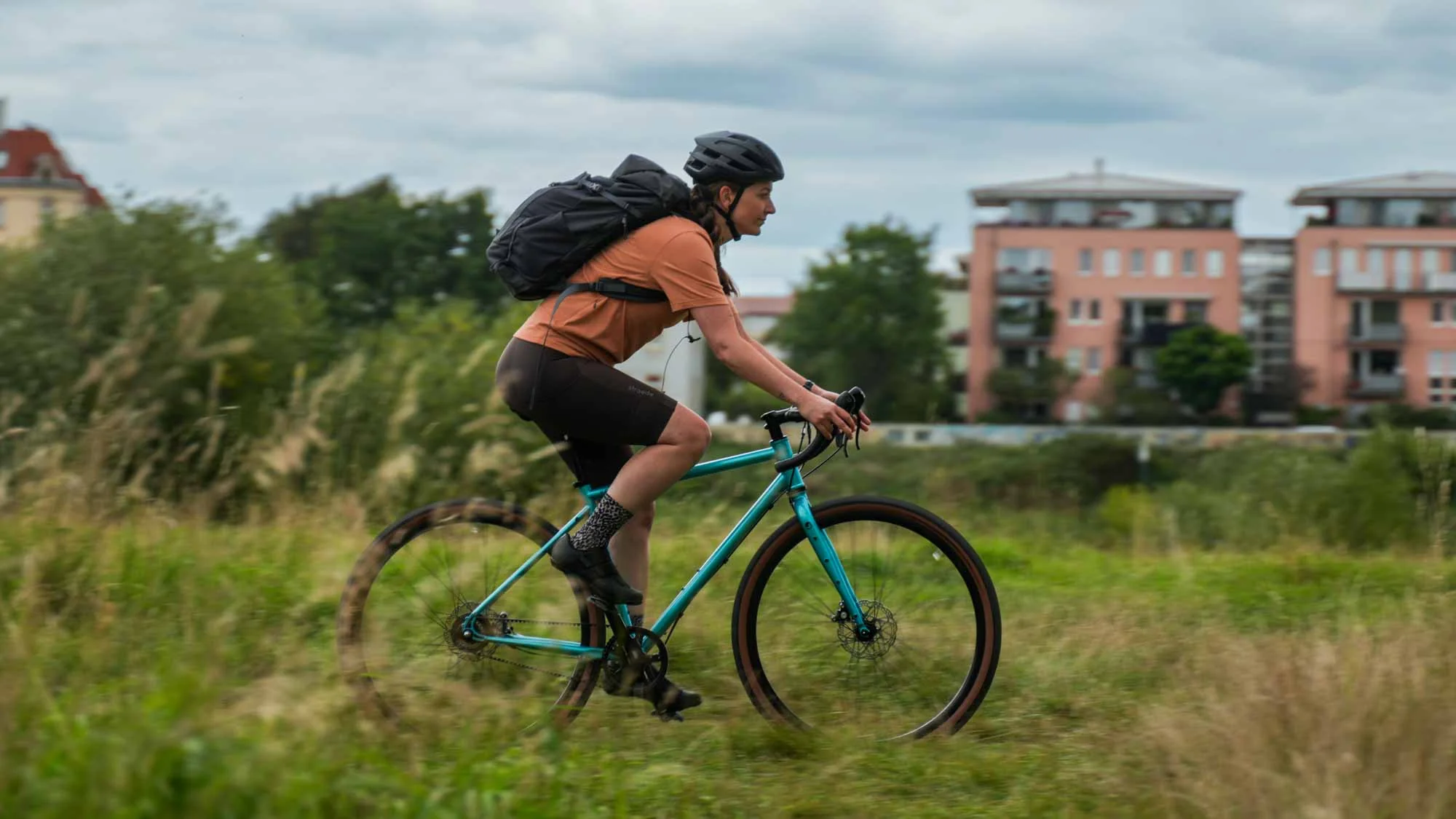

At 1.74 metres tall and 79 cm inside leg length, Lisa rides a size S frame

Highlights

Low maintenance in the drop position

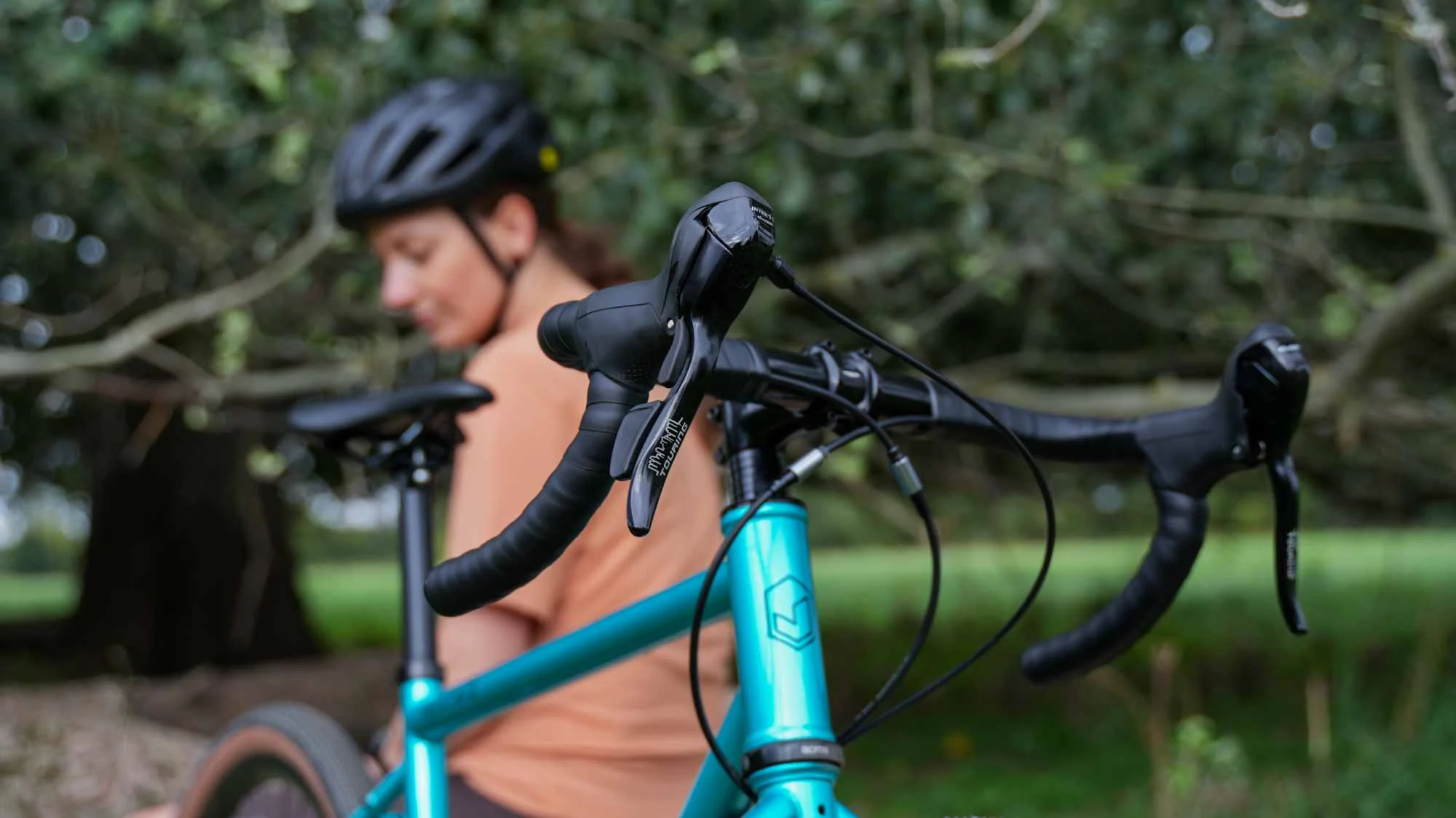

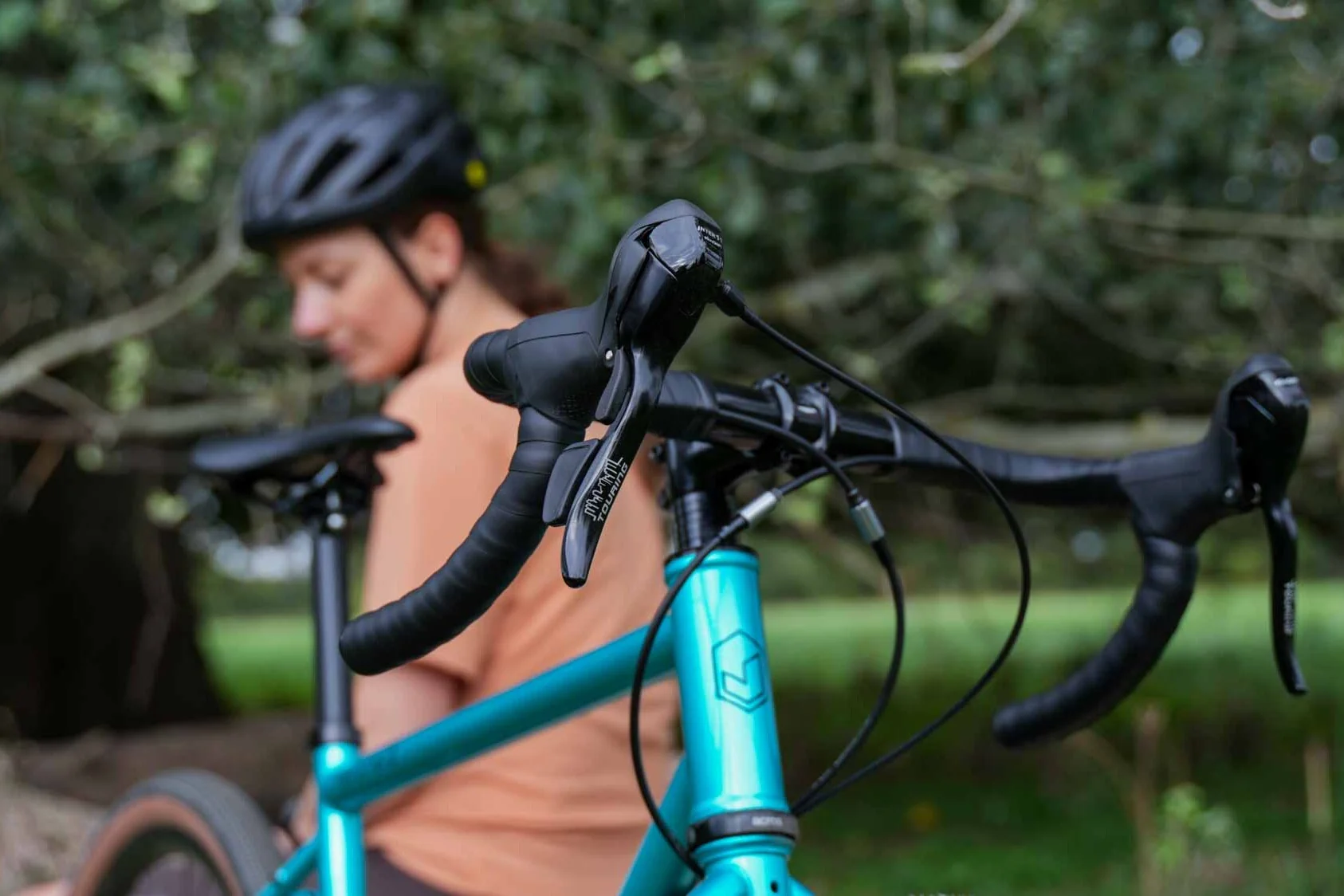

A great combination - Shimano Alfine hub gears, Gates Carbon Drive belt drive and drop bar handlebars

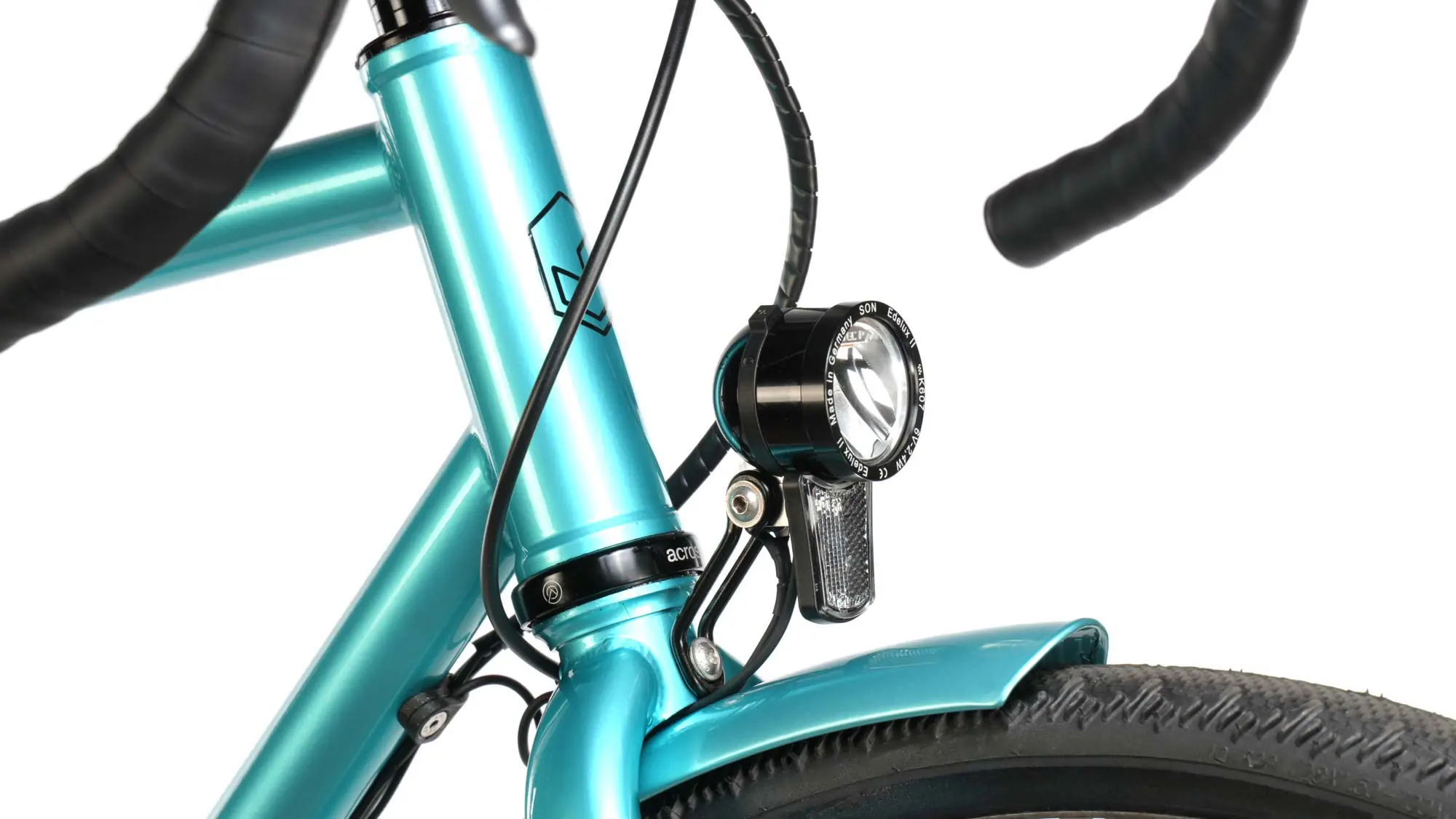

Super bright and wide light field

SON lighting system in conjunction with mudguards and pannier rack

Details

Frame

double end-reinforced tubes made of 4130 CroMoly steel, TIG-welded, EBB eccentric bottom bracket housing for tensioning the belt, dropouts with flatmount disc brake mount and integrated KSA18 kickstand mount, 3 bottle cage eyelets

Made in Europe / Czech Republic

Fork

double end-reinforced tubes made of 4130 CroMoly, tapered head tube (ø 1 1/8 – 1 1/2 ), internally routed light cable possible, “Triple Cage” eyelets for front luggage carrier or “Anything Cages”

Drive

Hubs

Shimano Alfine SG-S7000 11-speed hub gear, black, 32 holes

oder

Shimano Alfine Di2 SG-S7051 11-speed electronic hub gear, 32 holes

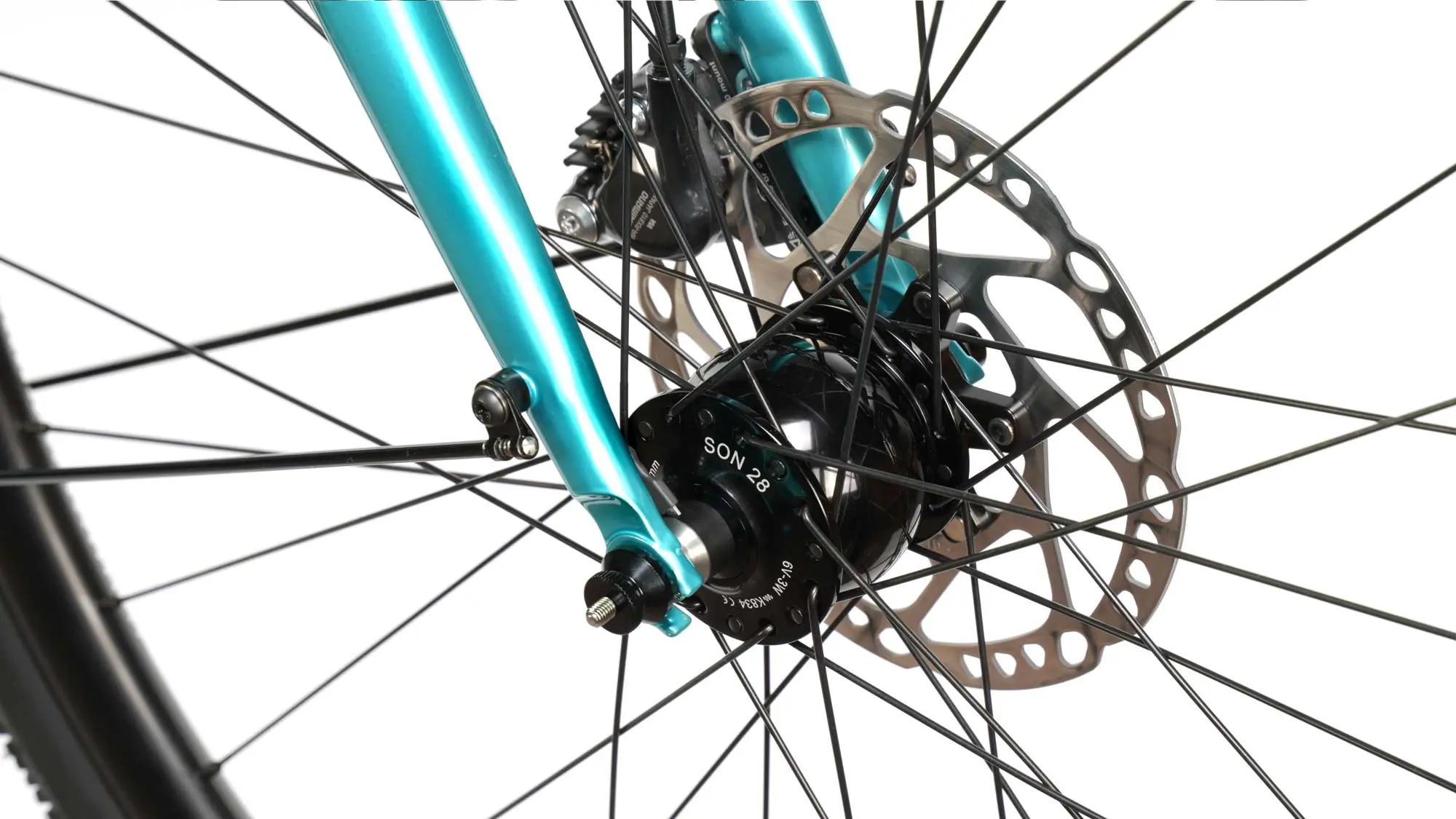

SON hub dynamo, 32 hole, black

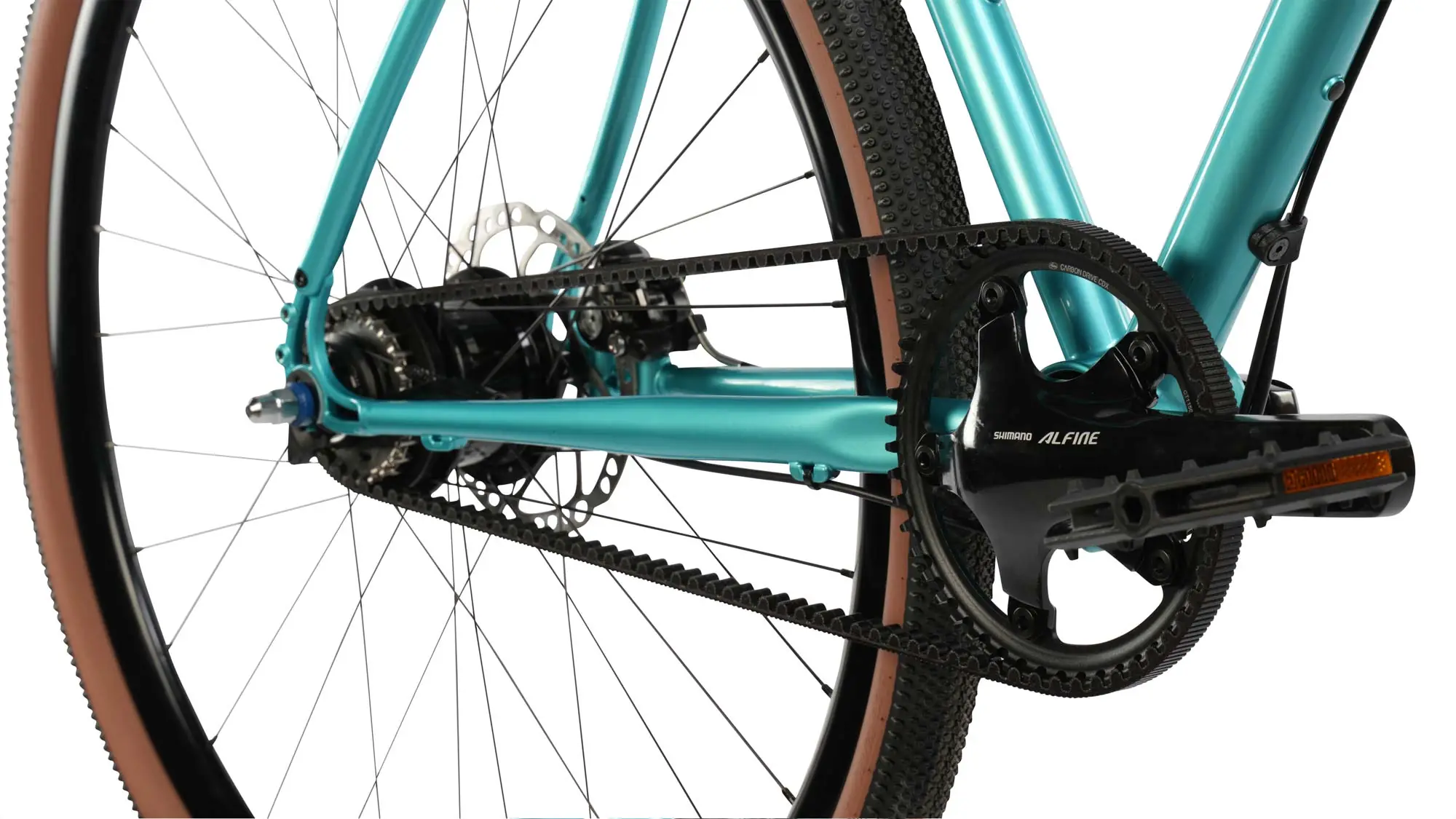

Belt

Gates CenterTrack CDX belt, 118 t

Ritzel

Gates CenterTrack CDX Sprocket 24t

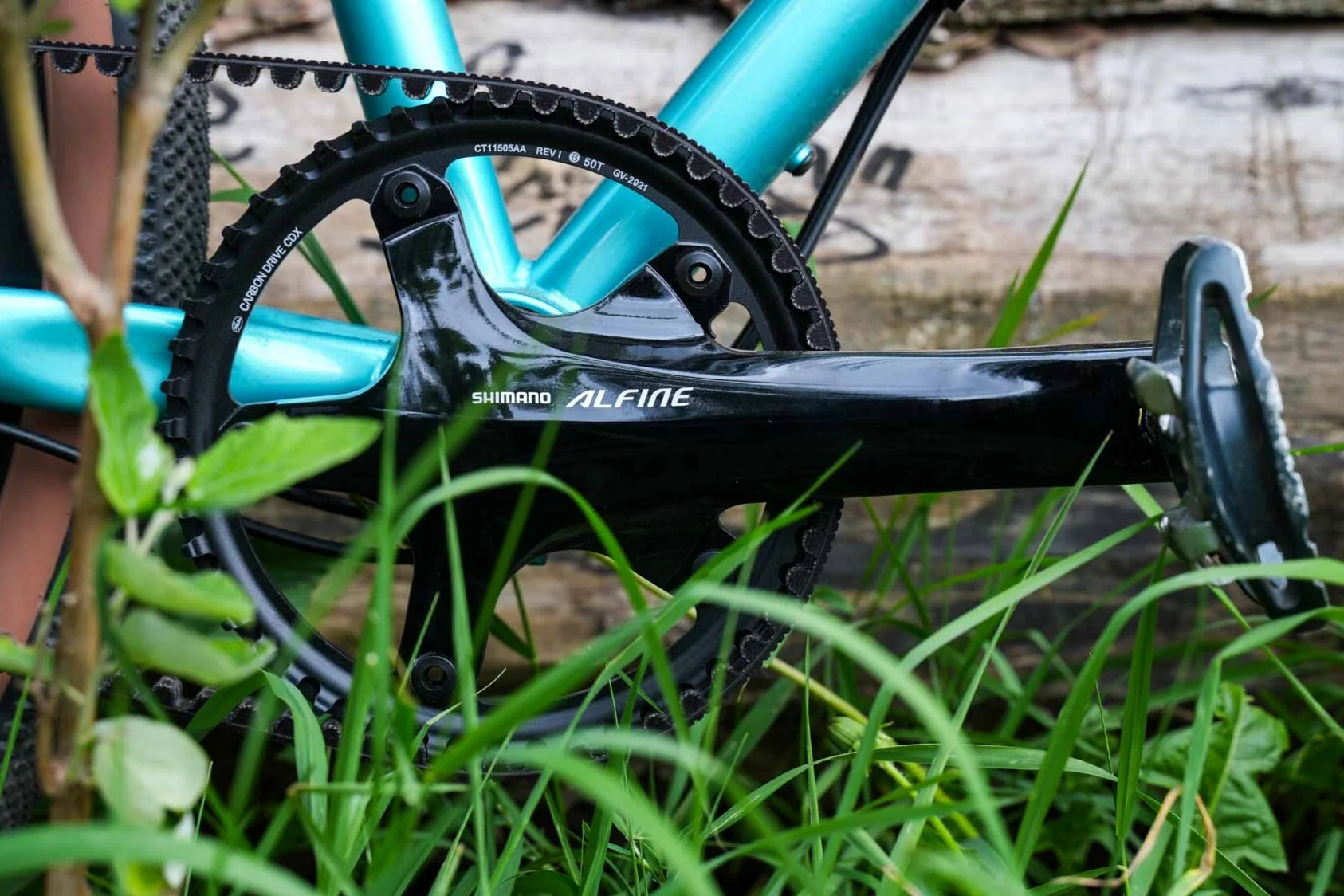

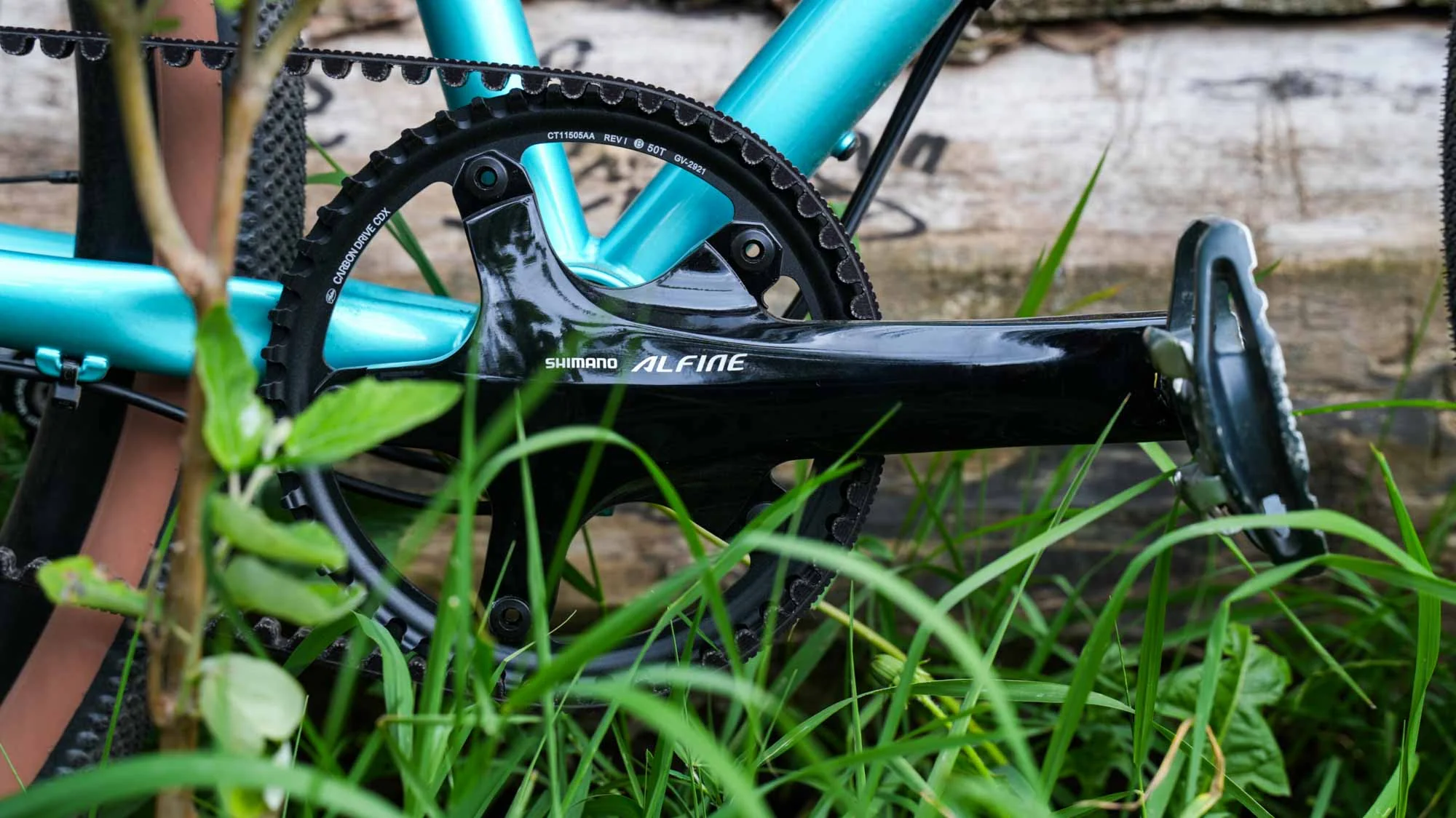

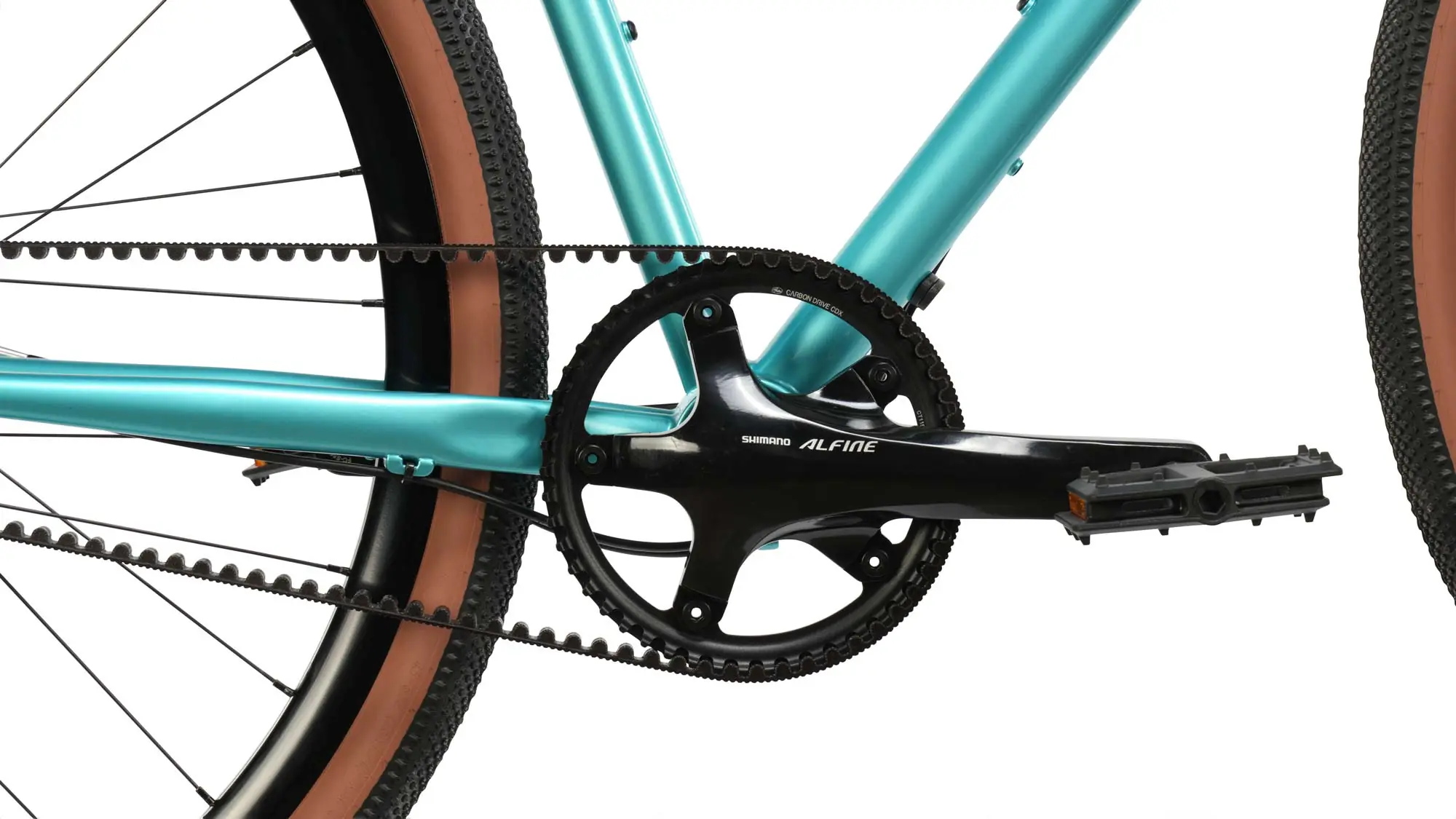

Cranck

Shimano Alfine, black, 50t Gates Carbon Drive CenterTrack Front Sprocket

Bottom bracket

Shimano

Pedals

VP-538 – black plastic body, CroMo axle, industrial bearings

Brakes

Brake and gear lever

Microshift SB-N110, black

Shimano GRX Di2 11

Brake body

Shimano BR-RS 305 Flatmount, front and rear

Shimano GRX BR-RX810 Flatmount, front and rear

Disc brake

Shimano RT-54, 160 mm

Wheels & tyres

Rims

Radiale D28, Aluminium hollow chamber, 32h, black

Tyres

Schwalbe G-ONE Performance, black/bronze, folding, 45-622 (with mudguards 40-622)
max. up to approx. 45-622 mm or wide tyres possible in frame and fork

Cockpit

Stem

veloheld, black matt, 70 mm for frame height XS and S, 80 mm for M and L and 90 mm for frame height XL

Bar

veloheld, width: 400 mm (S), 420 mm (M, L), 440 mm (XL), 3° outer bend (flare), black

Headset

ACROS headset AZX-228, black, aluminium, ZS44/28.6, EC44/40

Sitting

Seat post

veloheld, black matt, ø 27,2 mm

Saddle

veloheld, black

miscellaneous

Shimano Alfine Di2

if Alfine Di2 is selected, charger included

Colors

Series colour

Illusion Ice glanz with black decals

Custom colour

RAL colour of choice in gloss or matt, decor in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Complete bike from approx. 13 kg

Classification

For riding on paved roads such as tarmac roads and cycle paths, paved forest roads, dirt tracks and hiking trails where there are few or no obstacles such as roots, thresholds, stones and steps. The wheels are in constant contact with the ground or may briefly lose contact with the ground due to minor bumps. This category includes urban and city bikes as well as cyclocross bikes with road bike handlebars. Read more…

Note: Technical changes, errors and omissions excepted.

Frame height	XS	S	M	L	XL
for approx. body height (cm)	155 - 165	164 – 174	173 – 183	182 – 188	188 – 195
for approx. inseam leg length in cm	71 - 78	76 - 82	80 - 87	85 - 92	90 - 97
A Seat tube length	466	486	527	557	587
B Top tube length	528	549	571	592	613
C Wheelbase	1033	1045	1057	1074	1090
D Head tube length	115	135	155	175	195
E Head angle	70,5°	71°	71,5°	72°	72°
F Seat angle	74,5°	74°	73,5°	73,5°	73°
G Chainstay length	440	440	440	440	440
H Fork offset	50	50	50	50	50
I Bottom bracket drop	70	70	70	70	70
J Stack	551	572	593	614	633
K Reach	375	385	395	410	420

Show only reviews in EN ()

Add a review Cancel reply

Urban 70%

Tour 70%

Road 70%

Offroad 70%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.

To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.alleyX consisting of bicycle, rider and luggage should not exceed 120 kg.

Can I fit a side stand?

Yes, you can mount a side stand over the flatmount. This is possible with a special stand for this purpose or via an adapter from CRM, to which you can then attach a KSA 18 stand of your choice.

My question is not listed here...

Send us your question via the contact form or use our other contact options and we will answer your questions.
