veloheld.iconX Pinion

4.999,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • Pinion gearbox in the veloheld.iconX – extremely low maintenance, durable and perfectly protected
  • Pinion C1.12i Smart.Shift – low-maintenance electronic shifting technology
  • Individually configurable – optional lighting system or mudguards

Delivery time

As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 5–7 weeks after order confirmation to manufacture and ship available bikes.

I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%

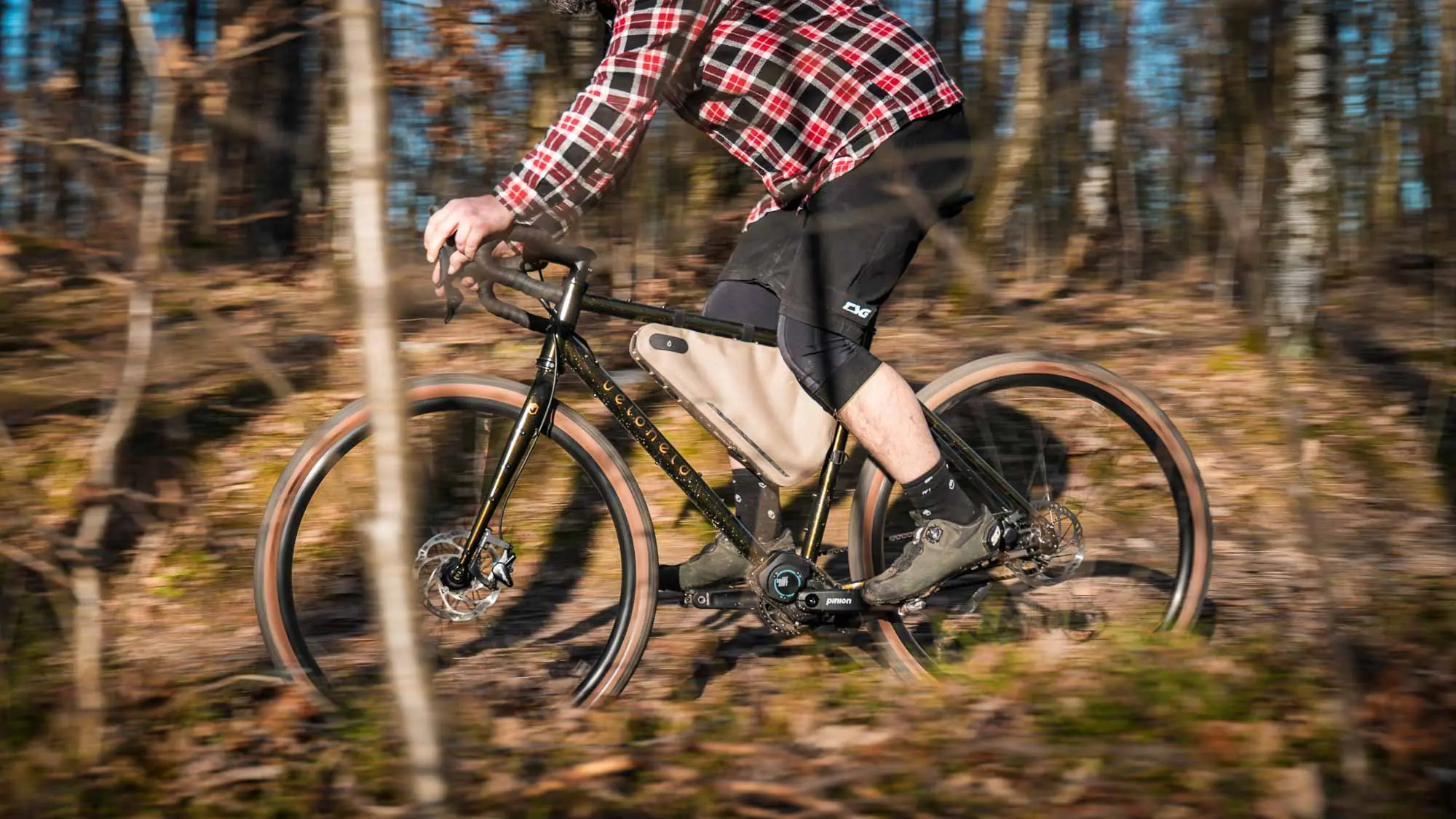

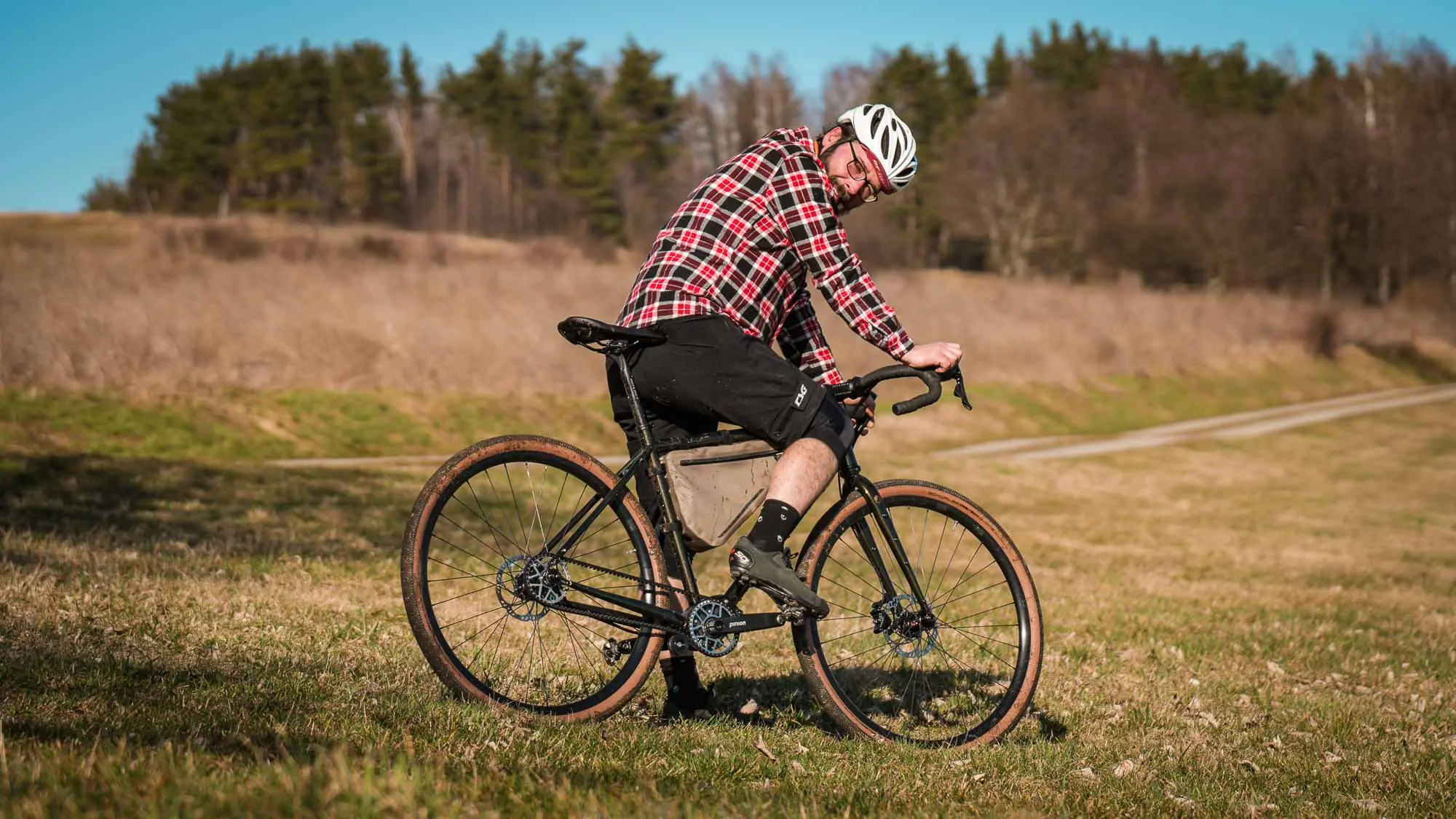

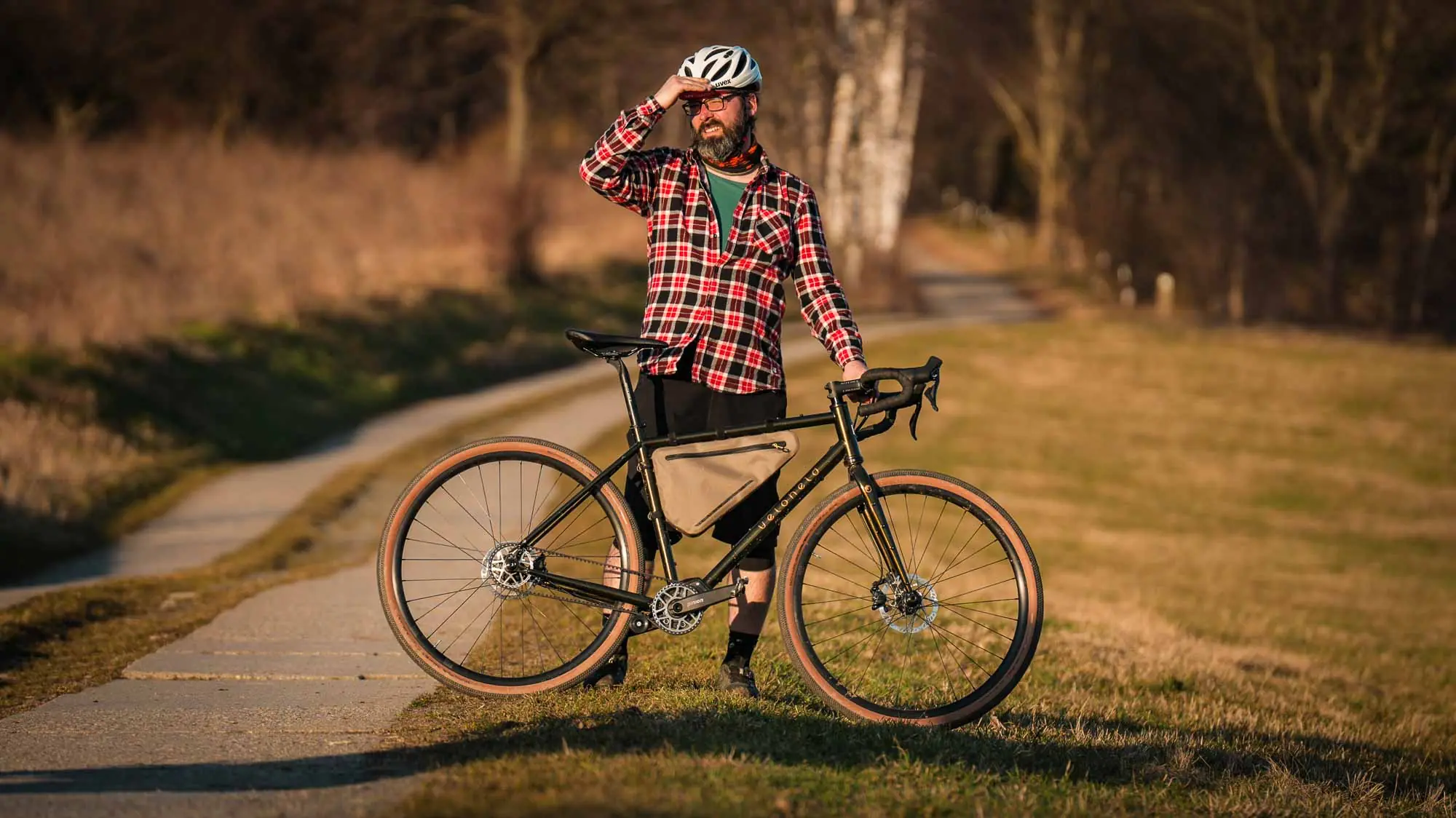

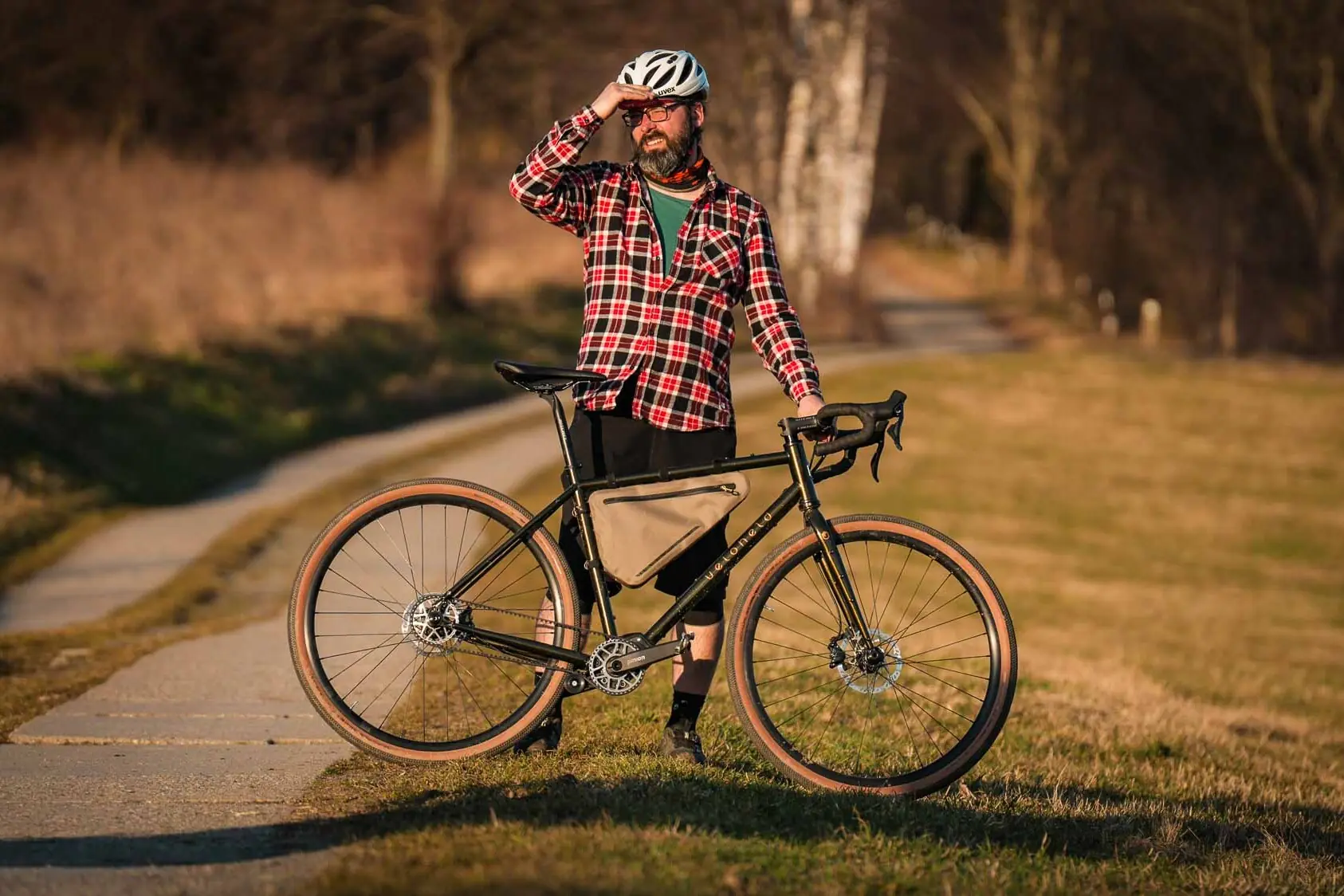

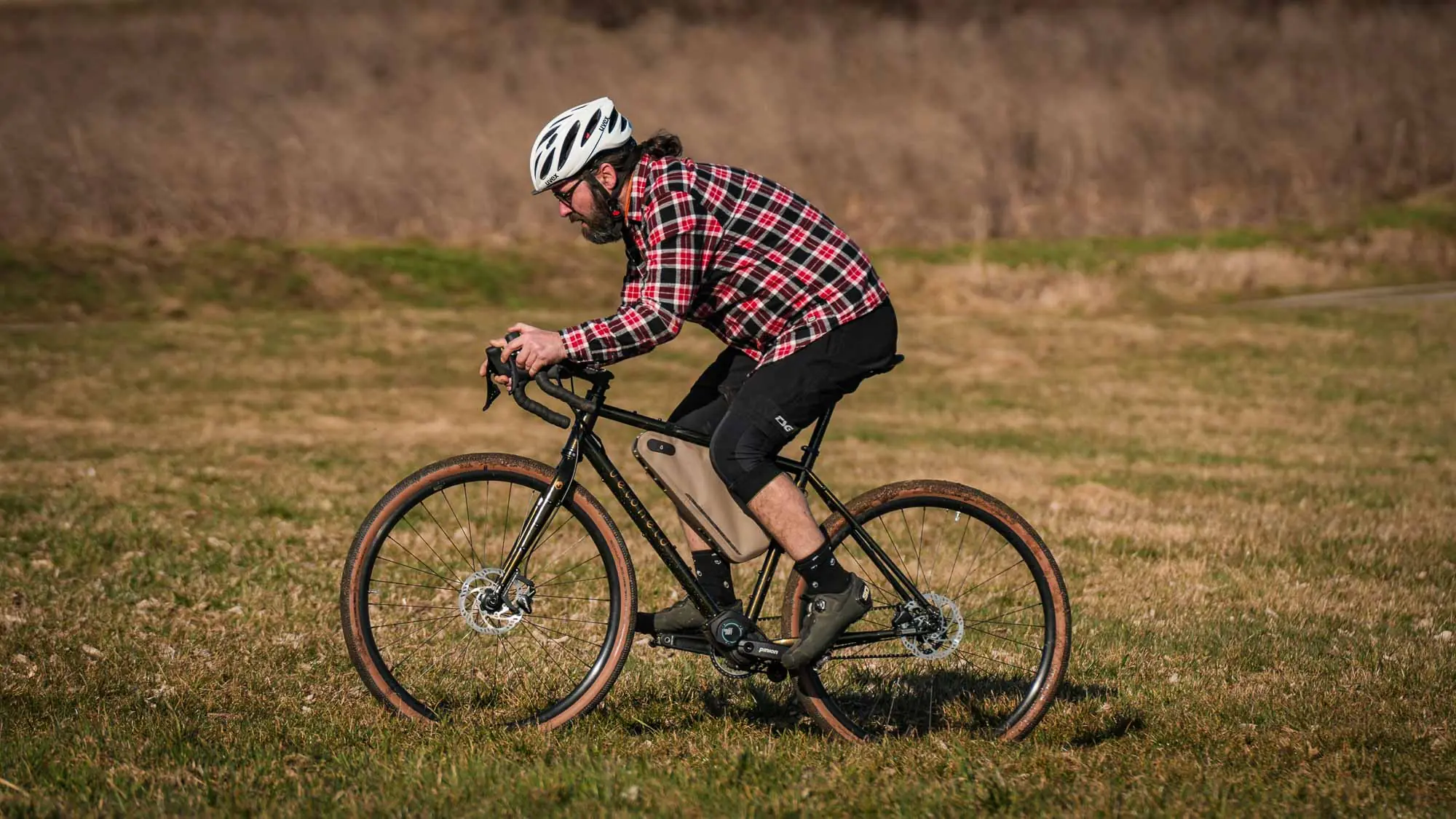

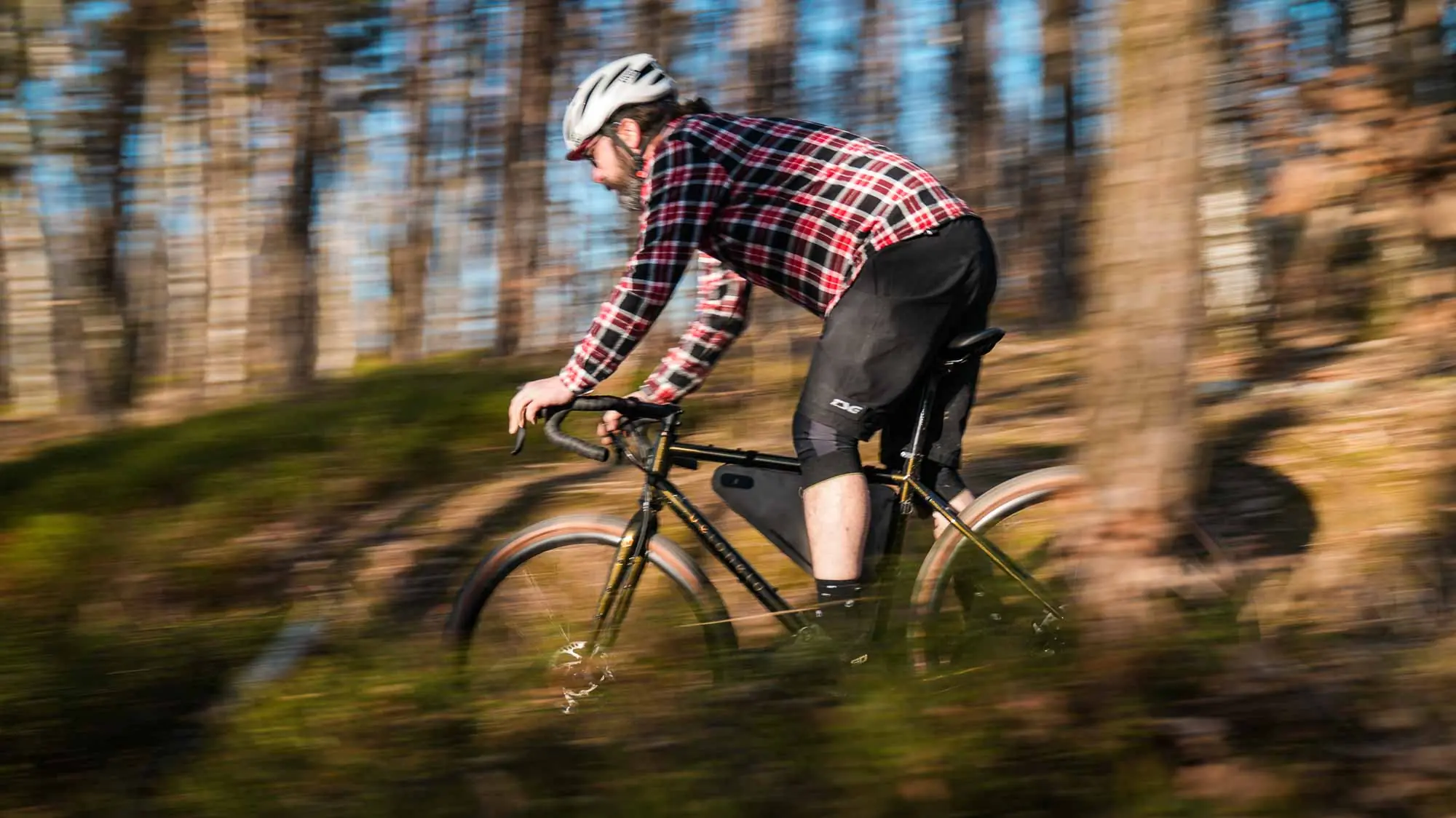

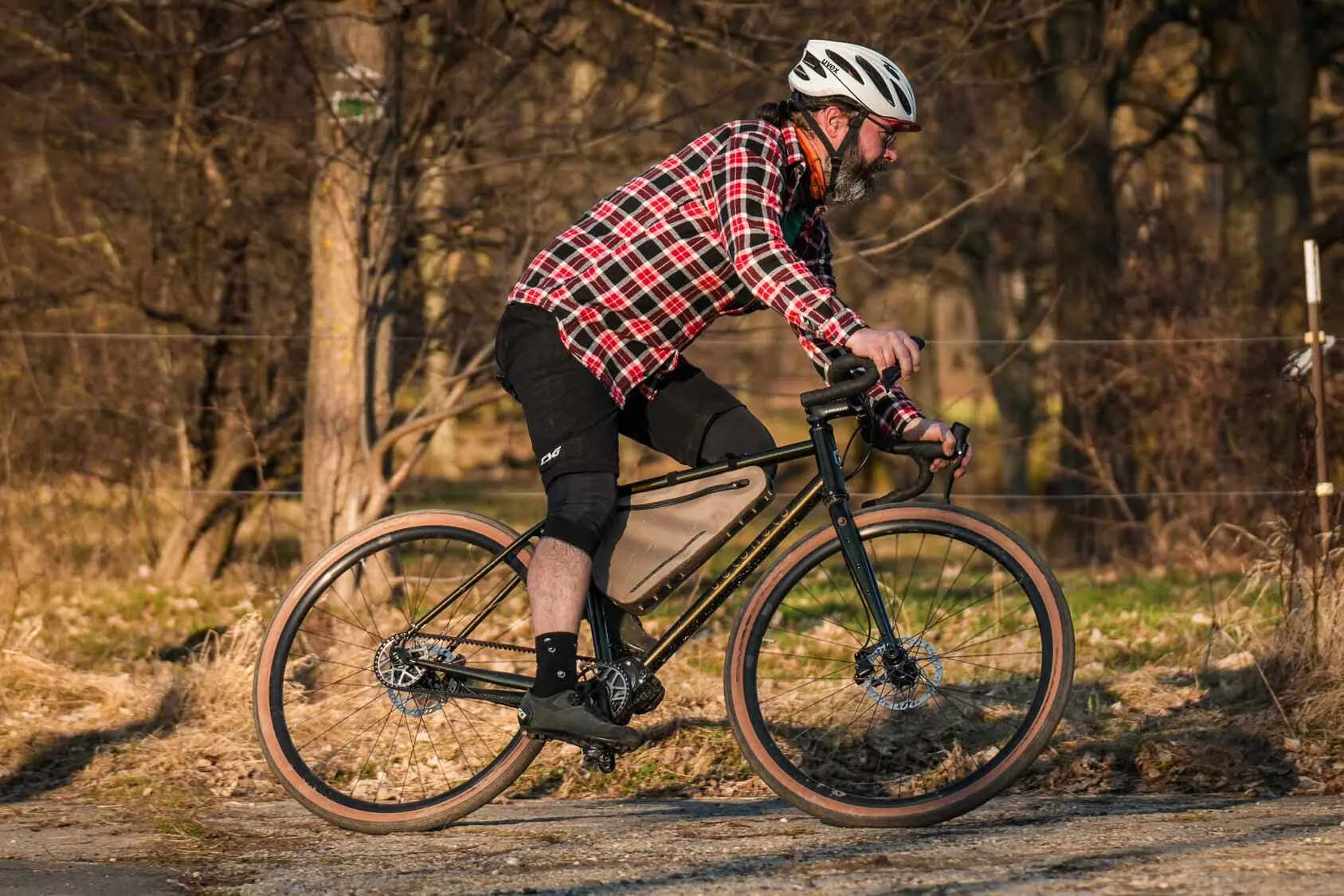

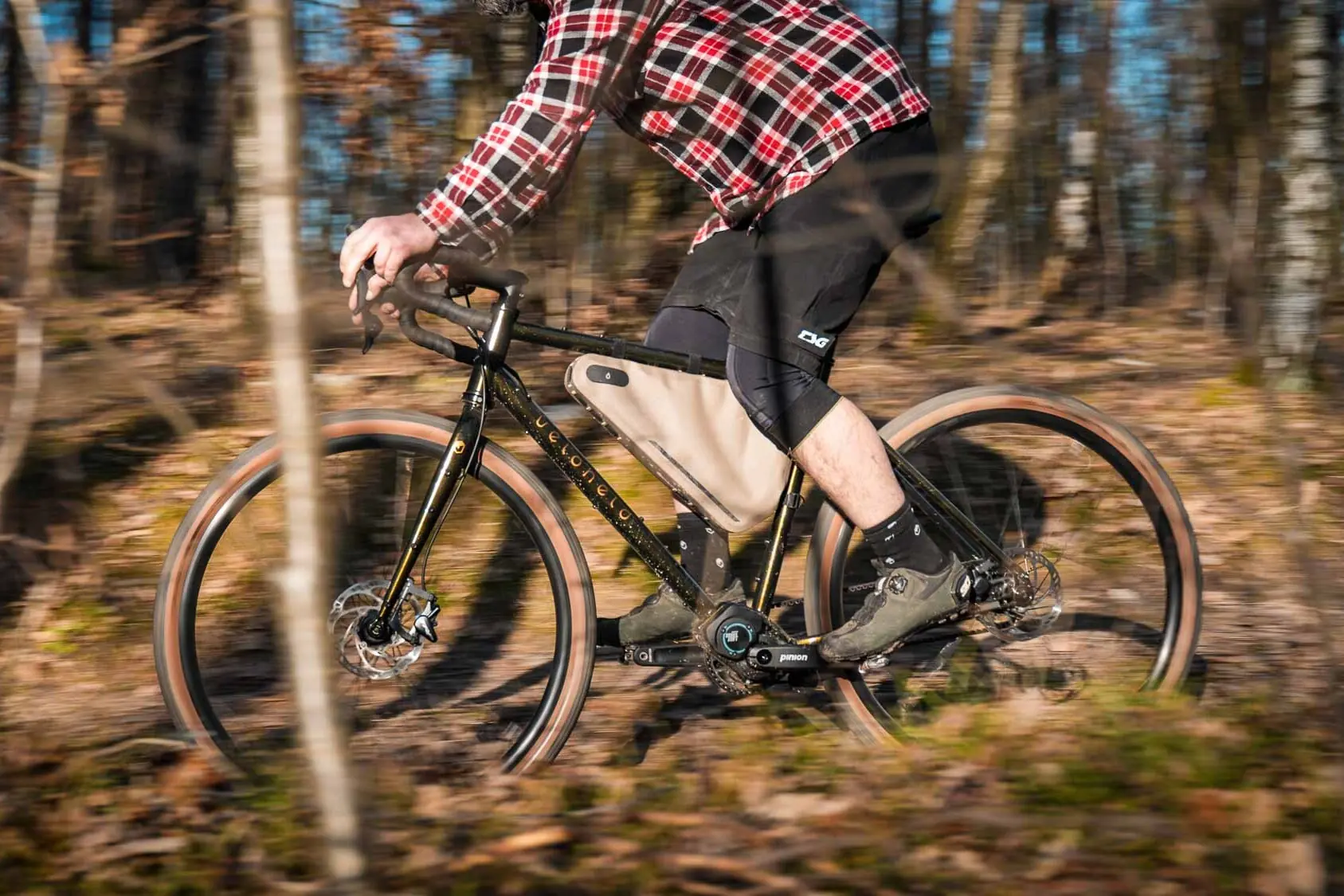

The veloheld.iconX Pinion is built for tours that end up being longer than planned! The electronic Pinion gear shift in the bottom bracket and the belt drive ensure that you don’t have to think about technology while you’re on the road, but rather about the next few kilometres. Twelve gears that perform reliably, no matter how heavy your bags are or how steep the climb. The steel frame, manufactured in Leipzig, absorbs vibrations from rough roads and gets you through long stages in comfort. With the option of a SON lighting system, you’re well equipped even for spontaneous extra-long rides or early starts. The standard Beetle Juice colour gives the whole thing a distinctive look – or you can choose your own colour and make it your bike.A gravel bike for everyone for whom the journey is the destination.
NEW!

Highlights

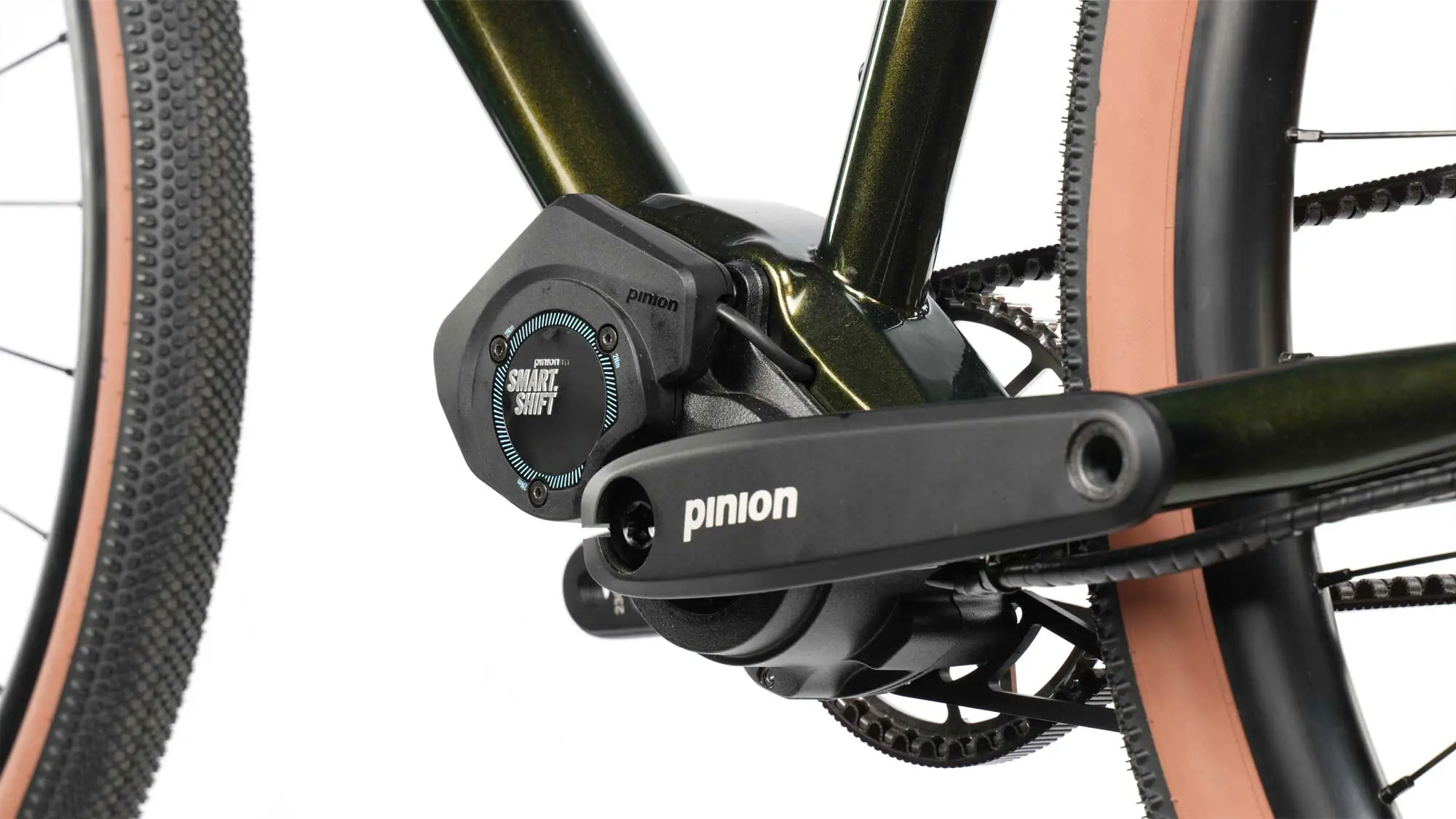

veloheld.iconX Pinion SmartShift
NEW!

Electronic and low maintenance!

Perfect shifting on drop bars with the 12 electronic gears of the low-maintenance Pinion gearbox

NEW!

Let there be light!

Optional SON lighting with optimised cable routing

Details

Frame

  • Double-butted tubes made from veloheld.CrMo and Columbus steel, TIG welded, 46 mm head tube, flat mount disc brake mount for 160 mm brake discs located in the rear frame triangle
  • Electronic gear and brake cable routing integrated into the down tube; with mechanical Pinion control, the gear cables are routed under the down tube.
  • Eyelets for mudguards and/or luggage racks
  • Stainless steel dropouts with concealed kickstand mount
  • Eyelet integrated into the seat tube for internal cable routing for a saddle clamp rear light
  • Eyelets for 3 bottle holders and top tube bag

Thru axle

Frame: Axle length: 166 mm; thread length 15 mm; pitch M12x1.0

Fork

veloheld steel fork made of double-ended reinforced CrMo steel, 1 1/8″ – 1 1/2″ head tube, flat mount disc brake mount for 140 or 160 mm disc, mounting eyelets for attaching your luggage using “triple cages” or a front luggage rack (“lowrider rack”), mudguard mounting and internal light cable routing possible, installation dimensions: 12×100 mm incl. thru axle, max. load capacity: 5 kg per fork side

oder

veloheld carbon fork with tapered head tube, side “triple cage” eyelets for mounting your lightweight luggage (max. load capacity: 3 kg per fork side), flat mount disc brake mount for 140 or 160 mm discs, mounting eyelets for mudguards, internal brake and light cable routing, installation dimensions: 12×100 mm incl. thru axle and expander

Drive and brakes

Pinion C1.12i Smart.Shift

Wheels & Tyres

Wheels

DT Swiss 350 Hybrid single speed rear hub + 370 front hub (32 holes, for thru axle)

with DT Swiss G 540 rims (32 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and bike))

Optional with SON lighting:
SON 28 DYNAMO hub

Tyres

Schwalbe G-ONE Allround, foldable, Tubeless Easy (delivered with inner tube), 45-622, bronze-skin

Max. approx. 50-622 (28″) or 54-584 (27.5″) mm wide tyres (depending on make and rim) possible in frame and fork without mudguards

Cockpit

Stem

Ritchey WCS C220 84D, Black blade

80 mm for frame height (XS, S), 90 mm (M, L), 100 mm (XL, XXL)
6 spacers

Lenker

Ritchey WCS Butano, Blatte Black, Drop 115mm, Reach 73mm, Drop flare 18°, </spa

Handlebars

Ritchey WCS Butano, Blatte Black, Drop 115 mm, Reach 73 mm, Drop flare 18°, Backsweep 5°

Width: 400 mm (XS, S) , 420 (M, L), 440 (XL, XXL)



Headset

Includes Acros headset 1 1/8″ ZS44/28.6 top and EC 44/40 headset bottom

Sitting

Saddle

veloheld, black

Seat post

Ritchey WCS Alloy Link, Blatte Black, 350 mm, setback 20 mm

Other

Sizes

S, M, L, XL

Accessories

Mudguards: made of durable aluminium, powder-coated in frame colour, 50 mm wide (Please note that due to the compact geometry, especially with smaller frame sizes, contact with the foot may be possible when turning sharply, depending on the pedal system, shoe size and shoe shape.)

Optional lighting

SON Edelux II with handlebar mount + SON rear light for saddle clamp

Colours

Series colour

Beetle Juice

Custom color

RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.

If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Complete bike from approx. 12.8 kg (frame height M

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

NEW!

Note: Subject to technical changes, errors and omissions.

NEW!
Rahmenhöhe S M L XL
für ca. Körpergröße in cm 164 – 174 173 – 182 181 – 188 187 – 193
für ca. Innenbeinlänge in cm 75 – 80 78 – 85 82 – 88 ab 85
A Sitzrohrlänge 470 510 540 560
B Oberrohrlänge 541,5 563 579 594,5
C Radstand 1050 1063 1075 1087
D Steuerrohrlänge 130 150 170 190
E Lenkwinkel 70,5° 71° 71,5° 72°
F Sitzwinkel 74° 73,5° 73,5° 73,5°
G Kettenstrebenlänge 457 457 457 457
H Gabelvorlauf 50 50 50 50
I Tretlagerabsenkung 77 77 77 74
J Stack 564 584,5 605 623
K Reach 380 390 400 410
Laufradgröße 27.5" oder 28" 27.5" oder 28" 27.5" oder 28" 27.5" oder 28"
Überstandshöhe 749 783 809 823
ca. Sitzhöhe ab Mitte Tretlager bis Satteloberkante 664 - 708 690 - 752 726 - 779 752 - 812

Show only reviews in EN ()

Add a review

Urban 50%
Tour 80%
Road 50%
Offroad 60%
Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and safely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information on assembly here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars and stem must be turned in the direction of travel, the pedals installed and your saddle height adjusted.

Alle genauen Schritte der Montage findest Du in der Aufbauanleitung.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first to make sure that they have the bike in stock and can prepare it for you if necessary.

Wenn Du das Rad direkt bei uns kaufst, kannst Du es nach Erhalt und Montage bei Dir zu Hause auf trockenem Untergrund direkt Probe fahren. Sollte es Dir wider Erwarten nicht gefallen und/oder passen, holen wir es wieder versandkostenfrei bei Dir ab. Dazu musst Du es nur wieder sicher in den Versandkarton packen und auf die Abholung warten. Achtung: Dies gilt nicht für individuell angefertigte Wunschräder.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Bitte registriere Dein Rad innerhalb von 3 Monaten nach Kauf hier, um die Garantie zu erhalten.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

Yes, you can mount a KSA 18 kickstand directly on the frame at the left rear dropout.
