veloheld.path Complete bike
from 2.199,00 €
- low-maintenance: Gates CDN belt drive with Shimano Alfine 8 or 11-speed internal gear hub
- also available with Rohloff Speedhub 14-speed internal gear hub
- incl. B+M front light & rear light with standlight function
- also available in your custom colour
- available as a complete bike or frame set
Delivery time
As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 6 - 8 weeks after order confirmation to manufacture and ship available bikes.

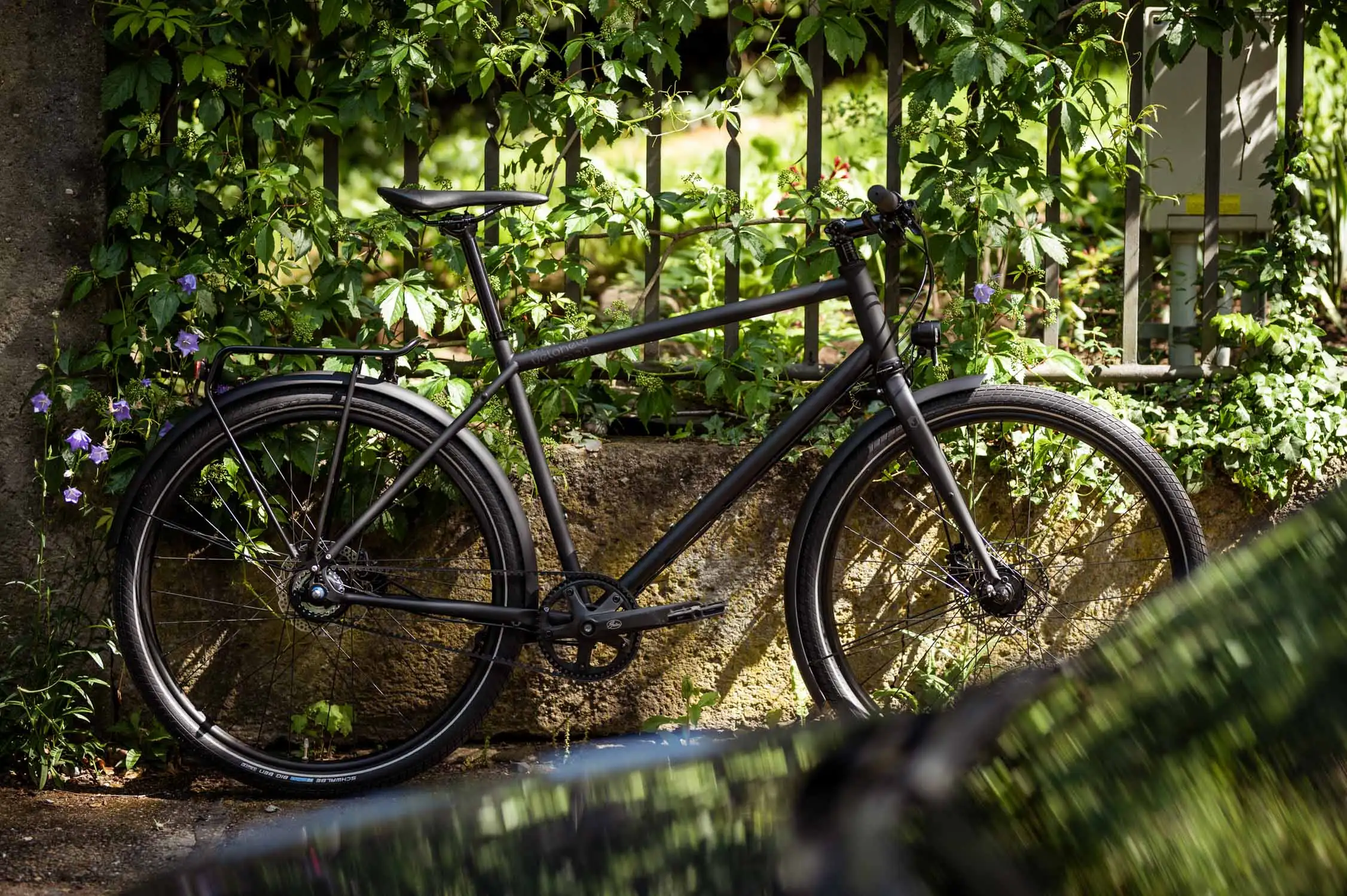

The veloheld.path is your perfect companion when the streets of your city offer more adventure than comfort. Cobblestones, potholes or unpaved paths – not every city is a paradise of “whispering asphalt”. Thanks to the 27.5-inch wheels and 50 mm wide tyres, you can glide over urban obstacles quickly yet comfortably.
Serienmäßig ausgestattet mit dem wartungsarmen Gates CDN Riemenantrieb und der zuverlässigen Shimano Alfine 8-Gang-Nabe, bleibt dir mehr Zeit fürs Fahren und weniger für die Werkstatt. Für noch mehr Optionen kannst du das Rad mit der 11-Gang Alfine oder der legendären Rohloff 14-Gang-Nabe konfigurieren.
And if your curiosity gets the better of you, the veloheld.path will take you far beyond the city limits – ready for any adventure tour you can imagine.

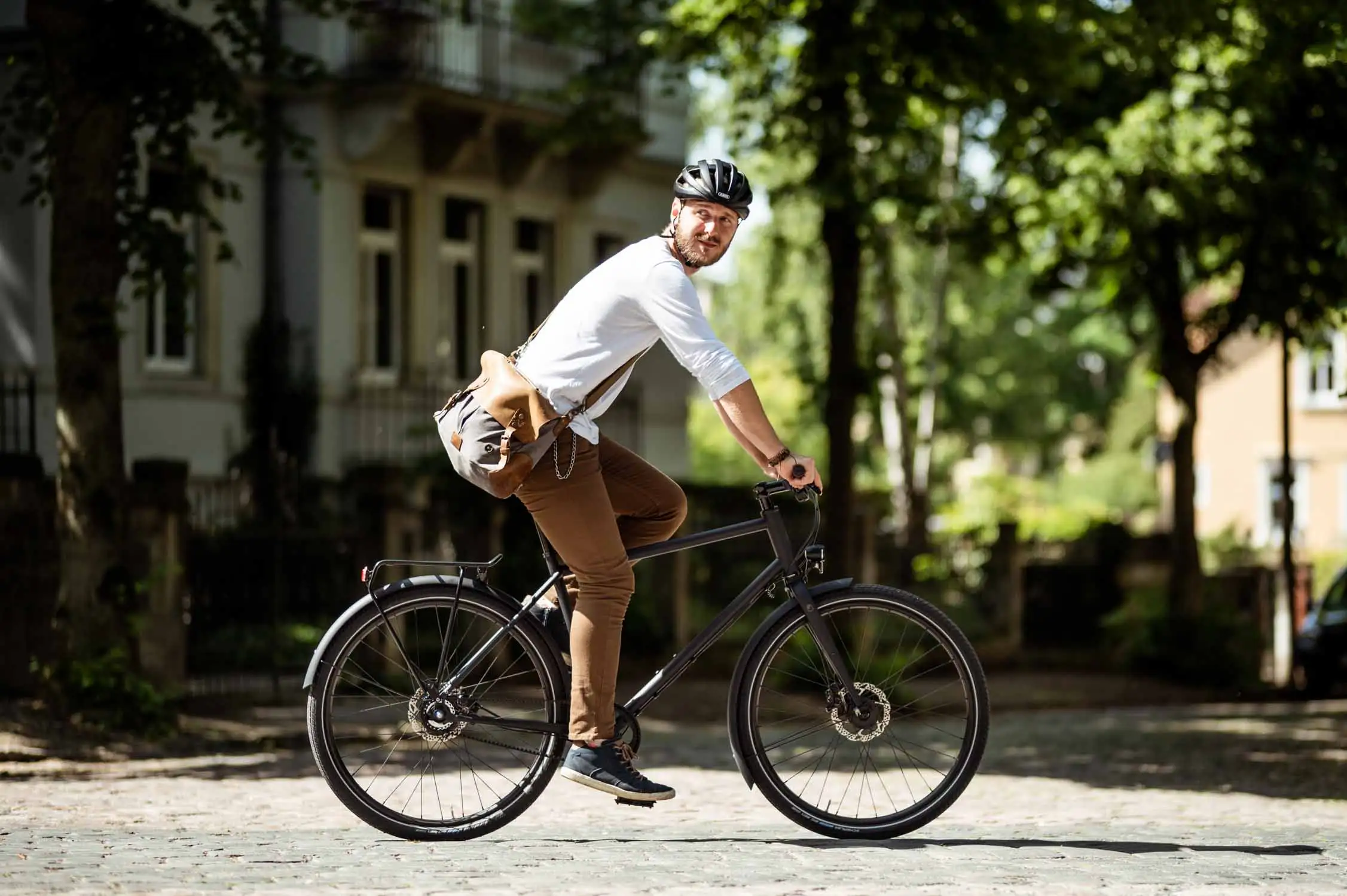

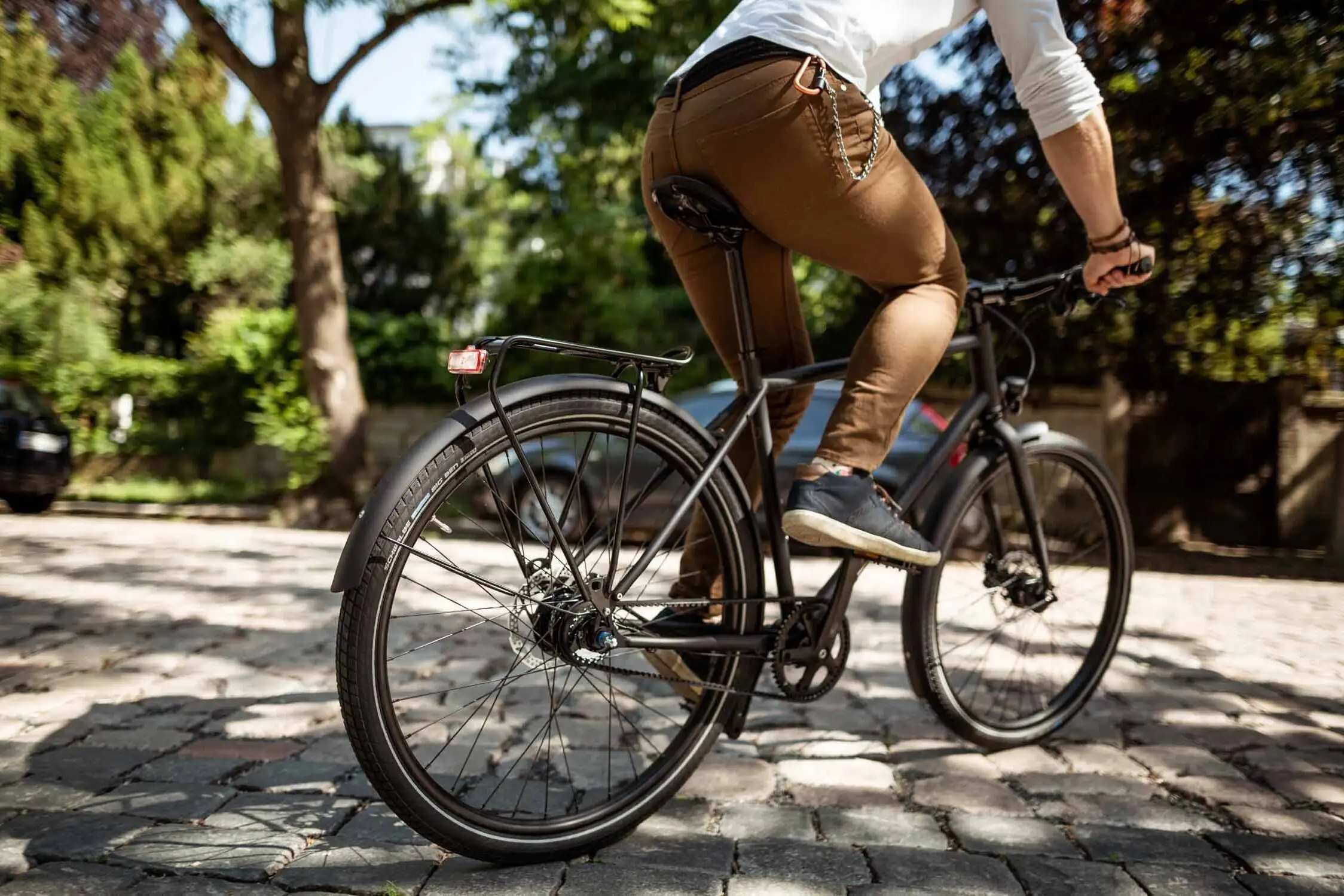

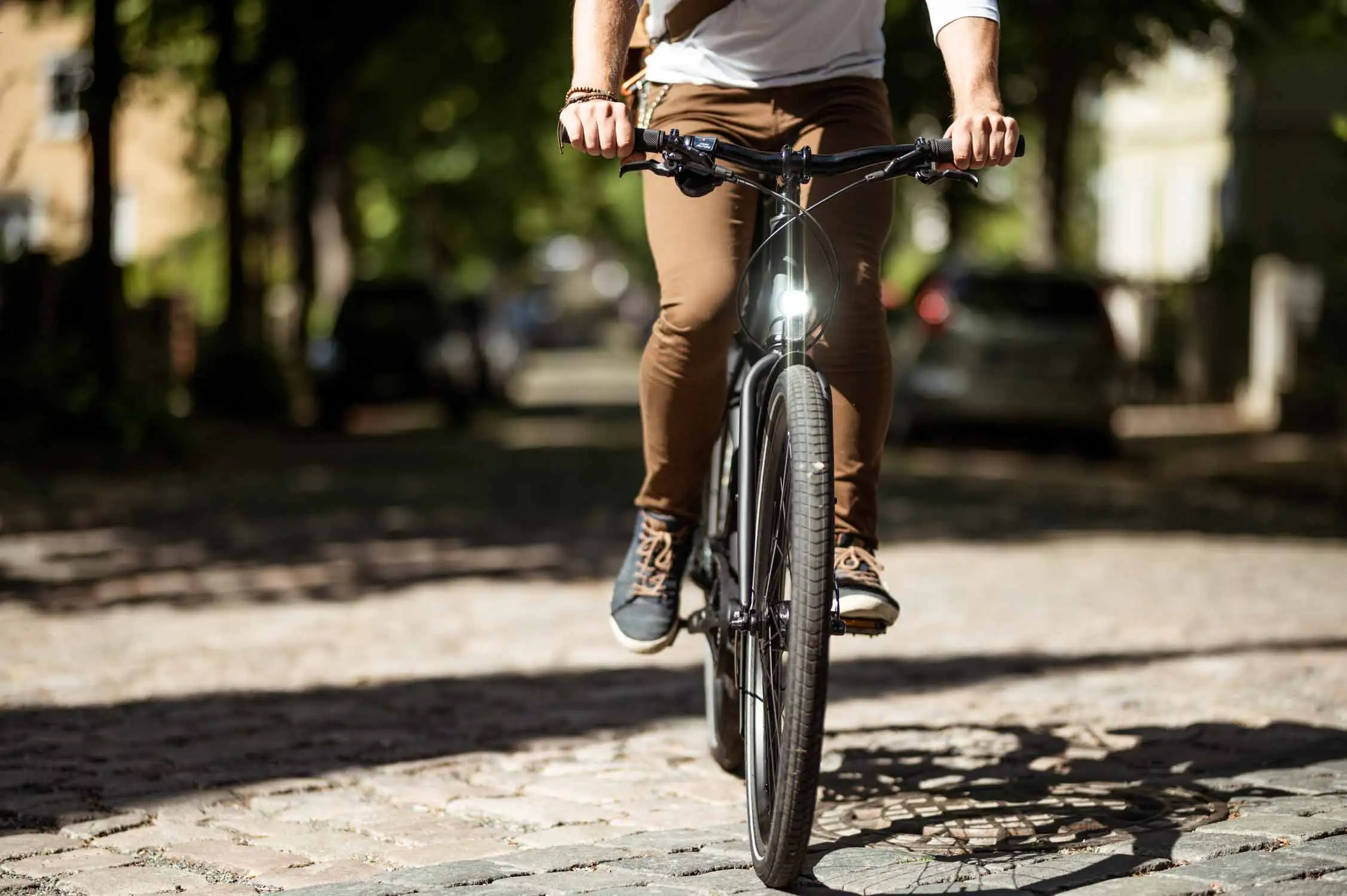

In the wild!

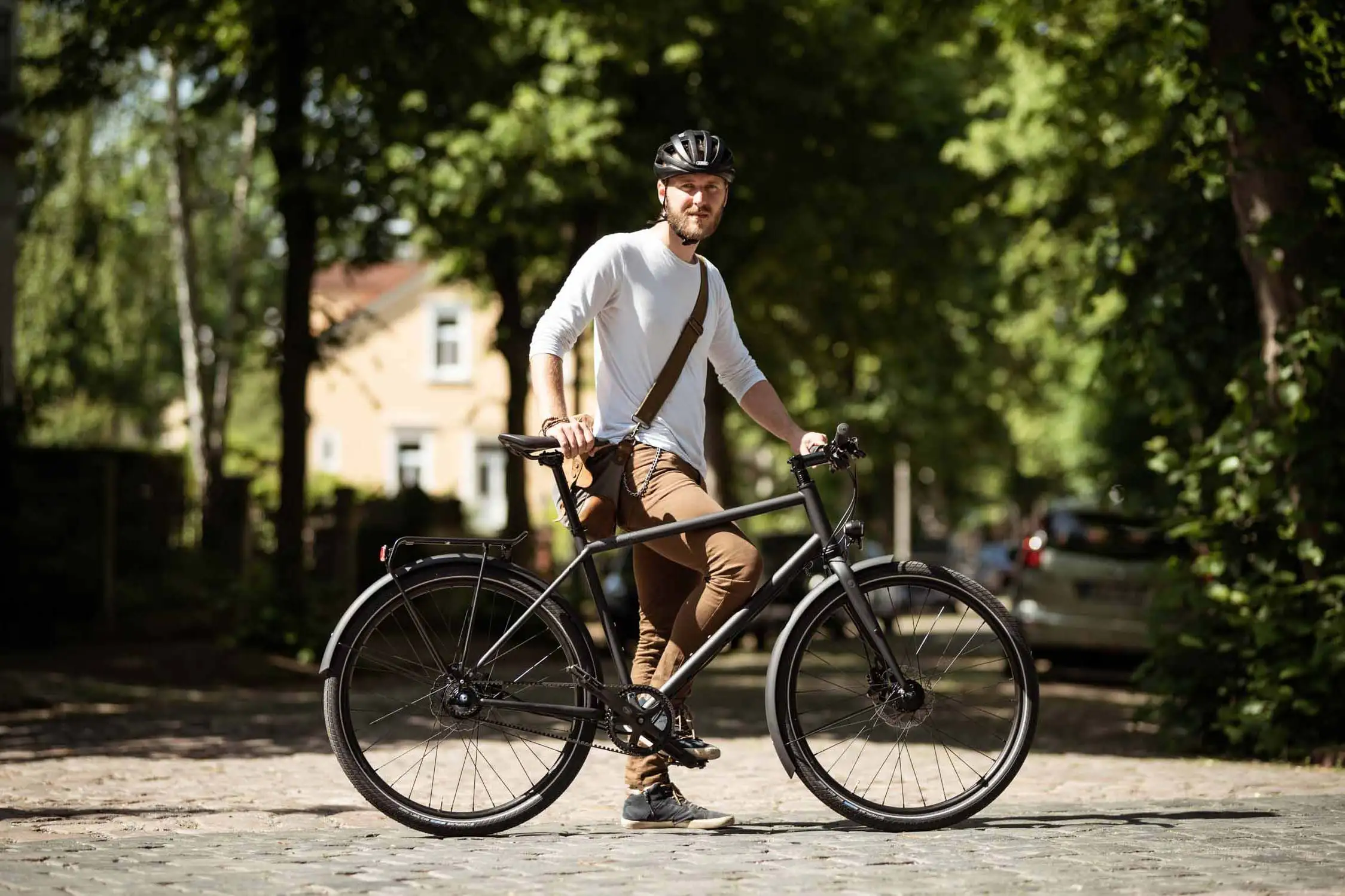

At 1.82 m tall and 84 cm inside leg length, Paul rides a size L frame
Highlights
No oil, no grease

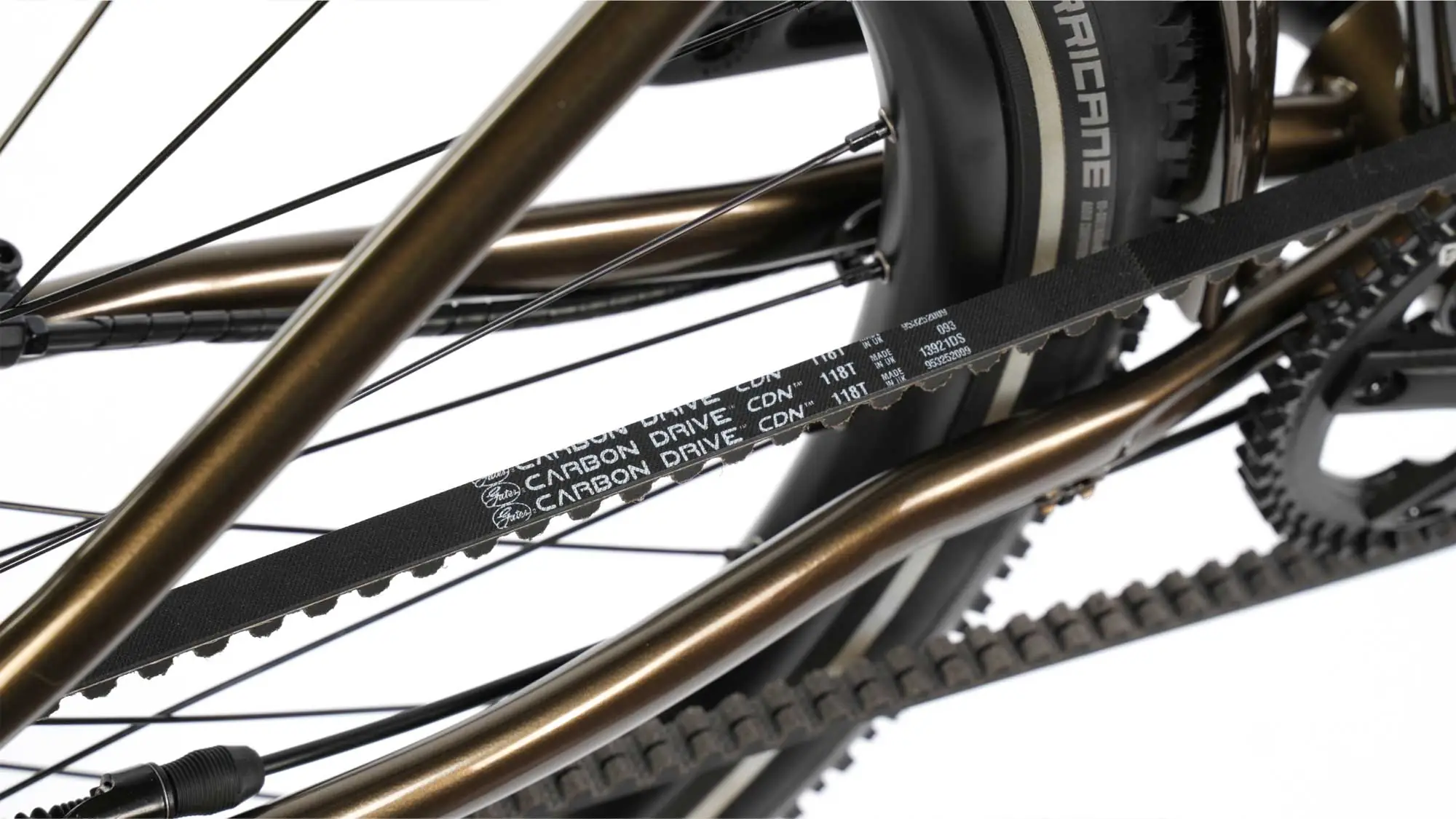

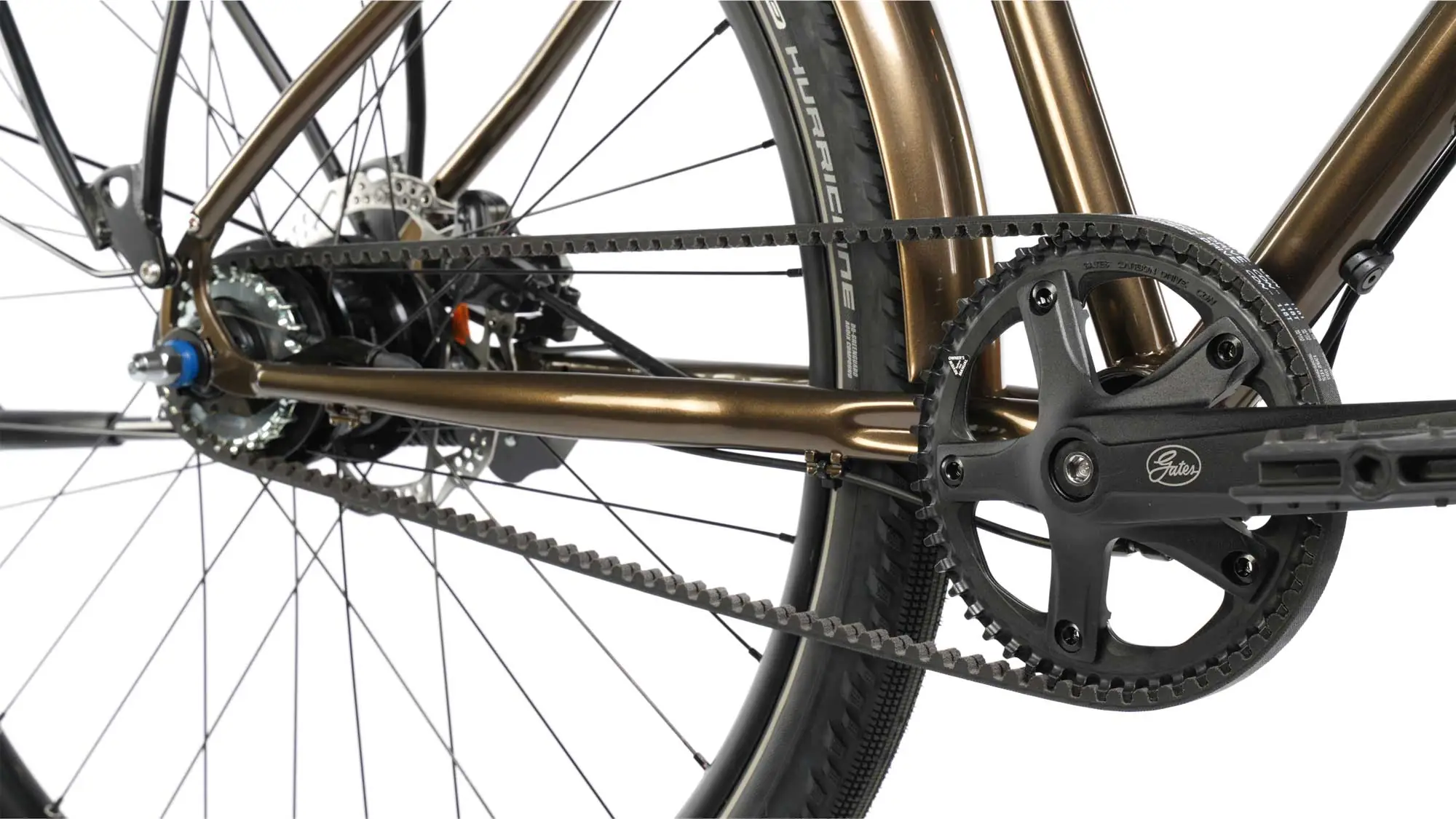

With the low-maintenance Gates Carbon Drive CDN belt drive
8, 11 or 14 speed hub gears
You have the choice: Shimano Alfine 8, 11 or Rohloff 14-speed hub gears
Details
Frame
double end-reinforced tubes made of 4130 CroMoly steel, TIG-welded, EBB eccentric bottom bracket housing for tensioning the belt, stainless steel dropouts with internal disc brake mount and KSA 18 side stand mount, Rohloff compatible with OEM2 torque support, anti-rust “ED-Black” coating, external cable routing on the down tube, 3 bottle cages possible, stops for normal derailleur gears available
Fork
4130 CroMoly steel fork, 1 1/8″ – 1 1/2″ head tube, installation height 405 mm, internally routed light cable
Drive

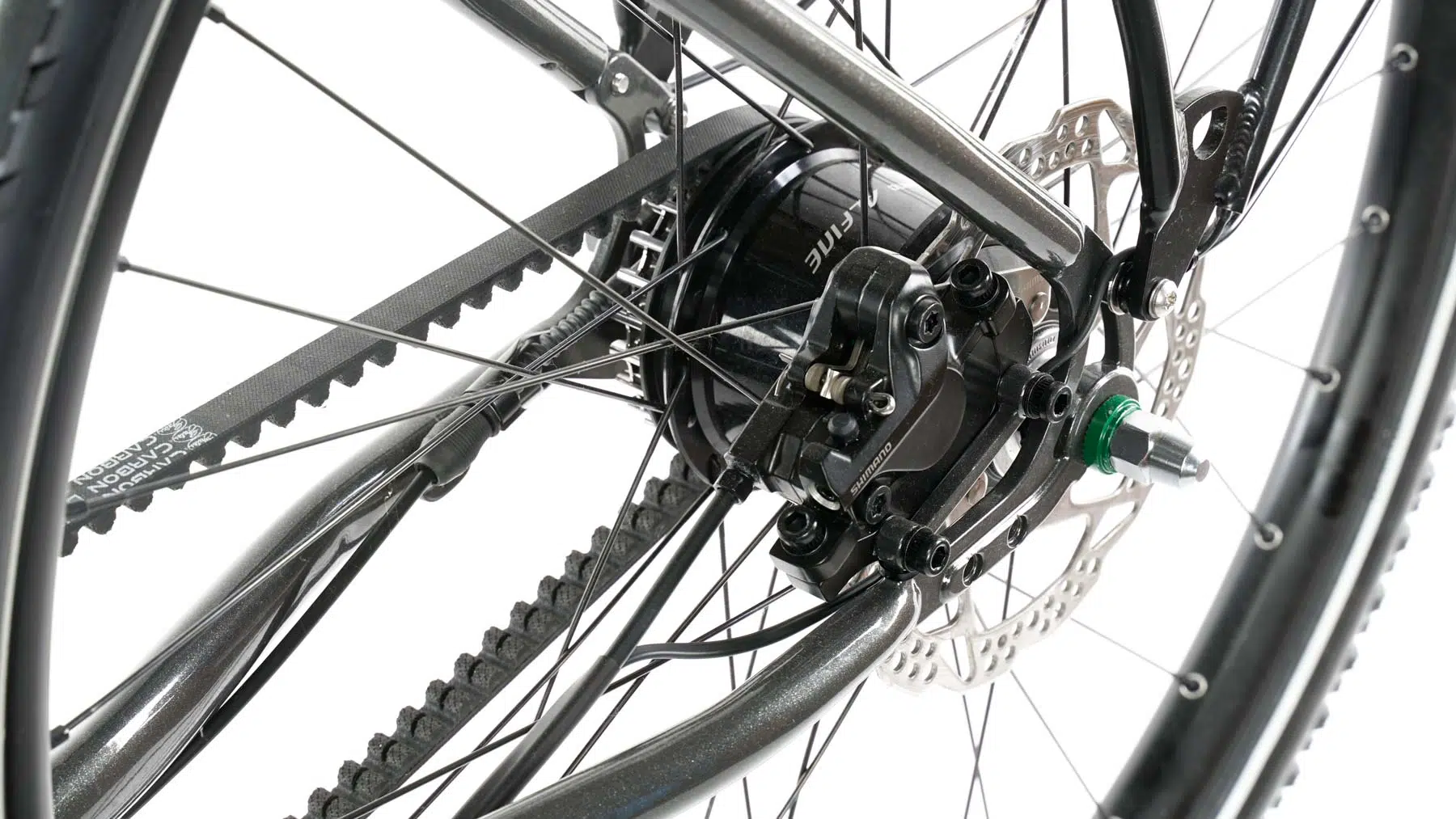

Gear hub

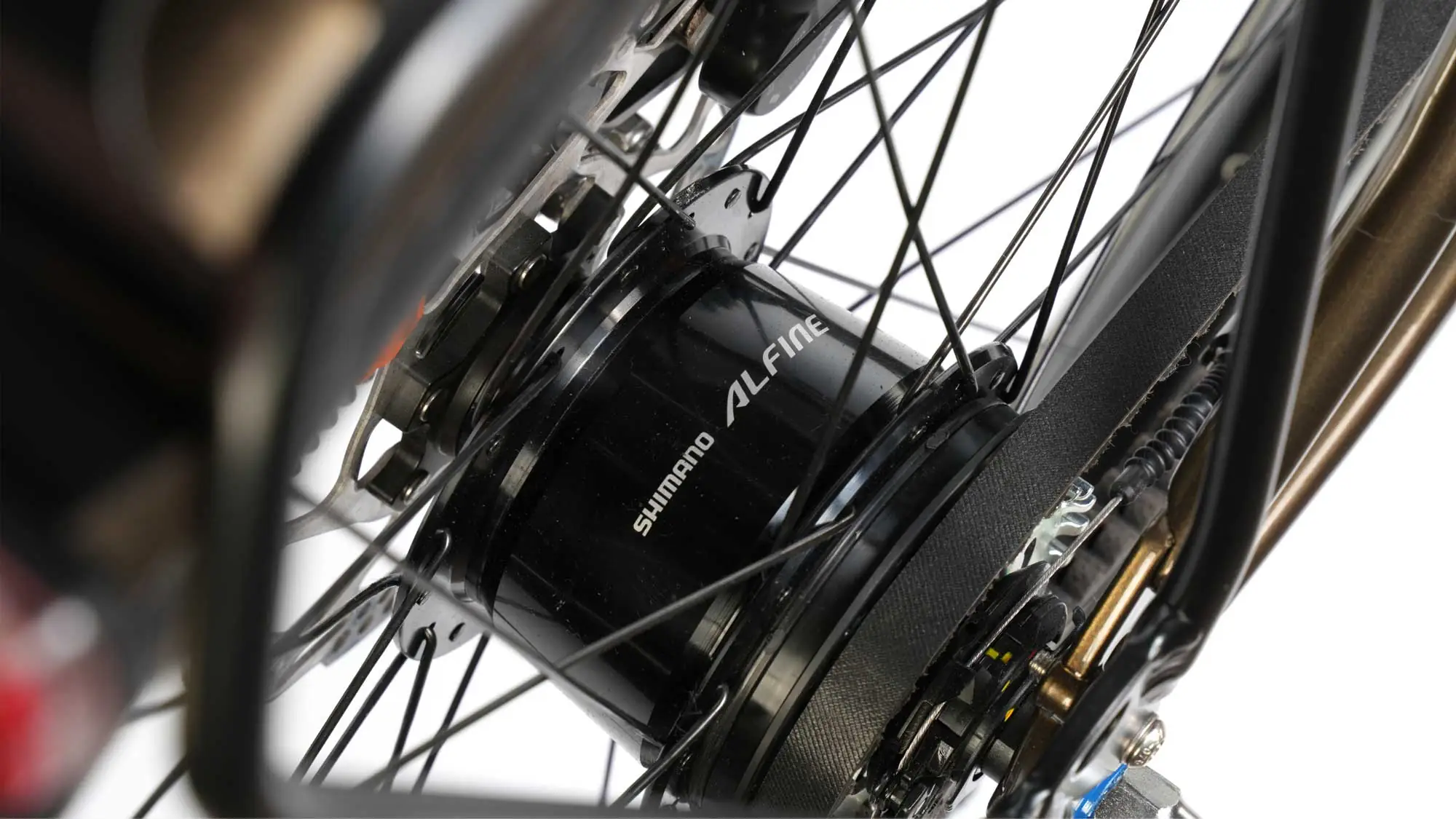

Shimano Alfine SG-S7001-8 8-speed, Shimano Alfine SG-S7001-11 11-speed or Rohloff Speedhub 14-speed hub gears, black
(if Rohloff is selected, a Gates CDX belt and pulleys as well as a Shimano Alfine crank with adapted belt line are installed)
Belt
Gates CDN belt, 118t
Gates CDX belt, 122t with Rohloff selection
Pulley
Alfine:
front: 50t Gates Carbon Drive CenterTrack Front Sprocket, rear: 24t Gates CenterTrack CDN Sprocket
Rohloff:
front: 60t Gates Carbon Drive CenterTrack Front Sprocket, rear: 22t Gates CenterTrack CDX Sprocket

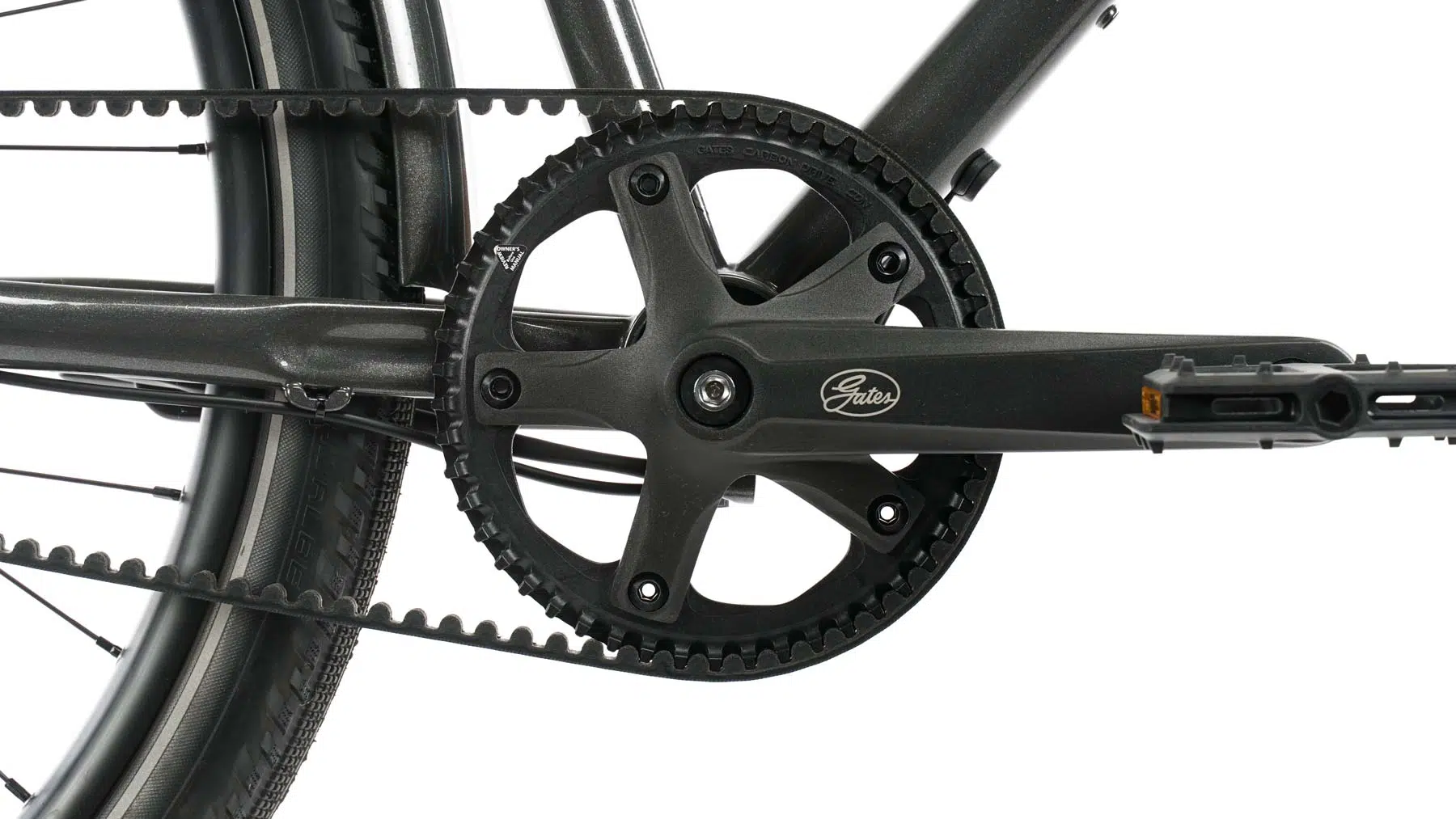

Crank

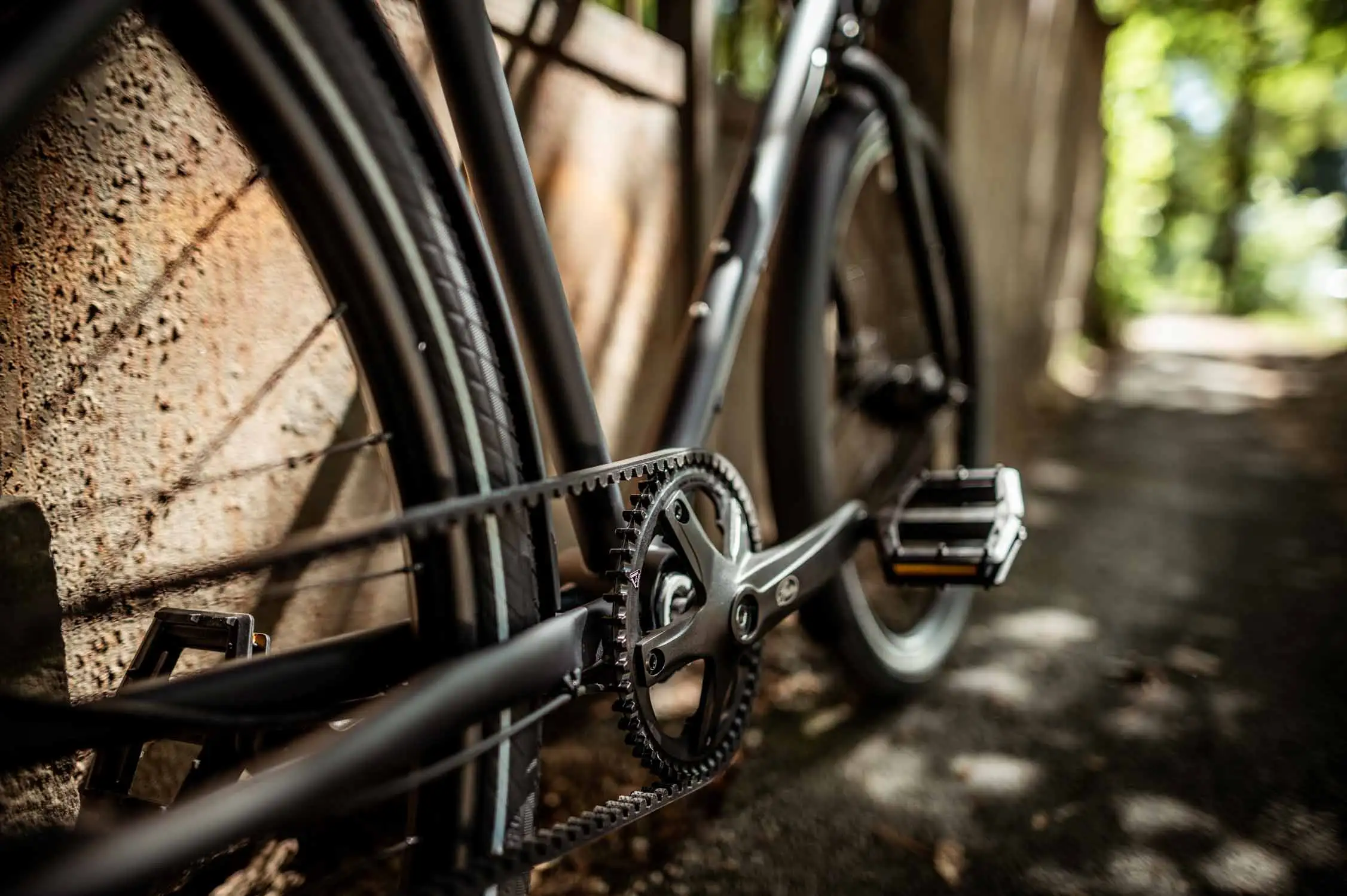

Gates Carbon Drive CDN S150 crankset, black, 170 mm
Shimano Alfine 60t Gates CDX Front Sprocket with Rohloff selection
Bottom bracket
Gates
Shimano Hollowtech II with Rohloff selection
Pedals
VP-538 – black plastic body, CroMo axle, industrial bearings
Brakes
Brake lever
Shimano BL-MT501, black
Magura MT4 with Rohloff selection
Brake body
Shimano BR-M500 black
Magura MT4 with Rohloff selection
Brake disk
Shimano RT-54 160mm brake discs front and rear
Wheels & tires
Front wheel
Ryde Rival 26, aluminum hollow chamber, 32h eyelet, black / Shimano DH-3D37 hub dynamo 6V/3W, black
Rear wheel
Ryde Rival 26, aluminum hollow chamber, 32h eyelets, black / Shimano Alfine SG-S7001-8 8-speed, Shimano Alfine SG-S7001-11 11-speed or Rohloff Speedhub 14-speed hub gears
Tires
Schwalbe Hurricane, 27.5 “x2.00”
Cockpit
Stem
veloheld.stem – black, 80 mm (S), 90 mm (M, L), 100 mm (XL)
Handlebar
veloheld riser bar – black, 720 mm, ø 31.8 mm, 20 mm height, 10° rearward bend
Headset
Acros AZX-245, flat, black, ZS44/28.6, EC44/40
Sitting
Saddle
veloheld, black
Seat post
veloheld.post – black, ø 27.2 mm, 350 mm
Miscellaneous
Lighting

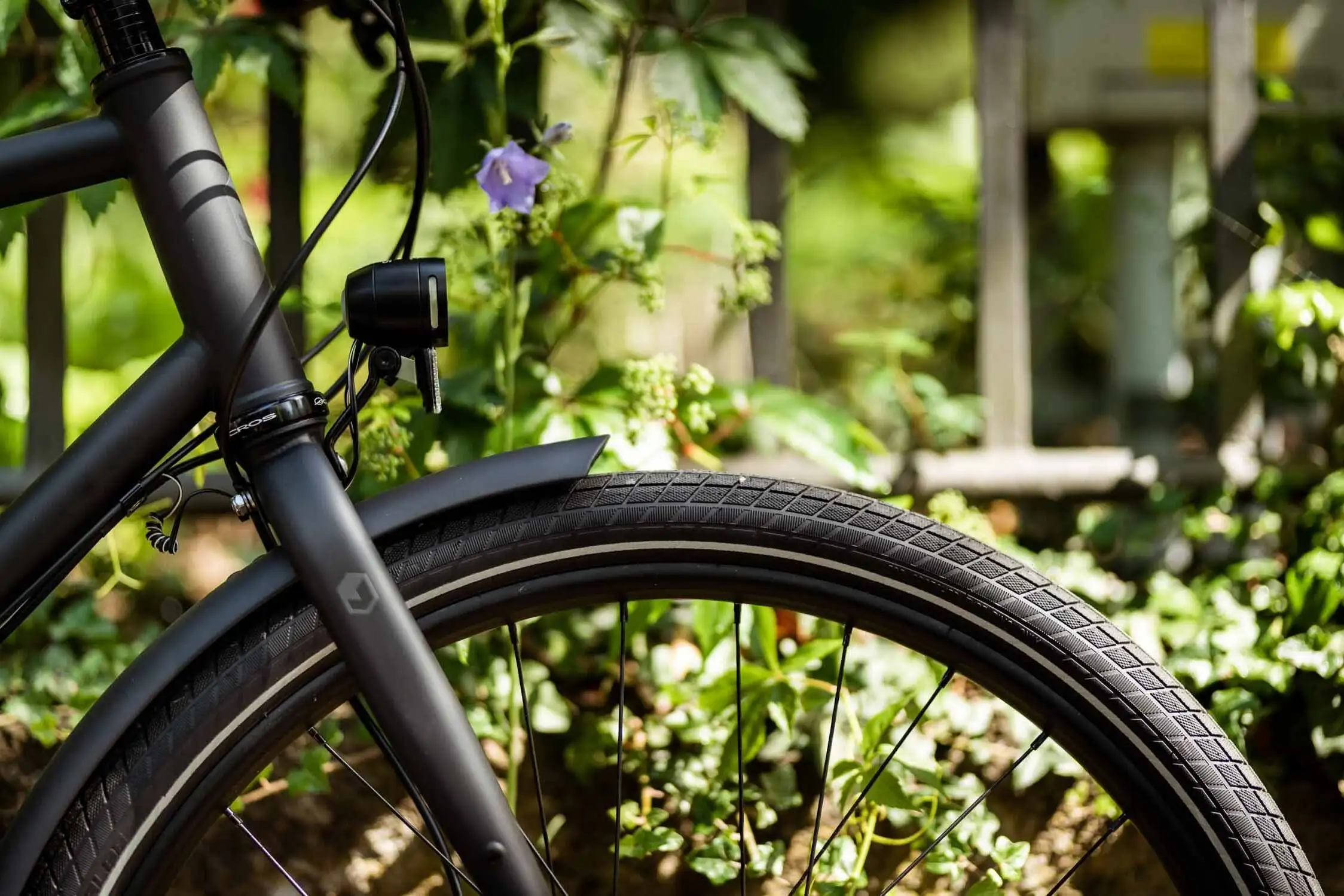

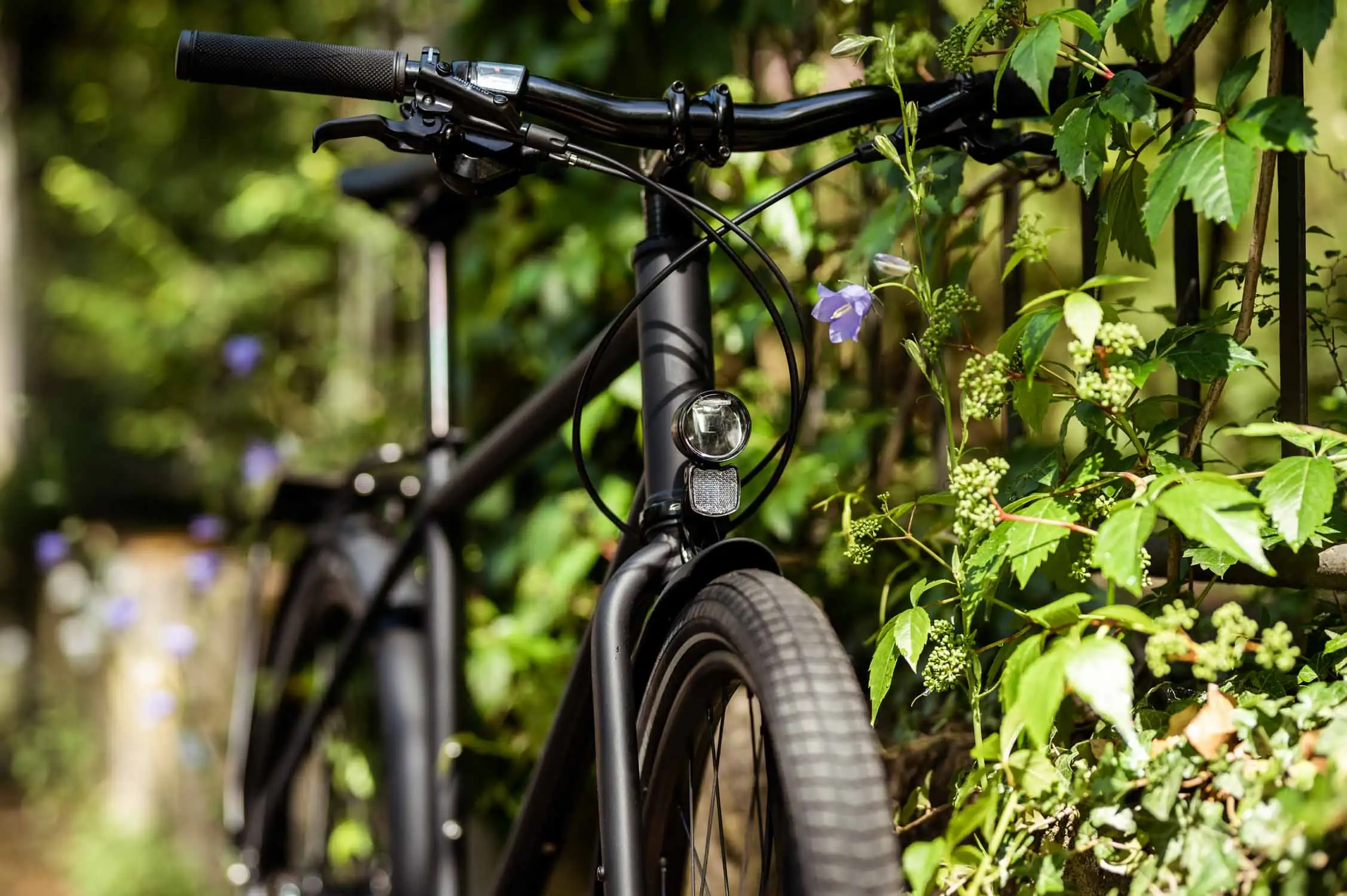

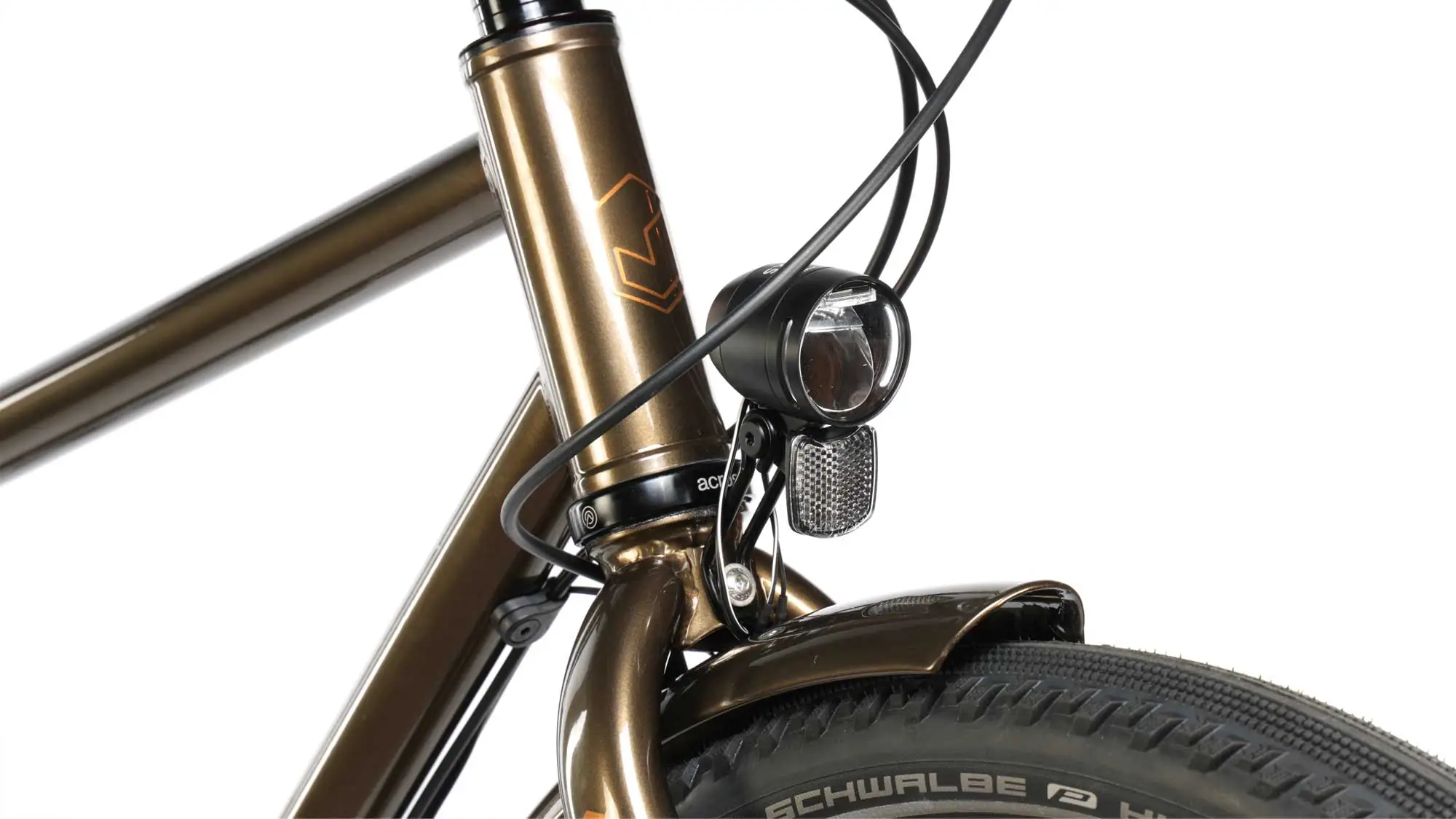

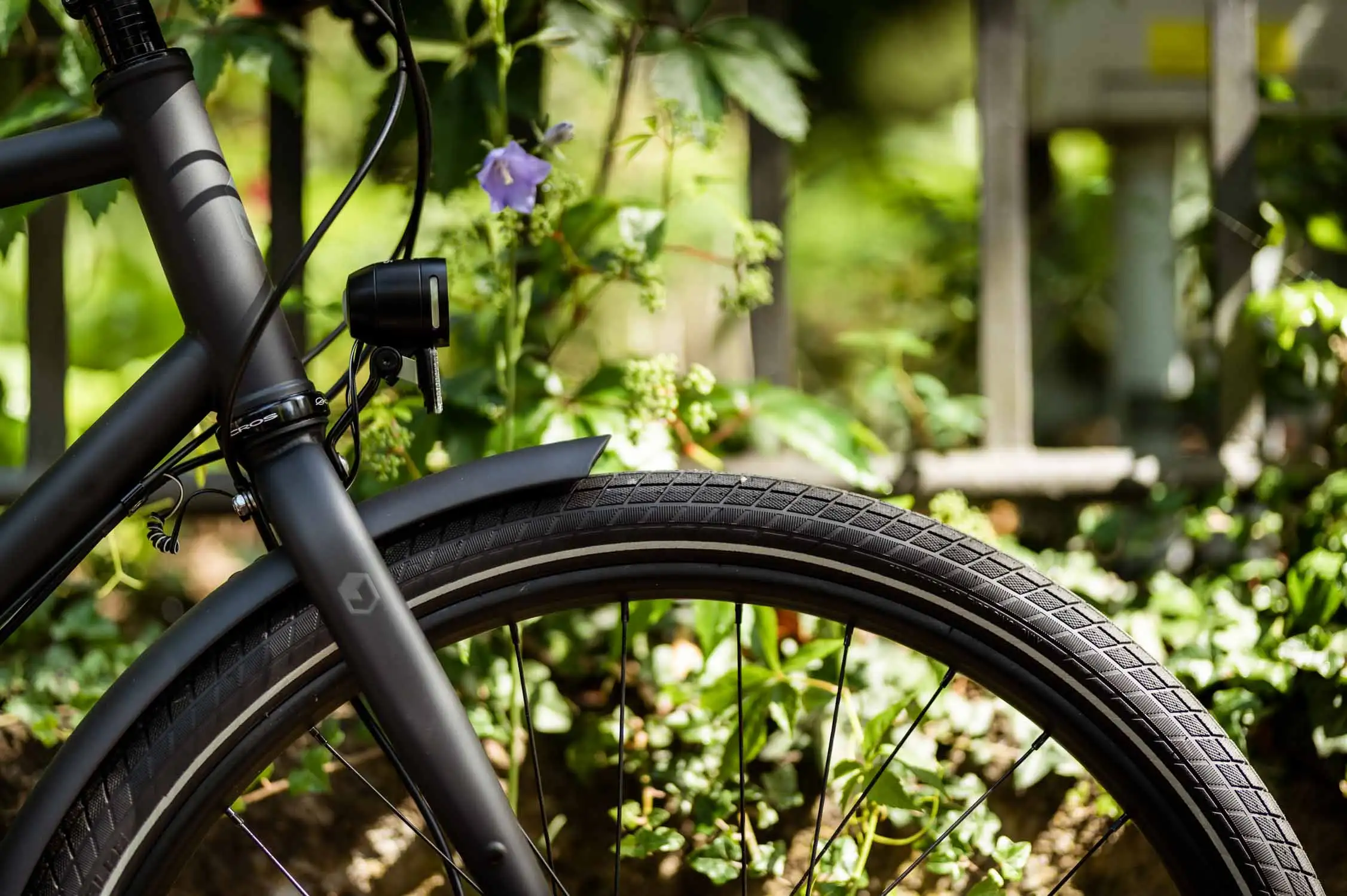

Busch+Müller LUMOTEC IQ-XS N plus front light, black and TOPLIGHT Mini plus rear light with parking light function

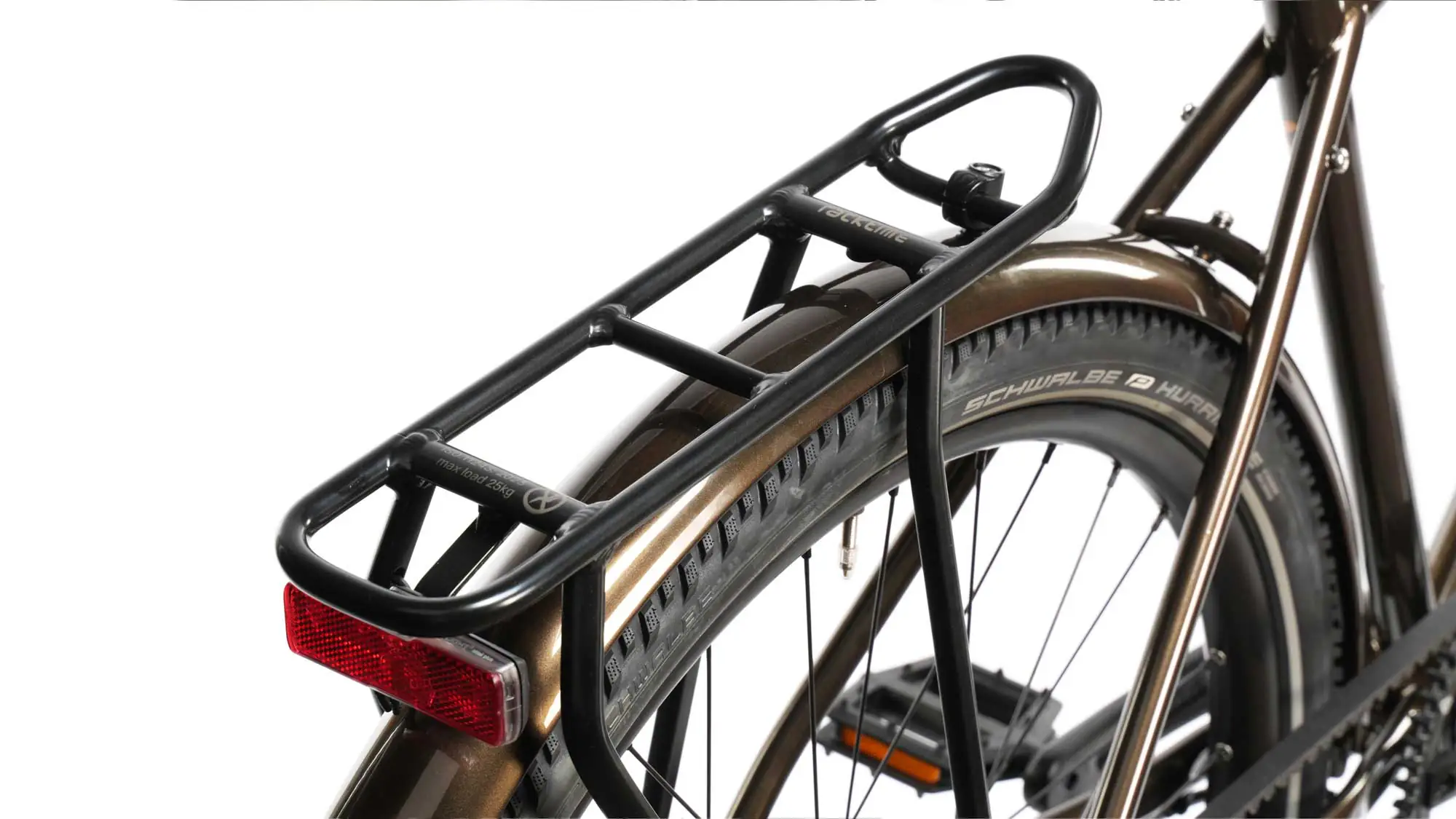

Rack

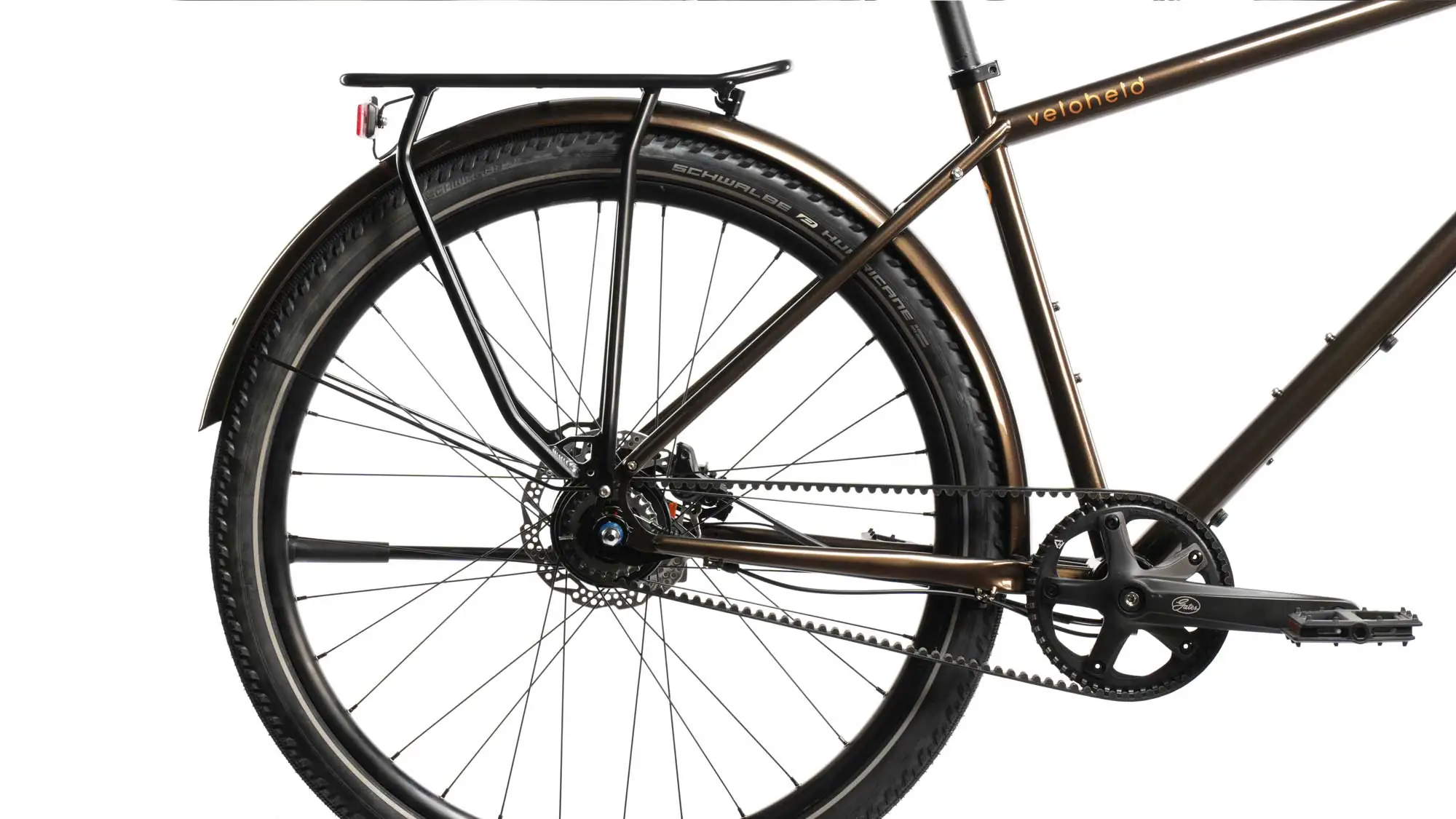

Racktime Light-it integrated, black, suitable for 20 kg luggage
Mudguards
made of durable aluminum, powder-coated in frame color, 58 mm width
Kickstand

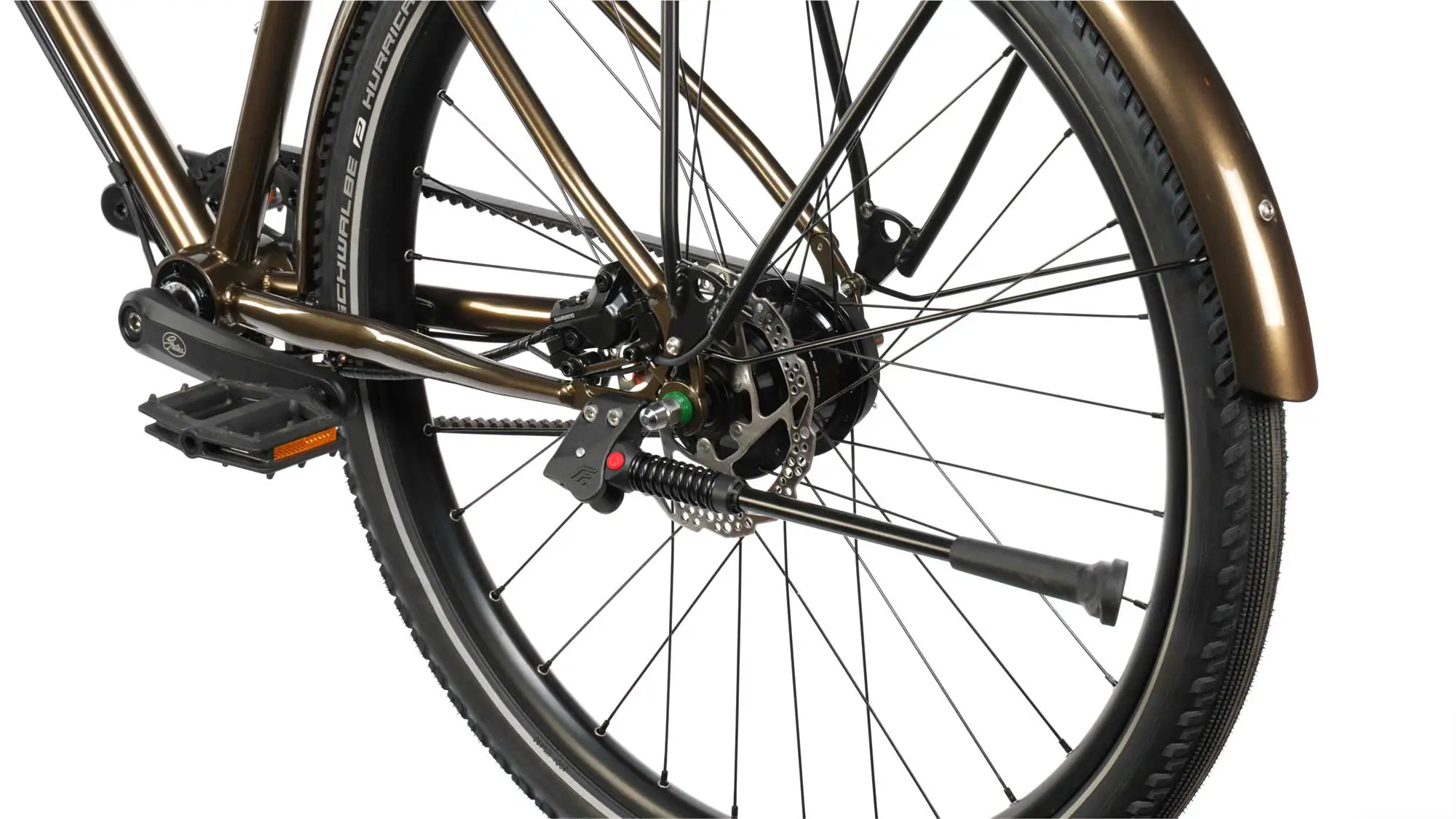

incl. Hebie Fix 18 rear kickstand
Colors
Standard colour

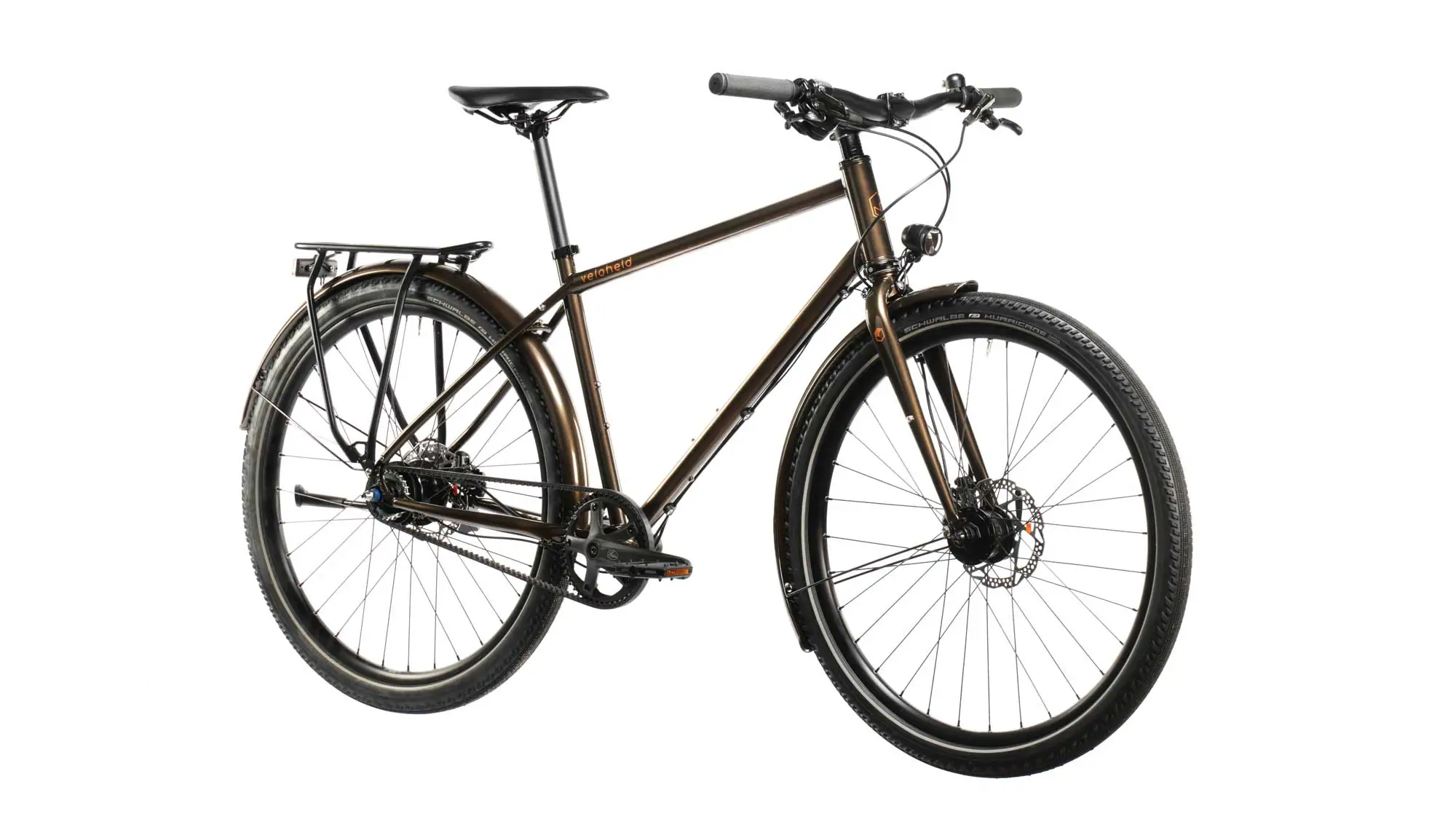

“Bronze Chrome” glossy with gold decor

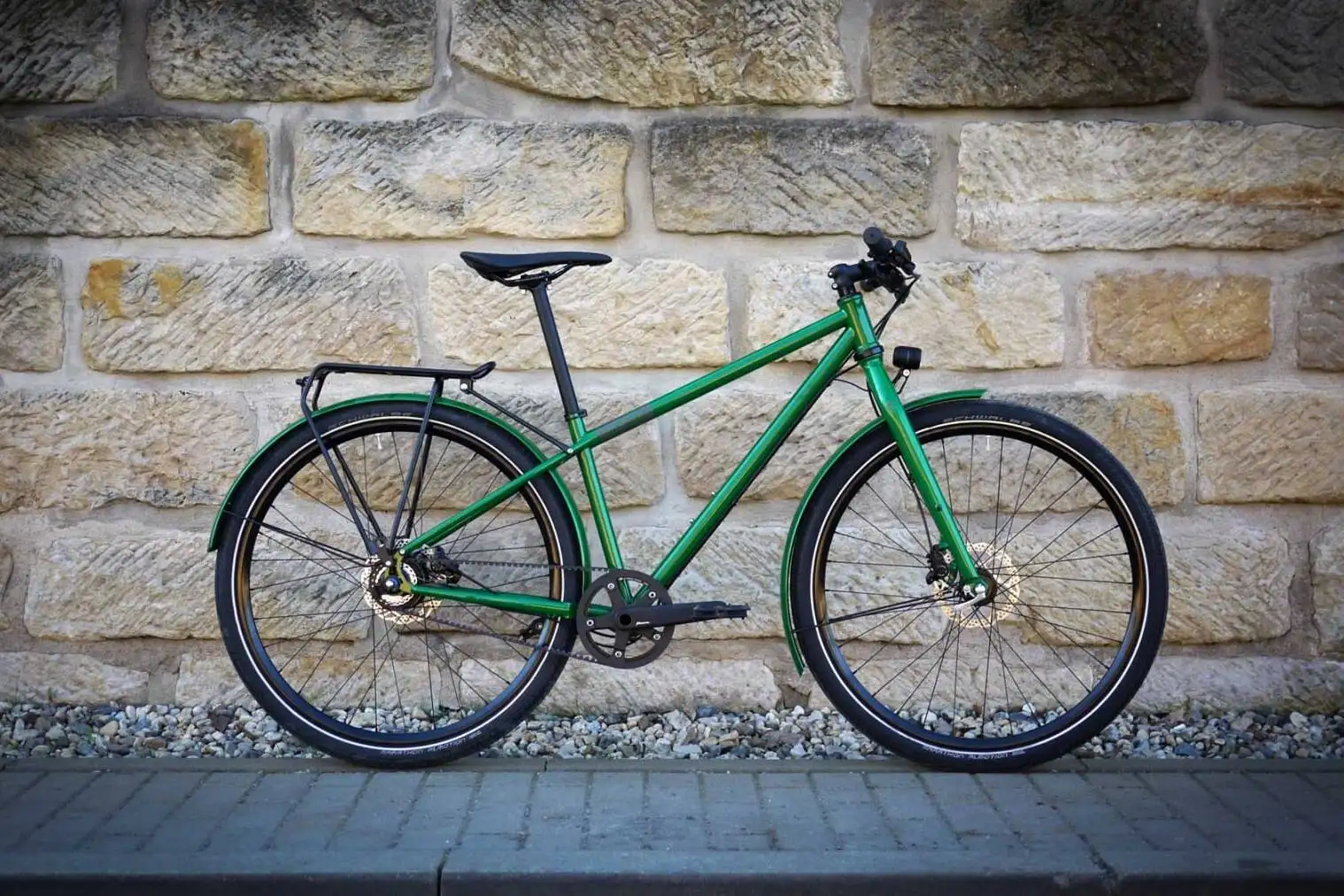

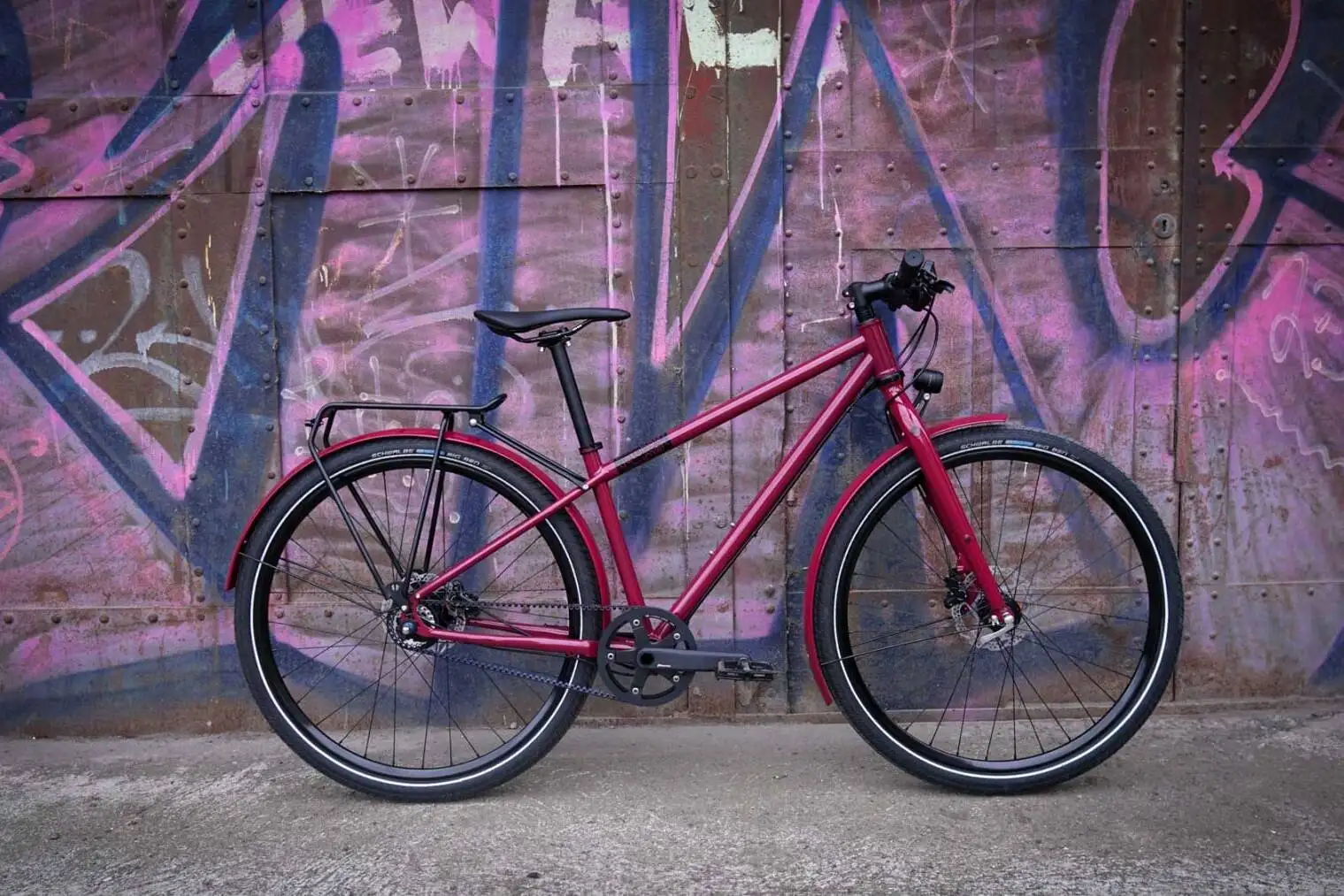

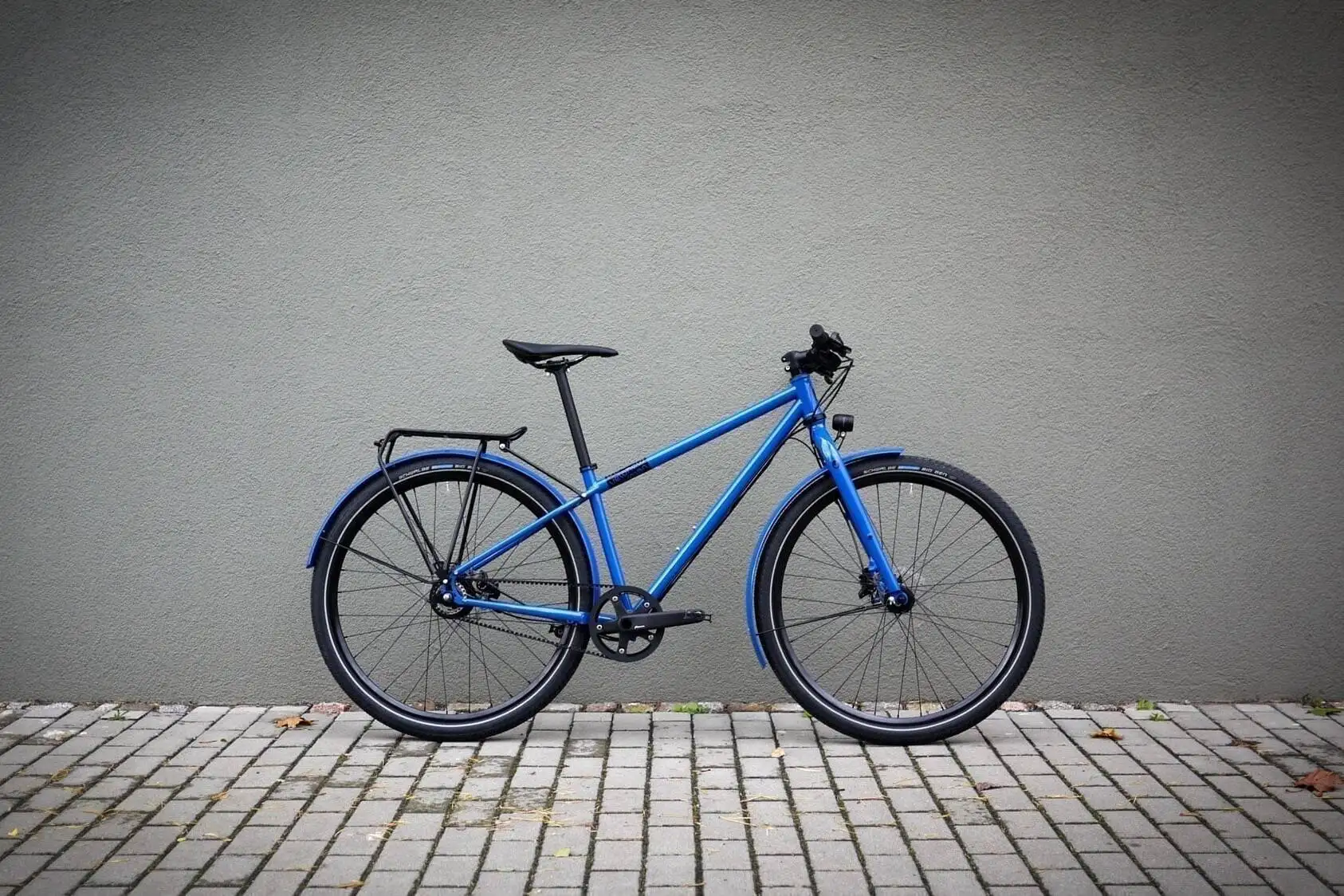

Custom color

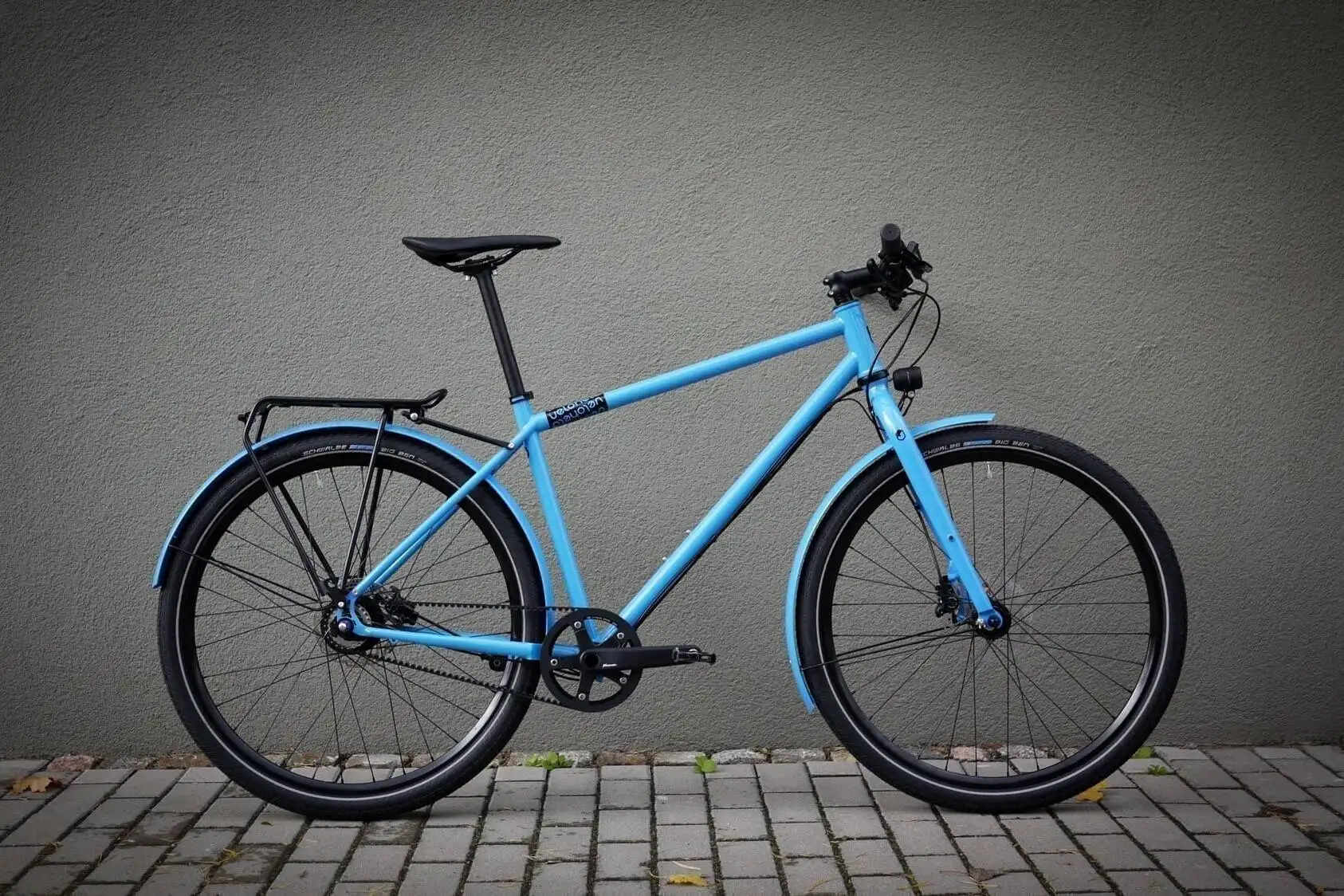

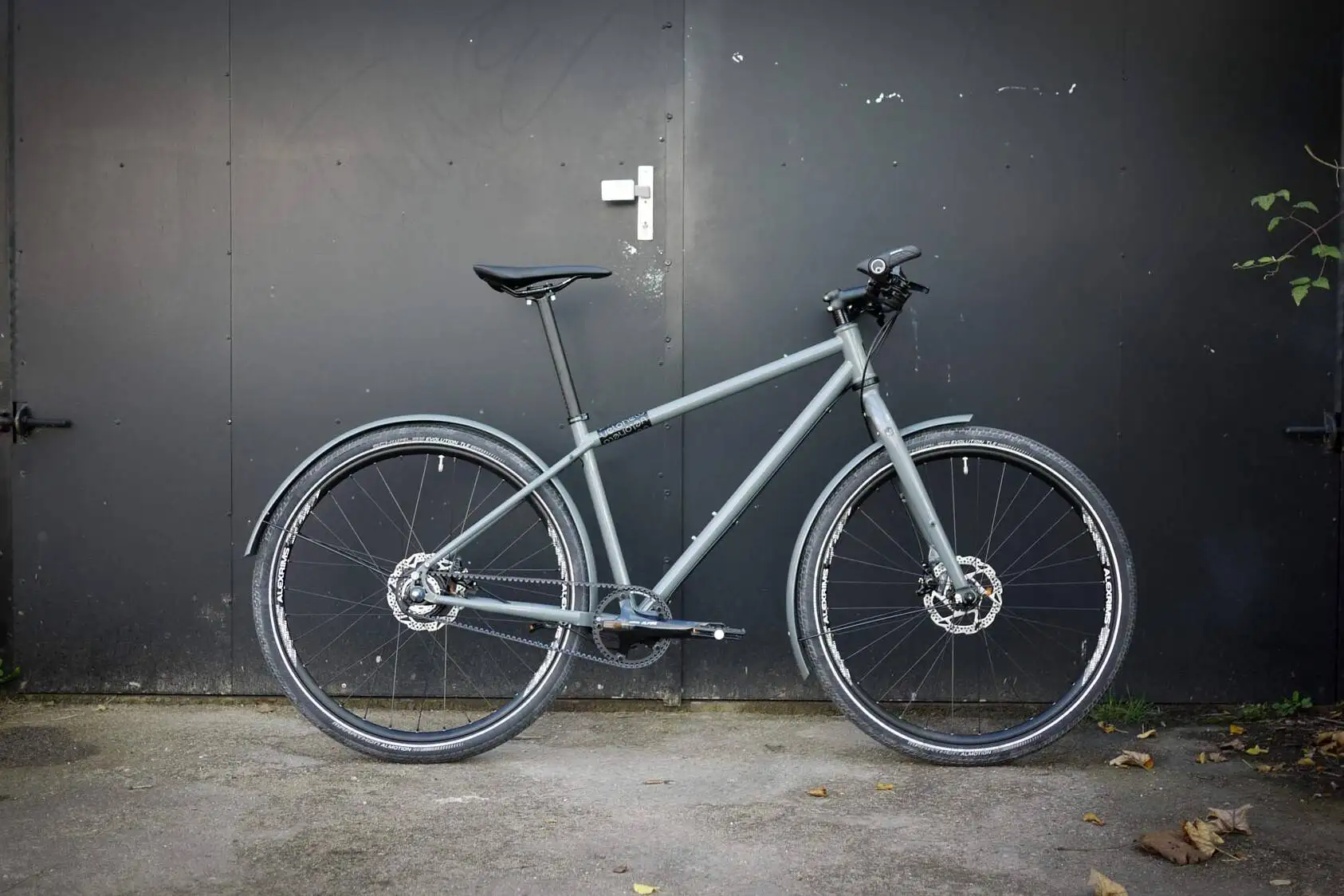

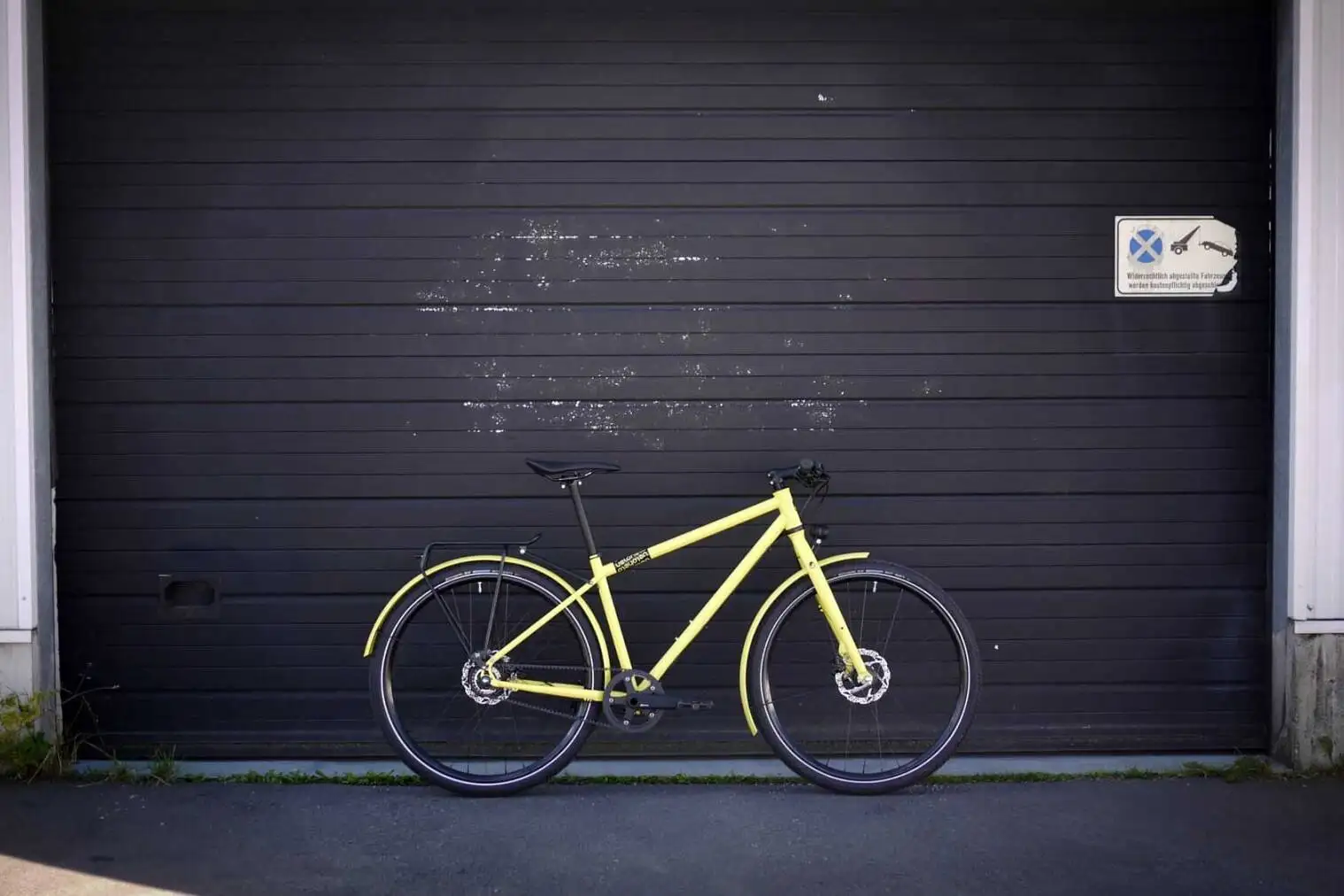

RAL powder coating of your choice in gloss or matt, decor in black or silver
Weight
approx. 13.5 kg
Classification
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Note
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
| Frame size | S | M | L | XL |
|---|---|---|---|---|
| for approx. body height in cm | 163 – 173 | 172 – 182 | 181 – 188 | 188 – 195 |
| for approx. inside leg length in cm | 75 - 80 | 79 - 84 | 83 - 88 | 87 - 93 |
| A Seat tube length | 430 | 460 | 500 | 540 |
| B Top tube length | 570 | 590 | 620 | 630 |
| C Wheelbase | 1076 | 1091 | 1116 | 1123 |
| D Head tube length | 135 | 155 | 175 | 190 |
| E Head tube angle | 71° | 71° | 71° | 71° |
| F Seat angle | 73° | 73° | 73° | 73° |
| G Chainstay length | 443 | 443 | 443 | 443 |
| H Fork offset | 50 | 50 | 50 | 50 |
| I approx. bottom bracket drop | 55 | 55 | 55 | 55 |
| J Stack | 552 | 571 | 590 | 604 |
| K Reach | 412 | 421 | 440 | 445 |
| Standover height | 735 | 765 | 795 | 820 |
| Saddle extension | 650 - 700 | 690 - 740 | 730 - 780 | 770 - 820 |
Add a review
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
If you live near our showroom in Dresden or one of our dealers, you can test ride your dream bike on site. Please contact the dealer beforehand to clarify availability and dates.
Alternatively, you can also order the bike directly from us and test it at home after assembly. If, contrary to expectations, you don’t like it, we will collect it again within the return period. This does not apply to custom-built bikes.
In addition to the statutory warranty, we grant you a voluntary warranty of 5 years on veloheld frames and forks – from the date of purchase. Please register your bike within 3 months of purchase to take advantage of this warranty. You can find all the details on our warranty page.
The maximum permissible system weight – i.e. the total weight of the bike, rider and luggage – is
- For frame sizes S and M: 120 kg
- For frame sizes L and XL: 140 kg
Yes, the veloheld.path has a KSA18 mount on the left dropout. A suitable kickstand is already fitted for you with the complete bike.
Unfortunately not. Due to the butted shape of the seat tube, there is a risk that the clamp of a child seat will damage the tube. In this case, we recommend alternative transport solutions such as trailers or luggage carrier systems.
The complete bike is equipped with a low-maintenance Shimano Alfine hub gear (optionally with 8 or 11 gears). There is also a durable Gates Carbon Drive belt drive. On request, we can also build the bike with Rohloff or as a single-speed version.
We install stable 27.5″ wheels with puncture-proof Schwalbe Hurricane tires in 50 mm width. This allows you to roll comfortably through the city, over cobblestones and also over gravel paths.
Yes, we offer individual powder coatings in your desired RAL color. The surcharge for a special color is € 200. Simply state your color preference when ordering or contact us directly.
The delivery time is usually 4 to 8 weeks after order confirmation – depending on the selected equipment, color, season and component availability.
