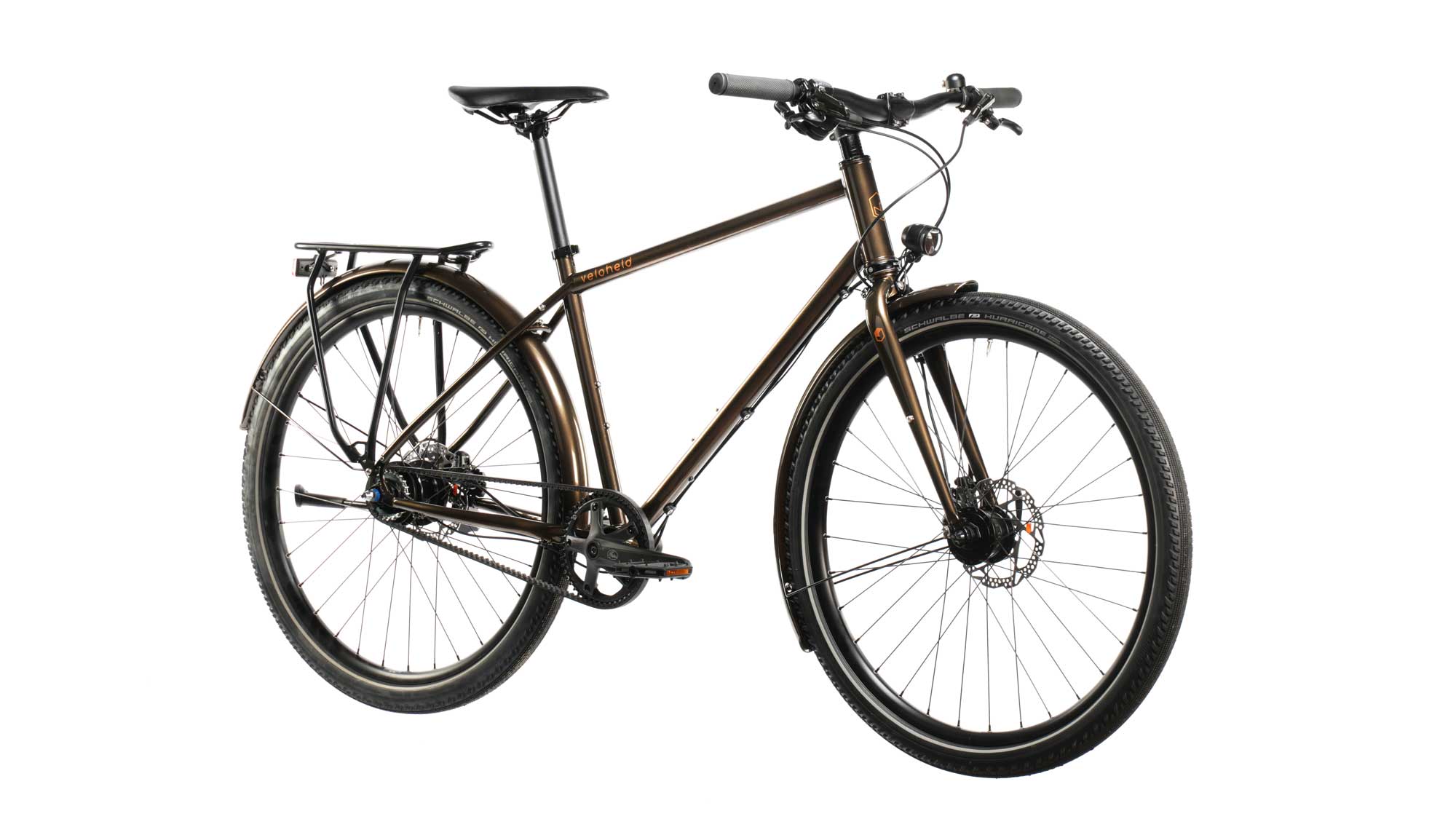

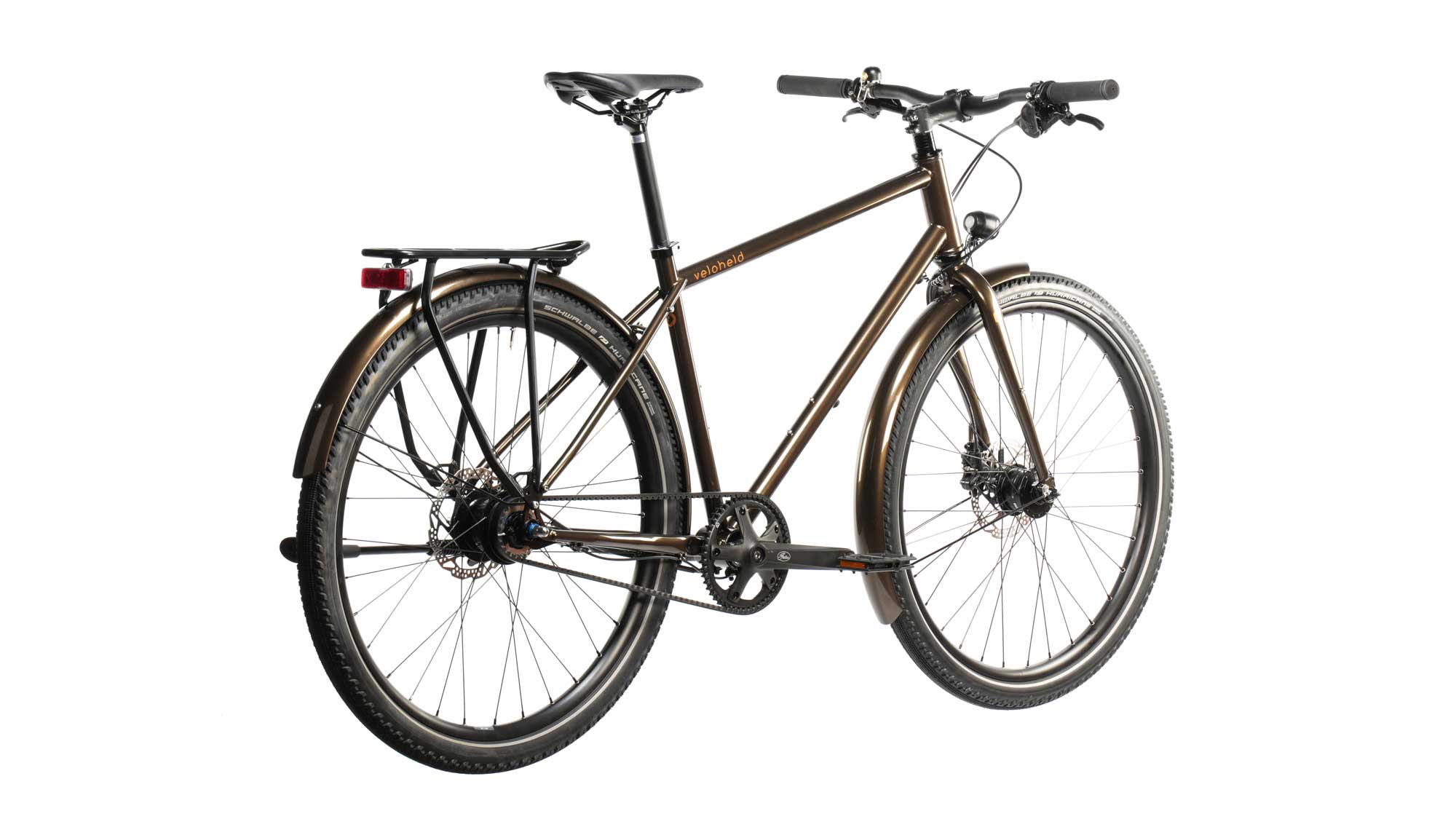

veloheld.path complete bike

2.199,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

(0 customer reviews)
  • low-maintenance: Gates CDN belt drive with Shimano Alfine 8-speed internal gear hub
  • incl. B+M front light & rear light with standlight function
  • also available in your custom colour
  • available as a complete bike or frame set

Delivery time

As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 2–3 weeks from order confirmation to manufacture and dispatch bikes that are in stock.

I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%
The veloheld.path is your perfect companion when the streets of your city offer more adventure than comfort. Cobblestones, potholes or unpaved paths – not every city is a paradise of ‘whisper asphalt’. Thanks to the 27.5-inch wheels and 50 mm wide tyres, you’ll glide quickly yet comfortably over urban obstacles.Fitted as standard with the low-maintenance Gates CDN belt drive and the reliable Shimano Alfine 8-speed hub, you’ll have more time for cycling and less time in the workshop. For even more options, you can also configure the bike in your choice of colour and spec with the 11-speed Alfine or the legendary Rohloff 14-speed hub.And if curiosity gets the better of you, the veloheld.path will take you far beyond the city limits – ready for any adventure you can imagine.

In the wild!

At 1.82 m tall and 84 cm inside leg length, Paul rides a size L frame

Highlights

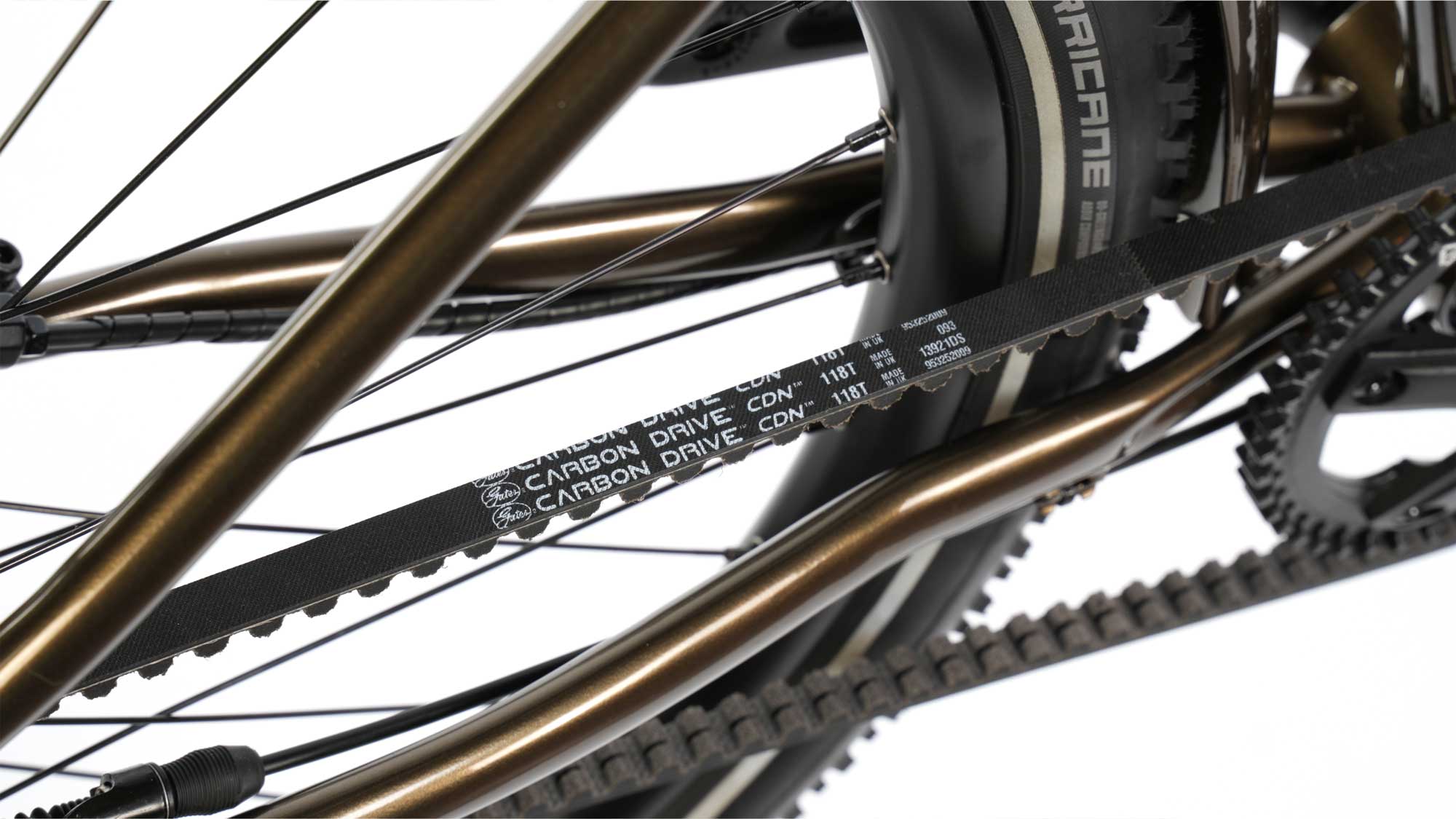

No oil, no grease

With the low-maintenance Gates Carbon Drive CDN belt drive

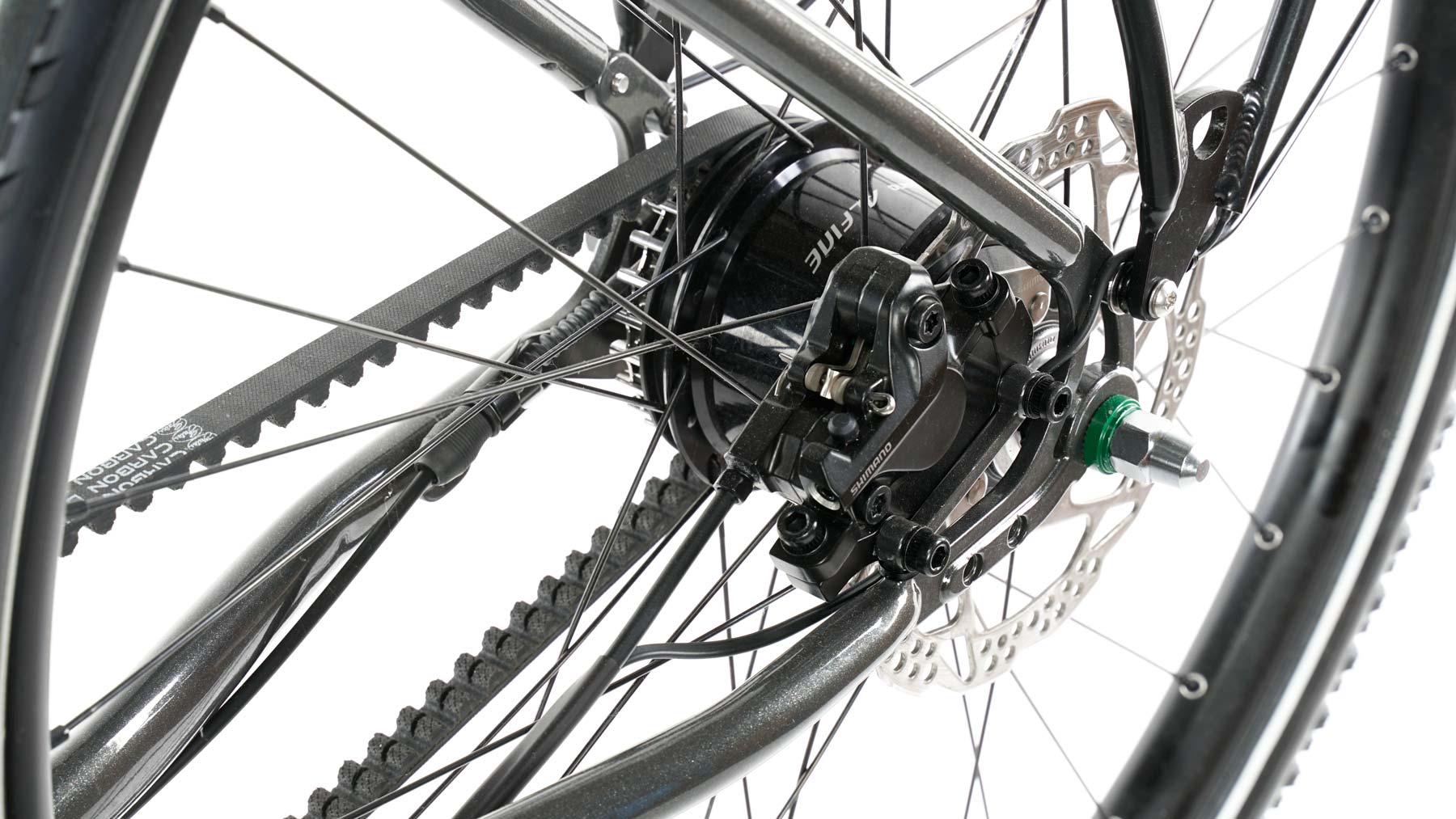

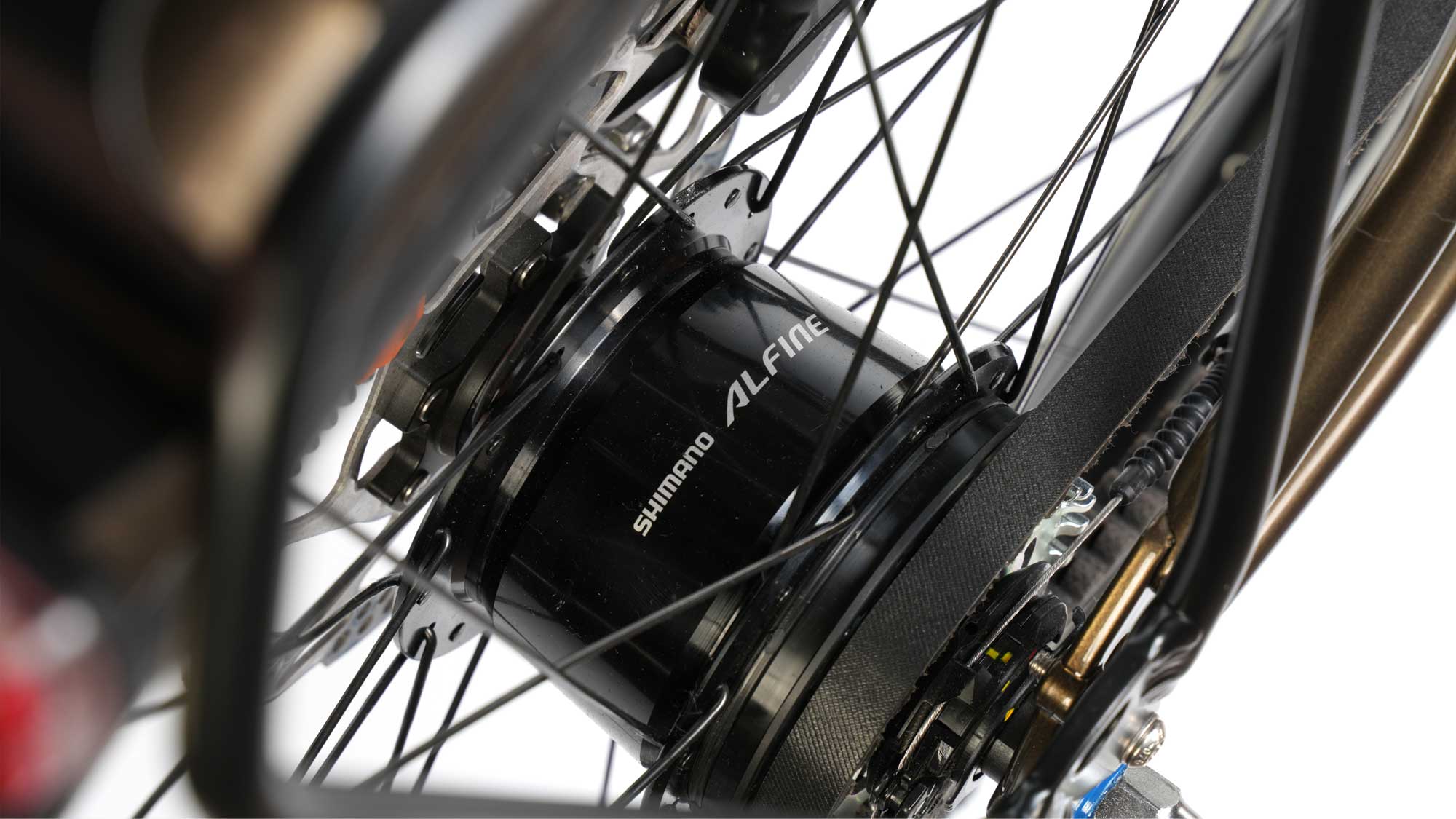

Shimano Alfine 8-speed hub gear

Perfectly equipped for city riding and touring with the Shimano Alfine 8-speed hub gear.

Details

Frame

double end-reinforced tubes made of 4130 CroMoly steel, TIG-welded, EBB eccentric bottom bracket housing for tensioning the belt, stainless steel dropouts with internal disc brake mount and KSA 18 side stand mount, Rohloff compatible with OEM2 torque support, anti-rust “ED-Black” coating, external cable routing on the down tube, 3 bottle cages possible, stops for normal derailleur gears available

Fork

4130 CroMoly steel fork, 1 1/8″ – 1 1/2″ head tube, installation height 405 mm, internally routed light cable

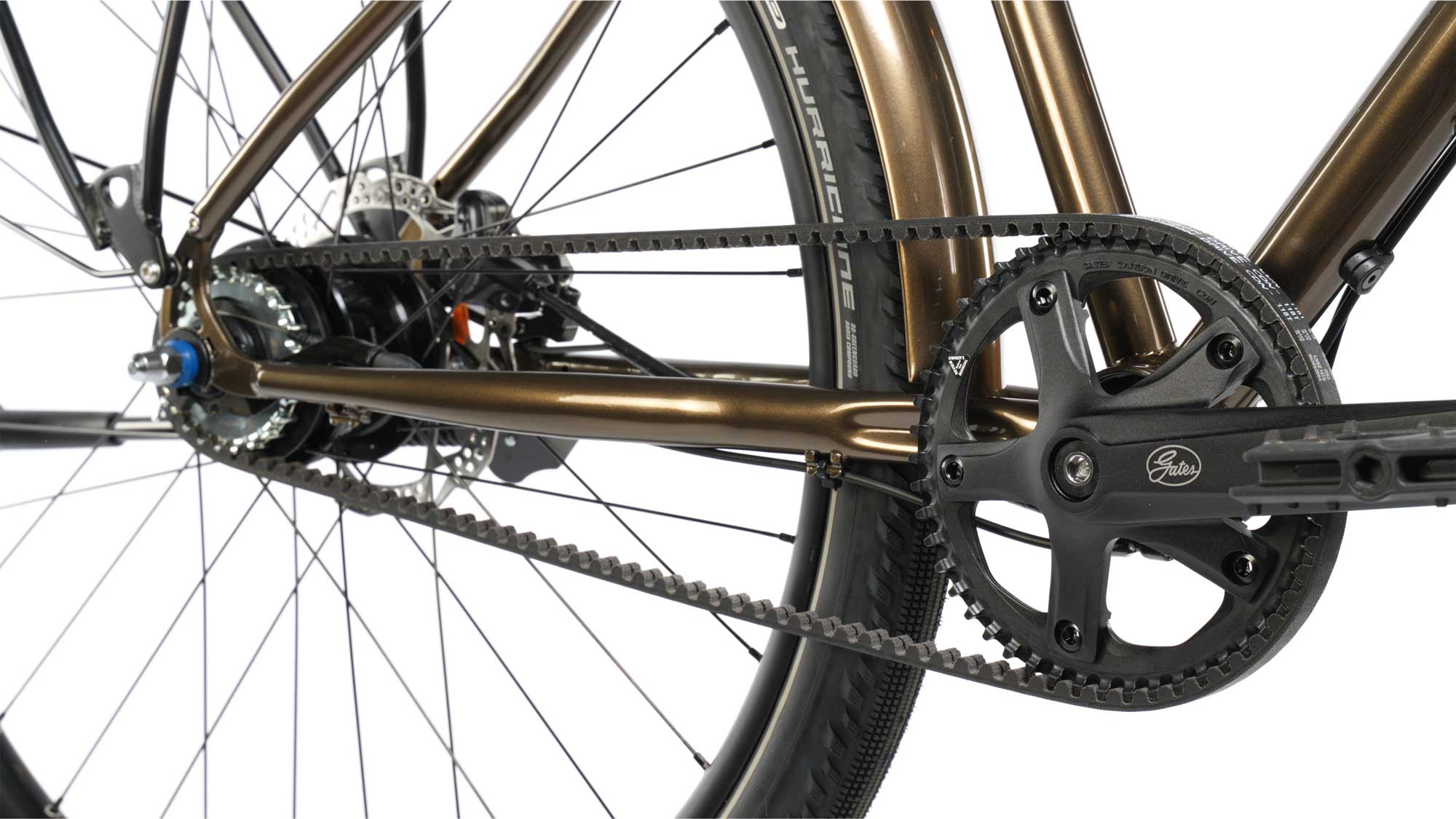

Drivetrain

Hub gear

Shimano Alfine SG-S7001-8 8-speed hub gear, black

Belt

Gates CDN belt, 118t

Belt drive sprockets

Alfine:
front: 50t Gates Carbon Drive CenterTrack front sprocket, rear: 24t Gates CenterTrack CDN sprocket

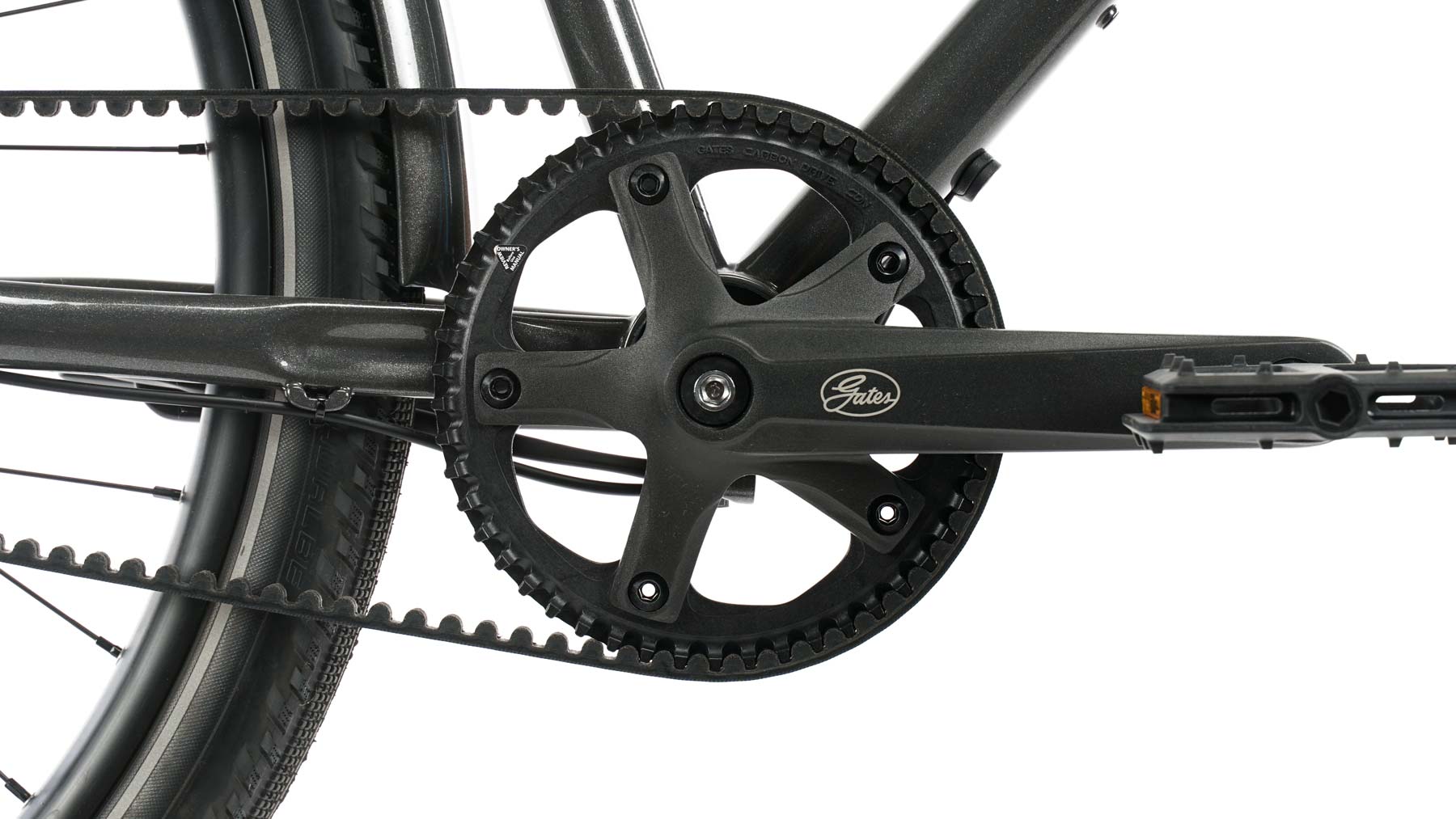

Crankset

Gates Carbon Drive CDN S150 crankset, black, 170 m

Bottom bracket

Gates

Pedals

VP-538 – black plastic body, CroMo axle, industrial bearings

Brakes

Brake levers

Shimano BL-MT501, black

Brake callipers

Shimano BR-MT501

Brake rotors

Shimano RT-54 160mm brake discs front and rear

Wheels & tires

Front wheel

Ryde Rival 26, aluminum hollow chamber, 32h eyelet, black / Shimano DH-3D37 hub dynamo 6V/3W, black

Rear wheel

Ryde Rival 26, aluminum hollow chamber, 32h eyelets, black / Shimano Alfine SG-S7001-8 8-speed internal hub gear

Tires

Schwalbe Hurricane, 27.5 “x2.00”

Cockpit

Stem

veloheld.stem – black, 80 mm (S), 90 mm (M, L), 100 mm (XL)

Handlebar

veloheld riser bar – black, 720 mm, ø 31.8 mm, 20 mm height, 10° rearward bend

Headset

Acros AZX-245, flat, black, ZS44/28.6, EC44/40

Saddle

Saddle

veloheld, black

Seat post

veloheld.post – black, ø 27.2 mm, 350 mm

Other

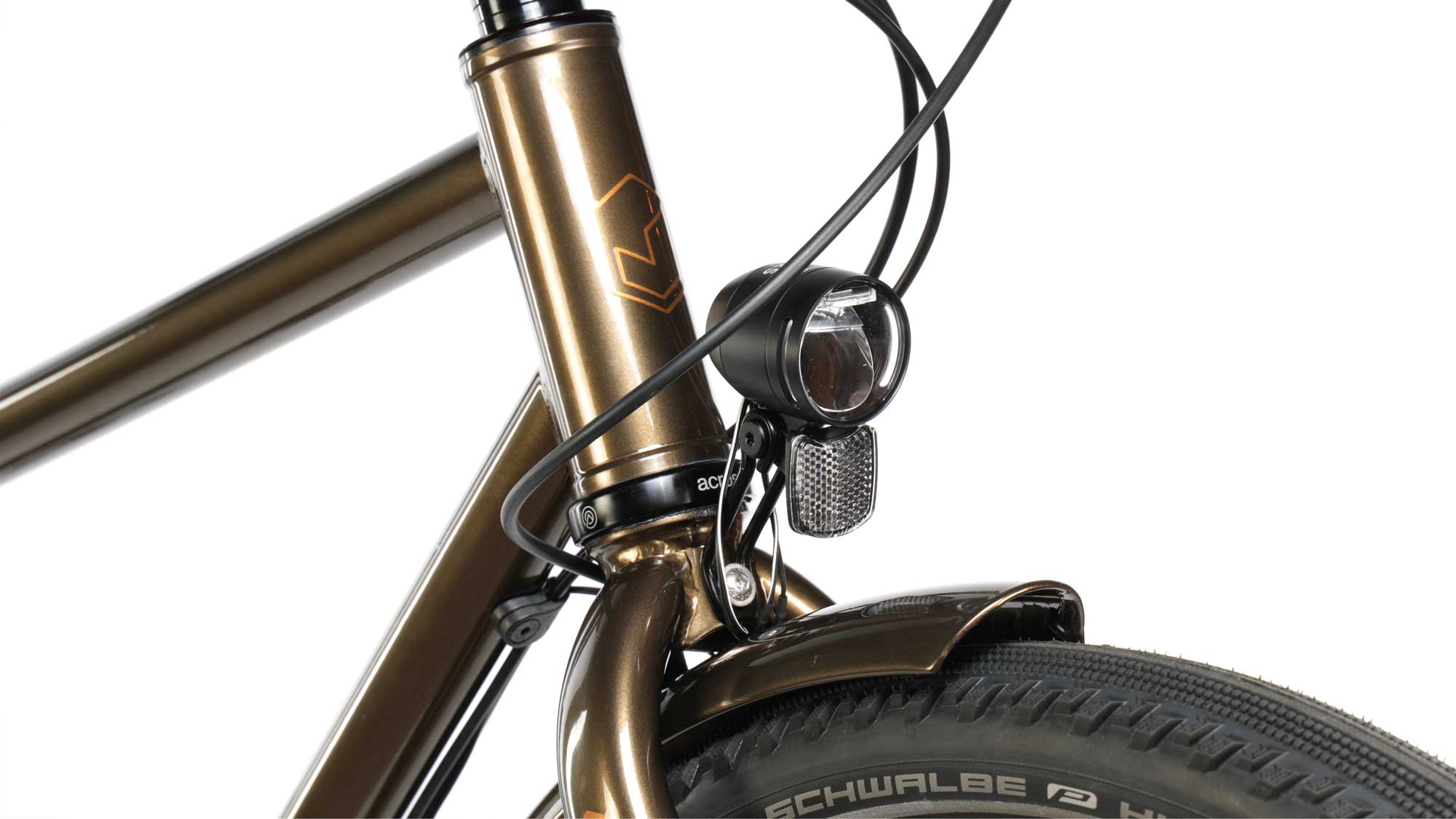

Lighting

Busch+Müller LUMOTEC IQ-XS N plus front light, black and TOPLIGHT Mini plus rear light with parking light function

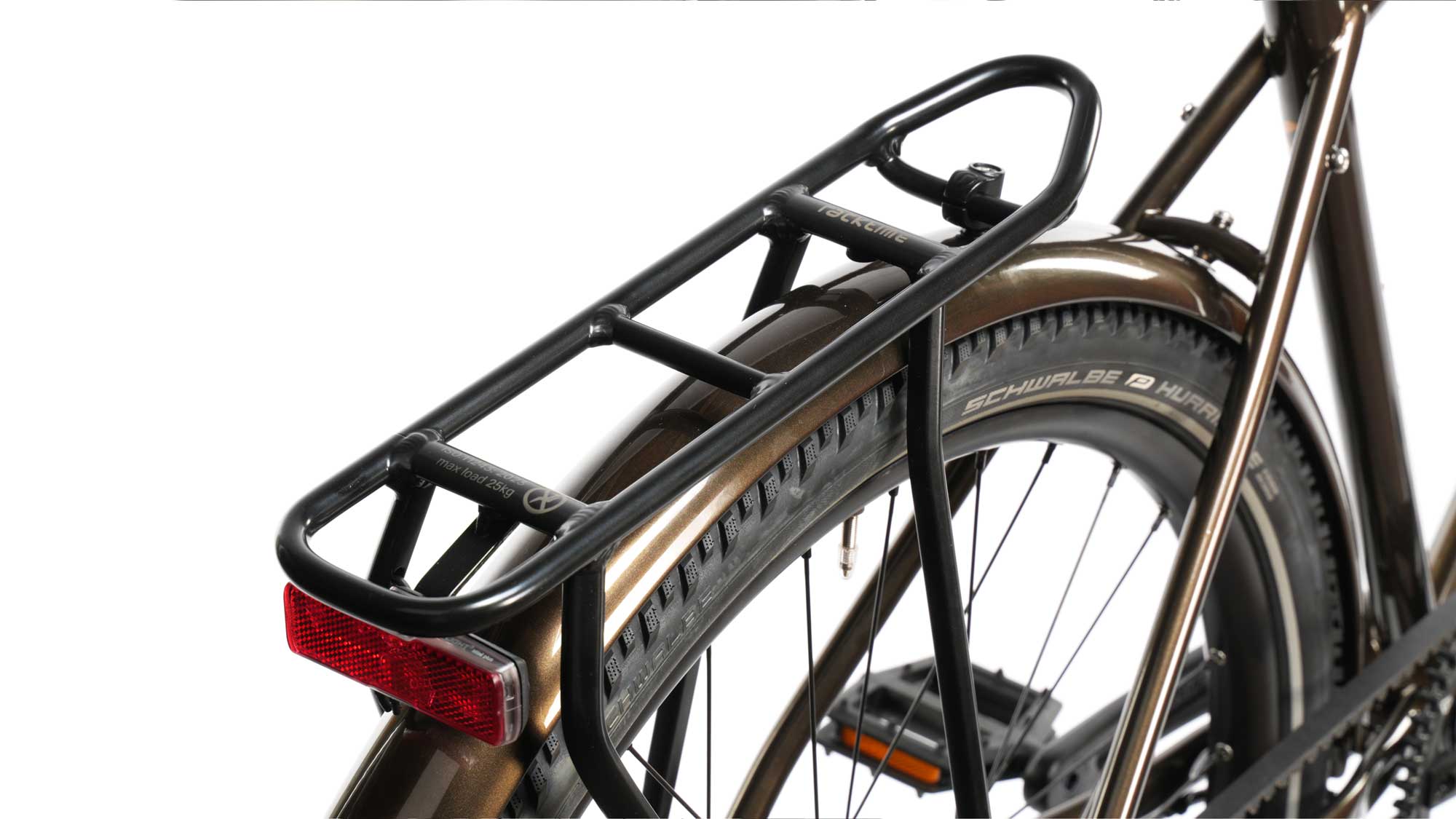

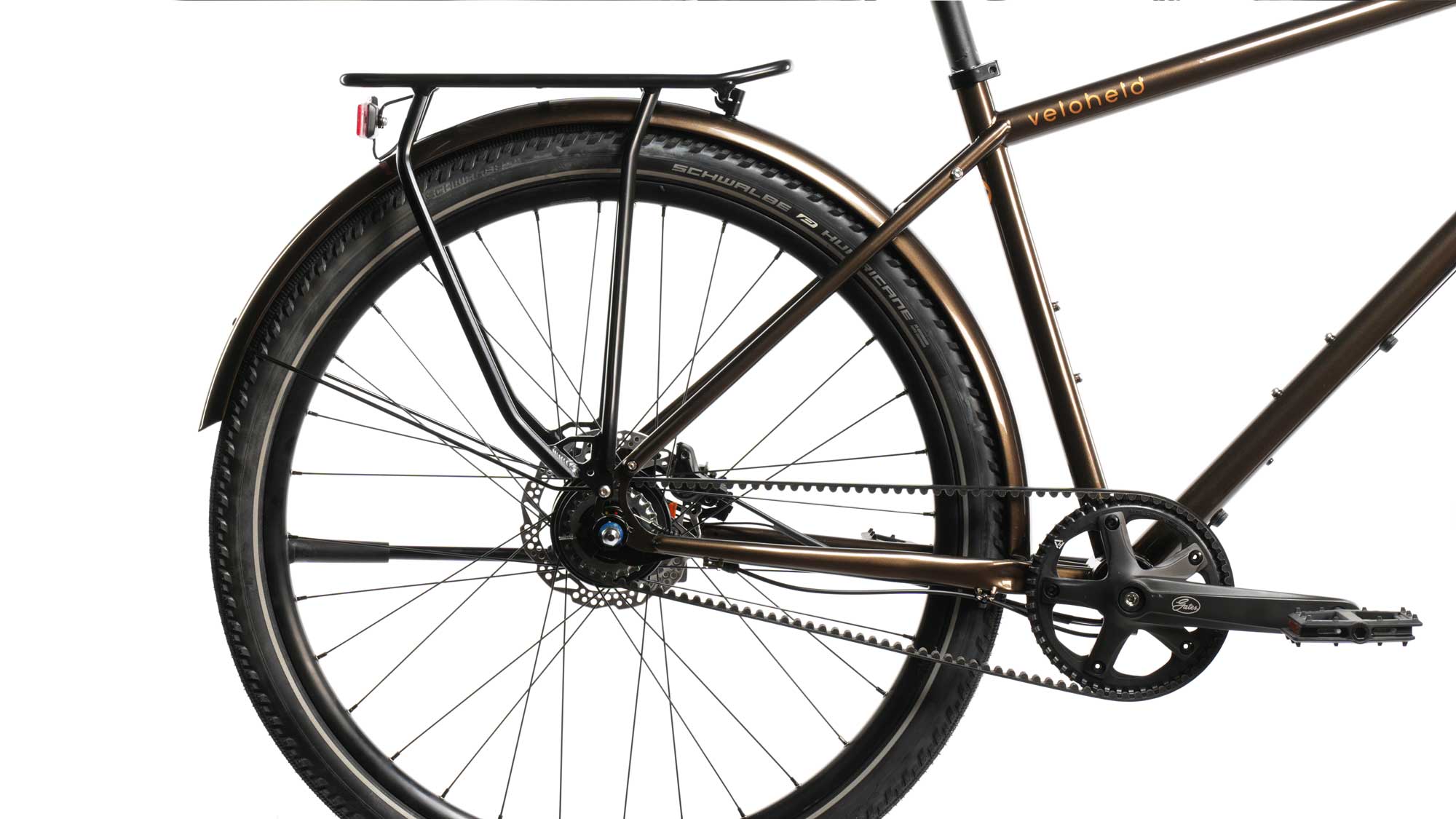

Rack

Racktime Light-it integrated, black, suitable for 20 kg luggage

Mudguards

made of durable aluminum, powder-coated in frame color, 58 mm width

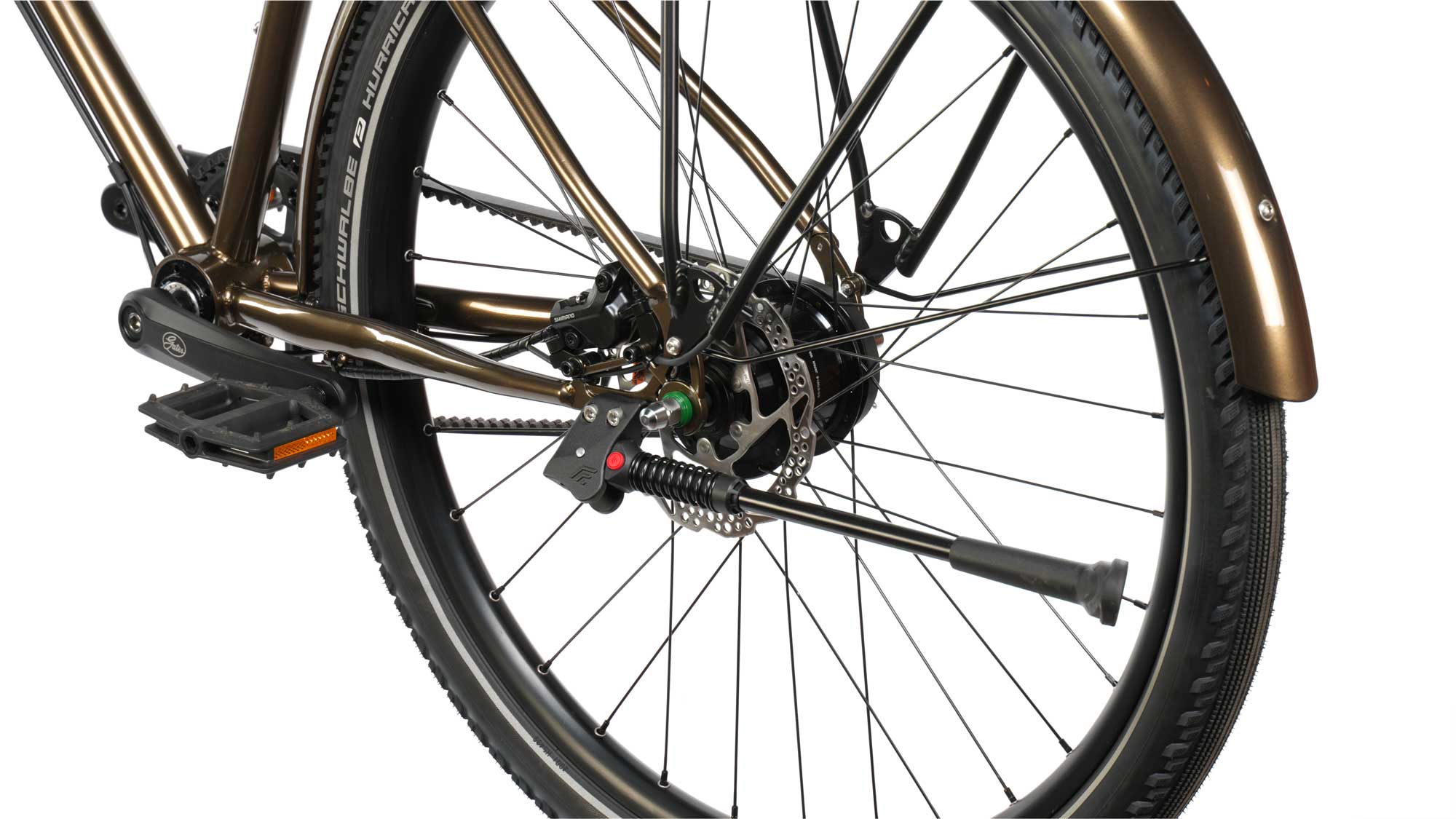

Kickstand

incl. Hebie Fix 18 rear kickstand

Colors

Standard colour

“Bronze Chrome” glossy with gold decor

Custom color

RAL powder coating of your choice in gloss or matt, decor in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

approx. 15.5 kg

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

Note: Subject to technical changes, errors and omissions.

Frame size S M L XL
for approx. body height in cm 163 – 173 172 – 182 181 – 188 188 – 195
for approx. inside leg length in cm 75 - 80 79 - 84 83 - 88 87 - 93
A Seat tube length 430 460 500 540
B Top tube length 570 590 620 630
C Wheelbase 1076 1091 1116 1123
D Head tube length 135 155 175 190
E Head tube angle 71° 71° 71° 71°
F Seat angle 73° 73° 73° 73°
G Chainstay length 443 443 443 443
H Fork offset 50 50 50 50
I approx. bottom bracket drop 55 55 55 55
J Stack 552 571 590 604
K Reach 412 421 440 445
Standover height 735 765 795 820
Saddle extension 650 - 700 690 - 740 730 - 780 770 - 820

Show reviews in all languages (4)

Add a review

Urban 90%
Tour 90%
Road 75%
Offroad 50%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

Can I test ride the bike?

If you live near our showroom in Dresden or one of our dealers, you can test ride your dream bike on site. Please contact the dealer beforehand to clarify availability and dates.

Alternatively, you can also order the bike directly from us and test it at home after assembly. If, contrary to expectations, you don’t like it, we will collect it again within the return period. This does not apply to custom-built bikes.

What warranty do I get on the complete bike?

In addition to the statutory warranty, we grant you a voluntary warranty of 5 years on veloheld frames and forks – from the date of purchase. Please register your bike within 3 months of purchase to take advantage of this warranty. You can find all the details on our warranty page.

What is the permissible system weight?

The maximum permissible system weight – i.e. the total weight of the bike, rider and luggage – is

  • For frame sizes S and M: 120 kg
  • For frame sizes L and XL: 140 kg

Can I fit a side stand?

Yes, the veloheld.path has a KSA18 mount on the left dropout. A suitable kickstand is already fitted for you with the complete bike.

Can I mount a child seat on the seat tube?

Unfortunately not. Due to the butted shape of the seat tube, there is a risk that the clamp of a child seat will damage the tube. In this case, we recommend alternative transport solutions such as trailers or luggage carrier systems.

What gearbox and drive system are installed?

The complete bike is equipped with a low-maintenance Shimano Alfine hub gear (optionally with 8 or 11 gears). There is also a durable Gates Carbon Drive belt drive. On request, we can also build the bike with Rohloff or as a single-speed version.

What tires and wheels are installed?

We install stable 27.5″ wheels with puncture-proof Schwalbe Hurricane tires in 50 mm width. This allows you to roll comfortably through the city, over cobblestones and also over gravel paths.

Is the bike available in my preferred color?

Yes, we offer individual powder coatings in your desired RAL color. The surcharge for a special color is € 200. Simply state your color preference when ordering or contact us directly.

How long will it take for my complete bike to be delivered?

The delivery time is usually 4 to 8 weeks after order confirmation – depending on the selected equipment, color, season and component availability.

Your custom bike

Not the right setup for you?

Send us a message with your desired bike components or give us a call on +49 (0)351 212 952 95 and we will soon build you your ultimate veloheld dream bike!
