veloheld.alleyX flatbar

from 2.699,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • Versatile all-rounder with sustainable and durable CrMo frame
  • Gravel bike with Shimano Alfine 8 or 11-speed hub gears and low-maintenance Gates CDX belt drive
  • optionally with SON lighting, mudguards and pannier rack
  • also available in your desired colour
  • Application: Touring, Gravel, Commuting

Delivery time

As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 4–6 weeks from order confirmation to manufacture and dispatch bikes that are in stock.

Send us your desired RAL color here and tell us whether it should have a matt or glossy coating.

If you would prefer a special Prismatic color, please contact us in advance by e-mail!
SON 28 hub dynamo, Edelux II Front- und SON Tail light, veloheld Mudguards in frame colour und Tubus Vega rack
Grand total
I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%

Are you looking for a reliable gravel bike that won’t let you down – whether in city traffic, on long rides or off the beaten track? Then the veloheld.alleyX is made for you. This bike combines urban style with genuine off-road capability and has everything you need for low-maintenance riding pleasure: a robust, high-quality steel frame ensures a comfortable, stable ride – even on uneven terrain.

The Gates Carbon Drive belt drive operates quietly, cleanly and is virtually maintenance-free, whilst the Shimano Alfine 11-speed hub gear shifts precisely and reliably – whether in the rain, on gravel or in the city.

Whether you’re commuting to work every day, exploring new routes at the weekend or riding on gravel tracks – the veloheld.alleyX is your versatile companion for everyday life, adventure and everything in between.

Highlights

Low-maintenance

A great combination – Shimano Alfine hub gears and the Gates Carbon Drive belt drive

Extremely bright and wide beam

optional SON lighting system in combination with mudguards and a luggage rack

Details

Frame

Double-butted tubes made from 4130 chromoly steel, TIG-welded, EBB eccentric bottom bracket shell for tensioning the belt, dropouts with flat-mount disc brake mounts and integrated KSA18 kickstand mount, 3 bottle cage mounts

Made in Europe / Czech Republic

Fork

double end-reinforced tubes made of 4130 CroMoly, tapered head tube (ø 1 1/8 – 1 1/2 ), internally routed light cable possible, “Triple Cage” eyelets for front luggage carrier or anything cages

Drive

Naben

Shimano Alfine SG-S7000 11-Gang Nabenschaltung, schwarz, 32 Loch hinten

Shimano 32 Loch vorn, schwarz

Hubs

Shimano Alfine SG-S7000 11-speed internal gear hub, black, 32-hole rear

Shimano 32-hole front, black

Belt

Gates CenterTrack CDX belt, 118

Sprocket

Gates CenterTrack CDX Sprocket 24t

Crank

Shimano Alfine, black, 50t Gates Carbon Drive CenterTrack Front Sprocket

Bottom bracket

Shiman

Pedals

VP-538 – black plastic body, CroMo axle, industrial bearings

Brakes

Gear lever

Shimano Alfine

Brakes

Magura MT4, black Flatmount, front and rear

Brake disc

Magura Storm HC, 160 mm

Wheels & tires

Wheels

Radial D28, hollow-section aluminium, 32-spoke, black

Tires

Schwalbe G-ONE Performance, folding, 40-622
max. up to approx. 45-622 mm or wide tires (also possible with mudguards in frame and fork)

Cockpit

Stem

veloheld, black matt, 90 mm for frame height S, 100 mm for M and L and 110 mm for frame height XL

Handlebars

veloheld riser bar – black matt, 720 mm, ø 31.8 mm, 20 mm height, 10° rearward bend

Head Set

ACROS headset AZX-228, black, aluminum, ZS44/28.6, EC44/40

Saddle

Seat post

veloheld, black matt, ø 27.2 mm

Saddle

veloheld, black

other

Lighting

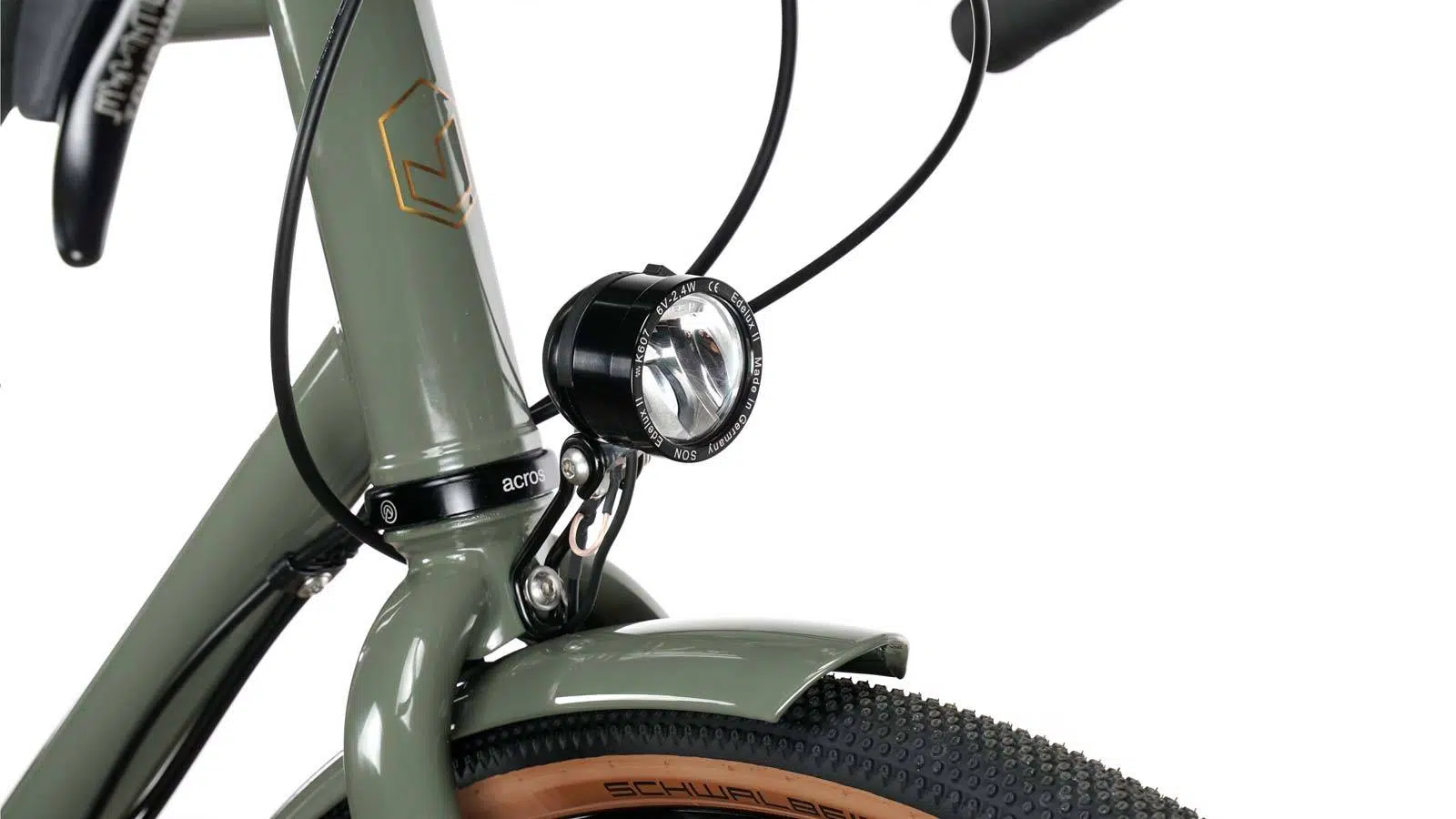

Optional SON 28 6V/3W front hub dynamo, black + SON Edelux II front and SON rear lights with parking light function, black
Made in Germany, 5-year warranty

Luggage carrier

optional Racktime Spica, black, suitable for 25 kg luggage

mudguards

optionally made of durable aluminum, powder-coated in frame color, 50 mm width

Colors

Standard colour

Glossy curry yellow with black trim

Custom color

RAL finish of your choice in gloss or matt, decor in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Complete bike from approx. 13 kg

Classification

For riding on paved roads, such as asphalt roads and cycle paths, paved forest roads, field paths and hiking trails where there are few or no obstacles such as roots, thresholds, stones and steps. The wheels are in constant contact with the ground or may briefly lose contact with the ground due to minor bumps. This category includes urban and city bikes as well as cyclocross bikes with road handlebars. Read more…

Note: Technical changes, errors and omissions excepted.

Frame size XS S M L XL
for approx. height (cm) 155 - 165 164 – 174 173 – 183 182 – 188 188 – 195
for approx. inside leg length in cm 71 - 78 76 - 82 80 - 87 85 - 92 90 - 97
A Seat tube length 466 486 527 557 587
B Top tube length 528 549 571 592 613
C Wheelbase 1033 1045 1057 1074 1090
D Head tube length 115 135 155 175 195
E Steering angle 70.5° 71° 71.5° 72° 72°
F Seat angle 74.5° 74° 73.5° 73.5° 73°
G Chainstay length 440 440 440 440 440
H Fork offset 50 50 50 50 50
I Bottom bracket drop 70 70 70 70 70
J Stack 551 572 593 614 633
K Reach 375 385 395 410 420

Show only reviews in EN ()

Add a review

City 70%
Tour 70%
Road 70%
Offroad 70%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.

To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.alleyX consisting of bicycle, rider and luggage should not exceed 120 kg.

Can I fit a side stand?

Yes, you can mount a side stand over the flatmount. This is possible with a special stand for this purpose or via an adapter from CRM, to which you can then attach a KSA 18 stand of your choice.

My question is not listed here...

Send us your question via the contact form or use our other contact options and we will answer your questions.
