veloheld.iconX Gravel bike

from 2.899,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • The new veloheld.iconX – we have completely redesigned the frame
  • New with SON lighting option – discreetly integrated
  • Quickly ready to go: delivered by freight forwarder and ready for use in just a few simple steps.

delivery time

As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 6–8 weeks after order confirmation to manufacture and ship available bikes.

Not sure which size is right for you? Take a look at the geometry or let us advise you personally.
Would you like a prismatic special colour or wet paint finish? Please contact us in advance by e-mail.
Would you like a prismatic special colour or wet paint finish? Please contact us in advance by e-mail. Please also note our information on powder coating.
Choose your veloheld frame decal in black or silver by selecting your desired color. Please note that dark frame colors cannot be realized with black, but only with silver decor.
Choose your clear coat here
Grand total
I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%

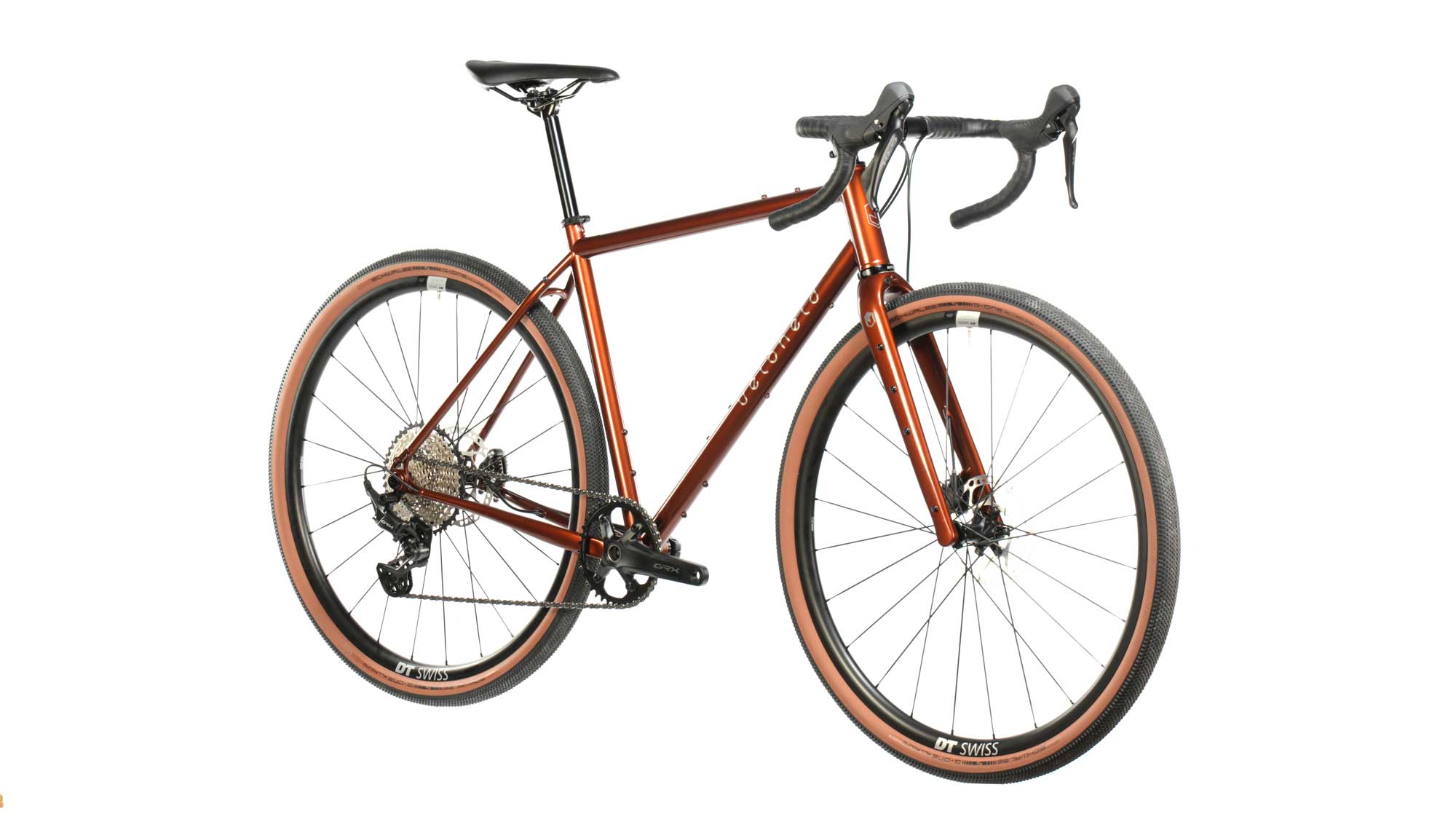

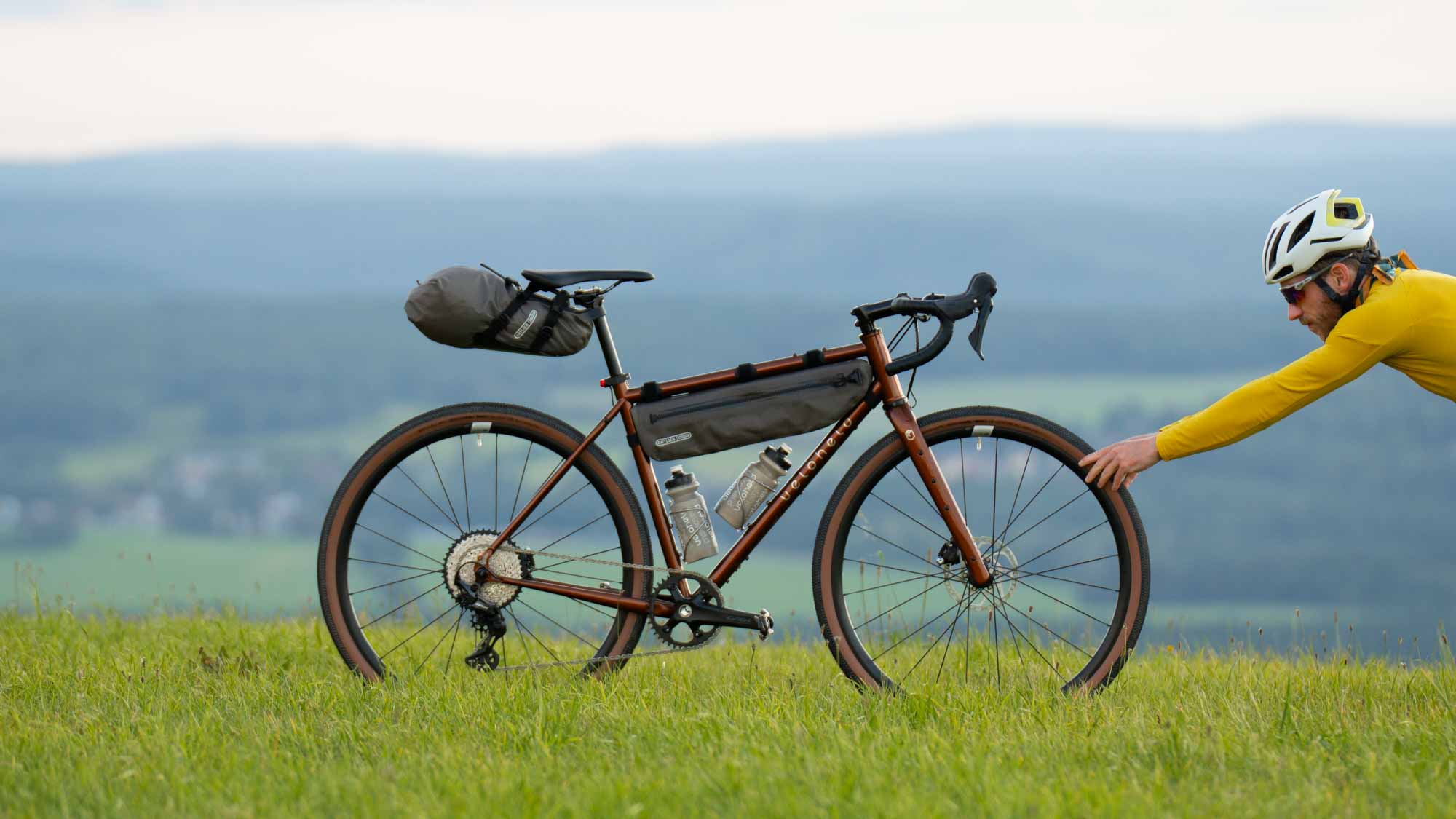

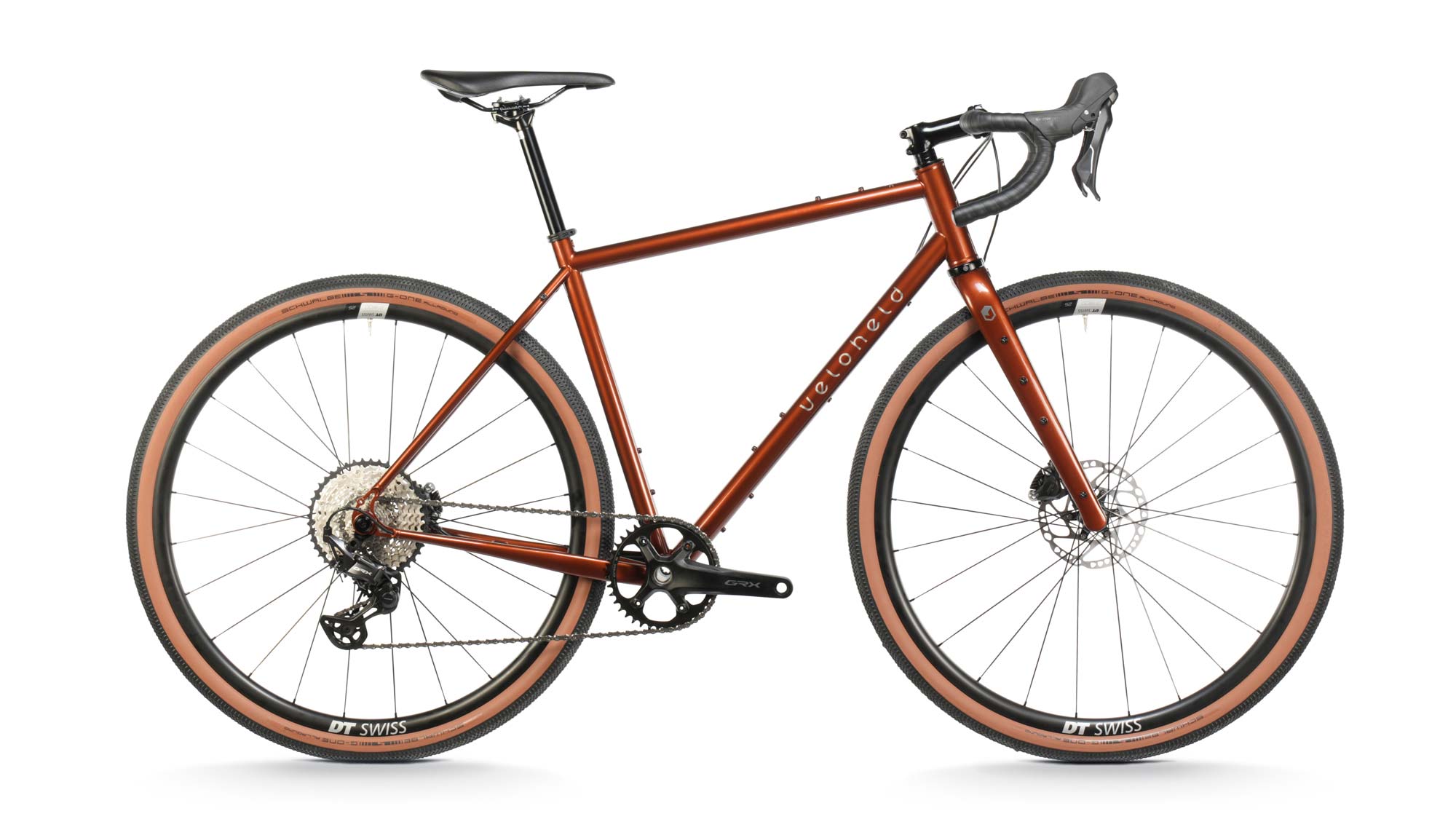

Discover the new veloheld.iconX.A gravel bike that takes you further – over dusty gravel paths, through dense forests or right through the city. The new Marrakesh Brown colour captures the mood of distant horizons: warm, earthy and timeless.The newly developed steel frame is manufactured in Europe and combines precision with durability. With UDH dropouts, a sturdy T47 bottom bracket and the option of a SON lighting system, the veloheld.iconX is ready for your adventures that last longer than daylight hours.

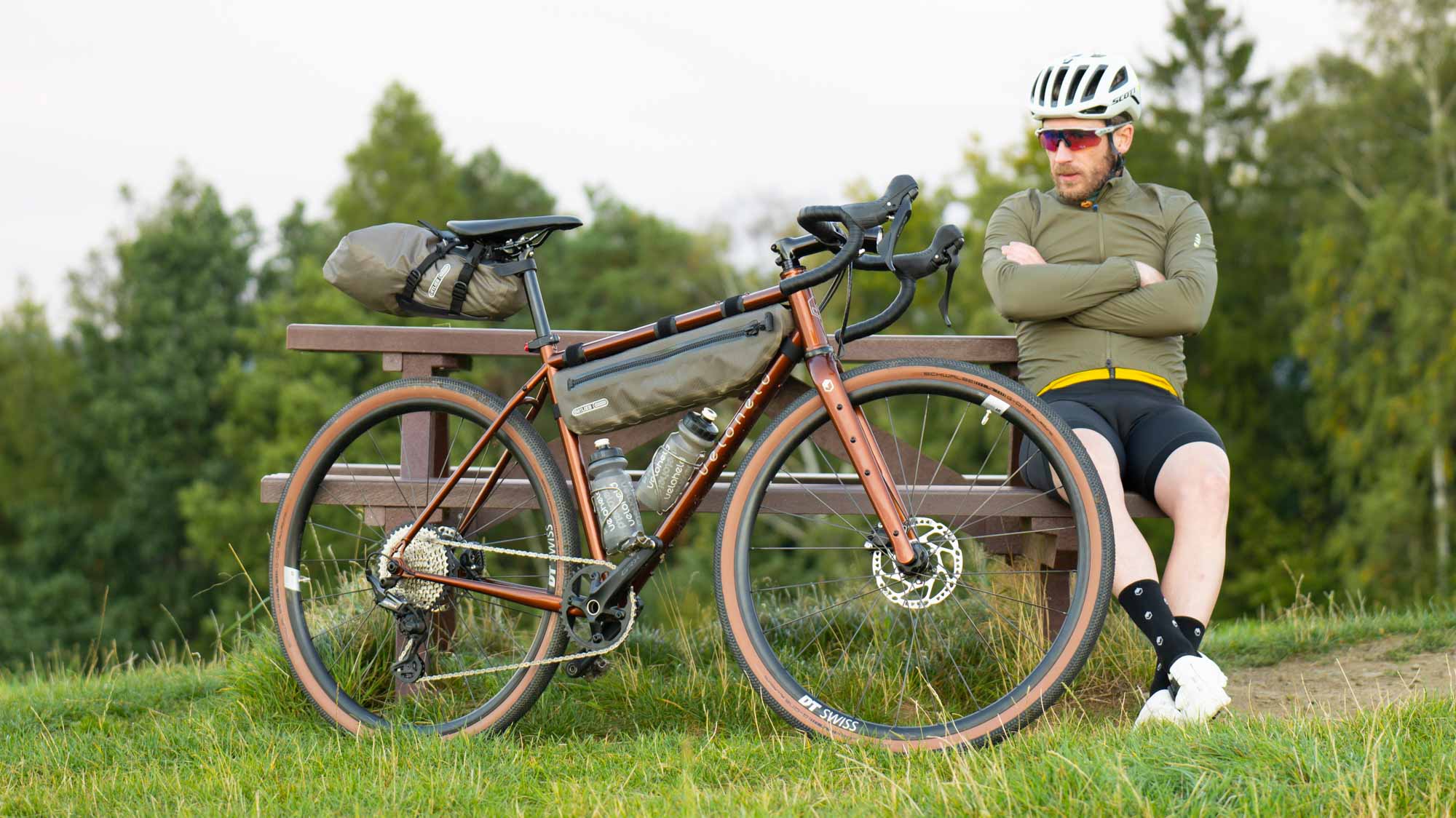

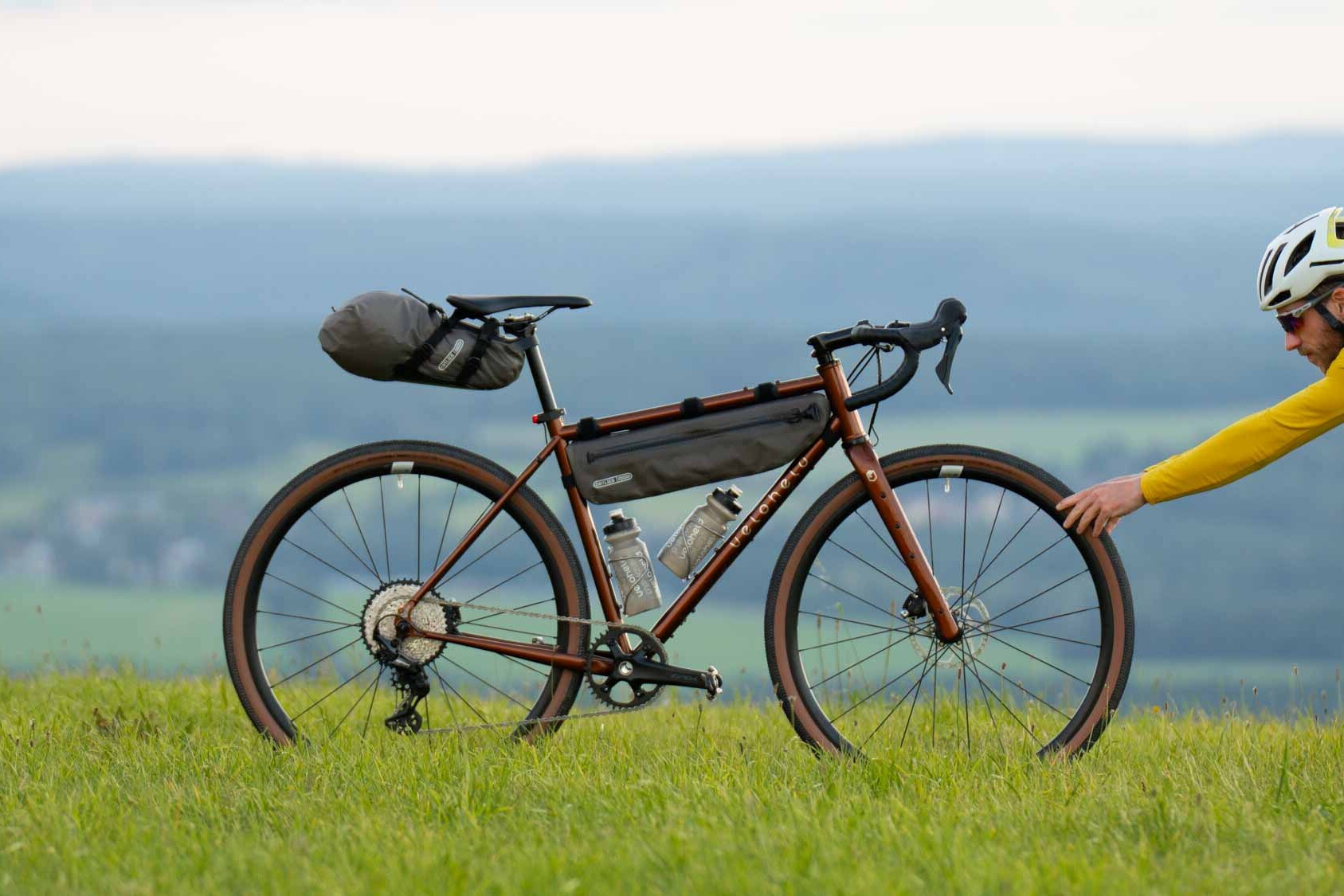

In the wild!

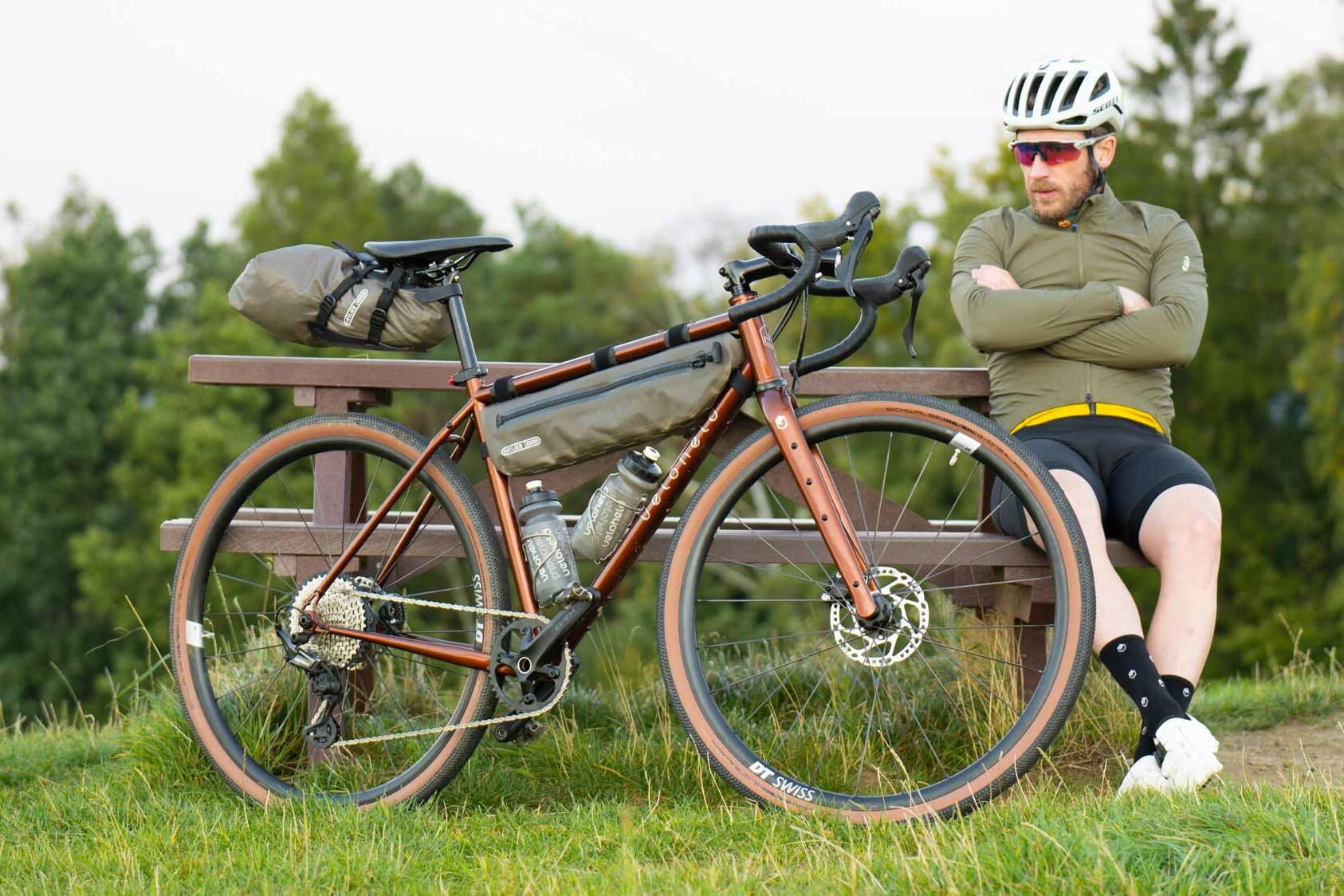

Flo is 1.75 m tall and rides with an inside leg length of 81 cm, frame height M.

Highlights

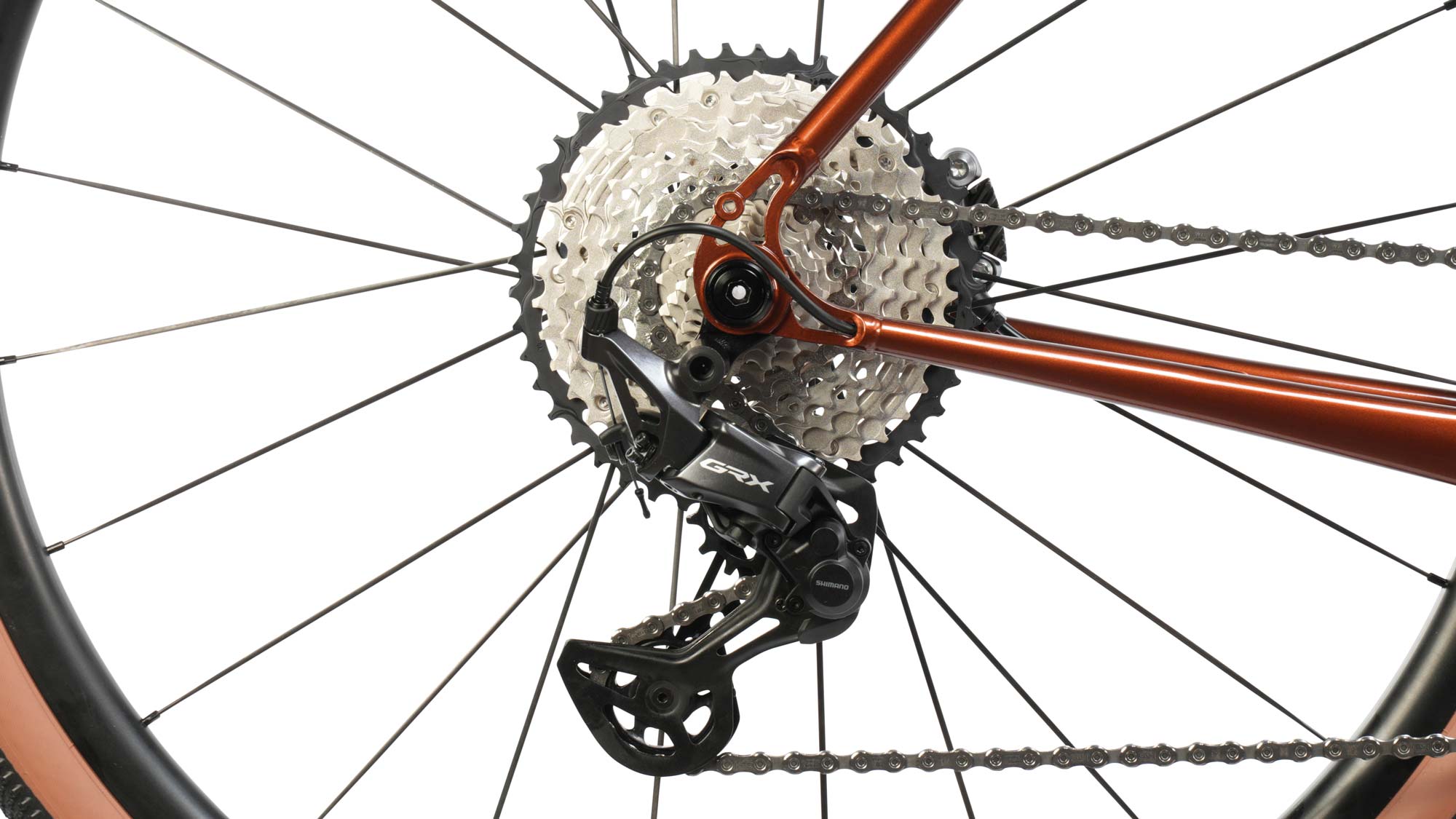

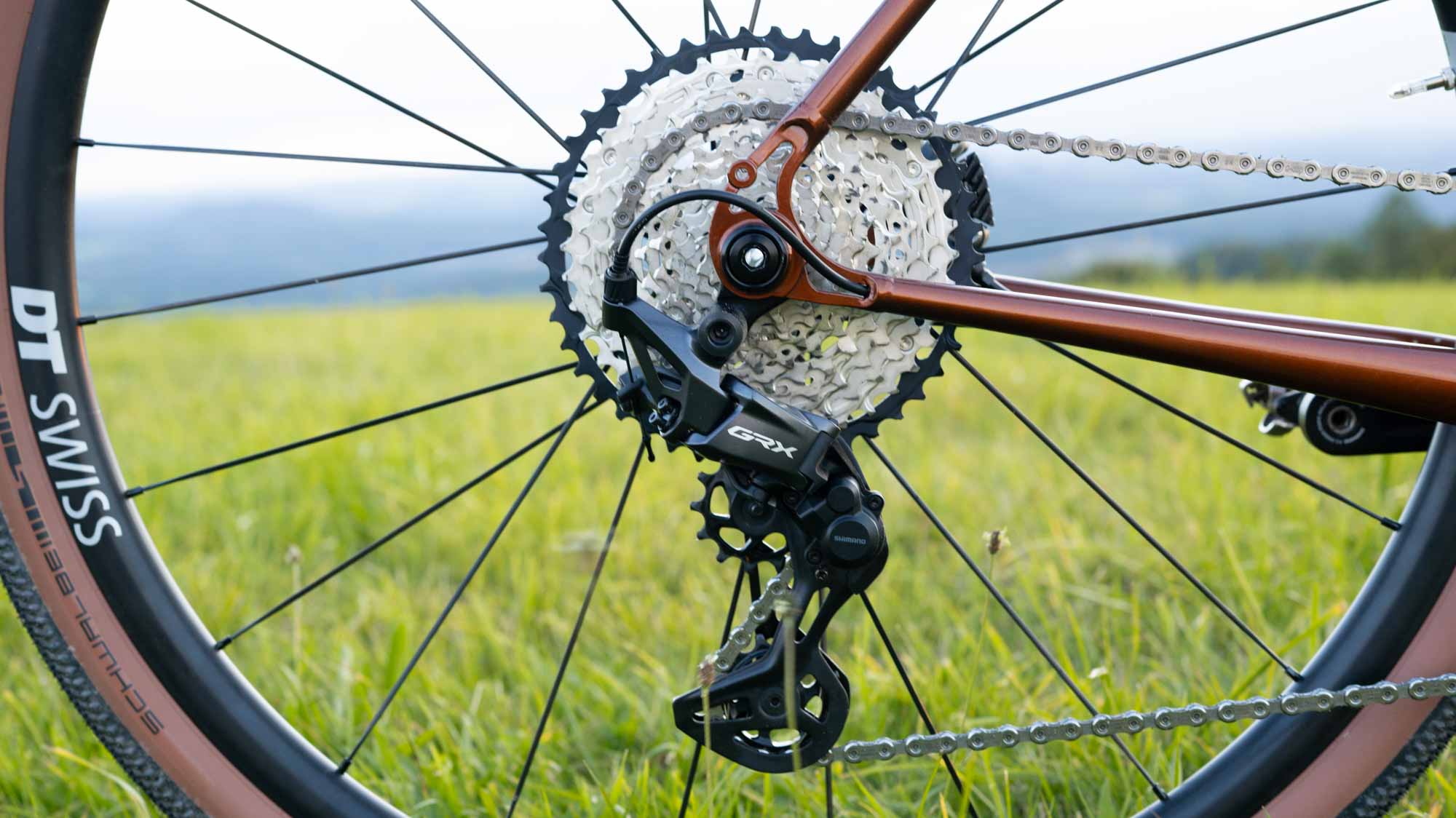

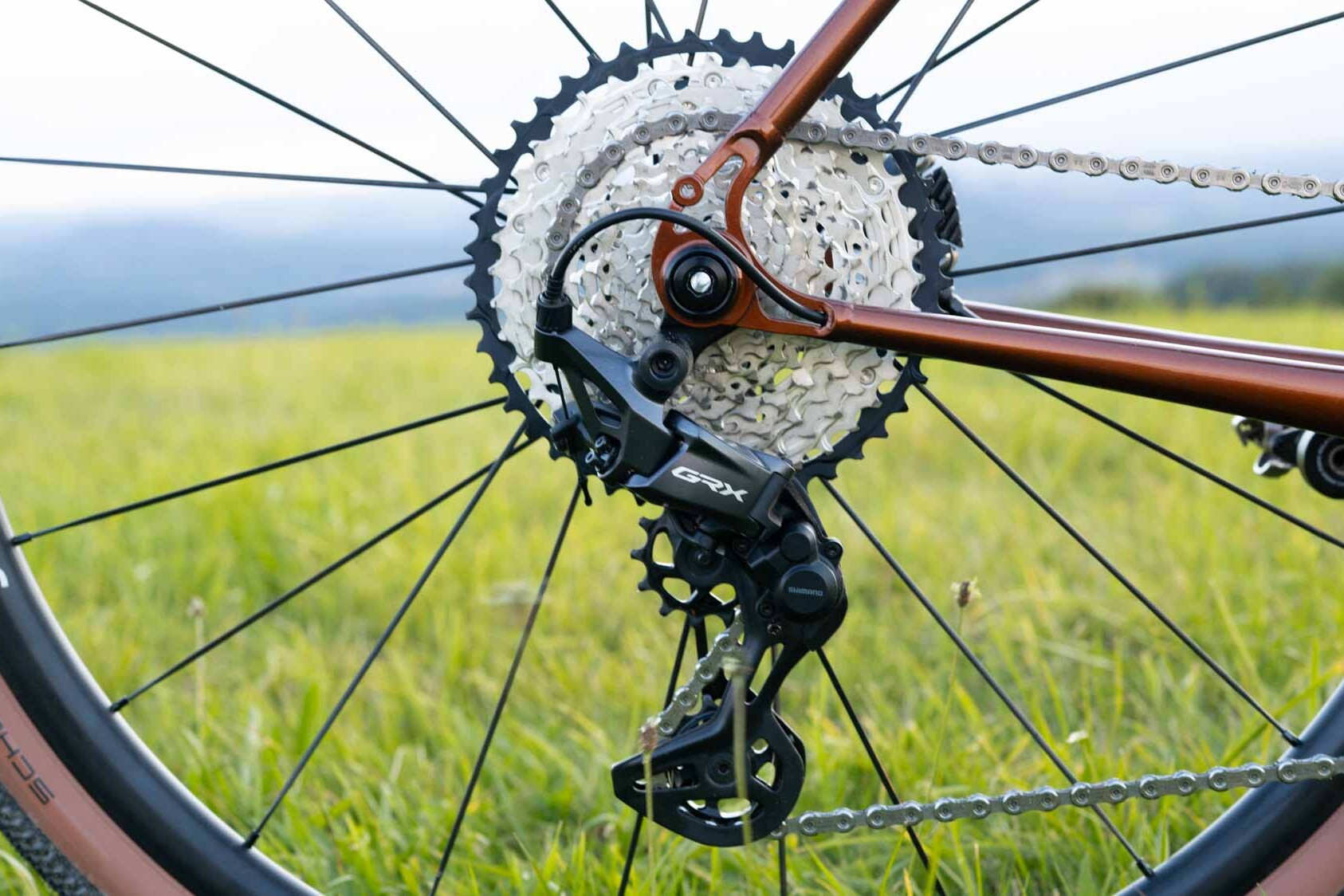

UDH is on board!

Built for the future – the frame has been completely redesigned! A new detail – the UDH derailleur hanger!

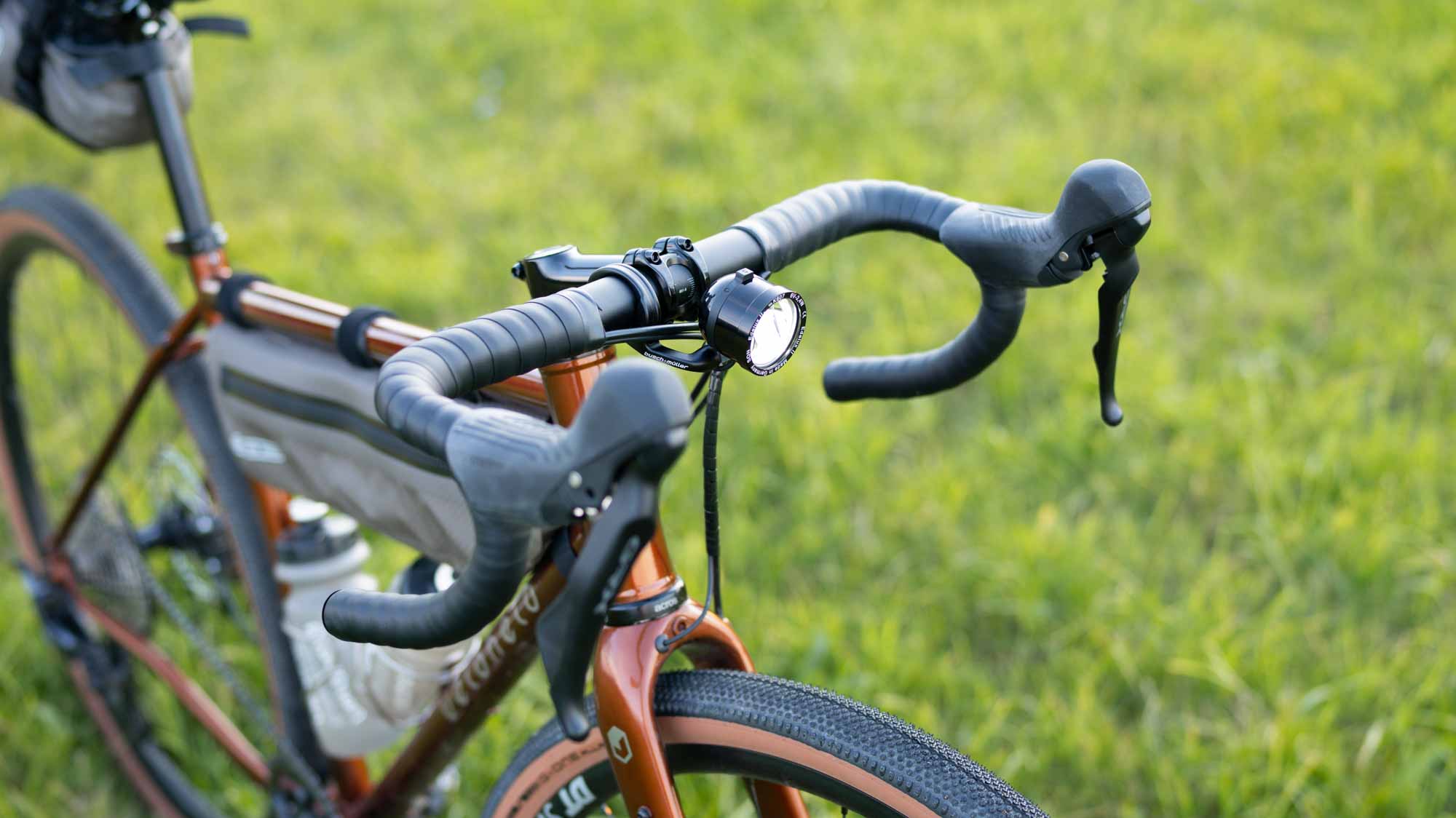

Let there be light!

Optional SON lighting with optimised cable routing

Details

frame

  • Double-butted tubes made of veloheld.CrMo steel, TIG welded, 46 mm head tube, Di2 ready, flat mount disc brake mount for 160 mm brake discs located in the rear frame triangle
  • Shift (for single-speed drivetrains) and brake cable routing integrated into the down tube; for double-speed drivetrains, one cable must be routed under the down tube
  • No cable stop on the frame for front derailleurs (not compatible with mechanical double Campagnolo and SRAM groupsets)
  • Eyelets for mudguards and/or luggage rack

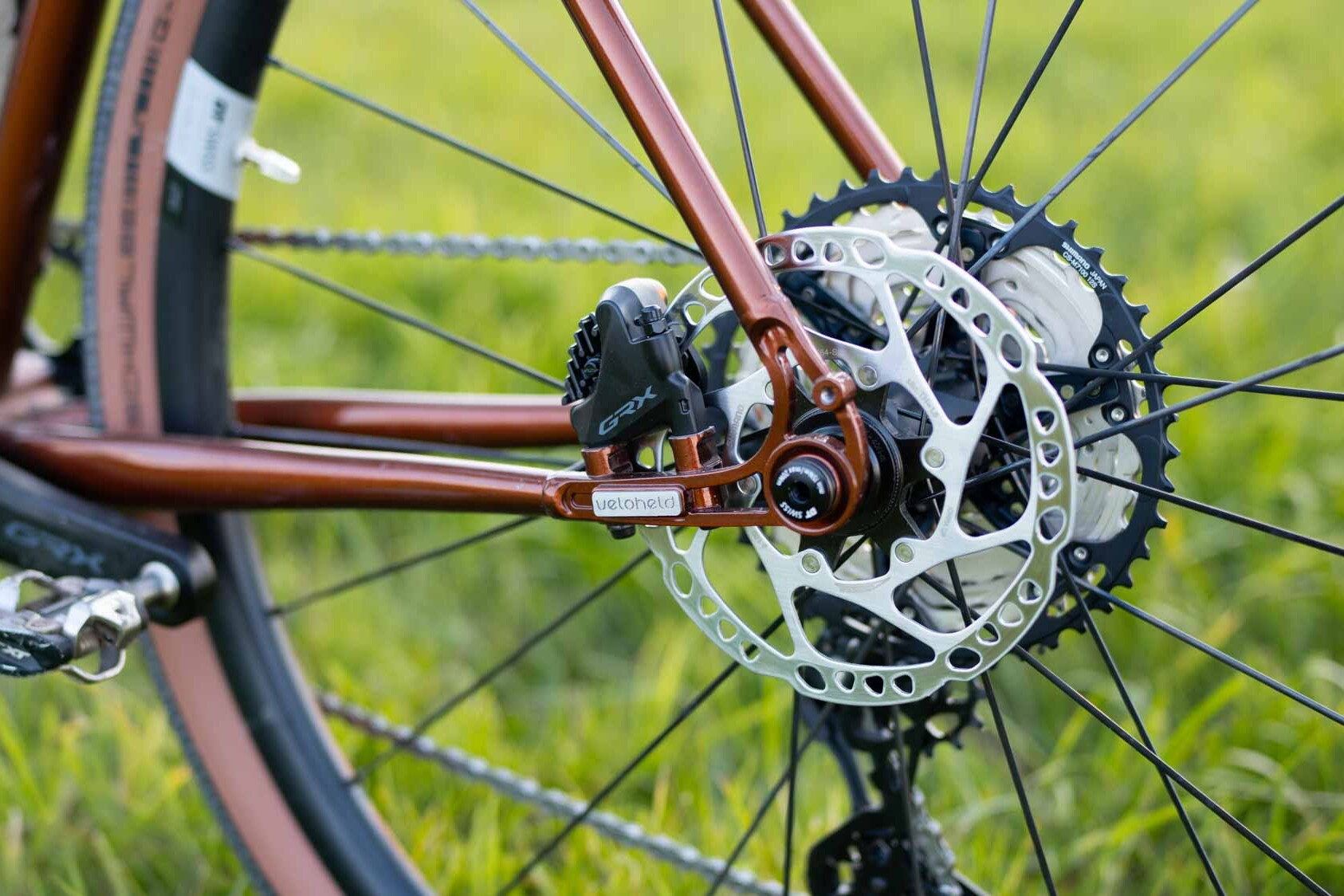

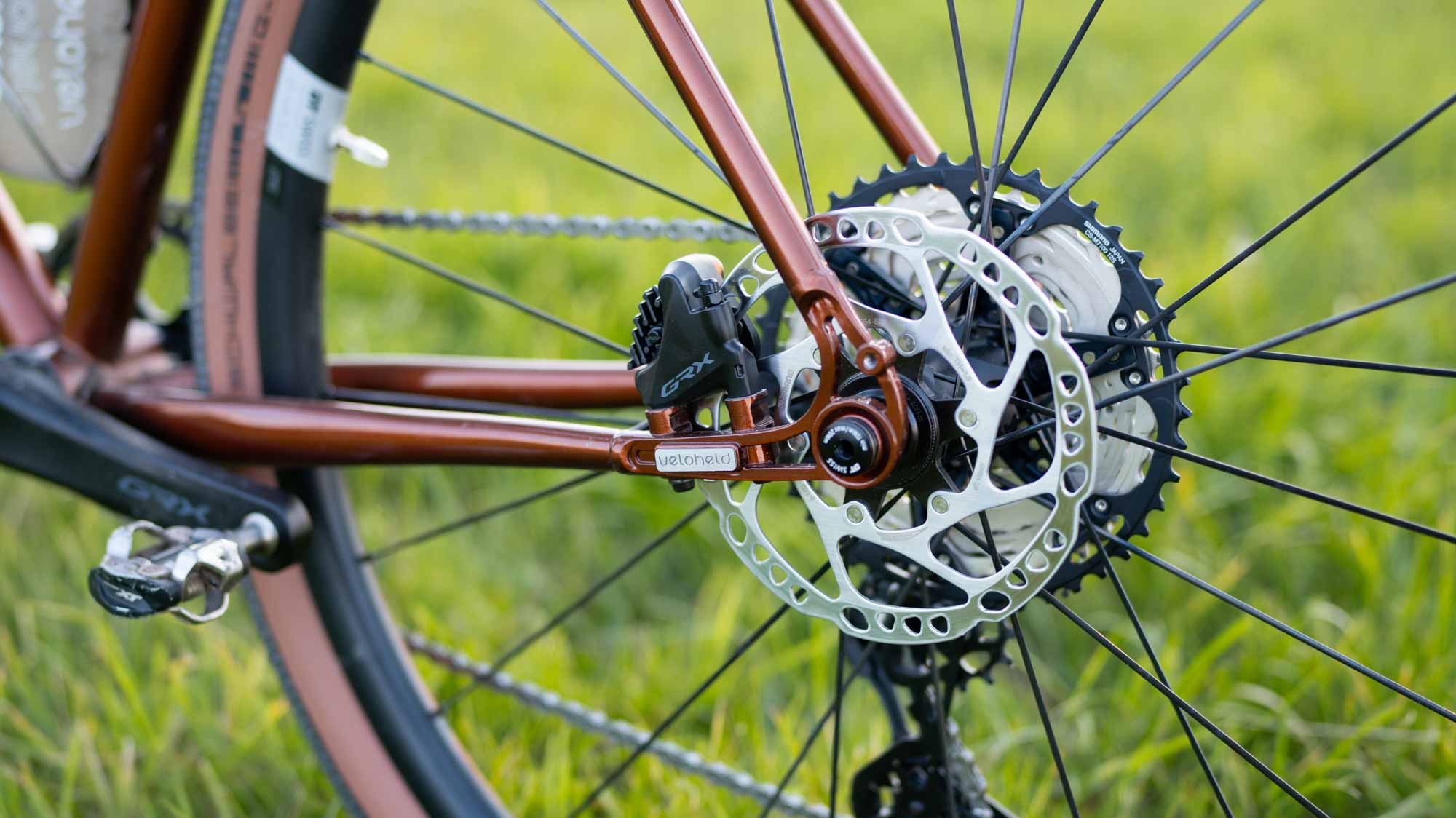

  • Stainless steel dropouts with replaceable UDH derailleur hanger and hidden kickstand mount

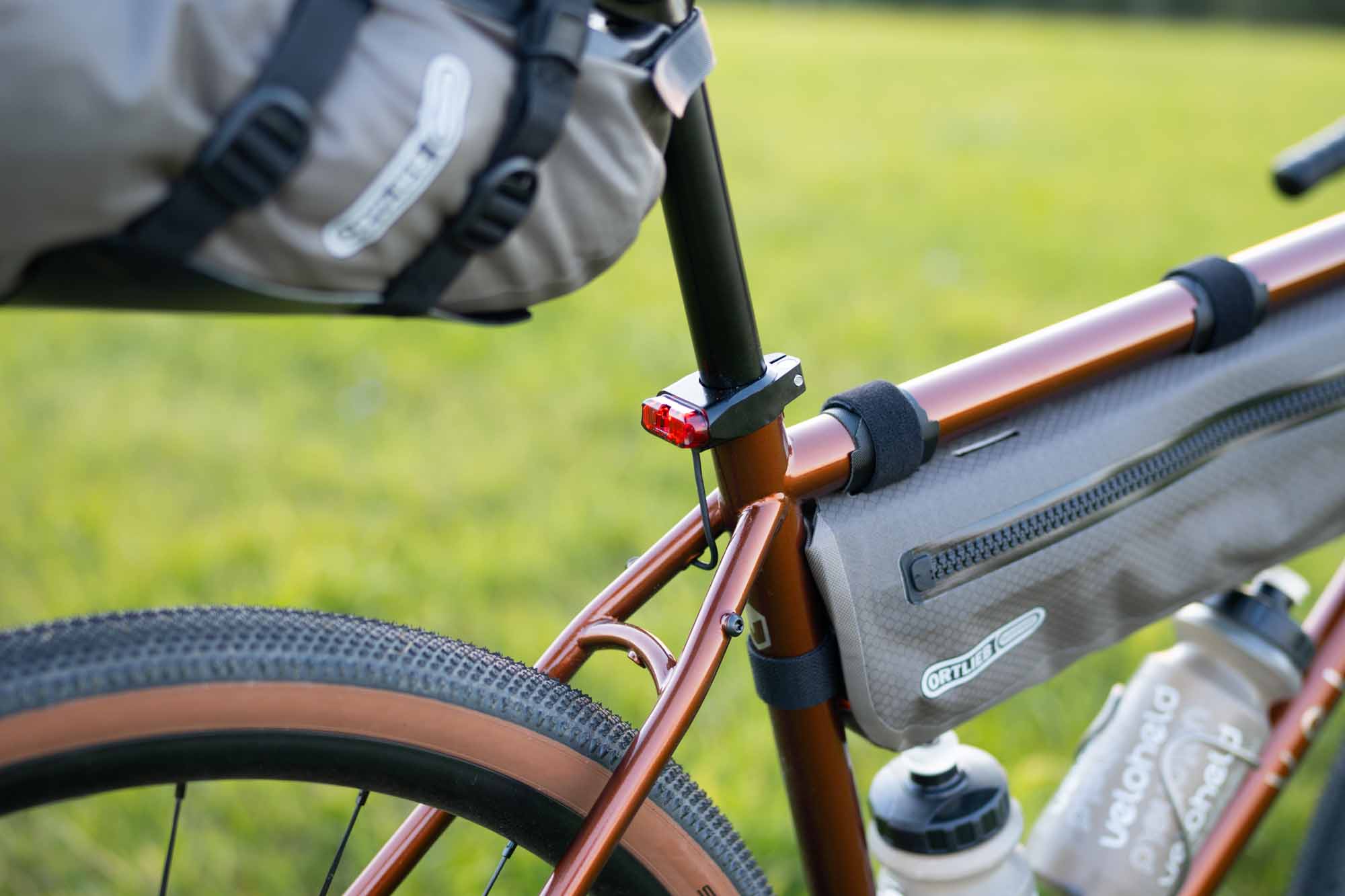

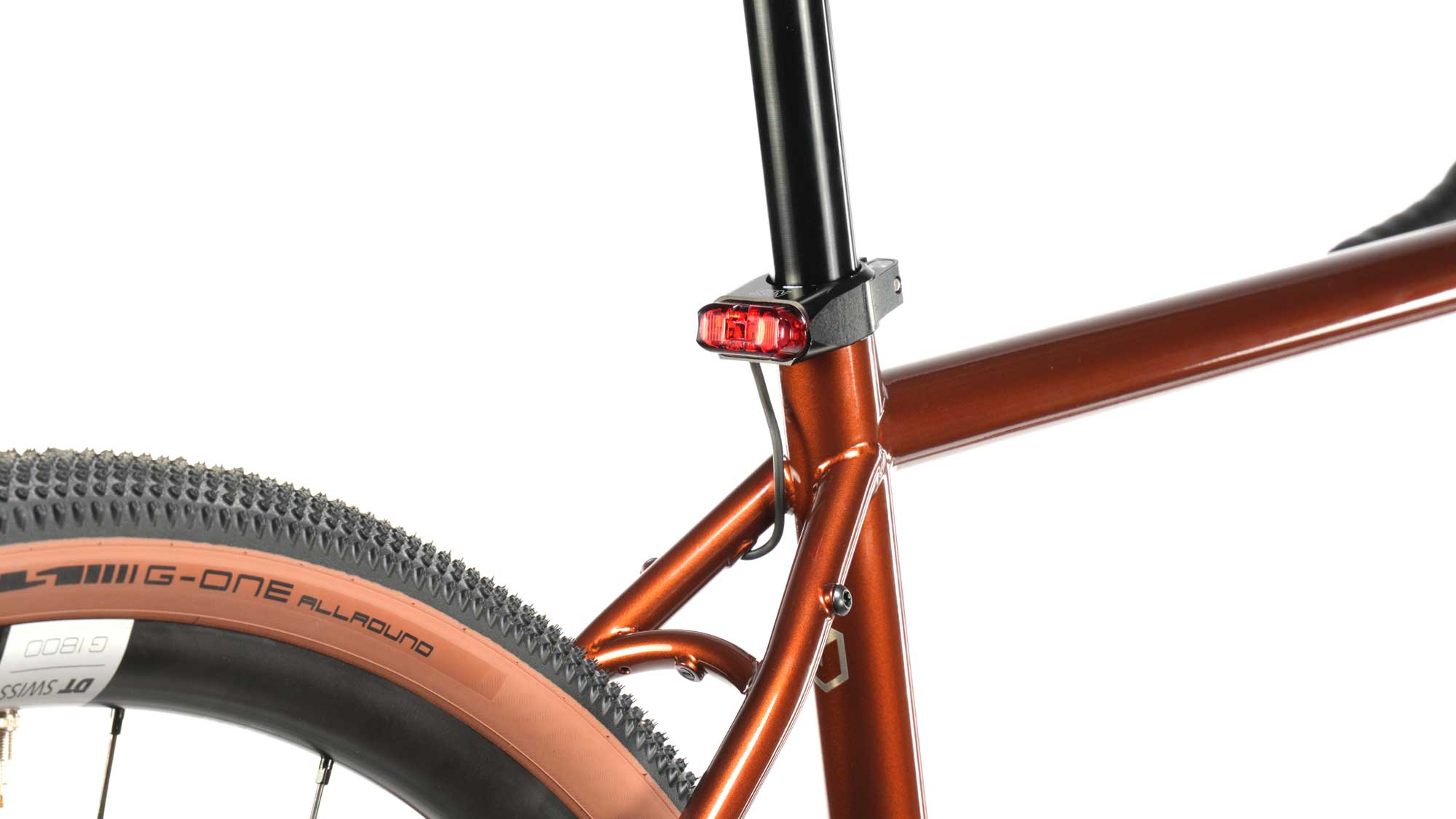

  • Eyelets integrated into the seat tube for internal cable routing for a saddle clamp rear light
  • Eyelets for 3 bottle cages and top tube bag

Thru axle

Frame: Axle length: 166 mm; thread length 15 mm; pitch M12x1.0

Fork

veloheld steel fork made of double-butted CrMo steel, 1 1/8″ – 1 1/2″ head tube, flat mount disc brake mount for 140 or 160 mm disc, mounting eyelets for attaching your luggage using “triple cages” or a front luggage rack (“lowrider rack”), mudguard mounting and internal light cable routing possible, installation dimensions: 12×100 mm incl. thru axle, max. load capacity: 5 kg per fork side

or

veloheld carbon fork with tapered head tube, side “triple cage” eyelets for mounting your lightweight luggage (max. load capacity: 3 kg per fork side), flat mount disc brake mount for 140 or 160 mm disc, mounting eyelets for mudguard, internal brake and light cable routing, mounting dimensions: 12×100 mm incl. thru axle and expander

Drive and brakes

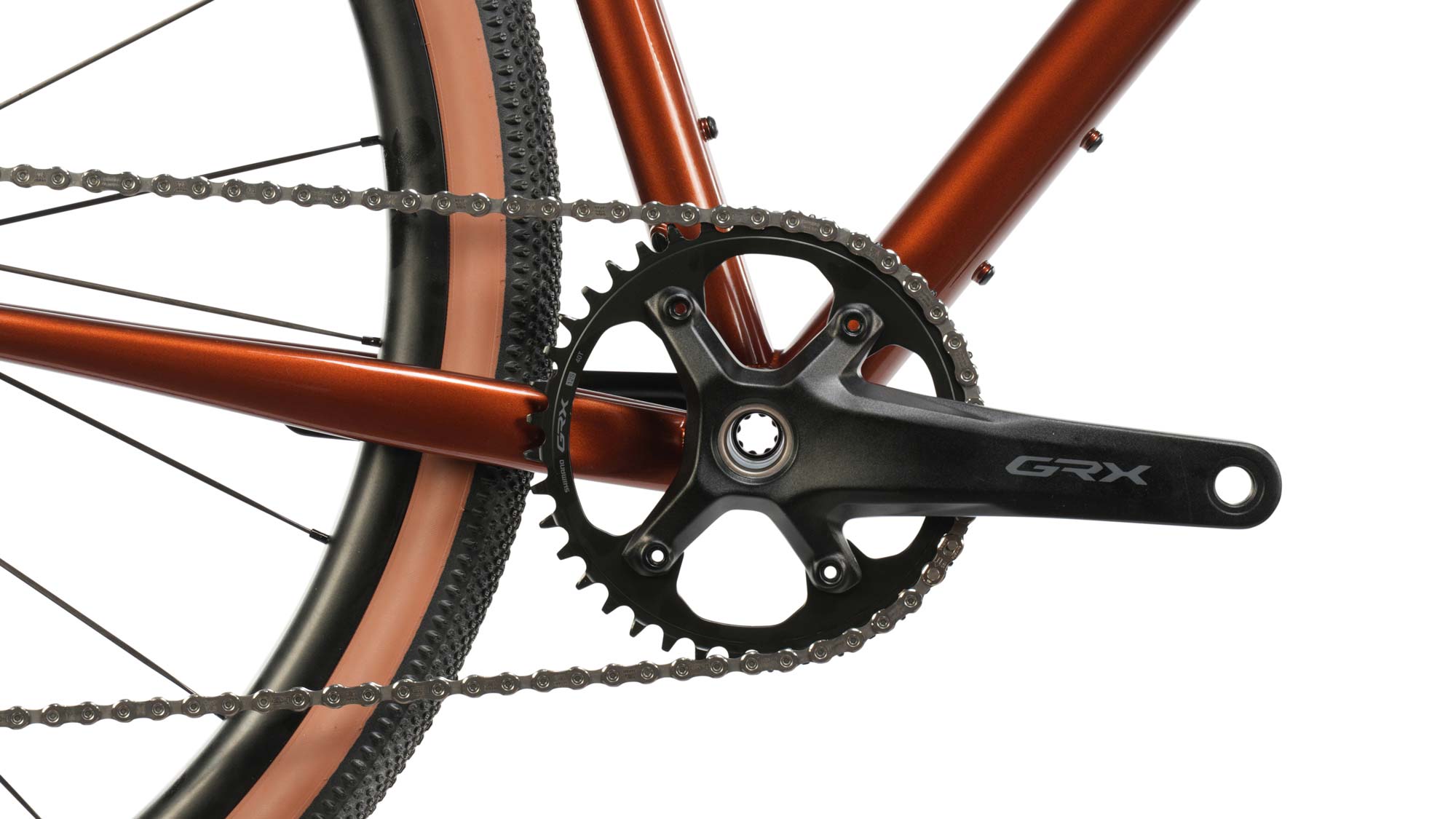

Shimano GRX 610 – 1×12
Shimano GRX 610 – 2×12

Wheels and Tires

Wheels

DT Swiss G 1800 SPLINE 25, 24 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and bike)

Optional with SON lighting:
DT Swiss G 1800 SPLINE 25 DYNAMO

Tyres

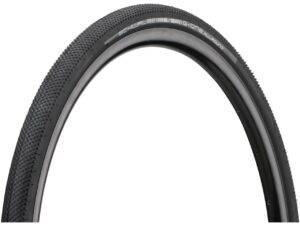

Schwalbe G-ONE Allround, foldable, Tubeless Easy (delivered with inner tube), 45-622, bronze-skin or black

max. approx. 50-622 (28″) or 54-584 (27.5″) mm wide tyres (depending on make and rim) possible in frame and fork without mudguards

Cockpit

Stem

veloheld, black

or

Ritchey WCS C220 84D, Blatte Black

80 mm for frame height (XS, S), 90 mm (M, L), 100 mm (XL, XXL)
6 spacers

handlebar

veloheld, black

or

Ritchey WCS Butano, Blatte Black, Drop 115mm, Reach 73mm, Drop flare 18°, Backsweep 5°

width: 400mm (XS, S) , 420 (M, L), 440 (XL, XXL)

Headset

Acros headset 1 1/8″ ZS44/28.6 top and EC 44/40 headset bottom

Sitting

Saddle

veloheld, black

Seat post

veloheld, black, glossy

or

Ritchey WCS Alloy Link, Blatte Black, 350 mm, setback 20 mm

Miscellaneous

Sizes

XS, S, M, L, XL

Accessories

Mudguards: made of durable aluminium, powder-coated in frame colour, 50 mm wide (Please note that due to the compact geometry, especially with smaller frame sizes, contact with the foot may be possible when turning sharply, depending on the pedal system, shoe size and shoe shape.)

Optional lighting

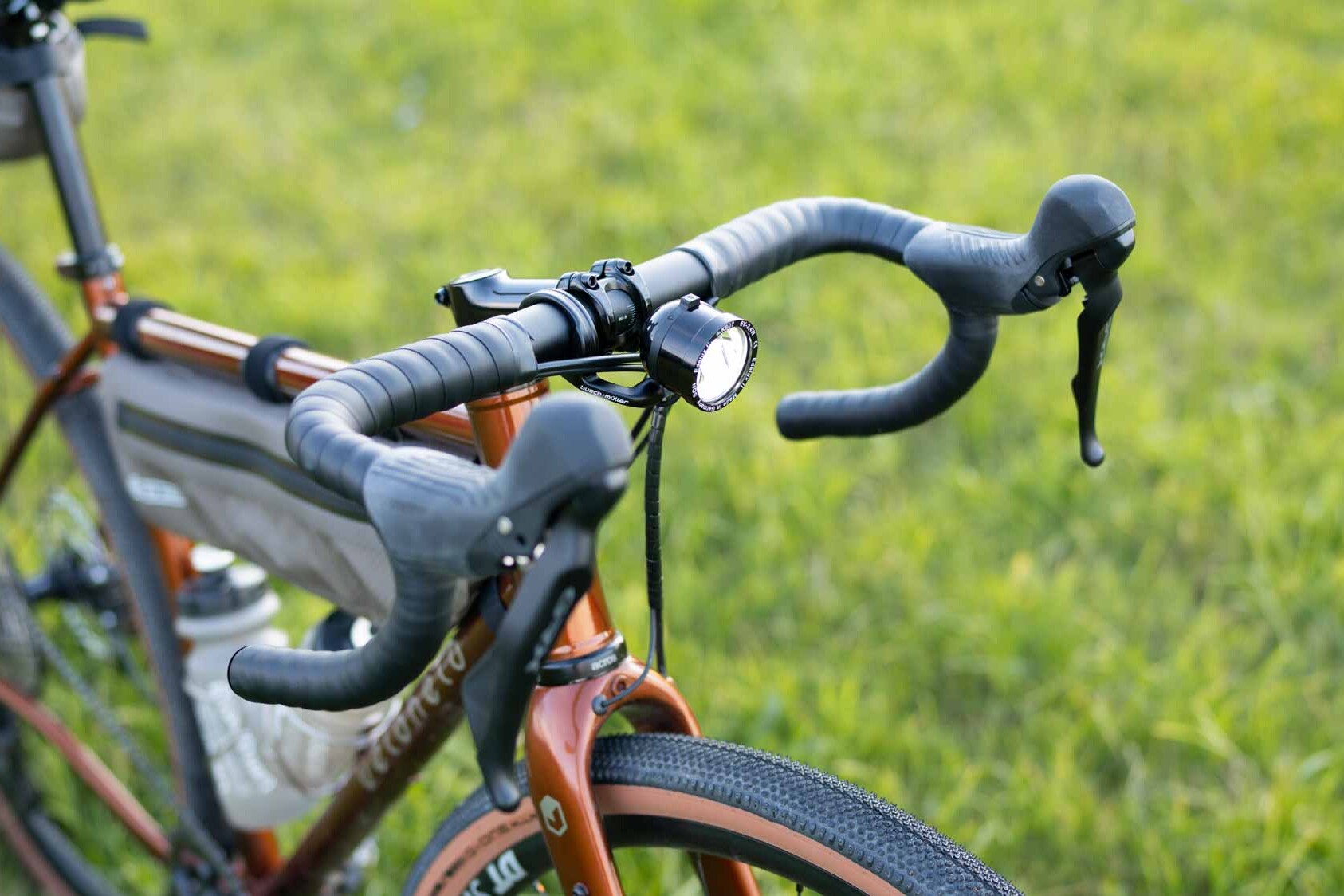

SON Edelux II with handlebar mount + SON rear light for saddle clamp

Colors

standard colour

Marrakesh Brown

Custom color

RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.

If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Complete bike from approx. 10.4 kg (frame height M)

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

Note: Subject to technical changes, errors and omissions.

Frame height XS S M L
for approx. height in cm 155 – 165 164 – 174 173 – 182 181 – 188
for approx. inside leg length in cm 71 – 77 75 – 80 78 – 85 82 – 88
A Seat tube length 440 470 510 540
B Top tube length 525.5 541.5 563 579
C Wheelbase 1023 1035 1048 1060
D Head tube length 110 130 150 170
E Head angle 70° 70.5° 71° 71.5°
F Seat angle 74° 74° 73.5° 73.5°
G Chainstay length 437 437 437 437
H Fork offset 50 50 50 50
I Bottom bracket drop 79 77 77 77
J Stack 543 564 584.5 605
K Reach 370 380 390 400
Wheel size 27.5" or 28" 27.5" or 28" 27.5" or 28" 27.5" or 28"
Standover height 733 749 783 809
Approx. seat height from centre of bottom bracket to top of saddle 628 - 681 664 - 708 690 - 752 726 - 779
Add a review

urban 50%
Tour 80%
road 50%
offroad 60%
Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and safely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information on assembly here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars and stem must be turned in the direction of travel, the pedals installed and your saddle height adjusted.

Alle genauen Schritte der Montage findest Du in der Aufbauanleitung.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first to make sure that they have the bike in stock and can prepare it for you if necessary.

Wenn Du das Rad direkt bei uns kaufst, kannst Du es nach Erhalt und Montage bei Dir zu Hause auf trockenem Untergrund direkt Probe fahren. Sollte es Dir wider Erwarten nicht gefallen und/oder passen, holen wir es wieder versandkostenfrei bei Dir ab. Dazu musst Du es nur wieder sicher in den Versandkarton packen und auf die Abholung warten. Achtung: Dies gilt nicht für individuell angefertigte Wunschräder.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Bitte registriere Dein Rad innerhalb von 3 Monaten nach Kauf hier, um die Garantie zu erhalten.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

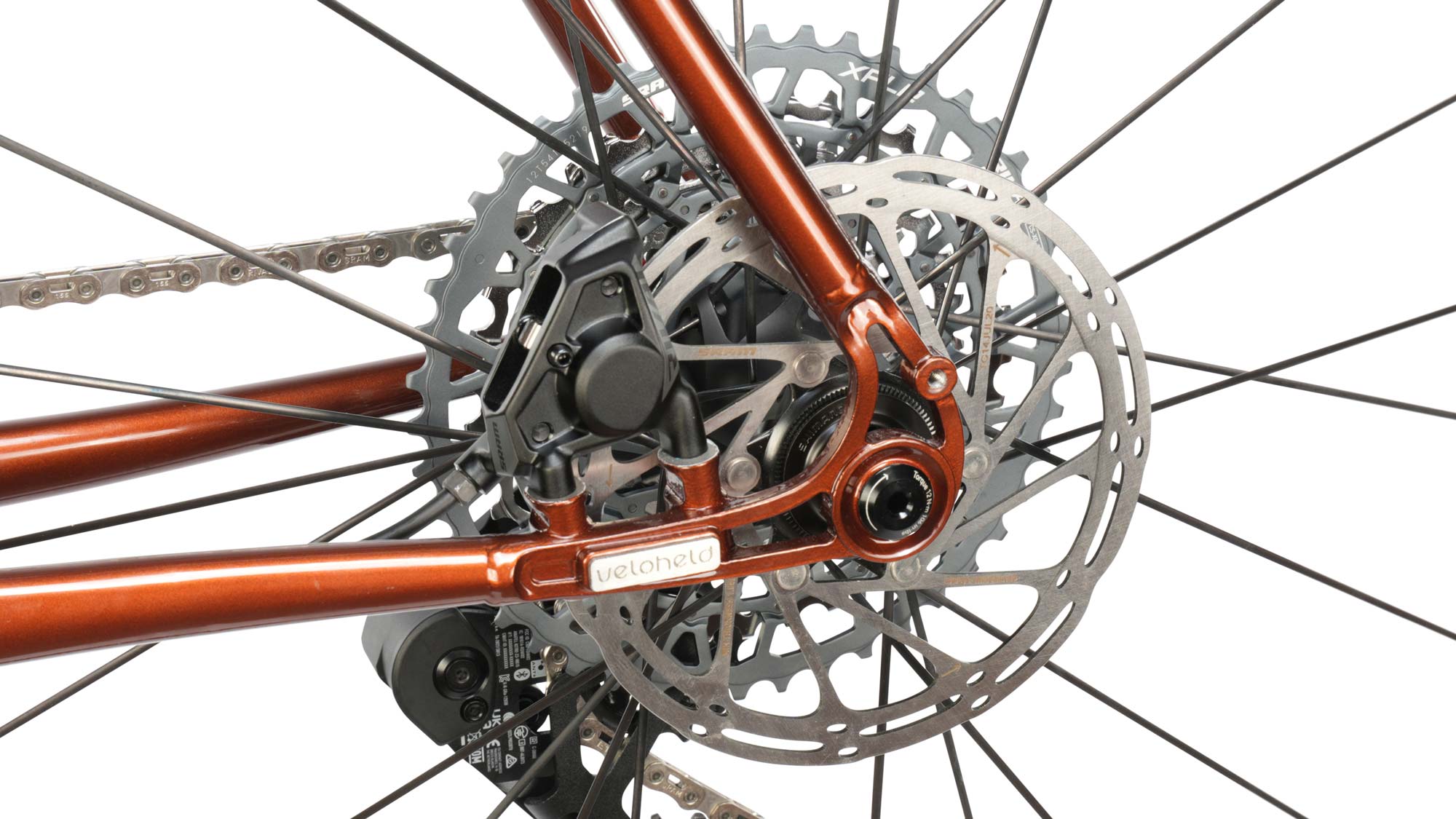

Yes, you can mount a KSA 18 kickstand directly on the frame at the left rear dropout.

My question is not listed here...

Send us your question via the contact form or use our other contact options and we will answer your questions.
