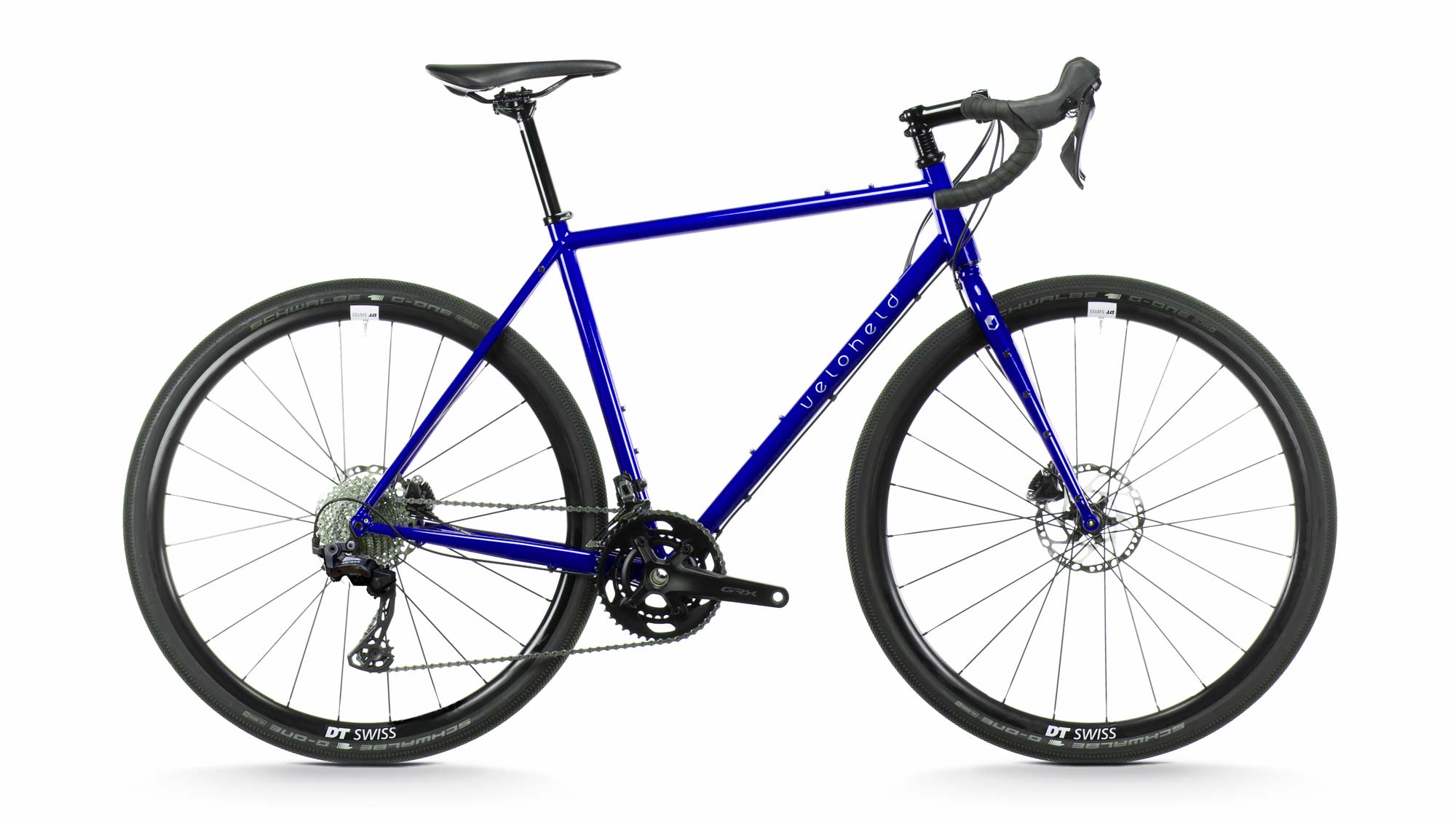

The veloheld.iconX is your all-rounder for all occasions – whether as a cyclocross bike for the “hunt in the mud“, as a gravel bike for extended tours or as a reliable city bike for the daily commute to work.

The lightweight steel frame made from heat-treated CrMo is not only robust, but also versatile: the extra-stiff “tapered” head tube allows modern tapered carbon forks to be integrated perfectly. If you prefer a more classic look, you can opt for the chromoly fork – ideal for luggage and additional bottle cages thanks to the mounting options close to the axle.

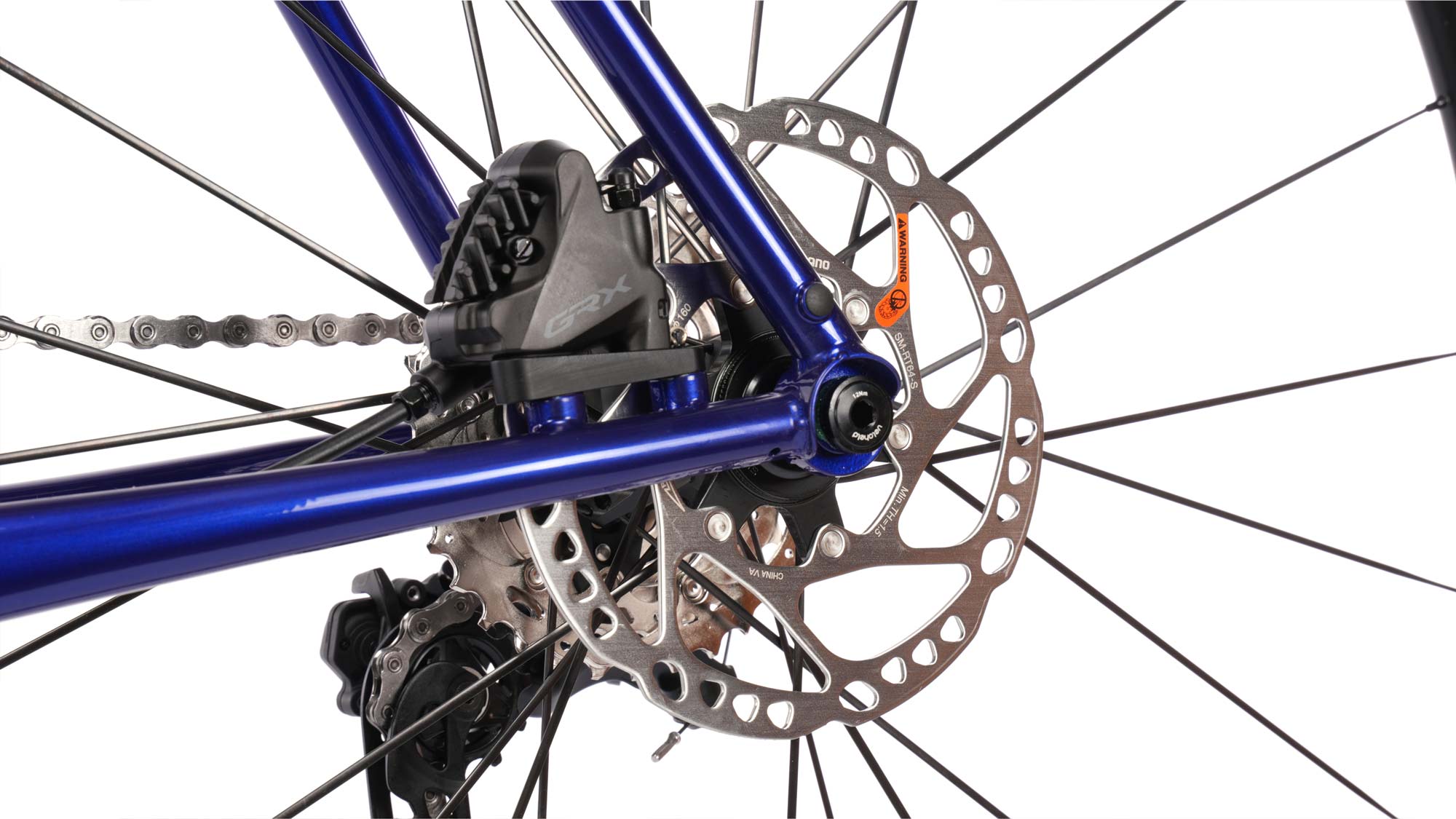

The flat-mount disc brakes on the veloheld.iconX provide you with the necessary safety and powerful braking performance – whether on gravel, off-road or in the city. The brakes are neatly and inconspicuously integrated into the rear frame triangle. Thanks to the discreet eyelets for mudguards and pannier rack, you can easily transform the iconX into a sporty tourer or a fast everyday commuter.

Best of all, the veloheld.iconX is available as a complete bike with various options – and of course in your RAL colour of choice.

In the wild!

At 1.78 m tall and 82 cm inseam lenght, Sebastian rides a size M frame.

Highlights

Well mounted and hidden!

The top tube mounts hold your luggage securely on the top tube and the hidden cable routing keeps everything tidy

Painted!

Now new - the optional carbon fork in standard frame color with space for 700C tires up to approx. 50 mm wide!

Details

Frame

heat-treated and double end-reinforced tubes made of veloheld.CrMo steel, TIG-welded, “tapered” head tube, Di2 ready (only with 24 mm axles for Shimano cranks), flatmount disc brake mount in the rear frame triangle for 140 or 160 mm brake discs
shifting (for 1x gears) and brake cable routing integrated in the down tube, for 2x gears a cable must be routed under the down tube
no cable stop on the frame for front derailleur (not compatible with mechanical 2x Campagnolo and SRAM groupsets)
Anti-rust ED-Black coating in and on the frame
discreet eyelets for mudguards and/or pannier rack (maximum load capacity: 15 kg load)

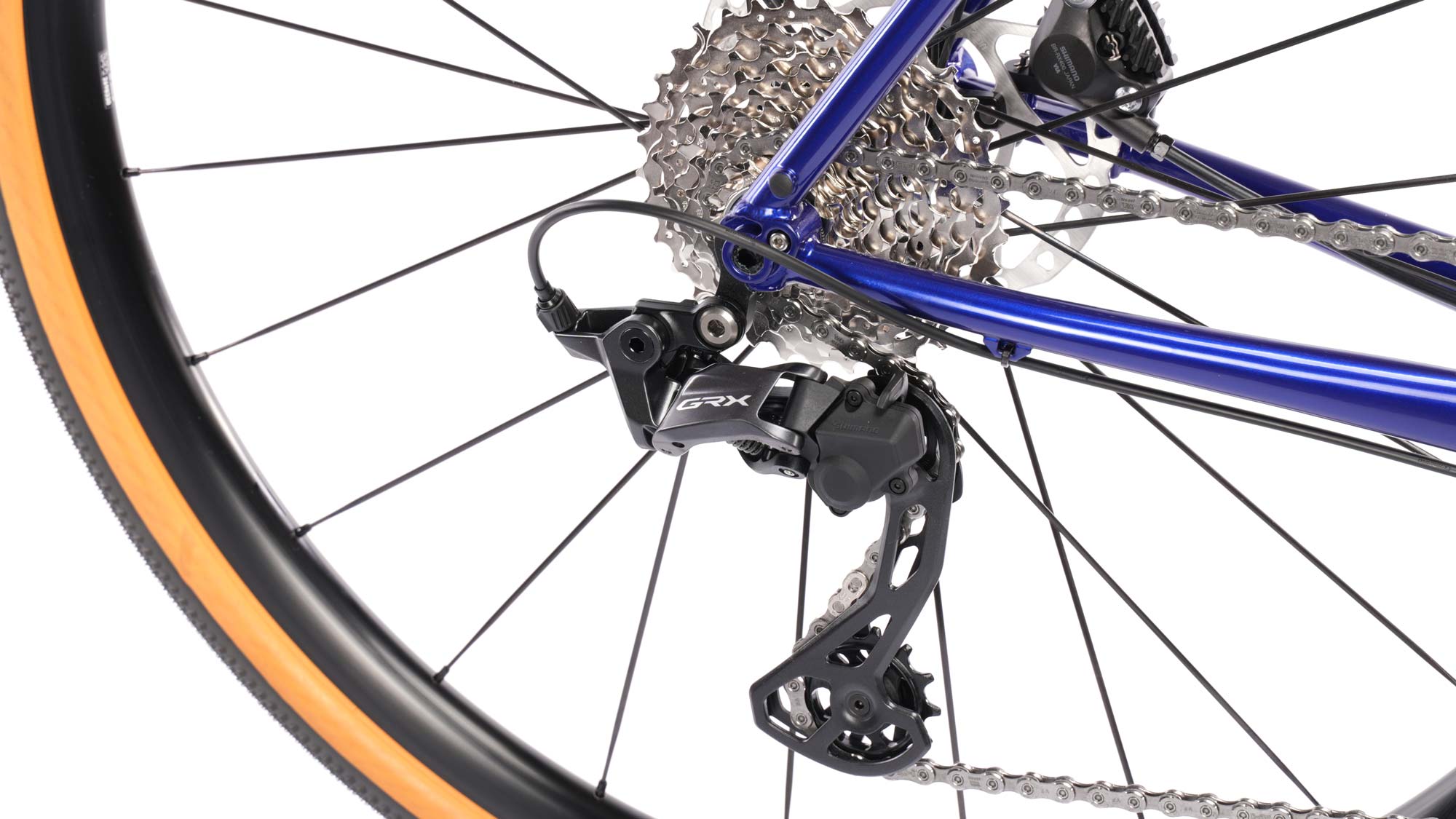

Dropouts with replaceable aluminum derailleur hanger
Threads for 3 bottles and a top tube bag

Thru axle

Frame: Axle length: 168 mm; thread length 20 mm; pitch 1.75 (Maxle) (included in scope of delivery)

Fork

veloheld steel fork made of double end-reinforced CrMo steel, 1 1/8″ head tube, flat-mount disc brake mount for 140 or 160 mm discs, eyelets for mounting your luggage using “triple cages” or front luggage carrier (“lowrider carrier”), mudguard mounting and internal light cable routing possible, installation dimension: 12×100 mm incl. thru axle, max. load capacity: 5 kg per fork side

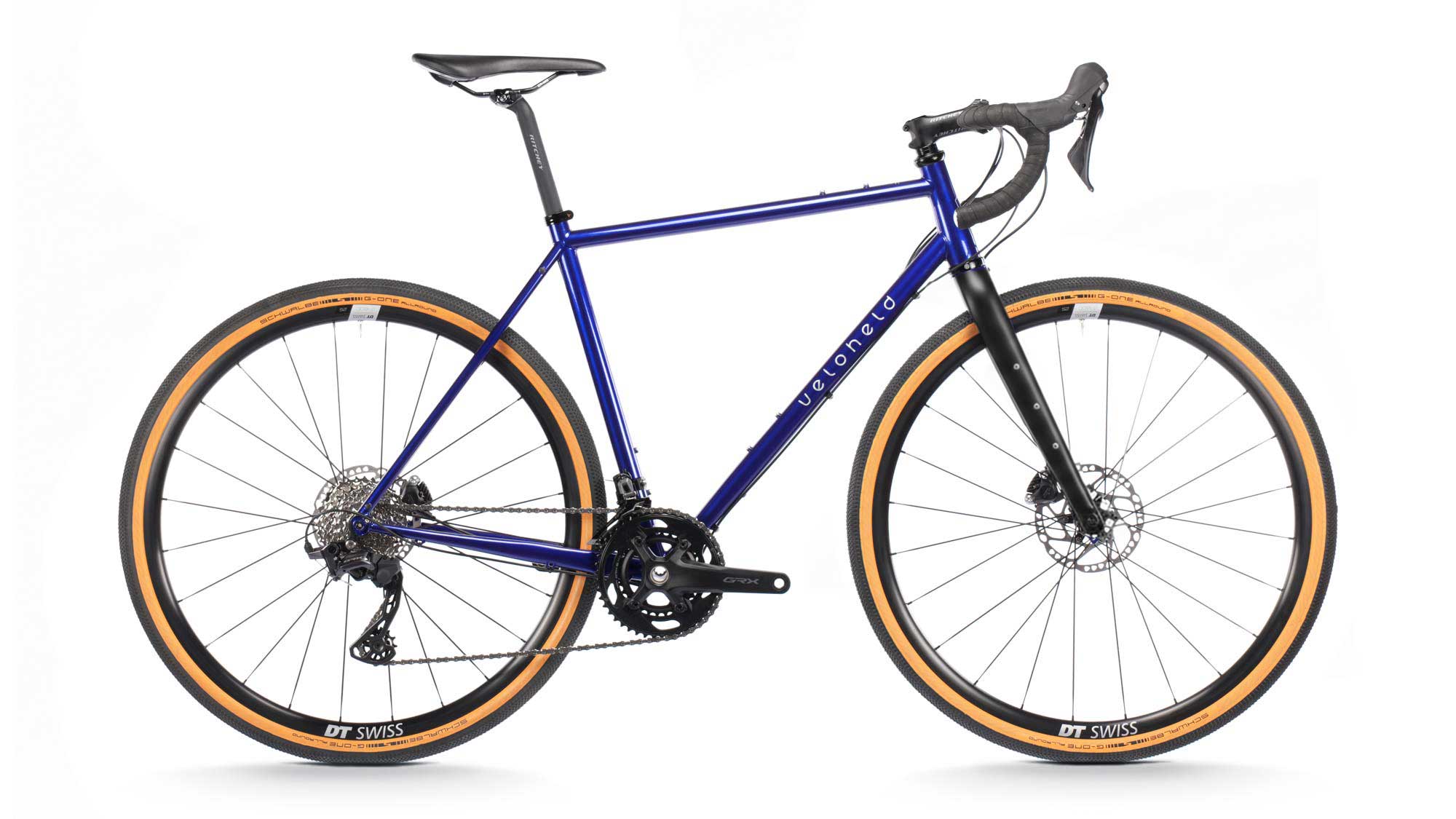

veloheld carbon fork with tapered head tube, lateral “triple cage” eyelets for mounting your light luggage (max. load capacity: 3 kg per fork side), flat-mount disc brake mount for 140 or 160 mm disc, mounting eyelets for mudguard, internal brake and light cable routing, installation dimension: 12×100 mm incl. thru axle and expander

Thru axle

Fork: Axle length: 123/125 mm (steel/carbon fork); thread length 14 mm; pitch 1.5 (Maxle)(included)

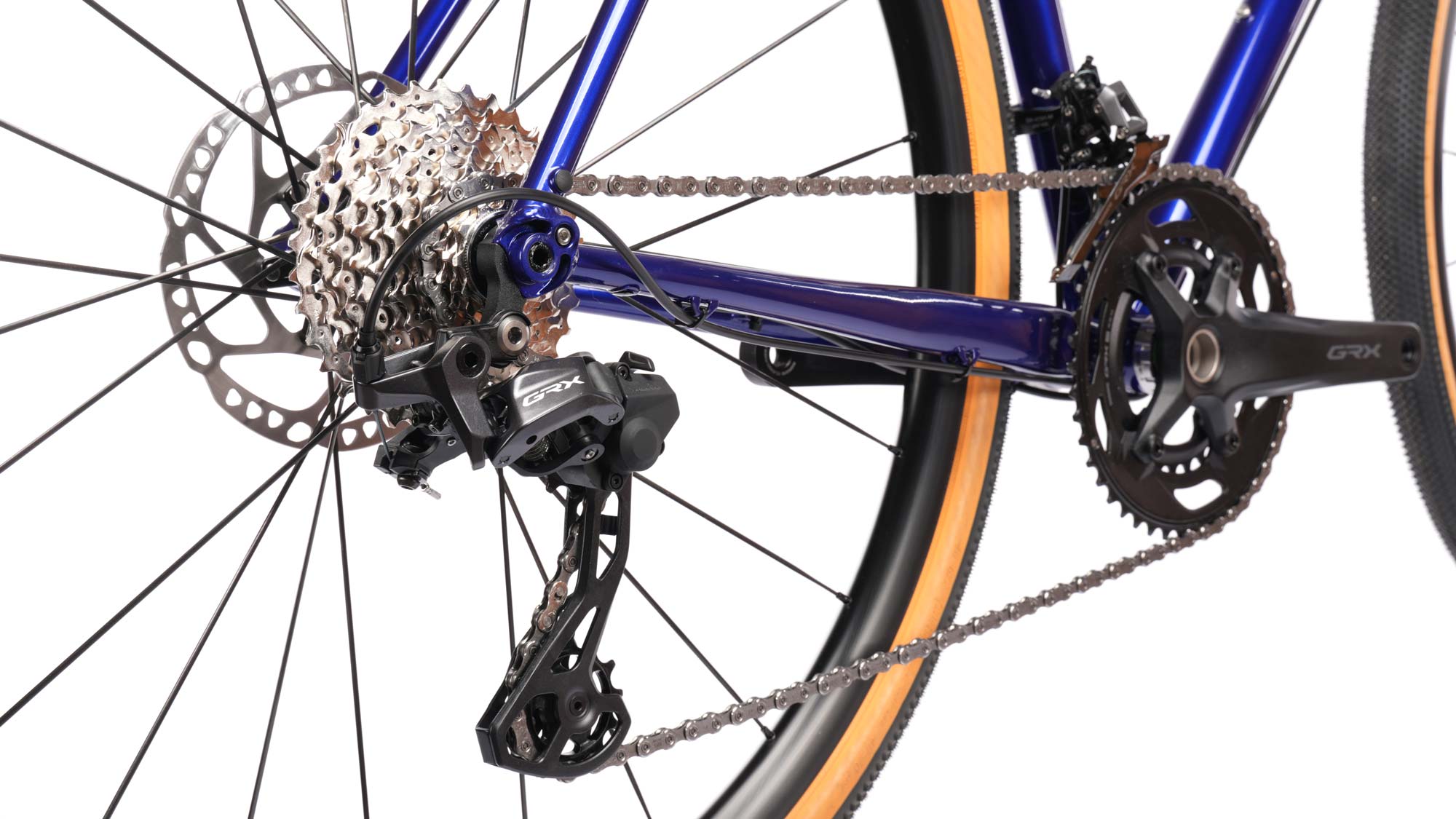

Drive and brakes

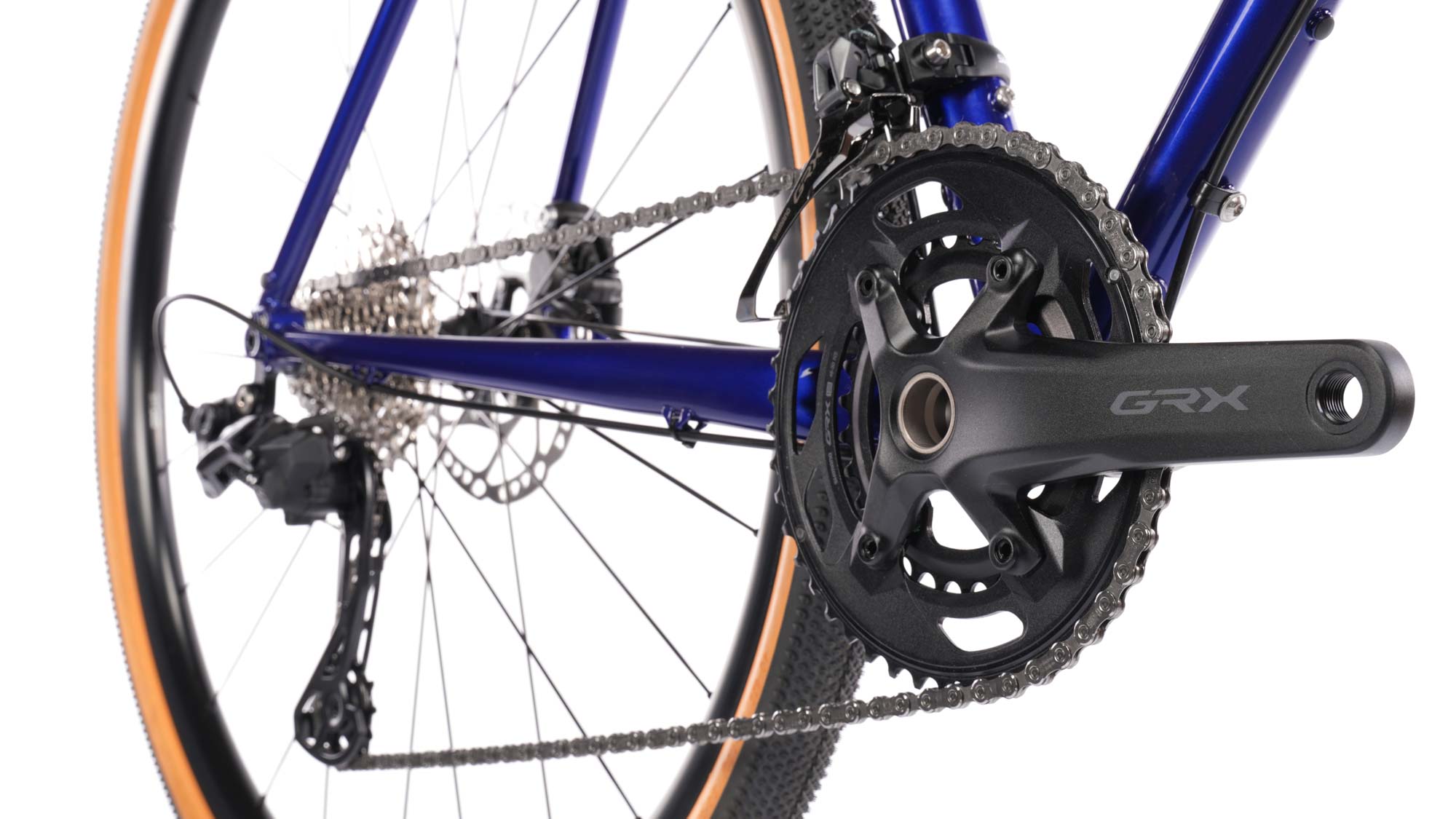

Shimano GRX 610 – 1×12

Shimano GRX 610 – 2×12

Wheels & tires

Wheelsets

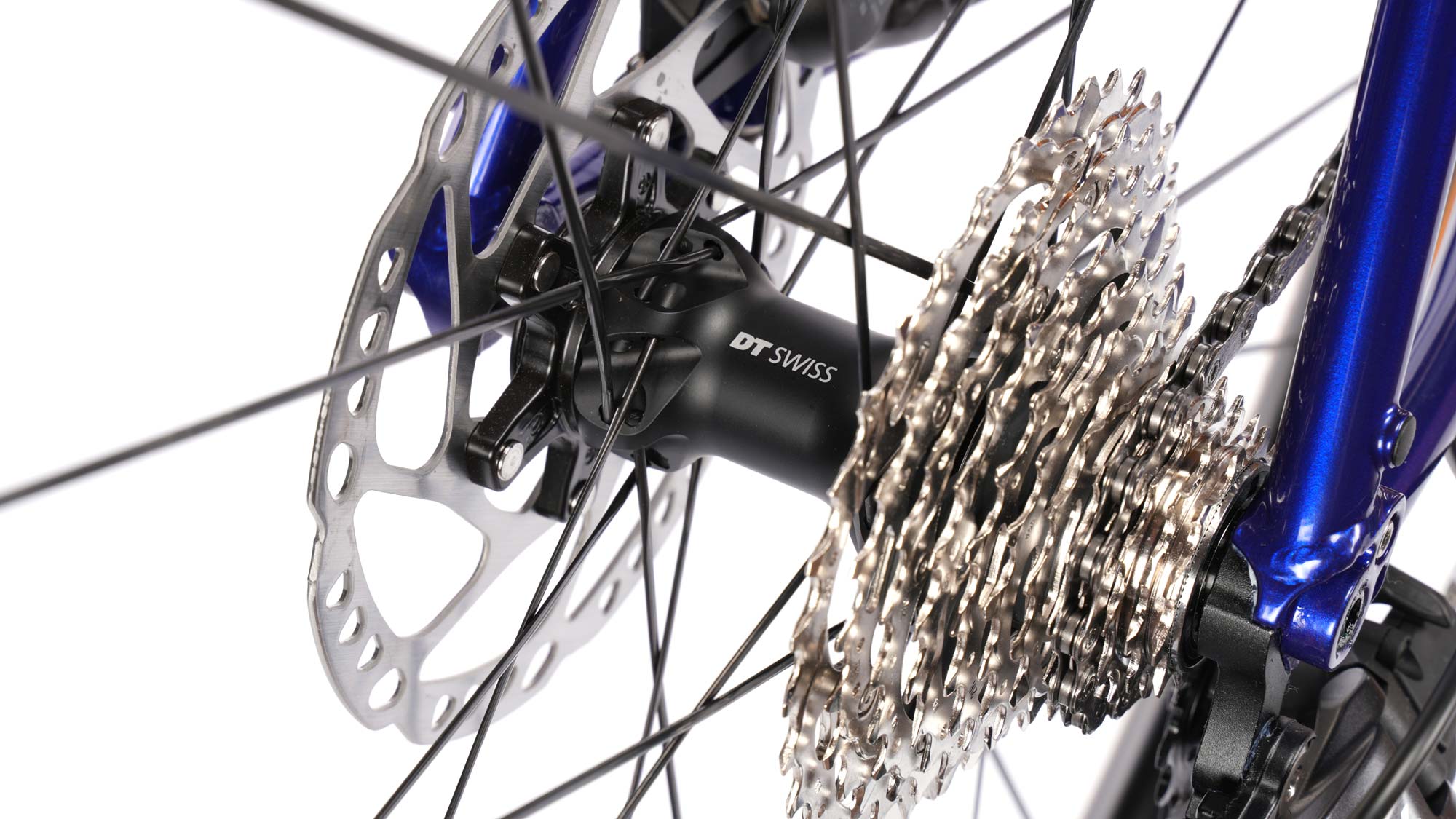

DT Swiss G 1800 SPLINE 25, 24 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and bike) (different decor for wheel size 650B)

Tires

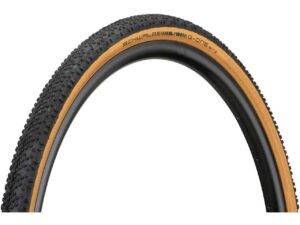

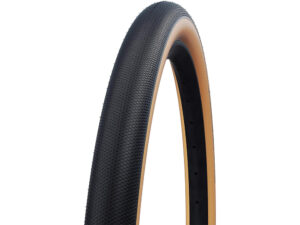

700C wheel size: Schwalbe G-ONE Allround, foldable, Tubeless Easy (supplied with inner tube), 40-622, black or optional Classic Skin or Schwalbe G-ONE Bite, foldable, Tubeless Easy (supplied with inner tube), 40-622, black or optional Classic Skin 650B wheel size: Schwalbe G-ONE Speed, folding, Tubeless Easy (supplied with inner tube), 50-584, classic skin or Schwalbe G-ONE Bite, folding, Tubeless Easy (supplied with inner tube), 50-584, black

max up to approx. 50-622 (28″) or 54-584 (27.5″) mm wide tires (depending on make and rim) without mudguards in frame and fork (steel and carbon) possible

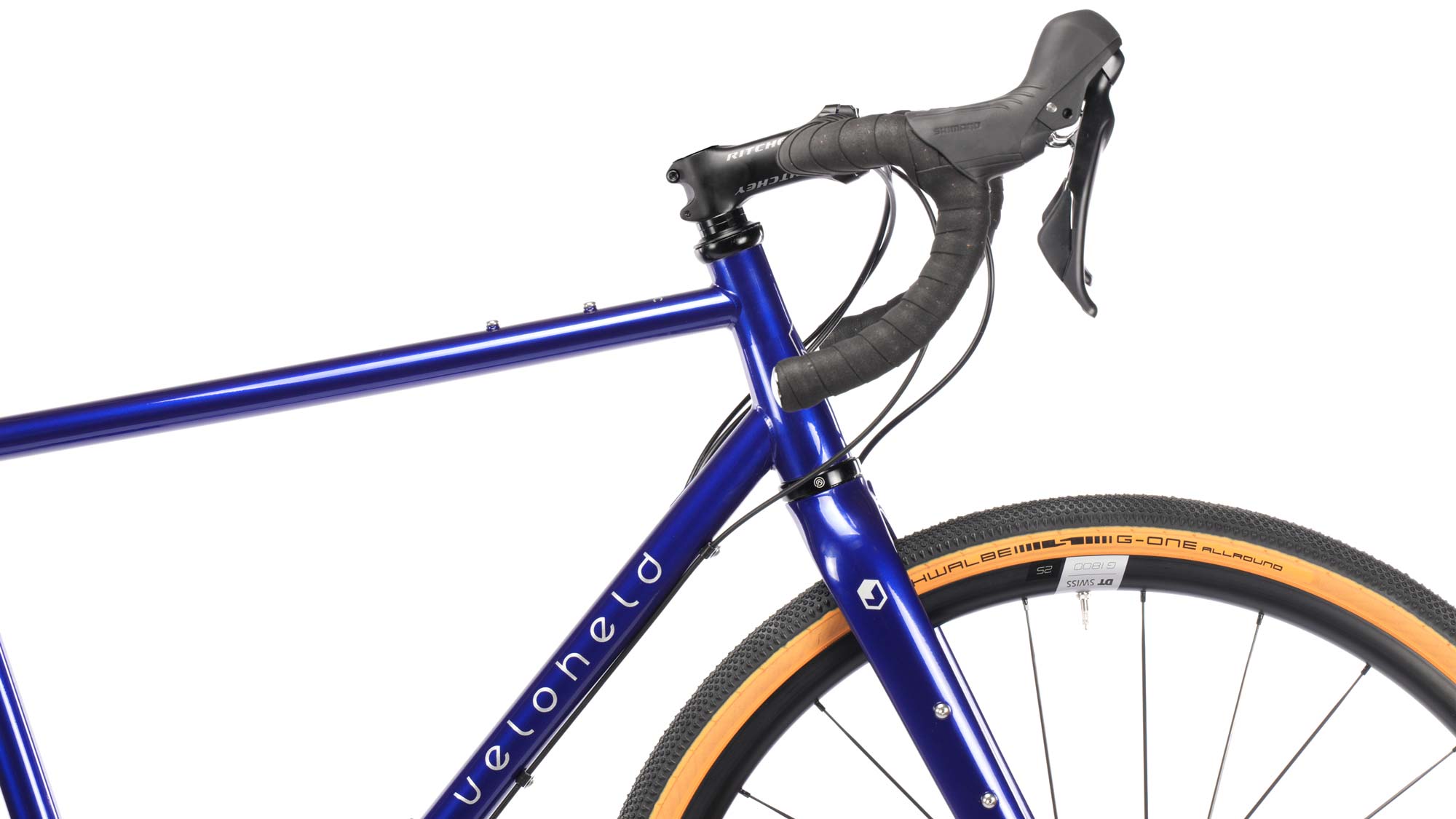

Cockpit

Stem

veloheld, black, glossy

Ritchey WCS C220 84D, Blatte Black
80 mm at frame height (XS,S), 90 mm (M,L), 100 mm (XL, XXL)
6 Spacer

Bar

veloheld, black

Ritchey WCS Butano, Blatte Black, Drop 115mm, Reach 73mm, Drop flare 18°, Backsweep 5°

Width: 400mm (XS, S) , 420 (M, L), 440 (XL, XXL)

Headset

incl. Acros headset 1 1/8″ EC 34/28.6 top and ZS 44/30 headset (steel fork) or EC 44/40 (carbon fork) bottom

Sitting

Sattel

veloheld, schwarz

Seat post

veloheld, black, glossy

Ritchey WCS Alloy Link, Blatte Black, 350mm, Setback 20mm

Miscellaneous

Sizes

XS, S, M, L, XL, XXL

Accessories

Mudguards: made of durable aluminum, powder-coated in frame color, 50 mm wide (Please note that due to the compact geometry, especially with smaller frame sizes, contact with the foot may be possible when turning sharply depending on the pedal system, shoe size and shoe shape).

Colors

Series color

Illusion Royal glossy (decal: silver)

Custom color

RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.

If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Complete bike approx. 10.4 kg (frame height M with carbon fork)

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

Note: Subject to technical changes, errors and omissions.

Frame height	XS	S	M	L	XL	XXL
for approx. body height in cm	159 – 168	167 – 175	174 – 182	181 – 189	187 – 194	194 – 199
for approx. inside leg length in cm	74 - 79	76 - 82	80 - 86	83 - 89	87 - 93	91 - 97
A Seat tube length	475	510	535	560	580	610
B Top tube length	530	545	565	580	594	613
C Wheelbase	1013	1036	1048	1053	1064	1079
D Head tube length	110	130	150	165	180	195
E Headtube angle	70°	71°	71,5°	72°	72,5°	72,5°
F Sitzwinkel	74,5°	74,5°	74°	73,5°	73,5°	73°
G Chainstay length	435	435	435	435	435	435
H Fork advance	50	50	50	50	50	50
I Bottom bracket drop	77	75	75	75	72	70
J Stack	544	568	589	605	619	631
K Reach	375	385	395	400	410	420
Wheel size	27.5" or 28"	27.5" or 28"	27.5" or 28"	27.5" or 28"	27.5" or 28"	27.5" or 28"
Standover height	750	785	810	830	845	865
Saddle extension	655 - 699	673 - 726	708 - 761	735 - 788	770 - 823	805 - 858

Show reviews in all languages (7)

Add a review Cancel reply

City 50%

Tour 80%

Road 50%

Terrain 60%

Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

Unfortunately no, you cannot mount a stand directly on the frame of this bike.
