veloheld.iconX Titanium frameset

From Original price was: 1.999,00 €.Current price is: 1.499,00 €.

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

(2 customer reviews)

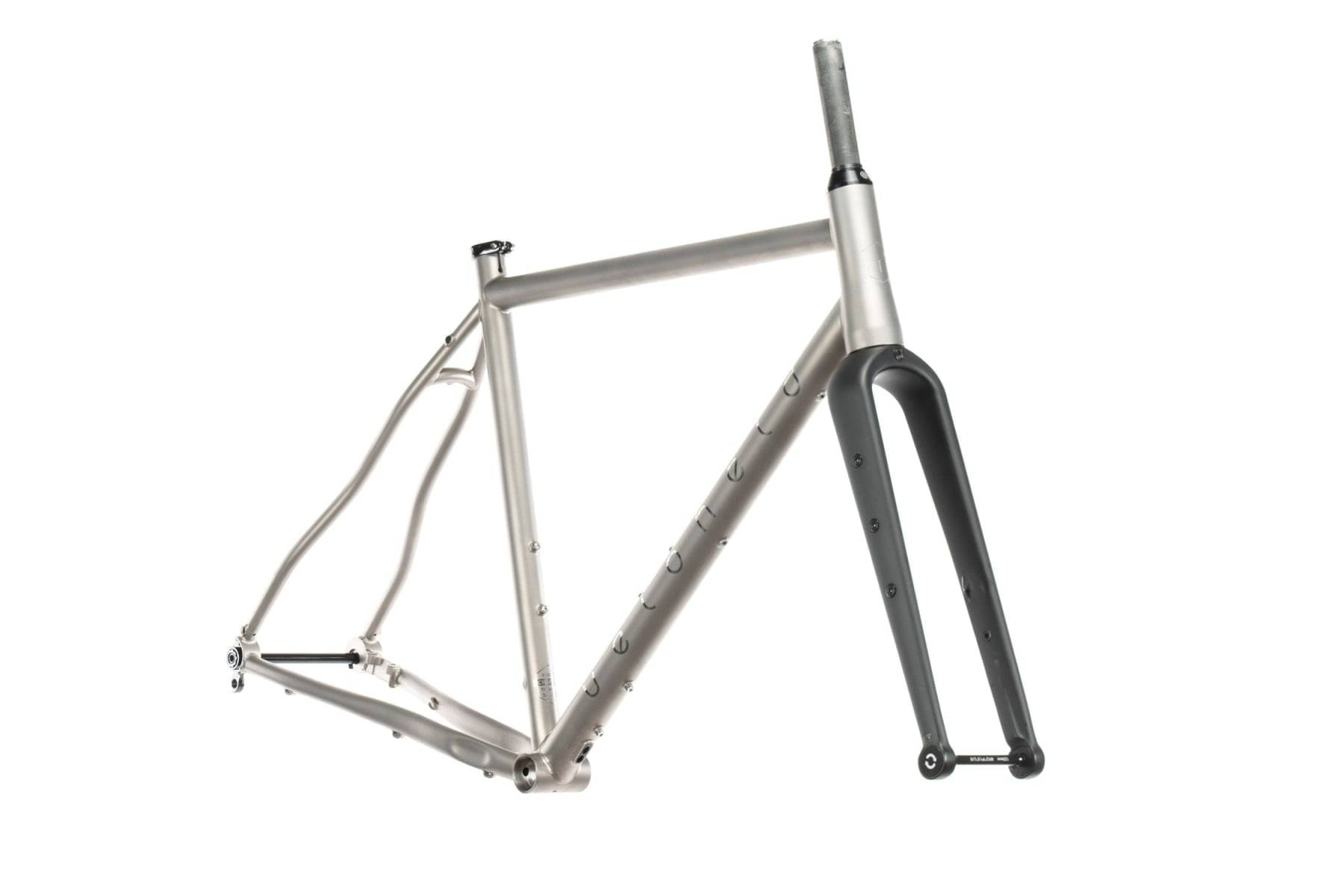

  • choose your individual features
  • with carbon fork or without fork

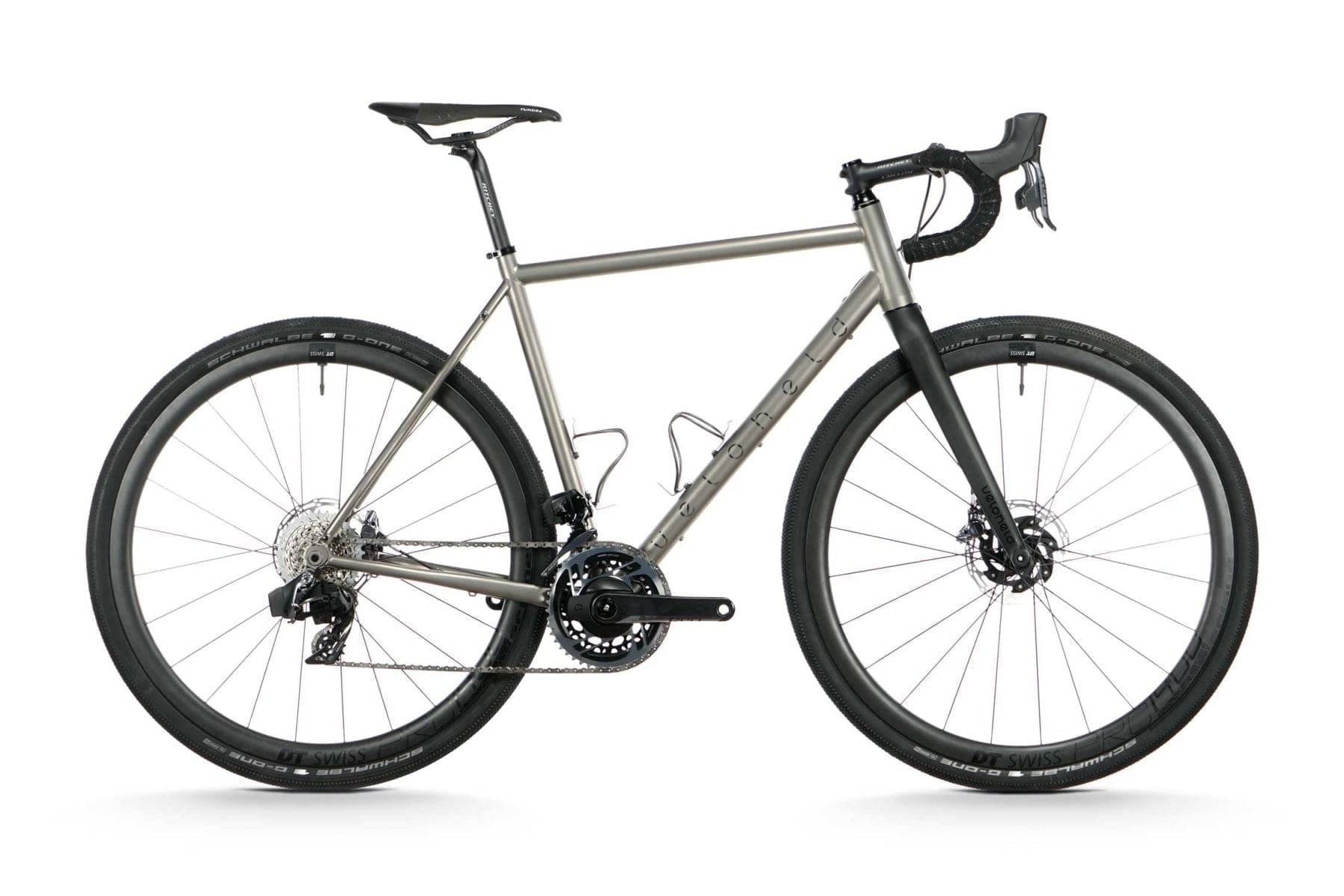

  • Also available as a complete bike

Delivery time

Due to the current order and delivery situation, we need 2-3 weeks after you have received your order confirmation from us to prepare and ship your frame set.

Only a few sizes available - sizes S, M and L are already sold out!
Grand total
Ich habe noch Fragen und wünsche eine persönliche BeratungSchon ab 0% finanzieren

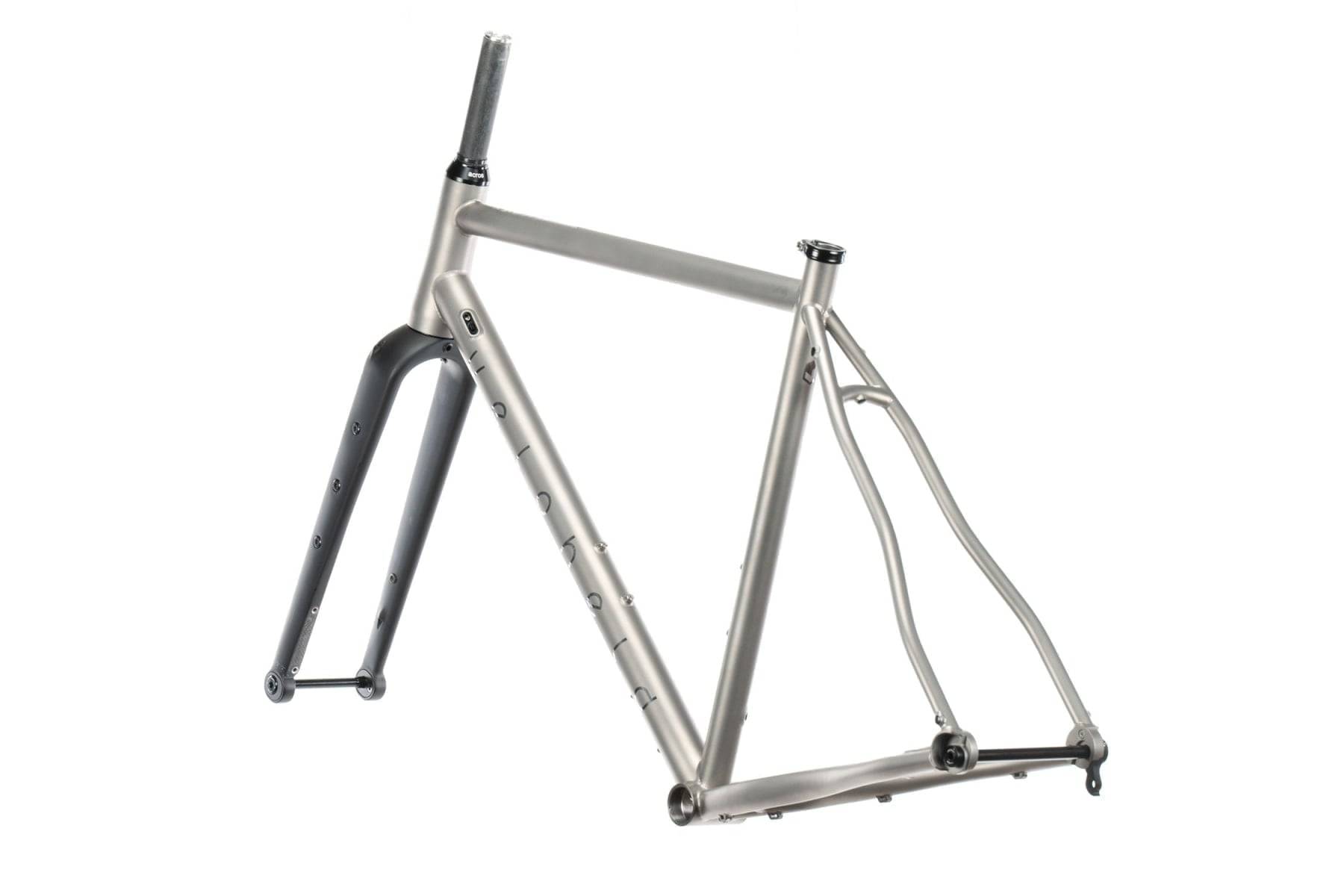

Titanium – no other material in the bicycle world is as fascinating. And rightly so! Its characteristics make it simply perfect for use as a gravel/all-road/bikepacking bike. It is light, robust and absorbs unevenness like a steel frame. And by the way, the frame of the veloheld.iconX Ti gravel bike with its polished logos looks so incredibly attractive that you will never want to ride any other material again. A partner for eternity.

The TiAl3V2.5 frame comes with many details for versatile use. The internal cable routing is perfectly prepared for 1x groupsets. Of course, you can also run “classic” 2x groupsets or run modern Shimano Di2 shifting cables in the frame. The tire clearance of up to 50 mm width with 28″ wheels gives you a free choice for rough or paved terrain. With these and more details, you are perfectly equipped for epic tours with or without luggage.

In the wild!

At 1.83 m tall and 85.5 cm inside leg length, Phil rides a size L frame

Details

Highlights

Clean!

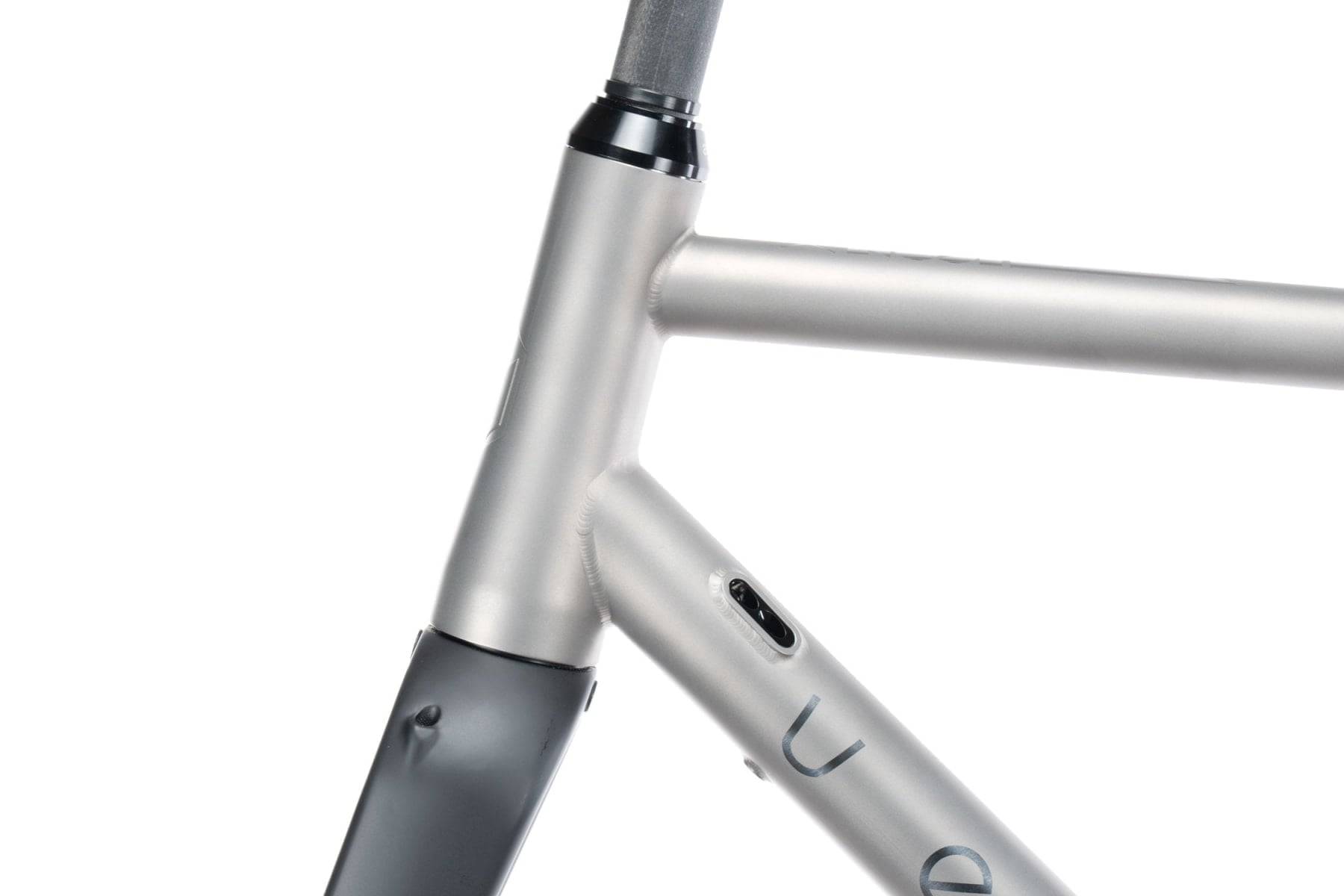

Internal brake and 1x gear cable routing in the down tube

Race or Tour?

Adjustable rake (offset) on the carbon fork

Brilliant!

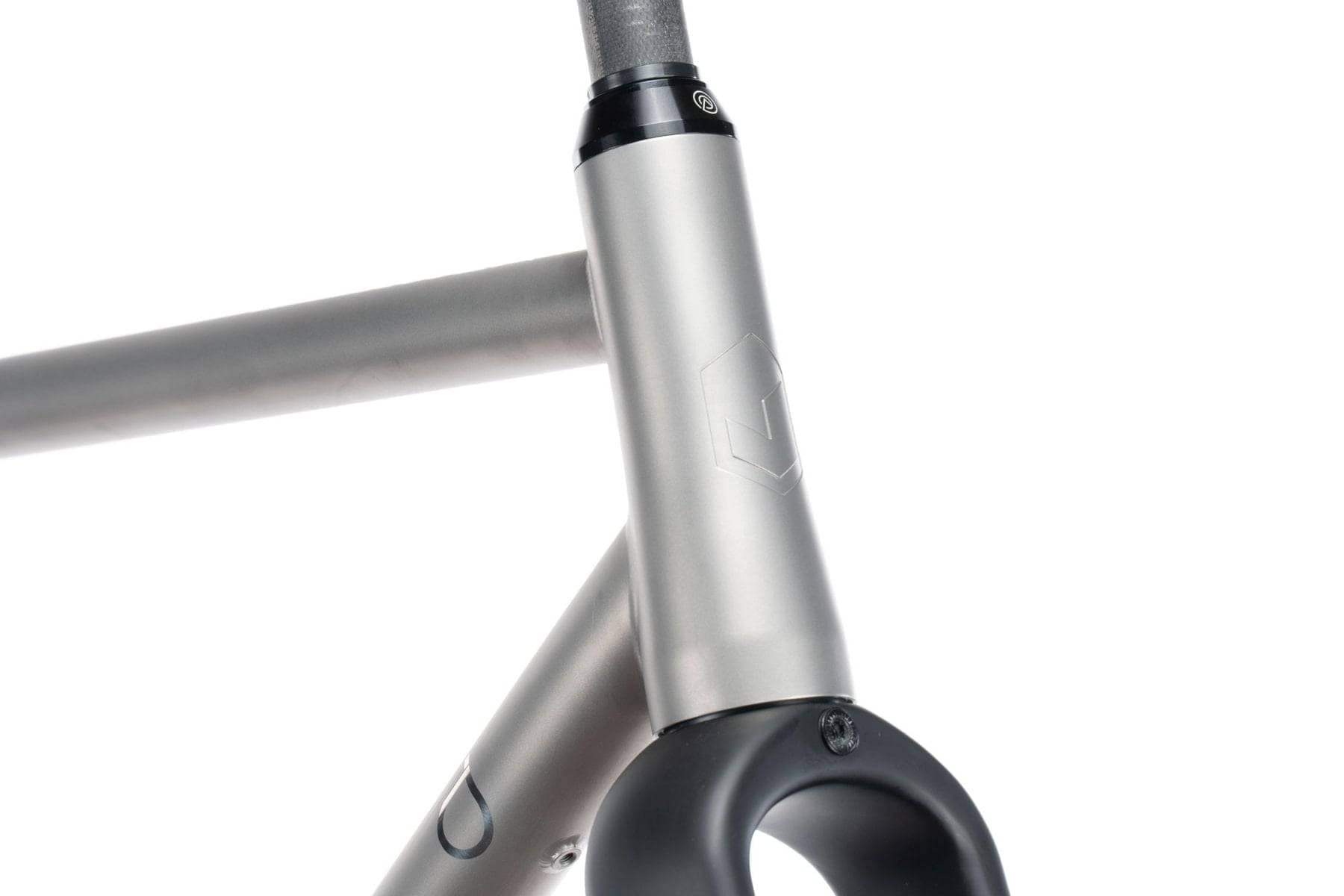

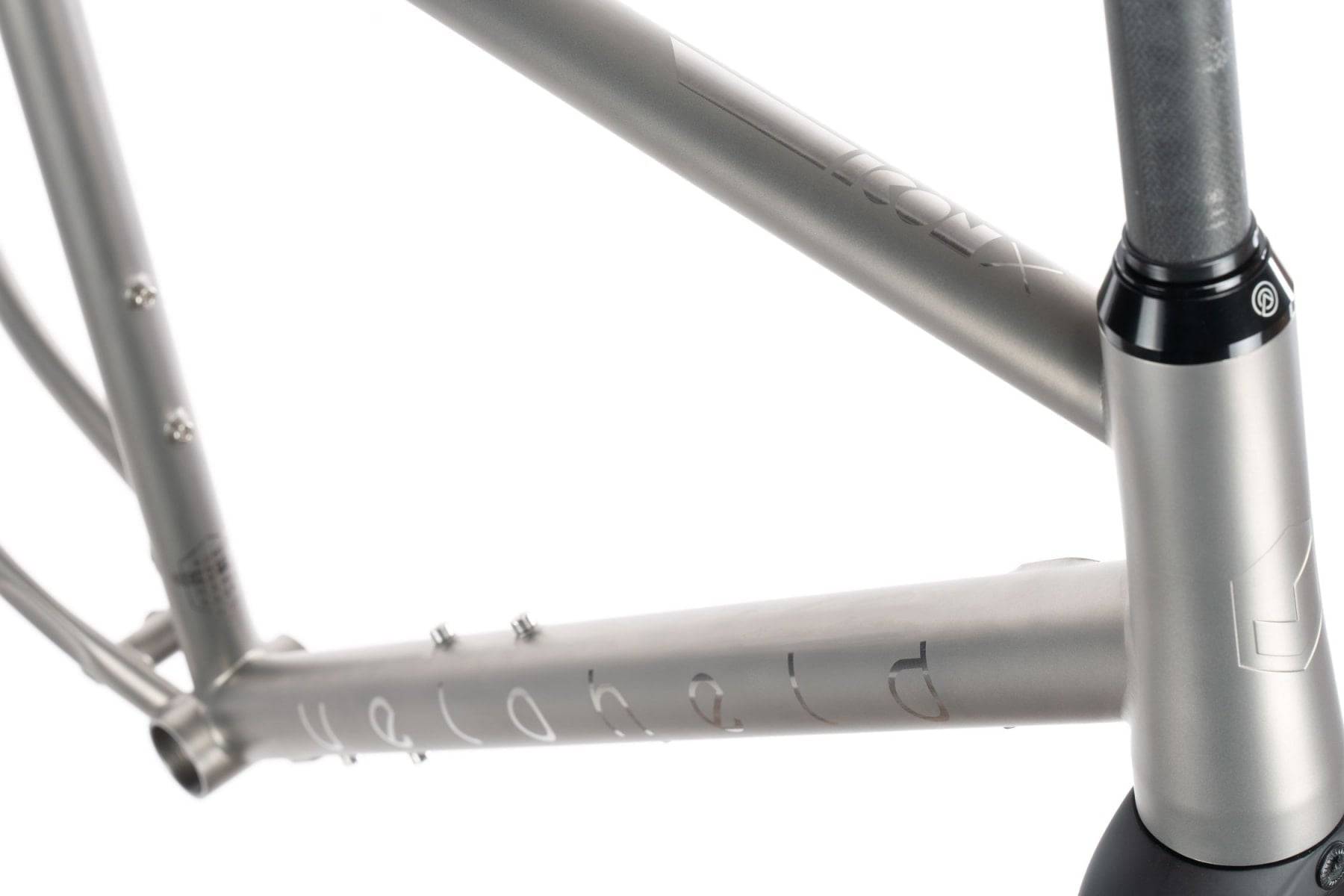

Polished decors on silk matt frames

Your dream bike

Send us your ideas and we will build your veloheld.iconX titanium dream bike!

Details

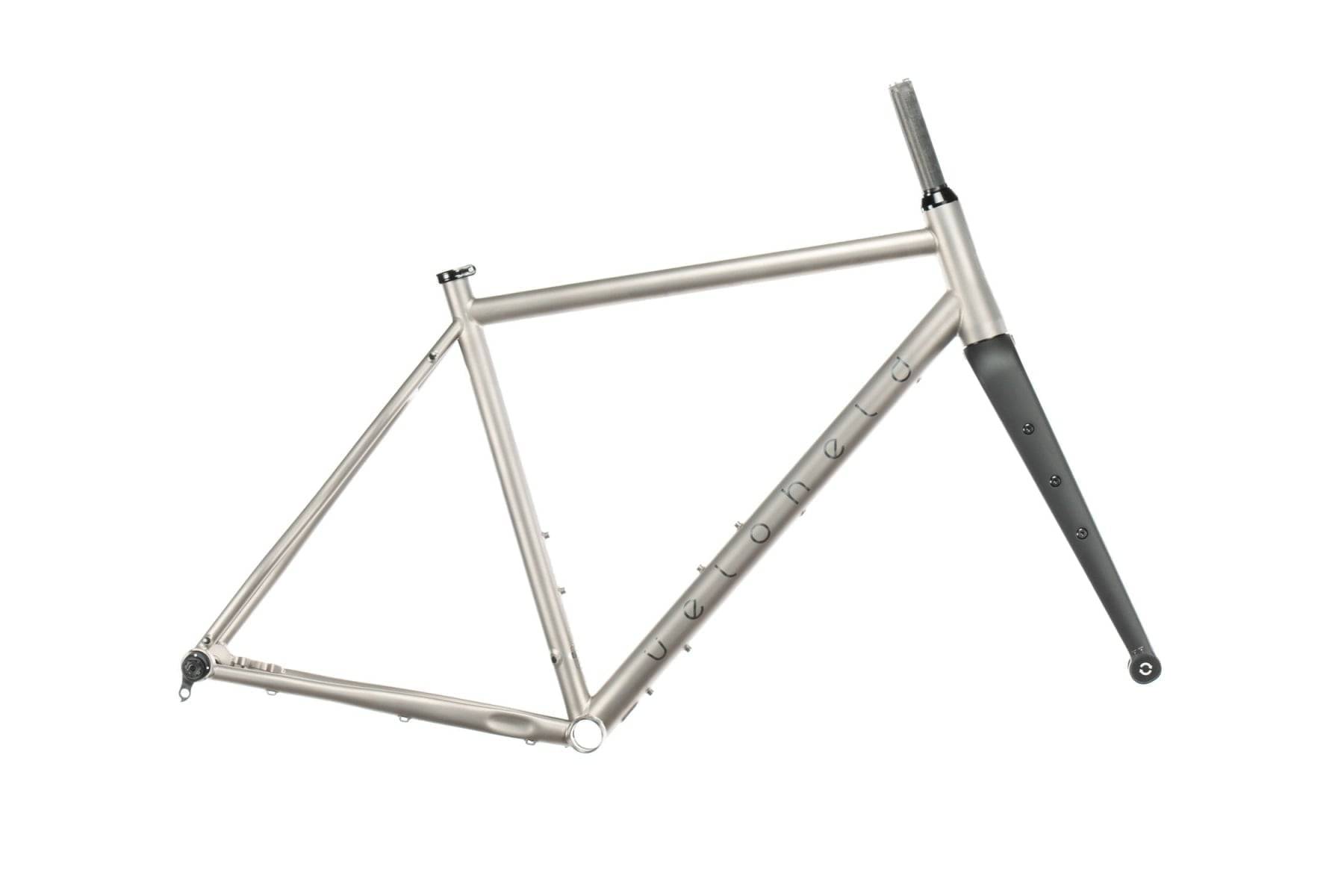

Frame

Double end-reinforced tubes made of TiAl3V2.5 titanium, TIG-welded, “tapered” head tube
Di2 ready (only with 24 mm axles for Shimano cranks)
discreet eyelets for mudguards and/or pannier rack

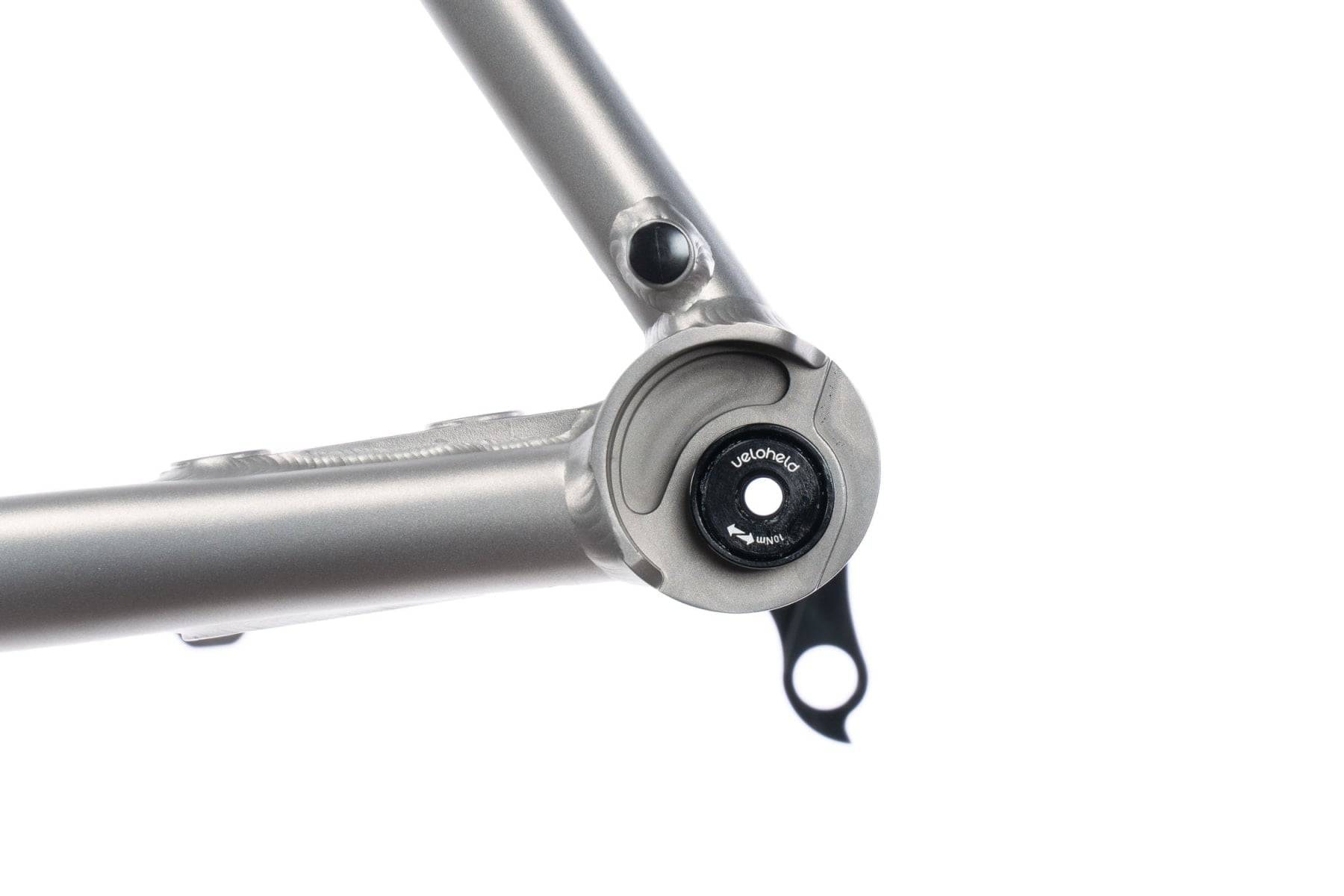

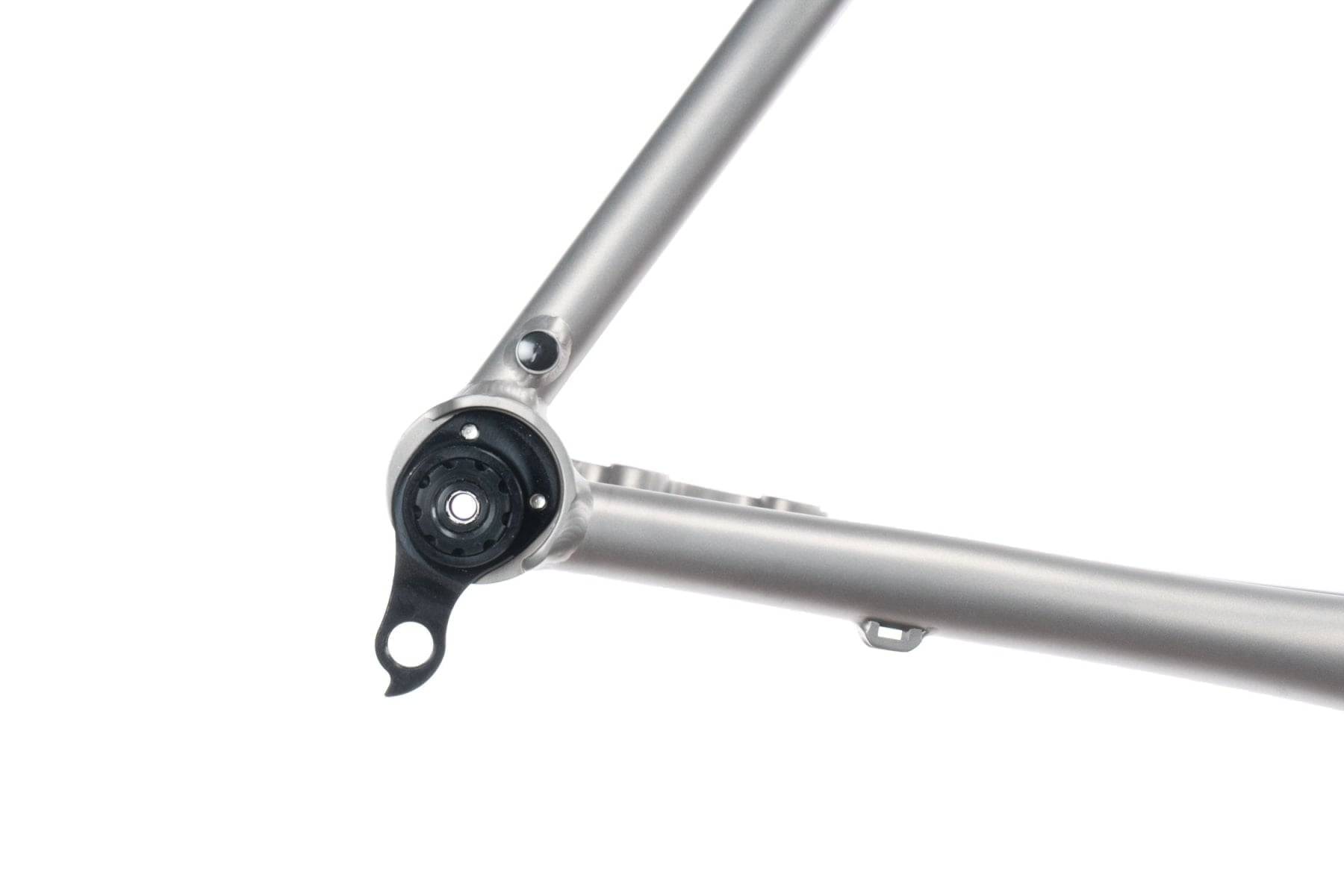

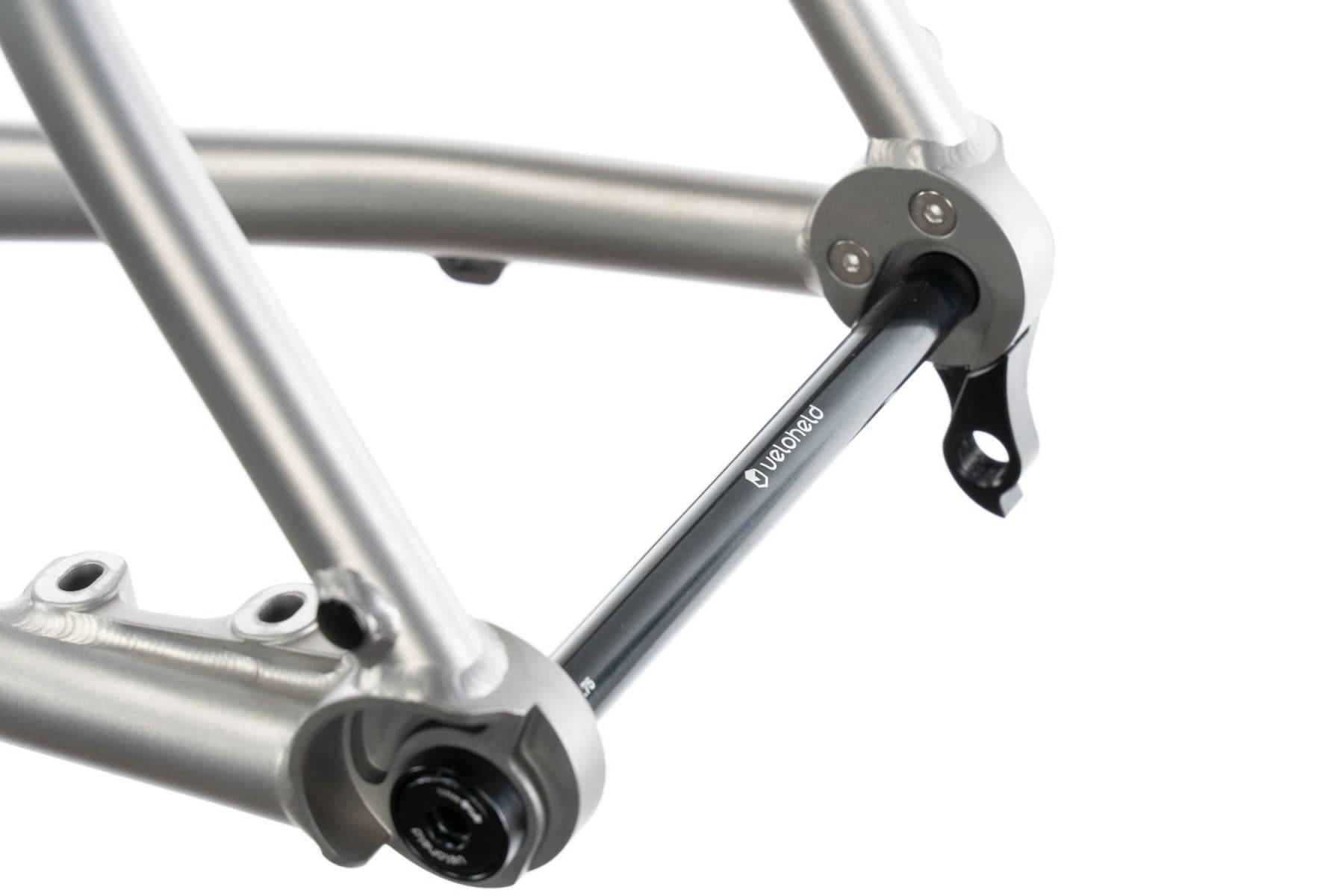

dropouts with replaceable aluminum derailleur hanger including M12x142 mm thru axle in the down tube integrated shift (for 1x drivetrains) and brake cable routing made of aluminum
no cable stop on the frame for front derailleur (not compatible with mechanical 2x Campagnolo and SRAM groupsets)
flatmount disc brake mount for 140 or 160 mm brake rotors located in the rear frame triangle 160 mm brake rotors
3 bottle cages can be attached
Size XS in 2 versions for 650B/27.5″ or 700C/28″ wheels

Thru axle

Frame: Axle length: 168 mm; Thread length 20 mm; Pitch 1.75 (Maxle) (included)

Fork

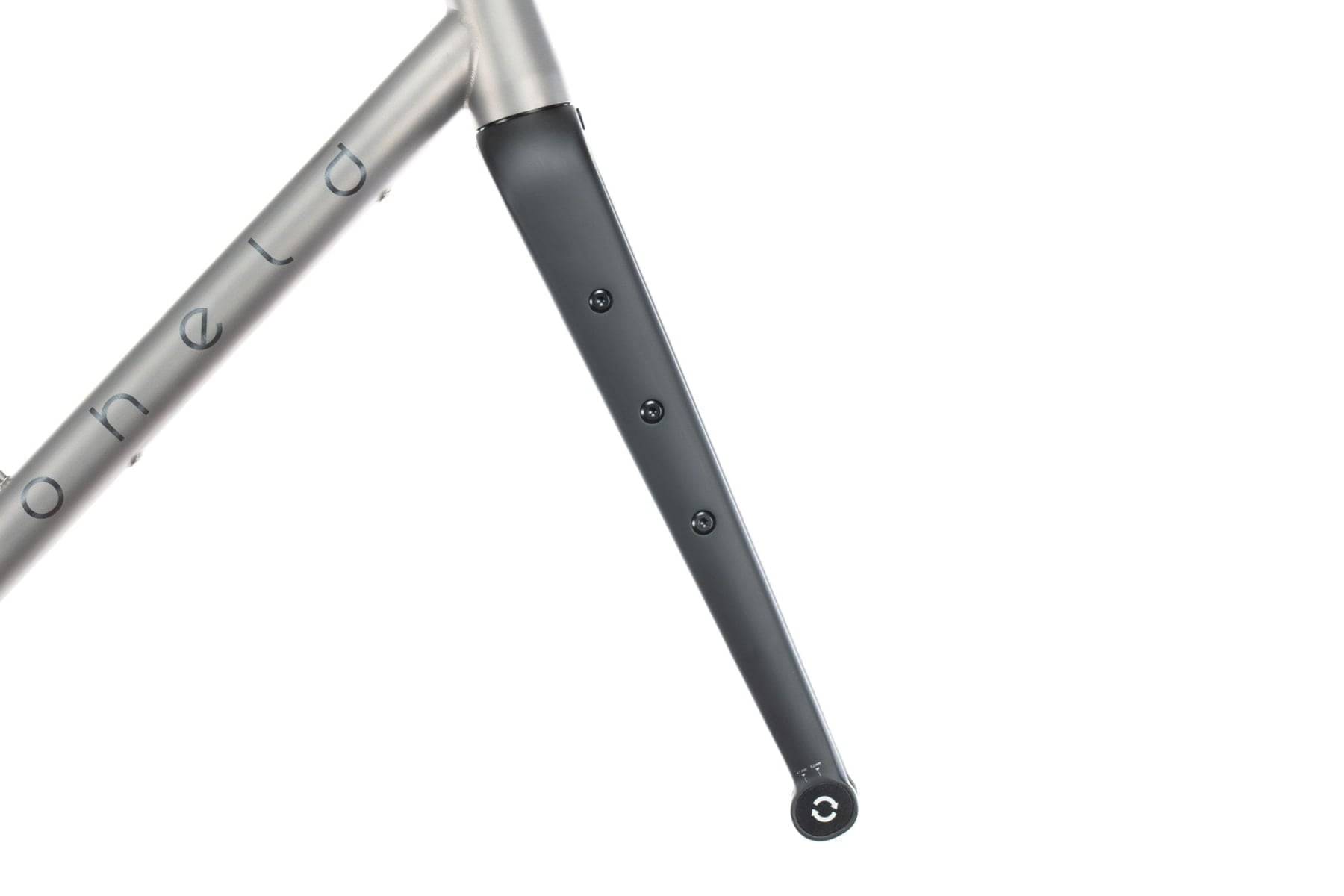

optional veloheld carbon fork with adjustable fork travel – 47 or 52 mm (we recommend 47 mm fork travel from frame height L for a more balanced trail) tapered head tube, lateral “triple cage” eyelets for mounting your luggage (max. load capacity: 3 kg per fork side) flat-mount disc brake mount for 140 or 160 mm disc mounting eyelets for mudguard internal brake cable routing and optional dynamo light cable routing installation dimension: 12×100 mm incl. Thru axle and expander

Thru axle

Fork: Axle length 125 mm; Thread length 14 mm; Pitch 1.5 (Maxle)
(included)

Drive and brakes

Inner bearing

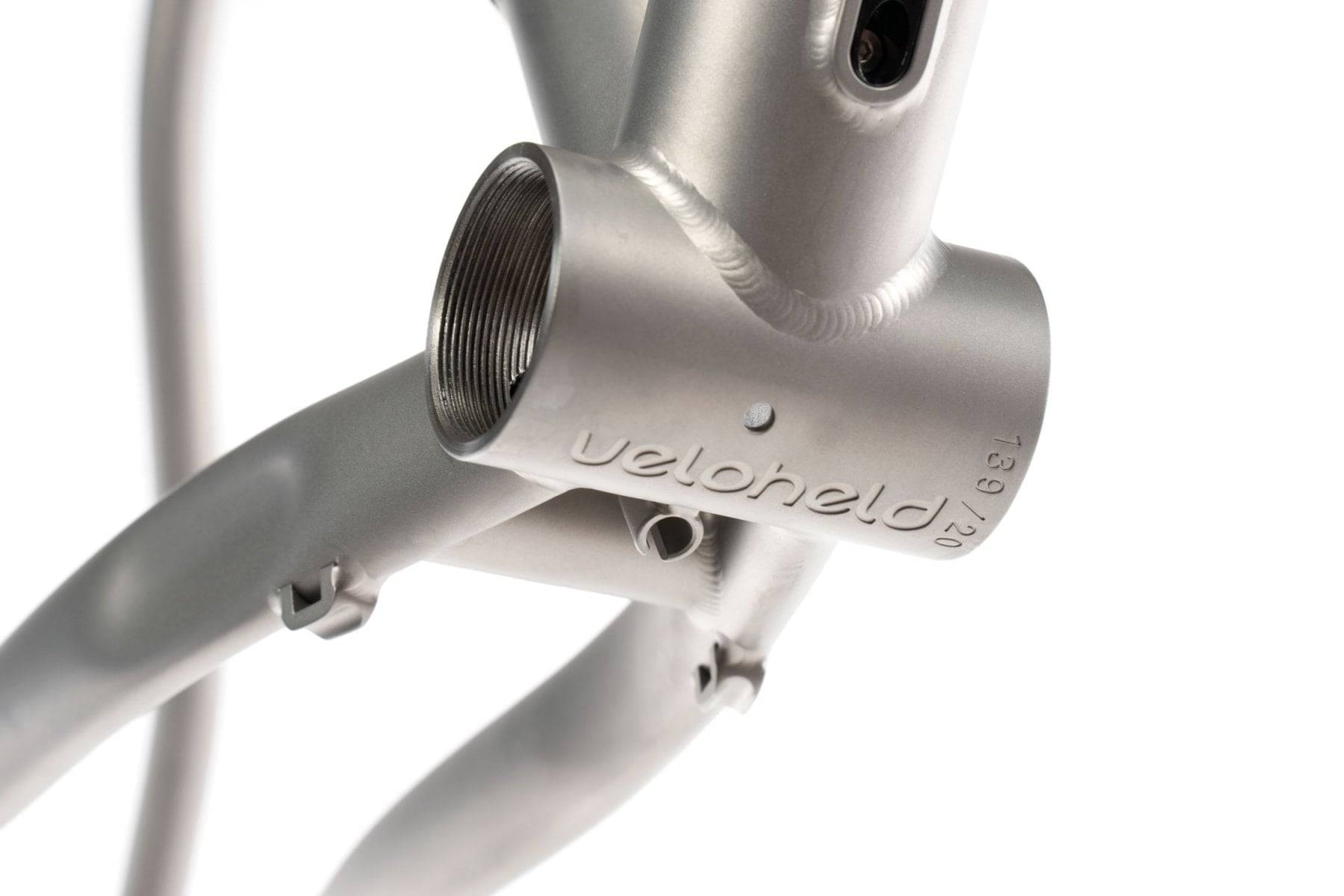

for BSA, 68 mm

for disc brakes with 140 mm or max. 160 mm brake discs front and rear, flat-mount brake mounts

Wheels & tires

Wheelset

Wheel set installation dimension: 12×142 mm rear, 12×100 mm front

Tires

max. up to approx. 50-622 (28″) or 54-584 (27.5″) mm wide tires (depending on make and rim) possible without mudguards in frame and fork

Cockpit

Tax rate

Acros IS42/IS52 headset, black incl. for frameset with fork, compatible with IS42/28.6/OD46 top and IS52/40 bottom

Sitting

Seat post

Seat post installation dimension: ø 27.2 mm, incl. Seat clamp made of black anodized aluminium

Miscellaneous

Sizes

XS, S, M, L, XL, XXL

Colors

titanium gray blasted with polished logos Carbon fork in UD-black

incl. of all covers and screws for bottle cages

Weight

approx. 1.6 kg (frame height M), approx. 565g carbon fork incl. thru axle

Classification

For riding on paved roads, such as asphalt roads and cycle paths, paved forest roads, field paths and hiking trails where there are few or no obstacles such as roots, thresholds, stones and steps. The wheels are in constant contact with the ground or may briefly lose contact with the ground due to minor bumps. This category includes urban and city bikes as well as cyclocross bikes with road handlebars. Read more…

Note: Technical changes, errors and omissions excepted.

Frame height XS S M L XL XXL
for approx. body height in cm 159 – 168 167 – 175 175 – 182 182 – 188 188 – 194 194 - 199
for approx. inseam length in cm 74 - 79 76 - 82 80 - 86 83 - 89 87 - 93 91 - 97
A Seat tube length 475 510 535 560 580 610
B Top tube length 522 544 565 580 594 613
C Wheelbase 1012 1035 1047 1053 1062 1076
D Head tube length 120 135 155 170 185 200
E Head angle 71° 71° 71,5° 72° 72,5° 72,5°
F Seat angle 75° 74,5° 74° 73,5° 73,5° 73°
G Chainstay length 425 435 435 435 435 435
H Fork offset 50 50 50 50 50 50
I Bottom bracket drop 65 75 75 75 75 75
J Stack 540 565 586 602 618 632
K Reach 375 385 395 401 410 419
Wheel size 27.5" 28" 28" 28" 28" 28"
Standover height 760 780 805 825 840 865
Saddle extension 655 - 699 673 - 726 708 - 761 735 - 788 770 - 823 805-858
  • kstaude@web.de
    DE
    Kay Staude

    Verarbeitung ist Super, die Schweißnähte ein Traum sehr sauber und die Zugverlegung find ich auch sehr gut, die Leute bei Veloheld sind sehr Freundlich, Flexibel und Spontan. Habe mir den Rahmen direkt beim Veloheld besichtigt, konnte meinen LRS vor Ort probemontieren und die Gabel hab ich mir vom Stahlrahmen Modell wählen dürfen und alles ohne Vorankündigung und gleich kaufen und gut. Besser geht es nicht und jeder Zeit wieder! VG Kay

  • lukaslachenicht@gmx.de
    DE
    Lukas

    Unglaublich vielseitiges Rahmenset. Fahre das Rad nun seit über einem Jahr mit zwei unterschiedlichen Laufradsätzen (entweder als Allroad oder als Gravelbike) und bin überglücklich. Ob schnell über die Bahntrasse von Aachen ins Hohe Venn und anschließen ruppig durch die Eifel oder eine lange Rennradtour durchs Bergische Land – Das Rad macht echt alles mit und der Komfort des Titanrahmens ist genial!

Show only reviews in EN (0)

Add a review

City 50%
Tour 80%
Road 50%
Offroad 60%
Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

Unfortunately no, you cannot mount a stand directly on the frame of this bike.
