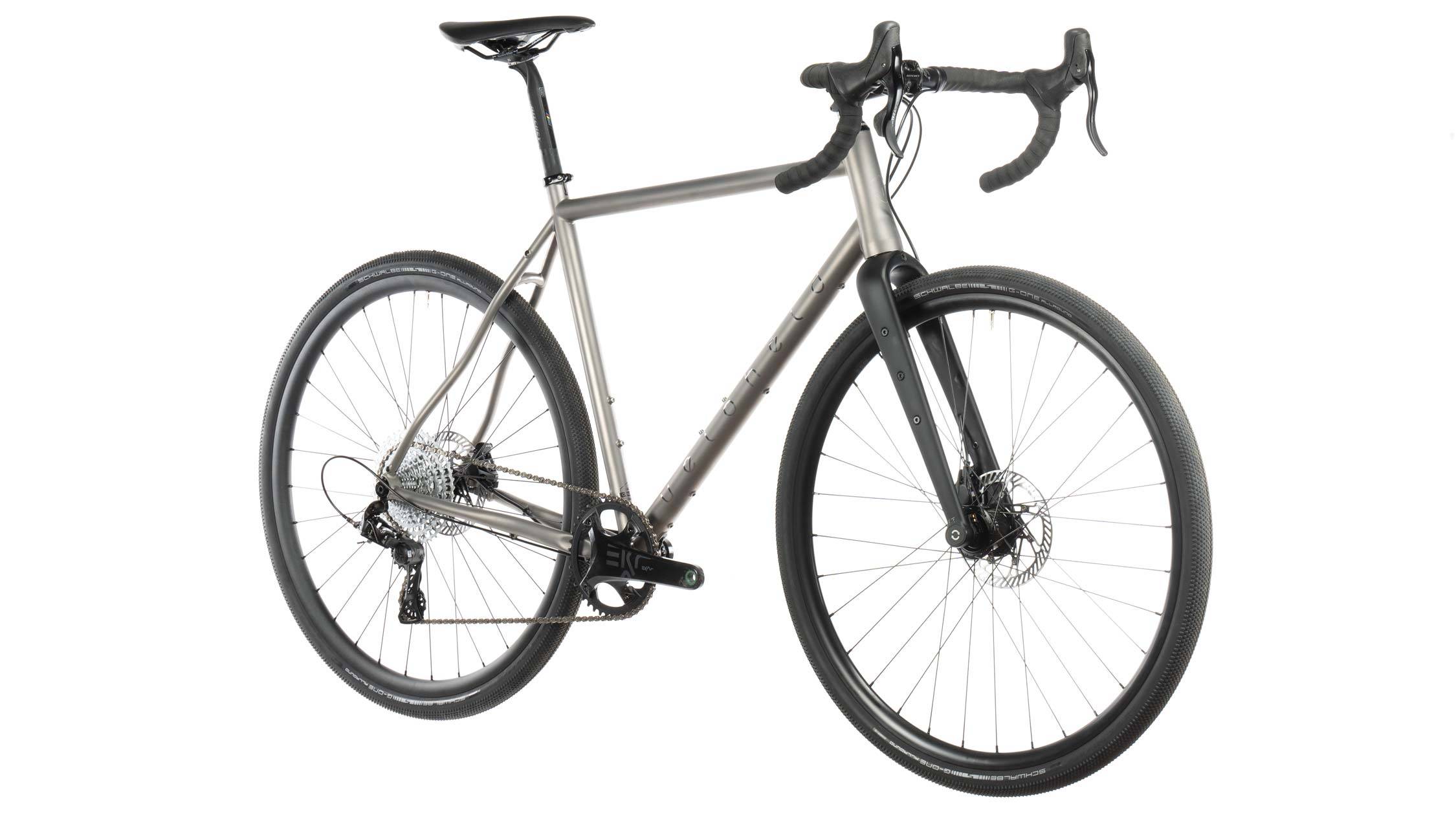

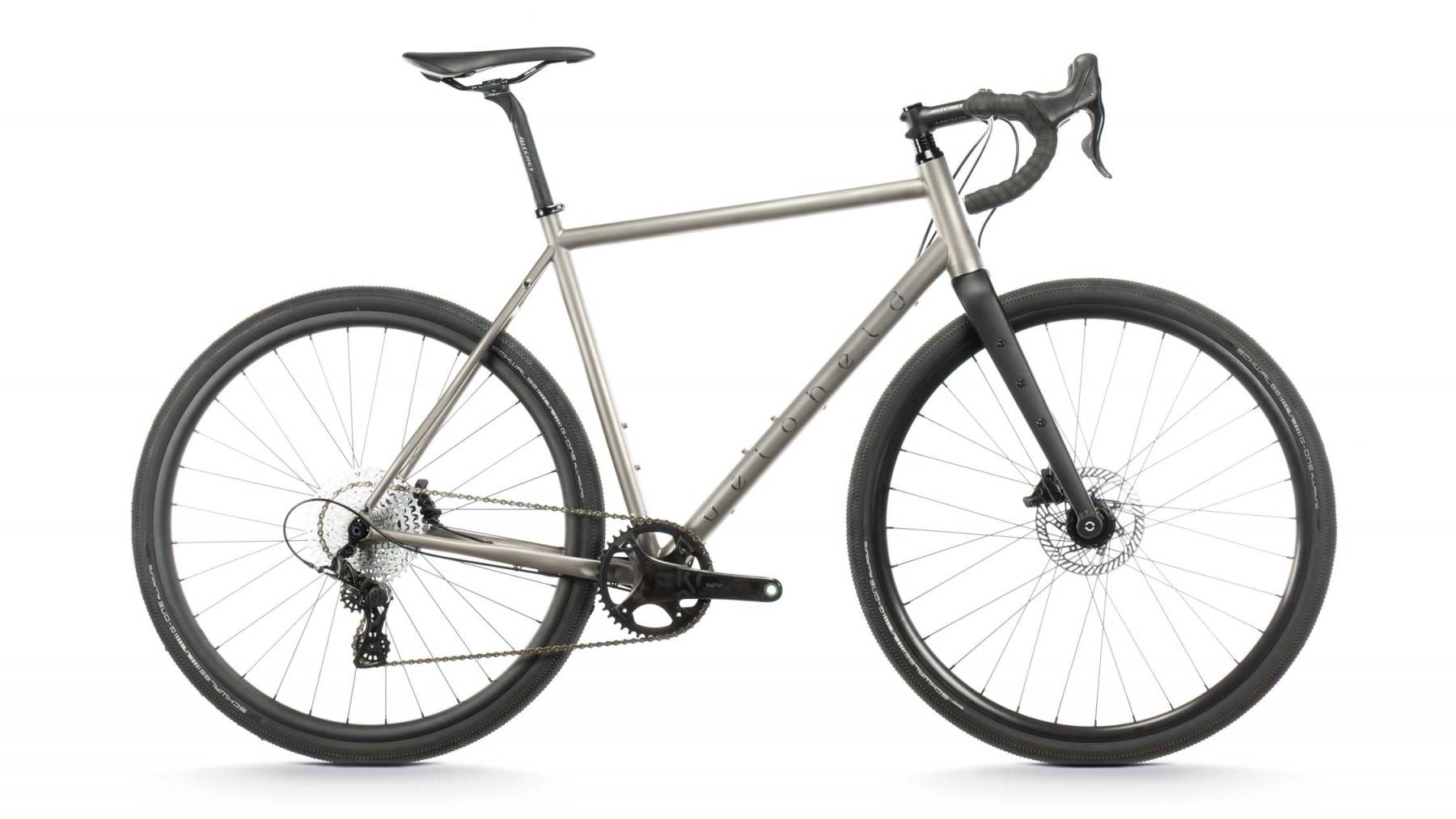

veloheld.iconX Titanium complete bike

From Original price was: 4.290,00 €.Current price is: 3.590,00 €.

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

(0 customer reviews)
  • Robust and durable – the perfect bikepacking bike
  • choose your size and equipment options here
  • Delivered by a forwarding agent and ready to go in just a few steps

Delivery time

As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 4 - 6 weeks after order confirmation to manufacture and ship available bikes.

Only a few sizes available - sizes S and M are already sold out!
for 650B with wheelset DT Swiss G 1800 SPLINE 25 with Schwalbe G-One Speed
Grand total
I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%

Titanium – no other material in the bicycle world is as fascinating. And rightly so! Its characteristics make it simply perfect for use as a gravel/all-road/bikepacking bike . It is light, robust and absorbs unevenness like a steel frame. And by the way, the frame of the veloheld.iconX titanium gravel bike with its polished logos looks so incredibly attractive that you will never want to ride any other material again. A partner for eternity.

The TiAl3V2.5 frame comes with many details for versatile use. The internal cable routing is perfectly prepared for 1x groupsets. Of course, you can also run “classic” 2x groupsets on the frame or run modern Shimano Di2 shift cables in the frame. The tire clearance of up to 50 mm width with 28″ wheels gives you a free choice for rough or paved terrain. With these and more details, you are perfectly equipped for epic tours with or without luggage.

In the wild!

At 1.83 m tall and 85.5 cm inside leg length, Phil rides a size L frame

Highlights

SALE!

Clean!

Internal brake and gear cable routing in the down tube

SALE!

Race or Tour?

Adjustable rake (offset) on the carbon fork

SALE!

Brilliant!

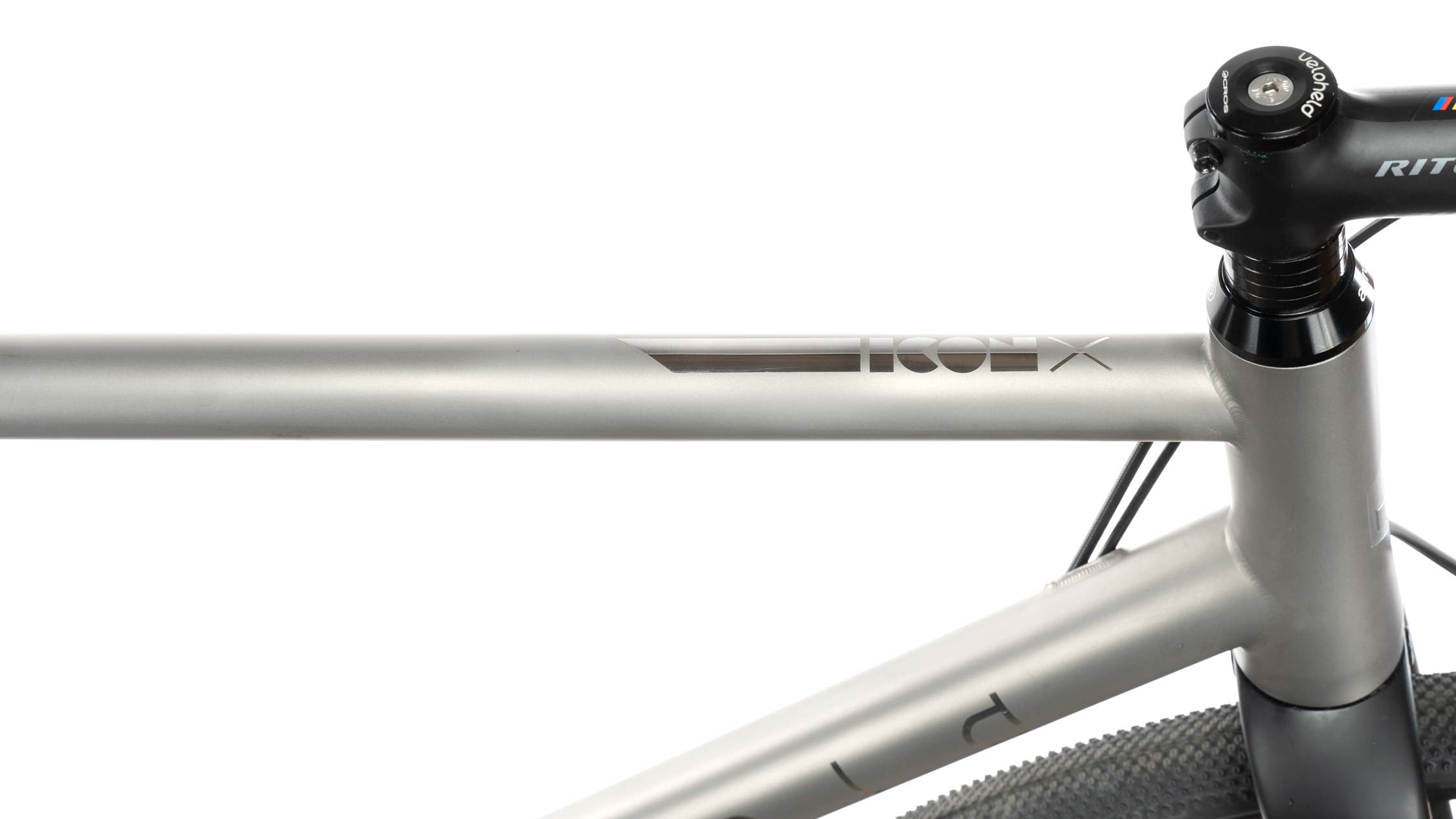

Polished decors on silk matt frames

SALE!

Spoilt for choice

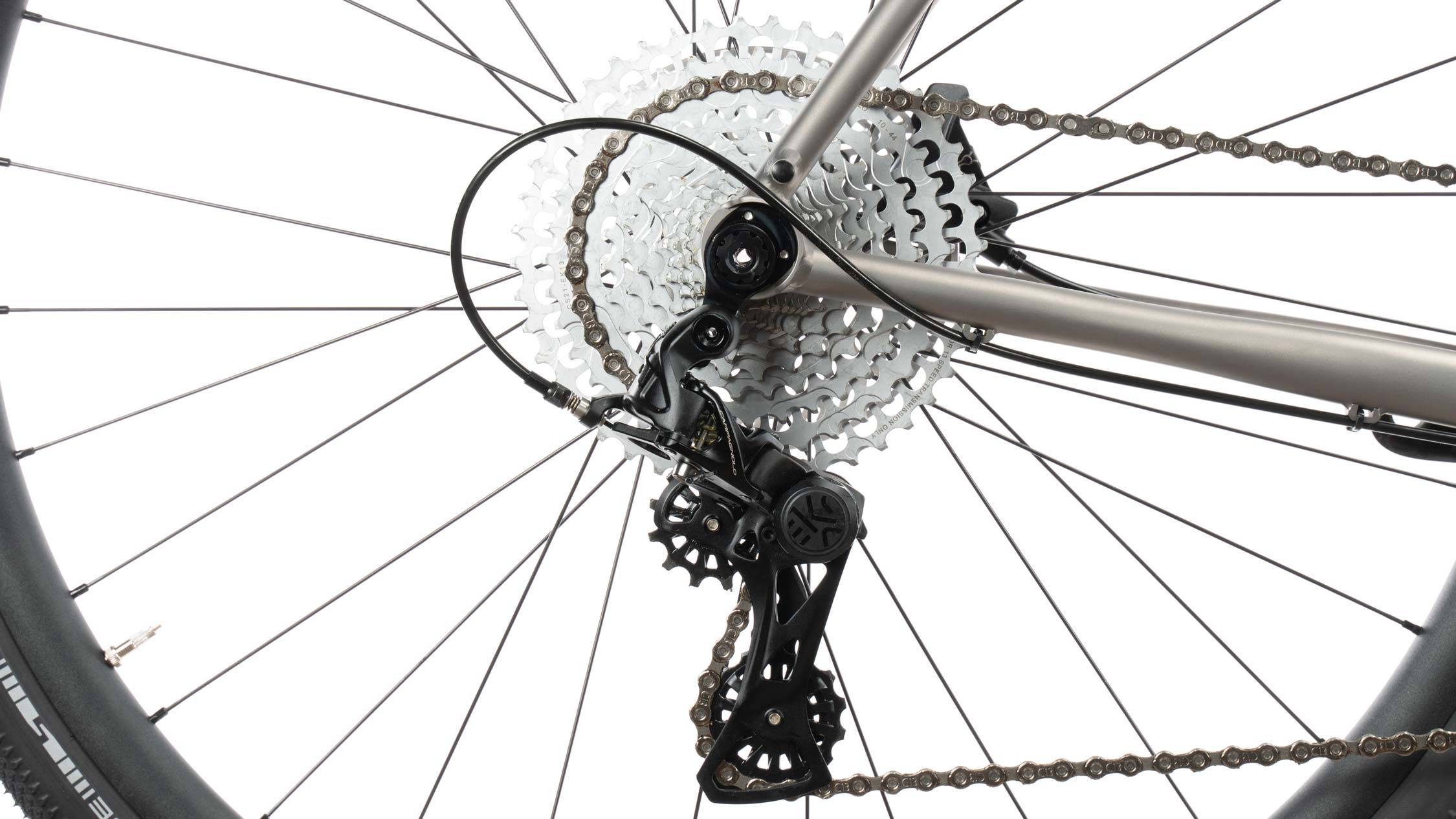

Choose between different switching groups

Details

Frame

double butted tubes made of TiAl3V2.5 titanium, TIG-welded, “tapered” head tube, discreet eyelets for mudguards and/or pannier rack, M12x142 mm thru axle included, dropouts with replaceable aluminum derailleur hanger, aluminum shifting (for 1x drivetrains) and brake cable routing integrated in the down tube, flat-mount disc brake mount for 140 or 160 mm brake discs located in the rear frame triangle, 3 bottle cages can be fitted, Di2 ready size XS, 2 versions for 650B/27.5″ or 700C/28″ wheels, 2 versions for 650B/27.5″ or 700C/28″ wheels. 160 mm brake discs, 3 bottle cages can be attached, Di2 ready size XS in 2 versions for 650B/27.5″ or 700C/28″ wheels

Fork

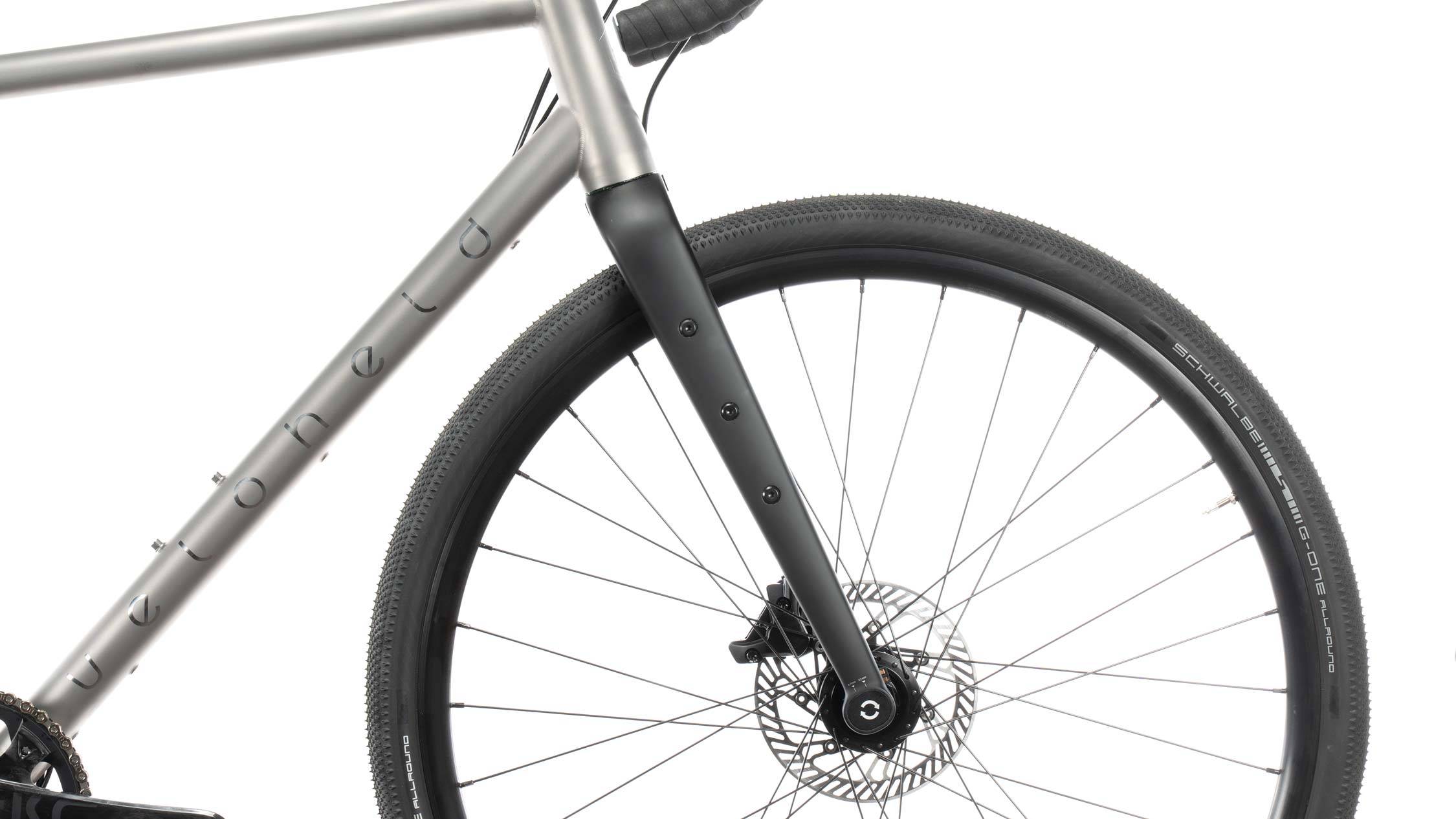

veloheld carbon fork with adjustable fork travel – 47 or 52 mm, tapered head tube, lateral “triple cage” eyelets for mounting your luggage, flat-mount disc brake mount for 140 or 160 mm discs, mounting eyelets for mudguard, internal brake cable routing and optional dynamo light cable routing, installation dimension: 12×100 mm, incl. Thru axle and expander, load capacity: 3 kg per fork side

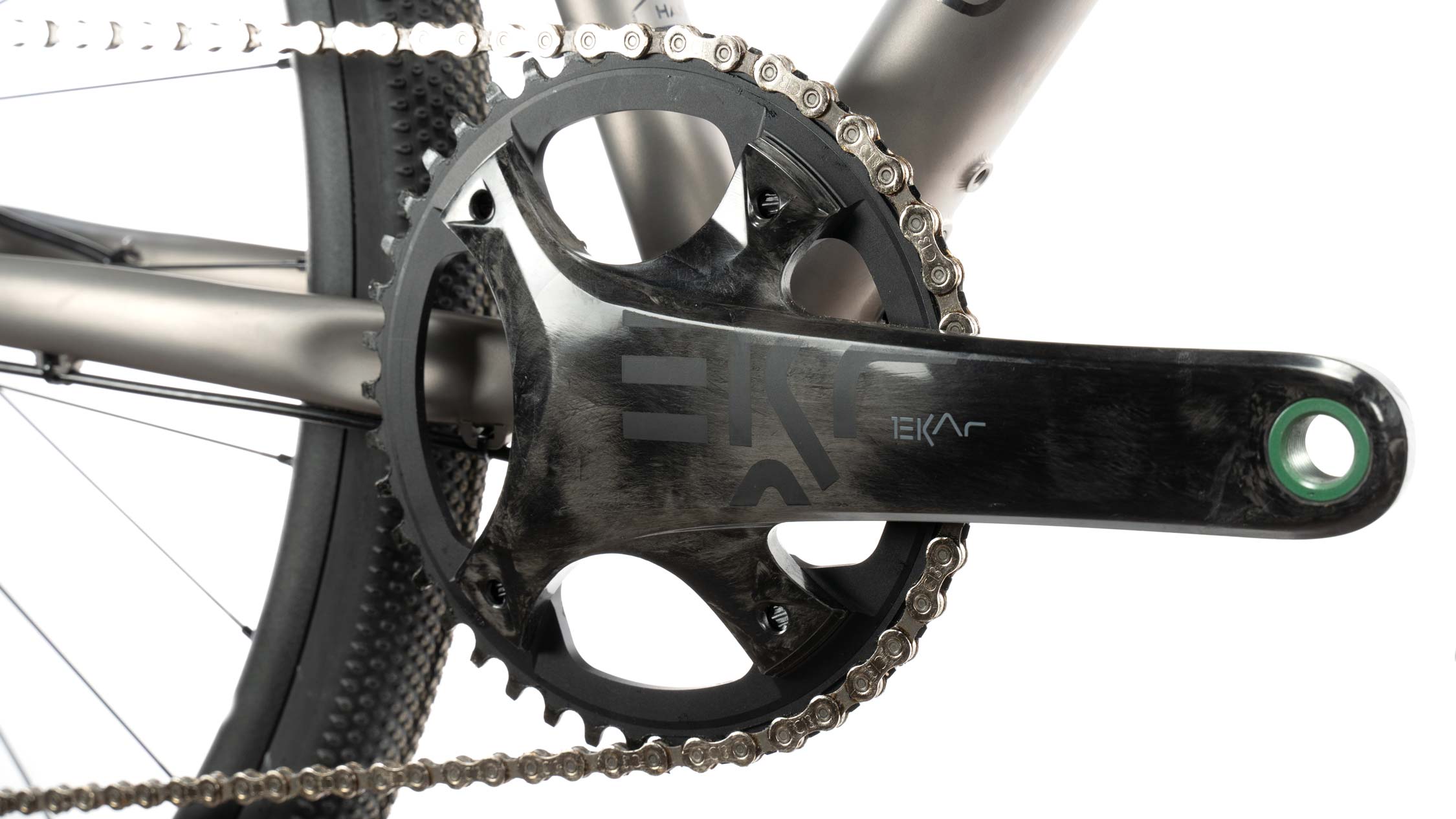

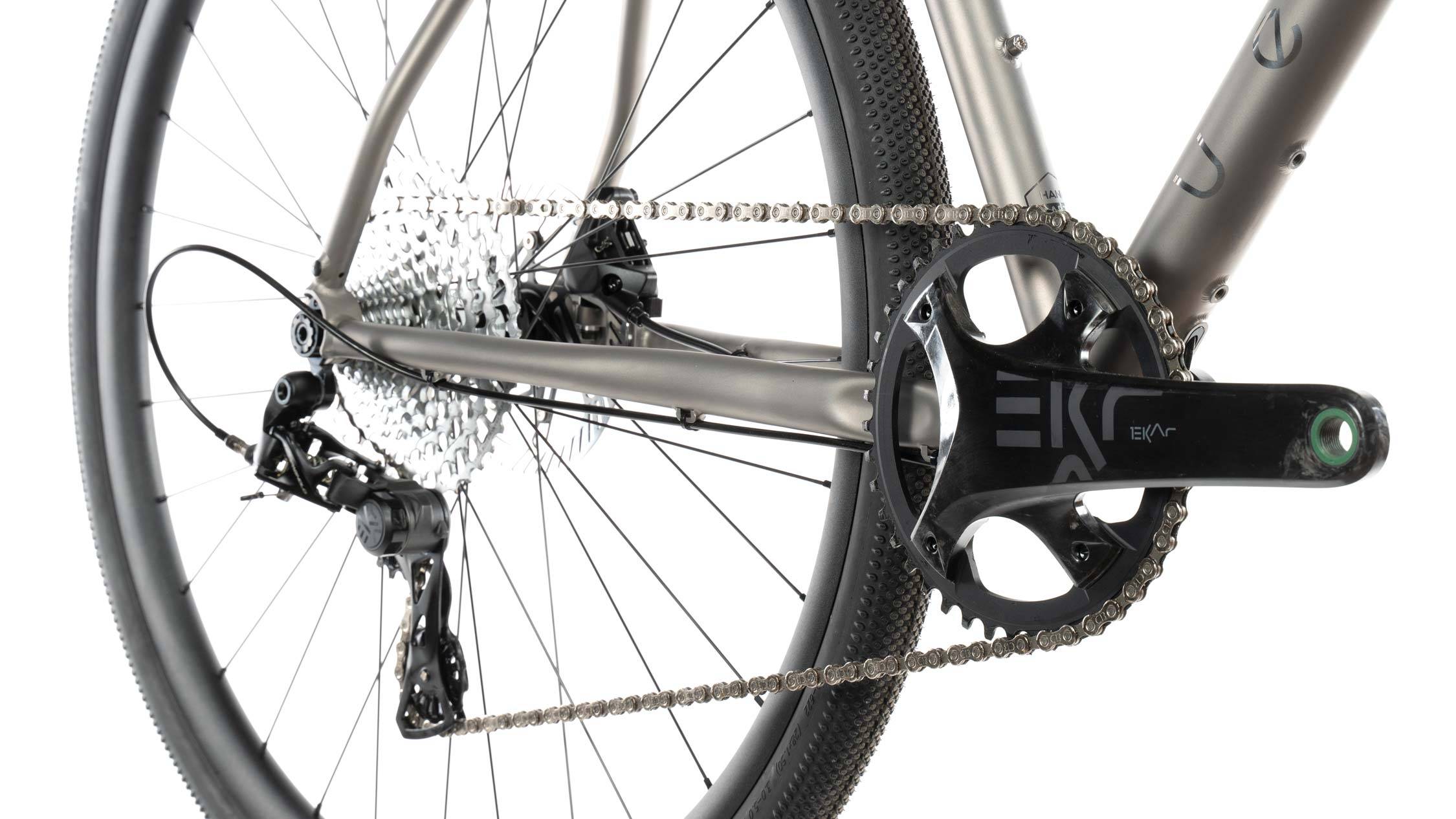

Drive and brakes

Shimano GRX 610 – 1×12
Shimano GRX 610 – 2×12

Wheels & tires

Wheelsets

DT Swiss GR 1600 SPLINE DB 25, 24 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and wheel) 4, 32 spokes, 24 mm outer width, tubeless ready, color: black; approved for max. 110 kg rider weight At frame height XS with 27.5″ wheels: DT Swiss G 1800 SPLINE 25, 24 spokes, 28 mm outer width, tubeless ready, approved for max. 130 kg system weight (rider, luggage and bike)

Tires

Schwalbe G-ONE Allround, foldable, Tubeless Easy (supplied with inner tube), 40-622, black or optional Bronze Skin or Schwalbe G-ONE Bite, foldable, Tubeless Easy (supplied with inner tube), 40-622, black or optional Classic Skin For frame height XS with 650B wheels: Schwalbe G-ONE Speed, foldable, Tubeless Easy (supplied with inner tube), 50-584, classic skin max. up to approx. 50-622 (28″) or 54-584 (27.5″) mm wide tires (depending on make and rim) possible without mudguards in frame and fork

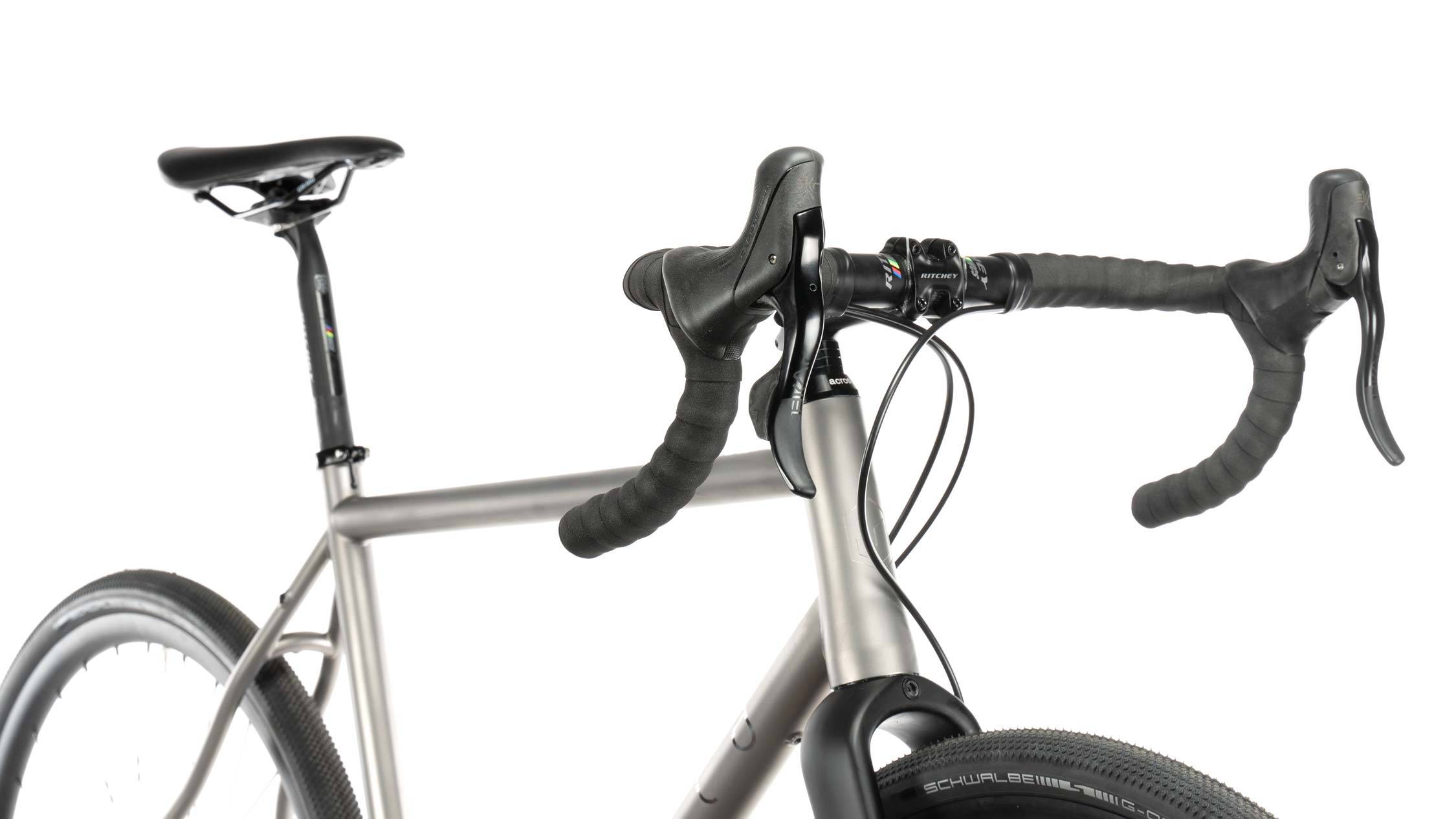

Cockpit

Vorbau

veloheld, schwarz

oder

Ritchey WCS C220 84D, Blatte Black
80 mm bei Rahmenhöhe (XS,S), 90 mm (M,L), 100 mm (XL, XXL)
6 Spacer

Handlebars

veloheld, black or Ritchey WCS Streem III, Blatte Black Width: 400mm (XS, S) , 420 (M, L), 440 (XL, XXL)

Head Set

Acros IS42/IS52 headset, black

Sitting

Sattel

veloheld, schwarz

Seat post

veloheld, black or Ritchey WCS Alloy Link, Blatte Black, 350mm, Setback 20mm

Miscellaneous

Sizes

XS, S, M, L, XL, XXL

Colors

titanium gray blasted with polished logos Carbon fork in UD-black

incl. of all covers and screws for bottle cages

Weight

approx. 9.3 kg (frame height M)

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

SALE!

Note: Subject to technical changes, errors and omissions.

SALE!
Rahmenhöhe XS S M L XL XXL
für ca. Körpergröße in cm 159 – 168 167 – 175 175 – 182 182 – 188 188 – 194 194 - 199
für ca. Innenbeinlänge in cm 74 - 79 76 - 82 80 - 86 83 - 89 87 - 93 91 - 97
A Sitzrohrlänge 475 510 535 560 580 610
B Oberrohrlänge 522 544 565 580 594 613
C Radstand 1012 1035 1047 1053 1062 1076
D Steuerrohrlänge 120 135 155 170 185 200
E Lenkwinkel 71° 71° 71,5° 72° 72,5° 72,5°
F Sitzwinkel 75° 74,5° 74° 73,5° 73,5° 73°
G Kettenstrebenlänge 425 435 435 435 435 435
H Gabelvorlauf 50 50 50 50 50 50
I Tretlagerabsenkung 65 75 75 75 75 75
J Stack 540 565 586 602 618 632
K Reach 375 385 395 401 410 419
Laufradgröße 27.5" 28" 28" 28" 28" 28"
Überstandshöhe 760 780 805 825 840 865
Sattelauszug 655 - 699 673 - 726 708 - 761 735 - 788 770 - 823 805-858

Show reviews in all languages (2)

Add a review

Stadt 50%
Tour 80%
Straße 50%
Gelände 60%
Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

Unfortunately no, you cannot mount a stand directly on the frame of this bike.

My question is not listed here...

Send us your question via the contact form or use our other contact options and we will answer your questions.
