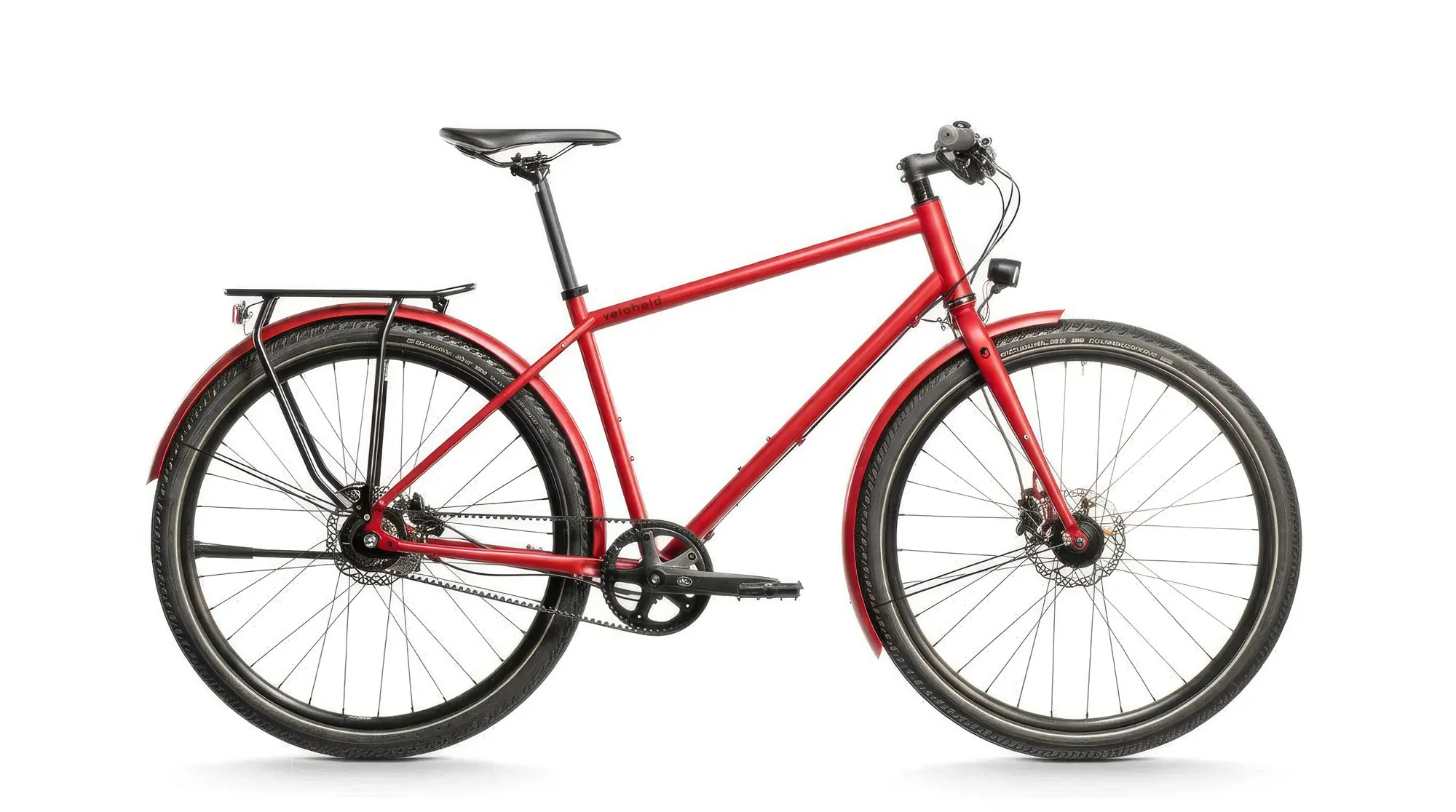

veloheld.path complete bike in custom colour
from 2.399,00 €
Delivery time
As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 4 - 6 weeks after order confirmation to manufacture and ship available bikes.
- Low-maintenance: Gates belt drive with Shimano Alfine 8-speed, 11-speed or Rohloff 14-speed hub gears
- including B+M front headlight and rear light with parking light function
- Also available separately as a frame set
In the wild!
At 1.82 m height and 84 cm inseam, Paul rides a size L frame
Highlights
No oil, no grease
With the low-maintenance Gates Carbon Drive CDN belt drive
8, 11 or 14 speed hub gear
Your choice: Shimano Alfine 8, 11 or Rohloff 14 speed hub gear
Details
Frame
Double-butted 4130 CrMo steel tubing, TIG-welded, EBB eccentric bottom bracket shell for belt tensioning, stainless steel dropouts with internal disc brake mount and KSA 18 kickstand mount, Rohloff compatible with OEM2 torque arm, anti-rust powder coating
Fork
Fork made from 4130 CrMo steel, 1 1/8″ – 1 1/2″ steerer tube, installation height 405 mm, internally routed light cable
Drivetrain
Hub gear
Shimano Alfine SG-S7001-8 8-speed, Shimano Alfine SG-S7001-11 11-speed or Rohloff Speedhub 14-speed hub gear, black
(When selecting Rohloff, a Gates CDX belt and sprockets are included)
Belt
Gates CDN belt, 118t
Gates CDX belt, 122t when selecting Rohloff
Belt drive sprockets
Alfine: front 50t Gates CDN, rear 24t Gates CDN
Rohloff: front 60t Gates CDX, rear 22t Gates CDX
Crankset
Gates Carbon Drive CDN S150, black, 170 mm
Bottom bracket
Gates / Shimano Hollowtech II
Pedals
VP-538 – black plastic body, CrMo axle, industrial bearings
Brakes
Brake levers
Alfine: Shimano BL-MT501, black
Rohloff: Shimano BL-S7000
Brake callipers
Alfine: Shimano BR-MT501
Rohloff: Shimano BR-7000
Brake rotors
Shimano RT-54 160mm front and rear
Wheels & Tyres
Front wheel
Ryde Rival 26, aluminium double wall, 32h laced, black / Shimano DH-3D37 hub dynamo 6V/3W, black
Rear wheel
Ryde Rival 26, aluminium double wall, 32h laced, black / Shimano Alfine SG-S7001-8 8-speed, SG-S7001-11 11-speed or Rohloff Speedhub 14-speed hub gear
Tyres
Schwalbe Hurricane, 27.5″x2.00″
Cockpit
Stem
veloheld.stem – black, 80 mm (S), 90 mm (M, L), 100 mm (XL)
Handlebar
veloheld riser bar – black, 720 mm, 31.8 mm clamp, 20 mm rise, 10° backsweep
veloheld grips black, incl. bell
Headset
Acros AZX-245, flat, black, ZS44/28.6, EC44/40
Saddle
Saddle
veloheld, black
Seatpost
veloheld.post – black, 27.2 mm, 350 mm
Other
Lighting
Busch+Müller LUMOTEC IQ-XS N plus front light, black and TOPLIGHT line brake rear light, black / dynamo powered
Rack
Racktime Light-it integrated, black, for 20 kg load
Mudguards
Durable aluminium, powder coated in frame colour
Kickstand
incl. Hebie Fix 18 rear stand
Colours
Standard colour
“Bronze Chrome” gloss with gold decal
Custom colour
RAL custom powder coating in gloss or matt, decal in black or silver
Weight
from approx. 15.5 kg
Classification
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Note
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
| Rahmenhöhe | S | M | L | XL |
|---|---|---|---|---|
| Körpergröße | 163-173 | 172-182 | 181-188 | 188-195 |
| Innenbeinlänge | 76-81 | 80-86 | 85-88 | 87-93 |
| Sitzhöhe ab TL (min.) | 671 | 707 | 742 | 769 |
| Sitzhöhe ab TL (max.) | 717 | 761 | 779 | 814 |
| Überstandshöhe | 735 | 765 | 795 | 820 |
| Sitzrohrlänge (A) | 430 | 460 | 500 | 540 |
| Oberrohrlänge (B) | 570 | 590 | 620 | 630 |
| Radstand (C) | 1076 | 1091 | 1116 | 1123 |
| Steuerrohrlänge (D) | 135 | 155 | 175 | 190 |
| Lenkwinkel (E) | 71° | 71° | 71° | 71° |
| Sitzwinkel (F) | 73° | 73° | 73° | 73° |
| Kettenstreben (G) | 443 | 443 | 443 | 443 |
| Gabelvorlauf (H) | 50 | 50 | 50 | 50 |
| Tretlagerabsenkung (I) | 55 | 55 | 55 | 55 |
| Stack (J) | 552 | 571 | 590 | 604 |
| Reach (K) | 412 | 421 | 440 | 445 |
Add a review
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
If you live near our showroom in Dresden or one of our dealers, you can test ride your dream bike on site. Please contact the dealer beforehand to clarify availability and dates.
Alternatively, you can also order the bike directly from us and test it at home after assembly. If, contrary to expectations, you don’t like it, we will collect it again within the return period. This does not apply to custom-built bikes.
In addition to the statutory warranty, we grant you a voluntary warranty of 5 years on veloheld frames and forks – from the date of purchase. Please register your bike within 3 months of purchase to take advantage of this warranty. You can find all the details on our warranty page.
The maximum permissible system weight – i.e. the total weight of the bike, rider and luggage – is
- For frame sizes S and M: 120 kg
- For frame sizes L and XL: 140 kg
Yes, the veloheld.path has a KSA18 mount on the left dropout. A suitable kickstand is already fitted for you with the complete bike.
Unfortunately not. Due to the butted shape of the seat tube, there is a risk that the clamp of a child seat will damage the tube. In this case, we recommend alternative transport solutions such as trailers or luggage carrier systems.
The complete bike is equipped with a low-maintenance Shimano Alfine hub gear (optionally with 8 or 11 gears). There is also a durable Gates Carbon Drive belt drive. On request, we can also build the bike with Rohloff or as a single-speed version.
We install stable 27.5″ wheels with puncture-proof Schwalbe Hurricane tires in 50 mm width. This allows you to roll comfortably through the city, over cobblestones and also over gravel paths.
Yes, we offer individual powder coatings in your desired RAL color. The surcharge for a special color is € 200. Simply state your color preference when ordering or contact us directly.
The delivery time is usually 4 to 8 weeks after order confirmation – depending on the selected equipment, color, season and component availability.
