veloheld.alleyX frame set

999,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • Versatile all-rounder with sustainable, durable and robust CrMo frame
  • for the construction of a custom gravel bike with internal gear hub and belt drive
  • also in your custom colour available
  • Area of use: Touring, Gravel, Commuting

Delivery time

As a bicycle manufacturer, we coat each frameset individually for you. Due to the current order and delivery situation, we need 1 - 2 months after order confirmation to manufacture and ship your frame set.

Size M is currently sold out and will be available in autumn 2026 .
Are you unsure which size is the right one? Take a look at this in the Geometry or let us advise you in person .
Would you like a Prismatic Powders special color? Please contact us in advance by e-mail.
Send us your desired RAL color here and tell us whether it should have a matt or glossy coating.
Grand total
Ich habe noch Fragen und wünsche eine persönliche BeratungSchon ab 0% finanzieren

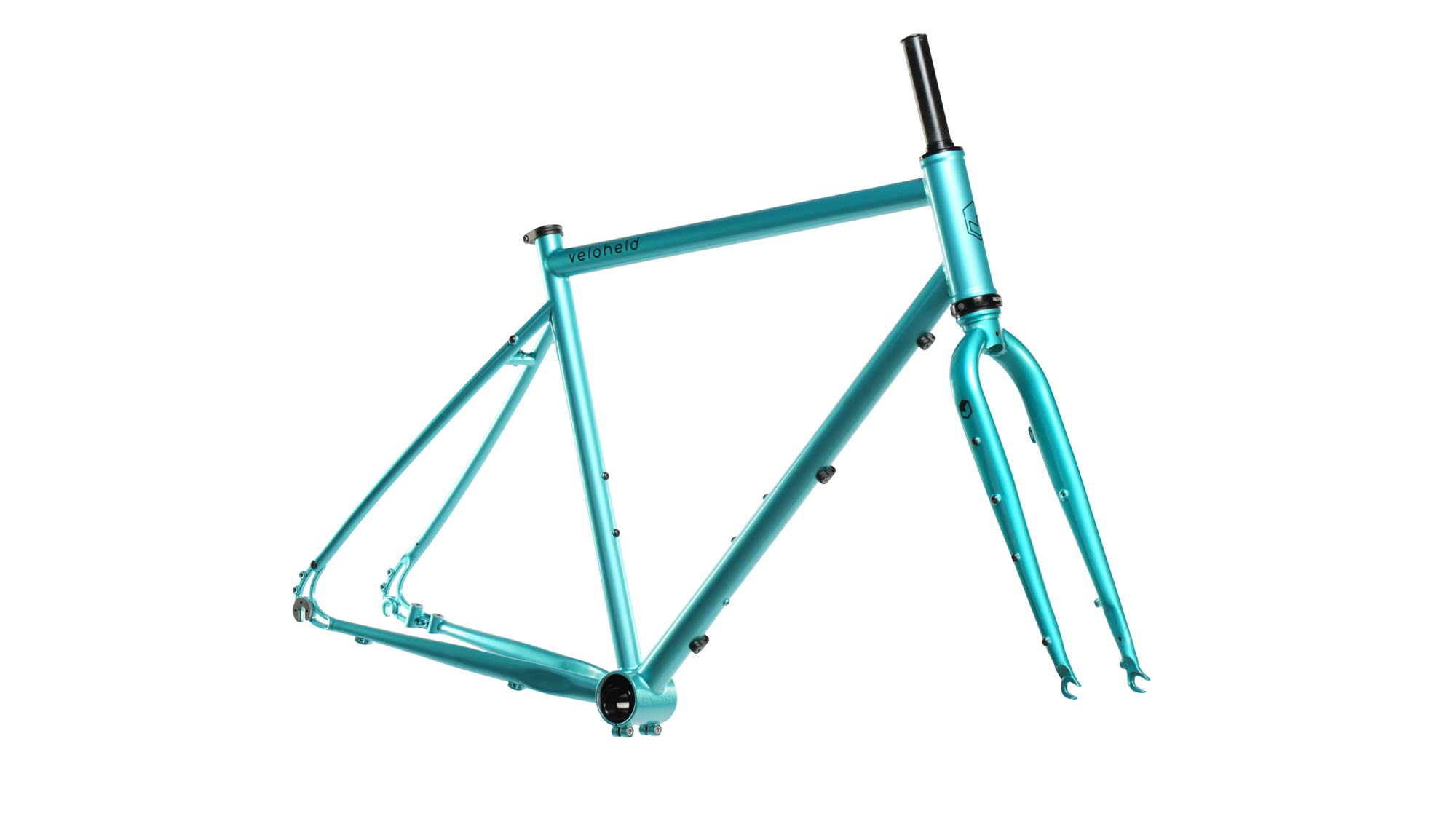

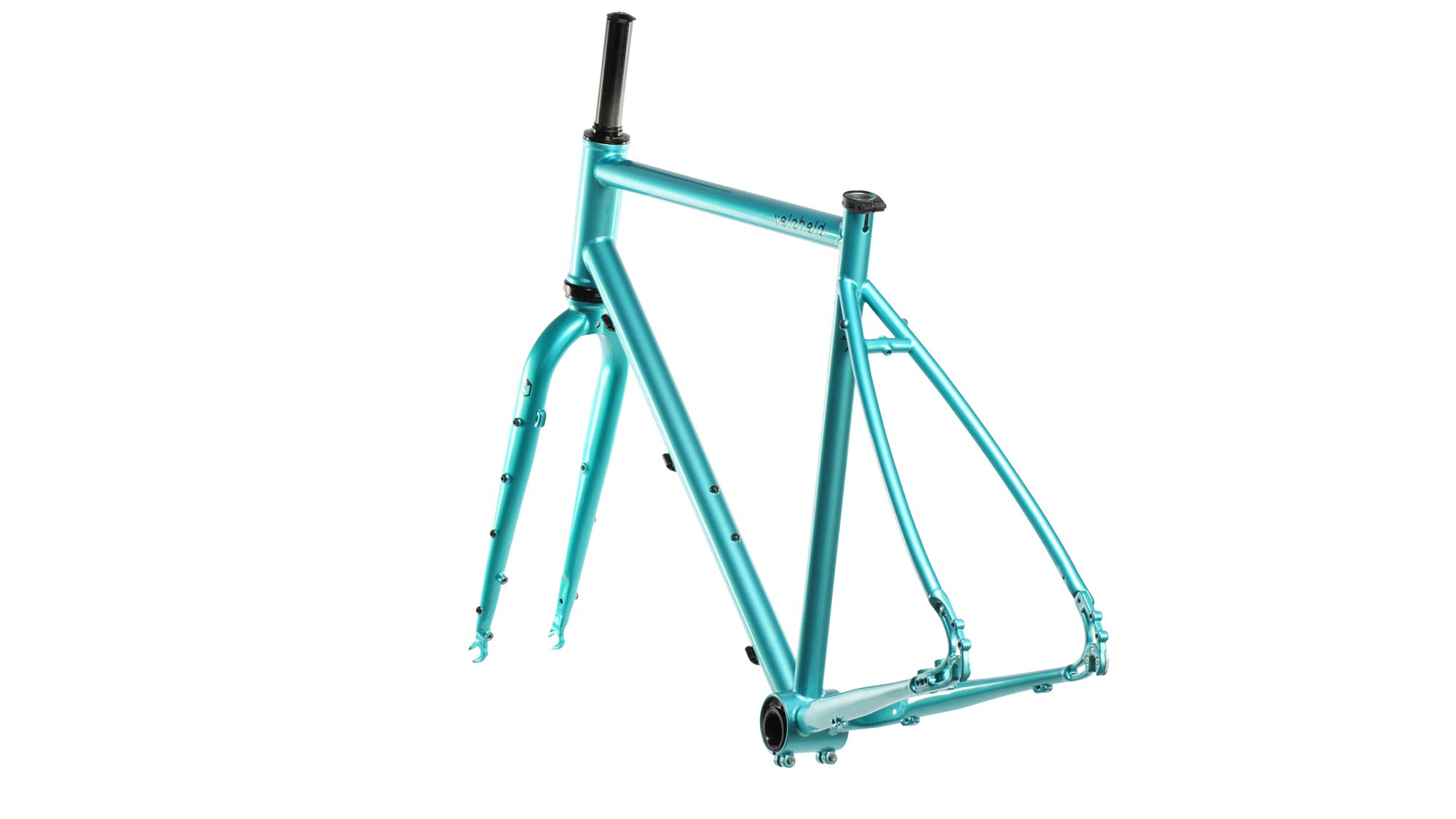

Are you looking for the perfect foundation for a reliable gravel bike that won’t let you down – whether in city traffic, on long rides or off the beaten track? Then the veloheld.alleyX frameset is made just for you. It combines urban style with genuine off-road capability and offers everything you need to build a low-maintenance everyday and adventure bike: a robust, high-quality steel frame ensures a comfortable, stable ride – even on uneven terrain.

Thanks to well-thought-out features such as compatibility with belt drives, the mount for in-hub gears and integrated mounting points for mudguards and luggage racks, the alleyX can be customised exactly to your liking – as an urban commuter, a sporty gravel bike or a touring bike suitable for everyday use.

Whether for work, out into the countryside or off the beaten track – the veloheld. alleyX frame set is the versatile basis for your personalised bike.

In the wild!

Lisa rides on a bike with a frame size of 1.74 m and an internal leg length of 79 cm on a frame in size S

Highlights

Sufficient mounting points

Whether luggage rack, mudguards or anything cages - there are plenty of mounting points on the frame and fork

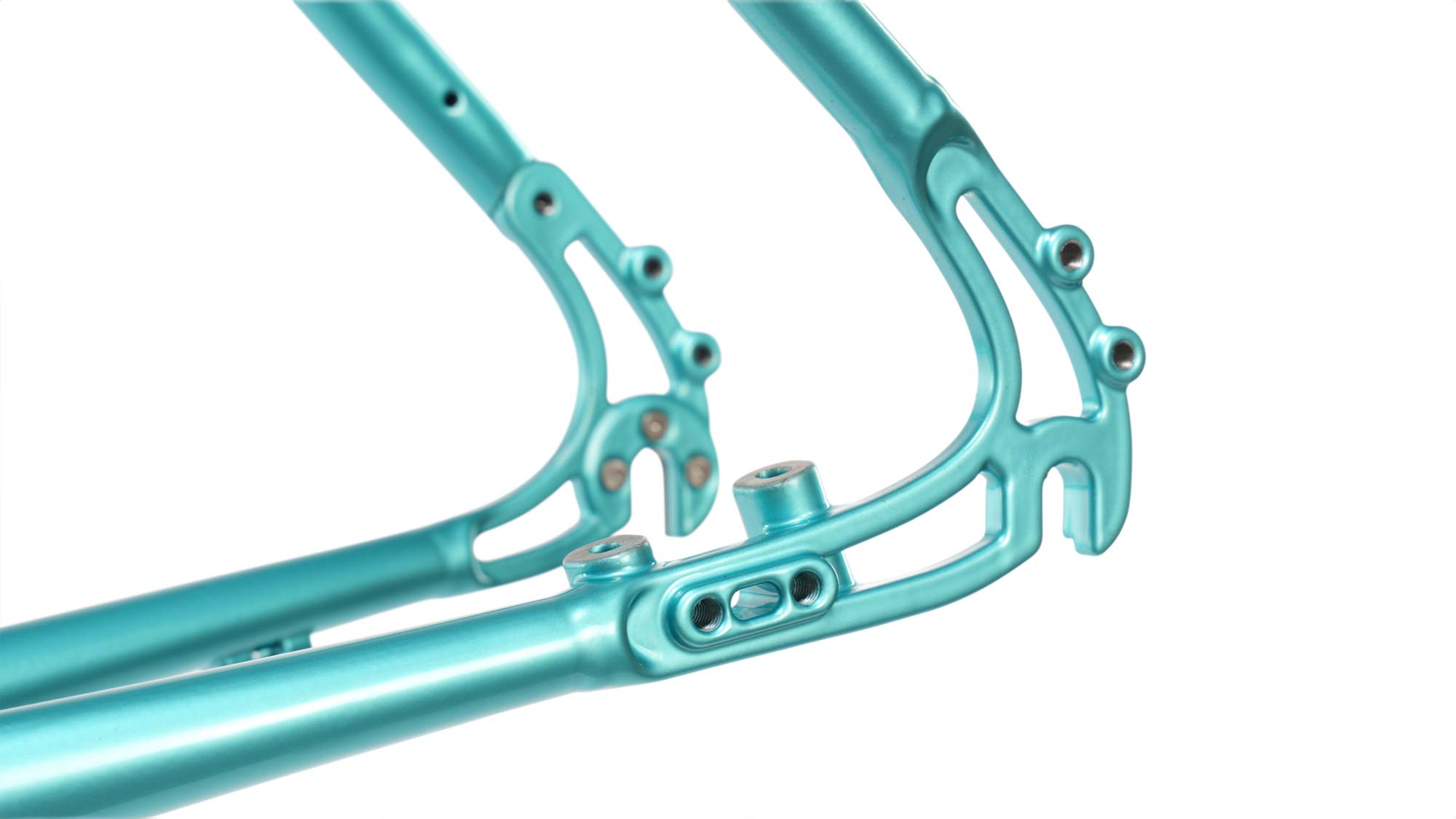

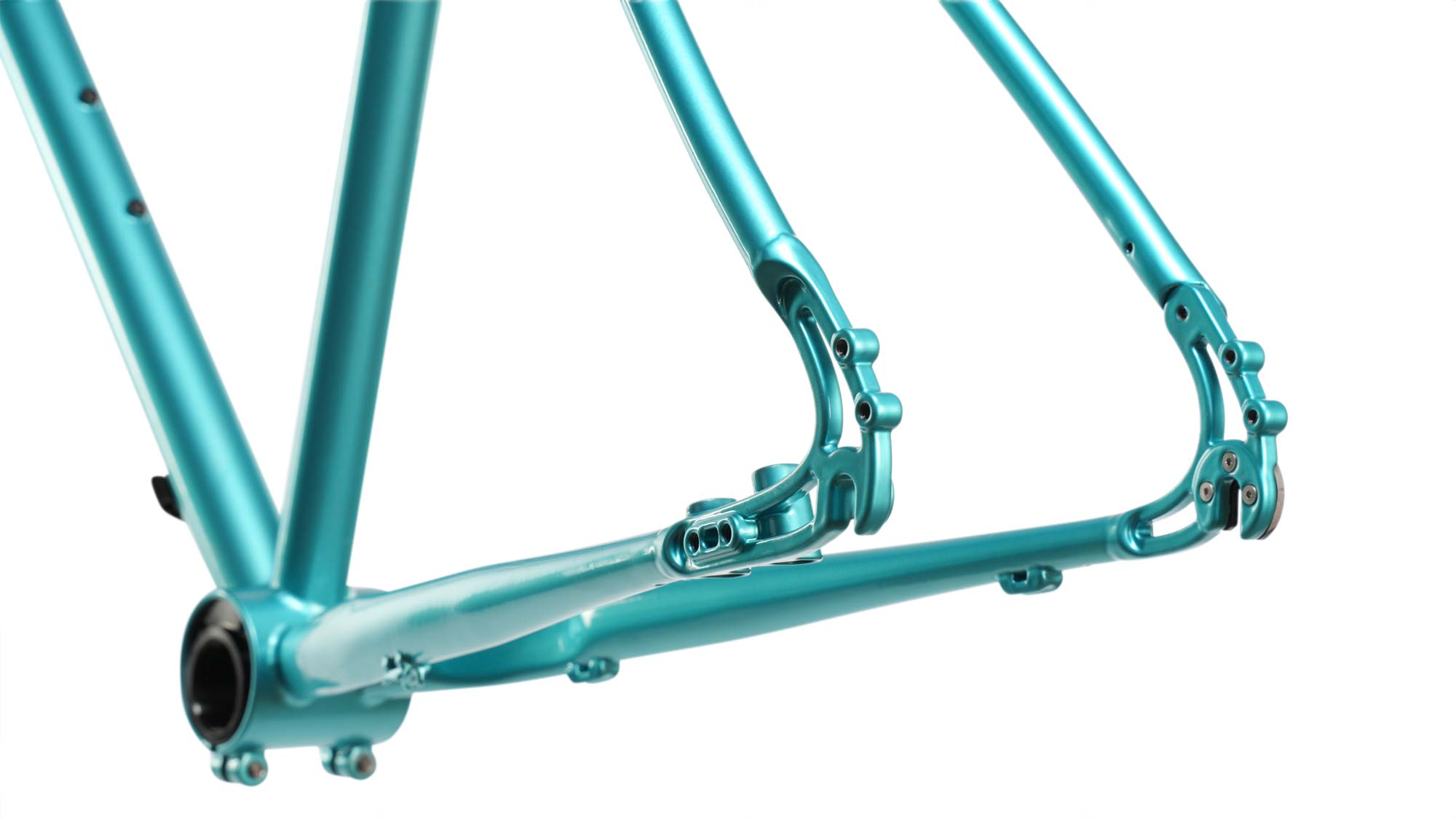

Now new with KSA 18 stand mount

there is now a new KSA18 kickstand mount directly at the dropout

Details

Frame

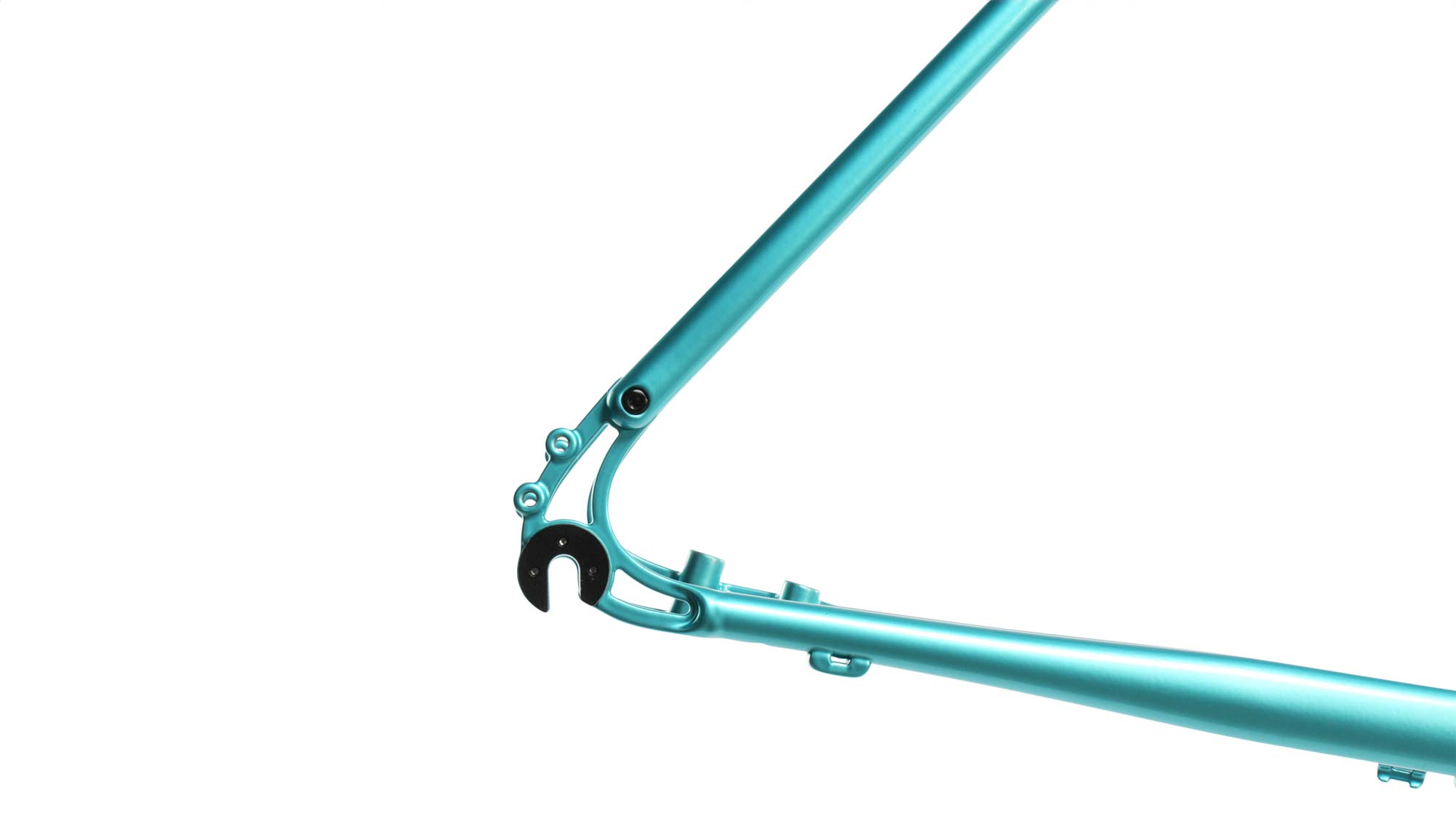

double double-butted tubes made from 4130 CroMoly steel, TIG-welded, EBB eccentric bottom bracket shell for tensioning the belt, dropouts with Flatmount disc brake mounts and integrated KSA18 kickstand mount, 3 bottle cage mounts

Made in Europe / Czech Republic

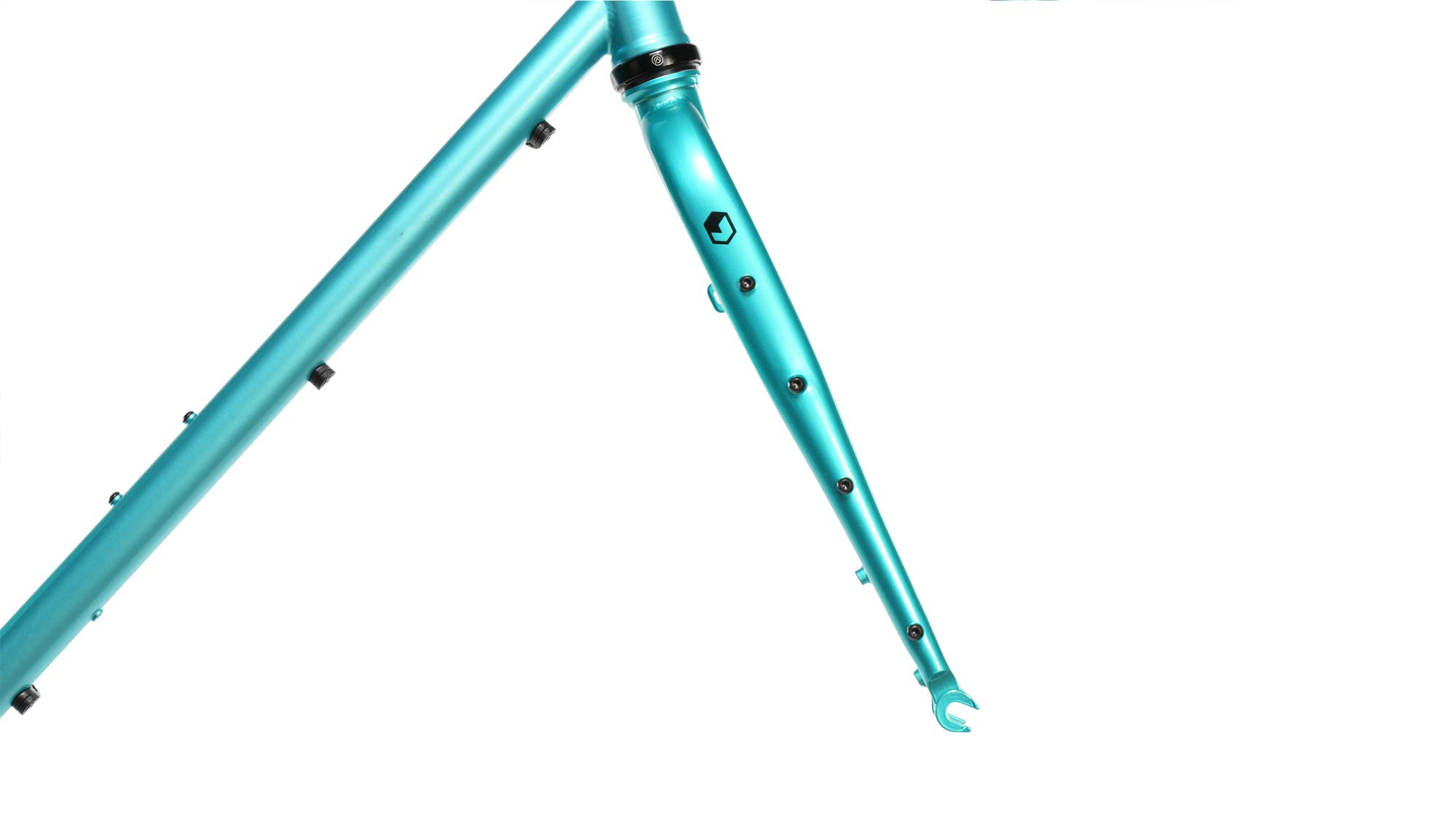

Fork

double butt-welded tubes made from 4130 CroMoly, tapered head tube (ø 1 1/8 – 1 1/2 ), internal cable routing light cable possible, “Triple Cage” eyelets for front luggage rack or also “Anything Cages”

Drive

Hubs

For Shimano Alfine internal gear hub or QR hubs with 135 mm mounting width at the rear and 100 mm at the front

Belt

Ideal for internal gear hubs and Gates belt drive with 50t at the front, 24T rear and CenterTrack CDX belt with 118T

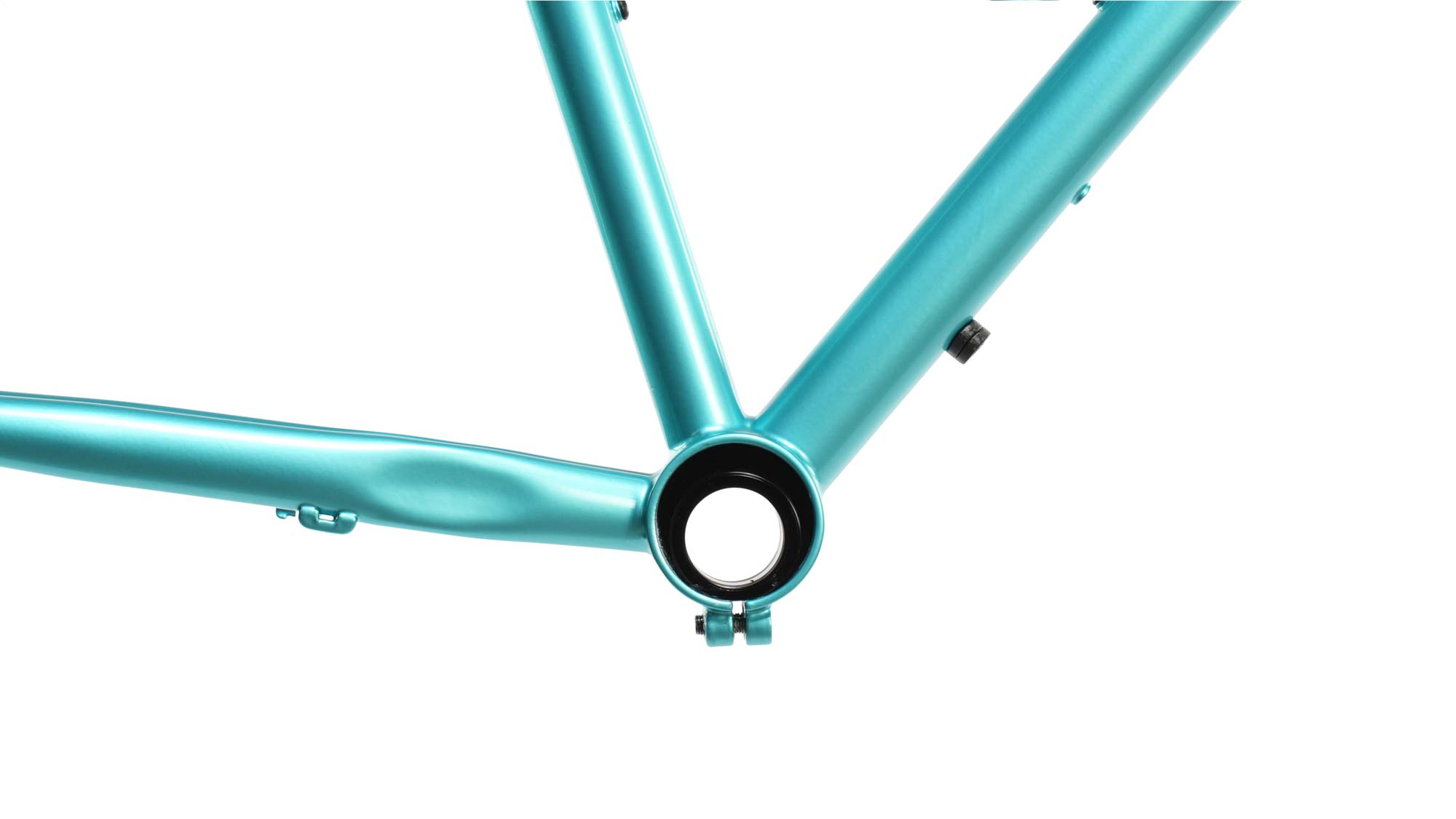

Inner bearing

incl. EBB for 68 mm bottom bracket

Brakes

Brakes

for disc brakes with 160 mm brake discs at the front and at the rear, Flatmount brake mounts (front: FM140, rear FM160)

Wheels & tires

Wheelsets

for 700C or 650B wheels

Mounting dimensions Wheel set: 9×135 mm rear, 9×100 mm front

Tyres

max. up to approx. 45–622 mm, or wide tyres can be fitted to the frame and fork; with mudguards: 40–622

Cockpit

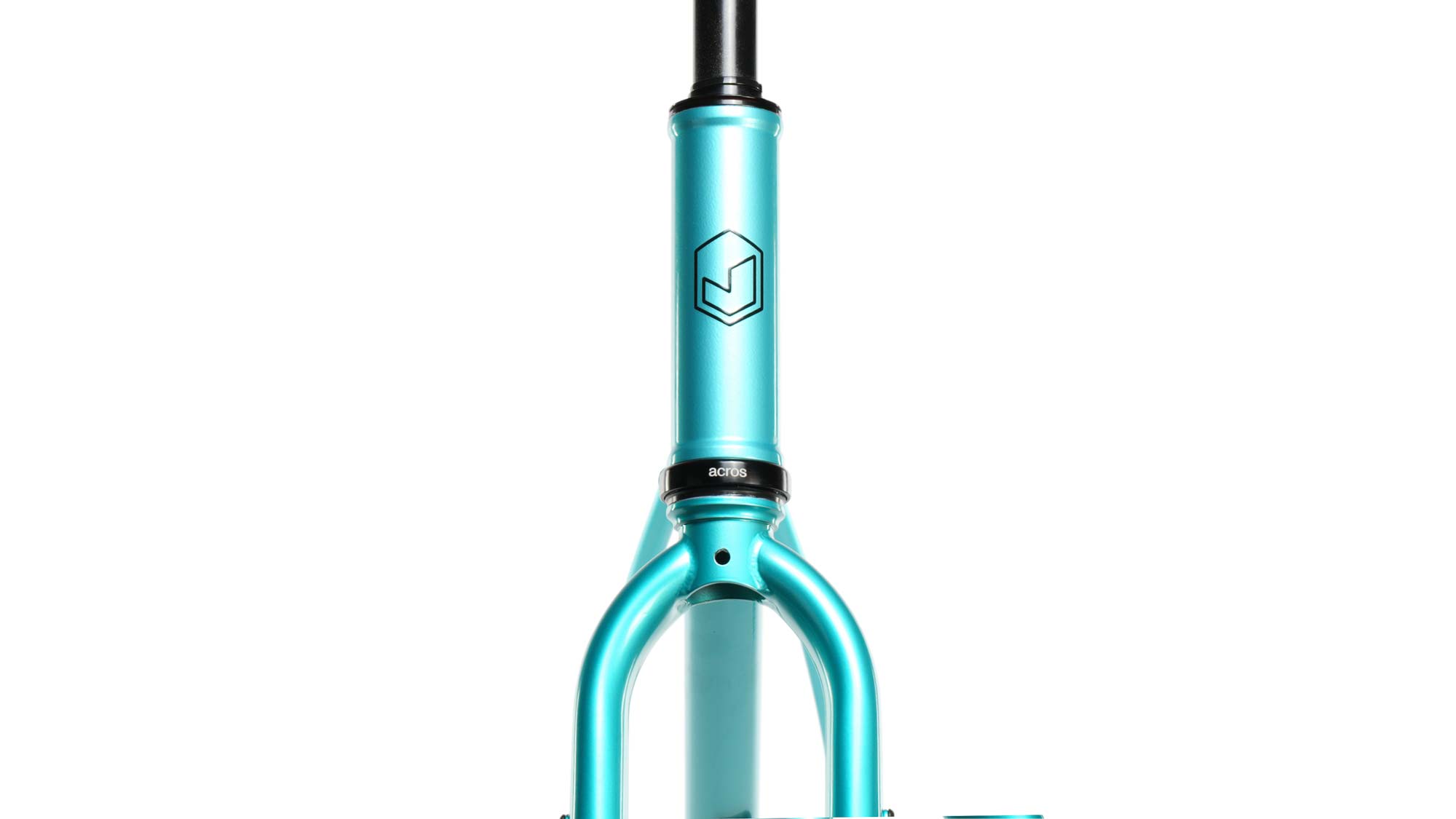

Headset

ACROS headset AZX-228, black, aluminum, ZS44/28.6, EC44/40

Sitting

Seat post

Seatpost installation dimension: ø 27.2 mm, incl. Seat clamp made of black anodized aluminium

other

mudguards

optionally made of durable aluminum, powder-coated in frame color, 50 mm width

Colors

Series color

Illusion Ice or Curry Yellow gloss with black trim

Custom color

RAL finish of your choice in gloss or matt, decor in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Frame from approx. 2.2 kg, Fork 1 kg

Classification

For riding on paved roads, such as asphalt roads and cycle paths, paved forest roads, field paths and hiking trails where there are few or no obstacles such as roots, thresholds, stones and steps. The wheels are in constant contact with the ground or may briefly lose contact with the ground due to minor bumps. This category includes urban and city bikes as well as cyclocross bikes with road handlebars. Read more…

Note: Technical changes, errors and omissions excepted.

Frame height XS S M L XL
for approx. height (cm) 155 - 165 164 – 174 173 – 183 182 – 188 188 – 195
for approx. inside leg length in cm 71 - 78 76 - 82 80 - 87 85 - 92 90 - 97
A Seat tube length 466 486 527 557 587
B Top tube length 528 549 571 592 613
C Wheelbase 1033 1045 1057 1074 1090
D Head tube length 115 135 155 175 195
E Headtube angle 70,5° 71° 71,5° 72° 72°
F Seat angle 74,5° 74° 73,5° 73,5° 73°
G Chainstay length 440 440 440 440 440
H Fork advance 50 50 50 50 50
I Bottom bracket drop 70 70 70 70 70
J Stack 551 572 593 614 633
K Reach 375 385 395 410 420
Add a review

City 70%
Tour 70%
Road 70%
Terrain 70%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.

To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.alleyX consisting of bicycle, rider and luggage should not exceed 120 kg.

Can I fit a side stand?

Yes, you can mount a side stand over the flatmount. This is possible with a special stand for this purpose or via an adapter from CRM, to which you can then attach a KSA 18 stand of your choice.
