from 3.199,00 €
Delivery time
The model is currently sold out. But don't worry, we're already working on the new version. Sign up for our newsletter here so that we can let you know as soon as it becomes available again.

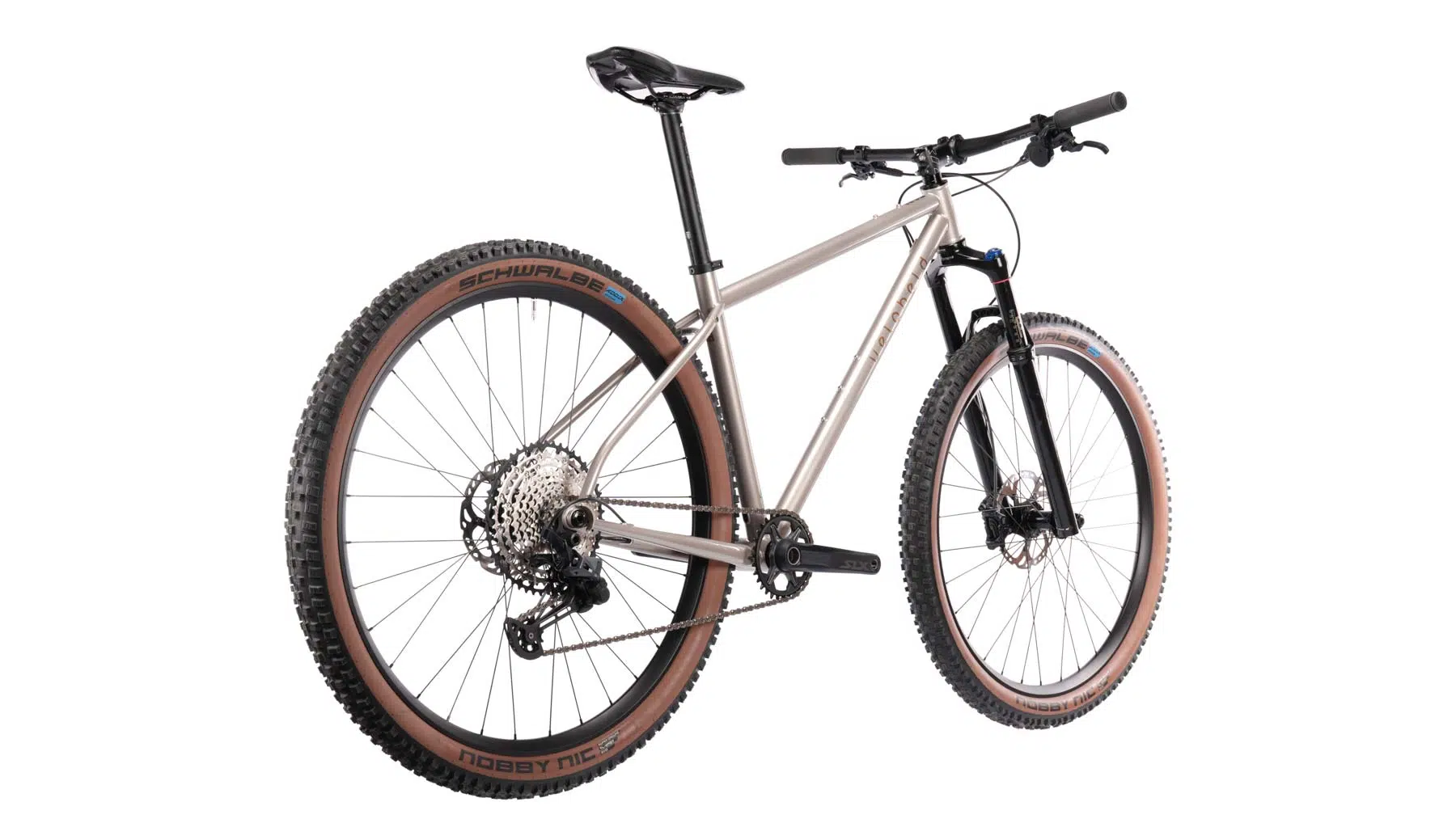

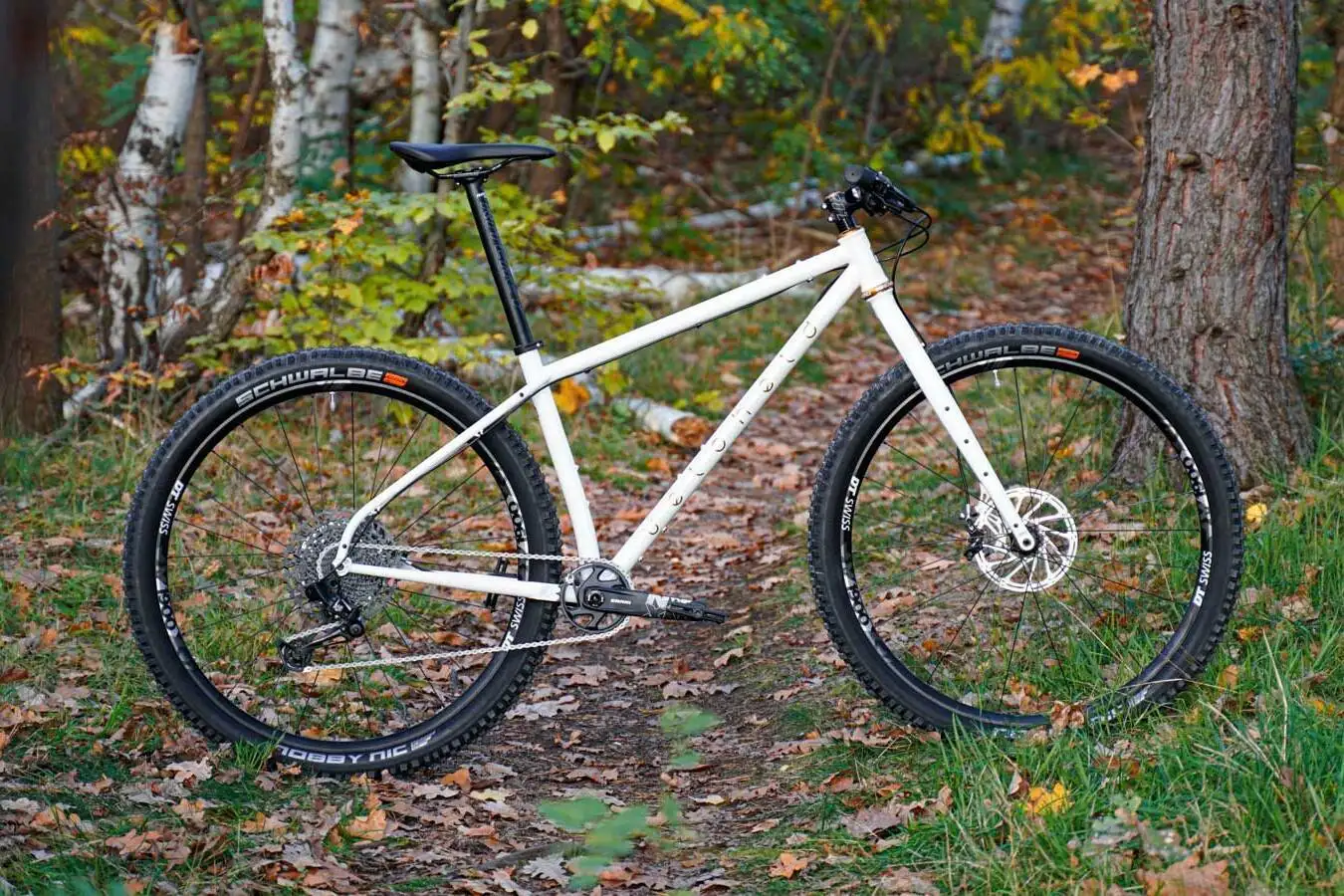

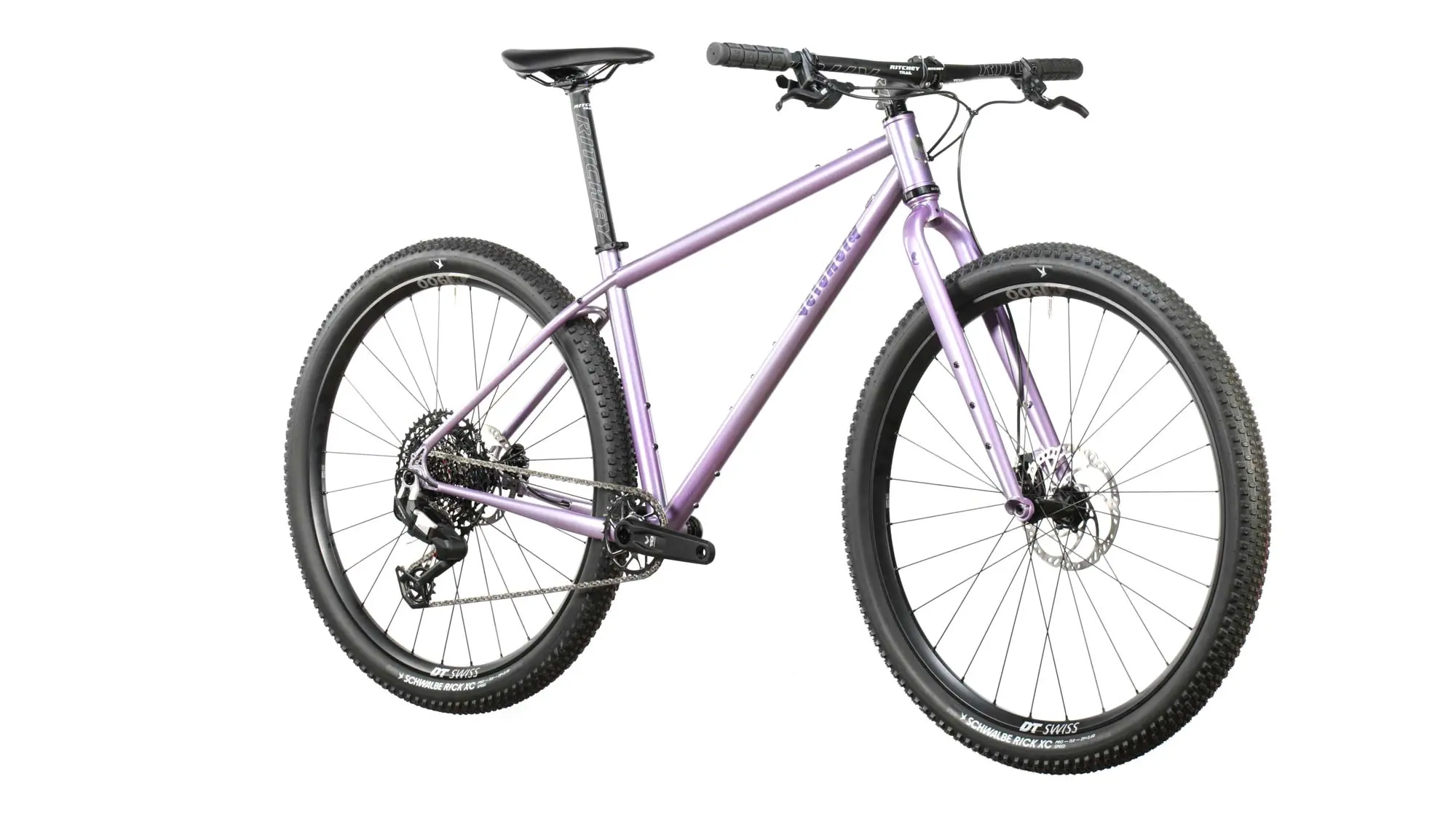

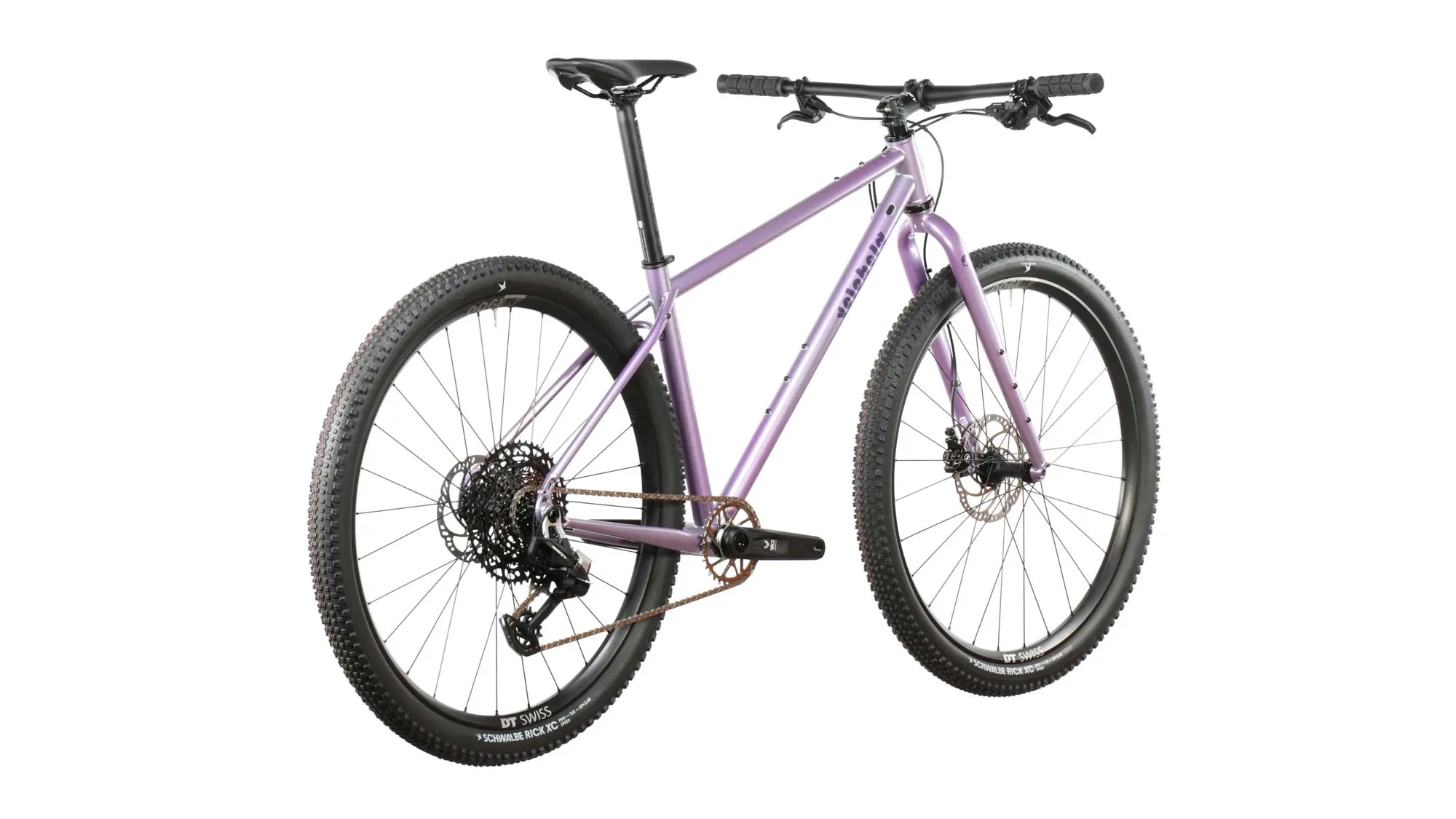

Introducing the new veloheld.iron complete bike – your ultimate companion for real mountain bike challenges!
We have completely redesigned the frame to build the most balanced bikepacking trail MTB for you. The geometry is not too extreme and optimised for forks with 100 – 120 mm travel. With the Reynolds 853 DZB down tube and top tube, the frame is super stable for really”rough” tours through the undergrowth. The 29″ or 27.5″ tyres up to 2.6″ wide also support you .
The new T47 bottom bracket enables a”clean” routing of the shift and brake cables and brake cables directly through the frame and with the universal UDH derailleur hanger your rear derailleur is safe. Incidentally, we build the frame locally in our own frame construction workshop in Leipzig. The veloheld.iron complete bike is available for you in the new standard color “Roman Bronze” or also individually according to your wishes in a RAL color.color available.
The frames are also made from English Reynolds 853 tubes with love and know-how in our frame construction workshop in Leipzig.

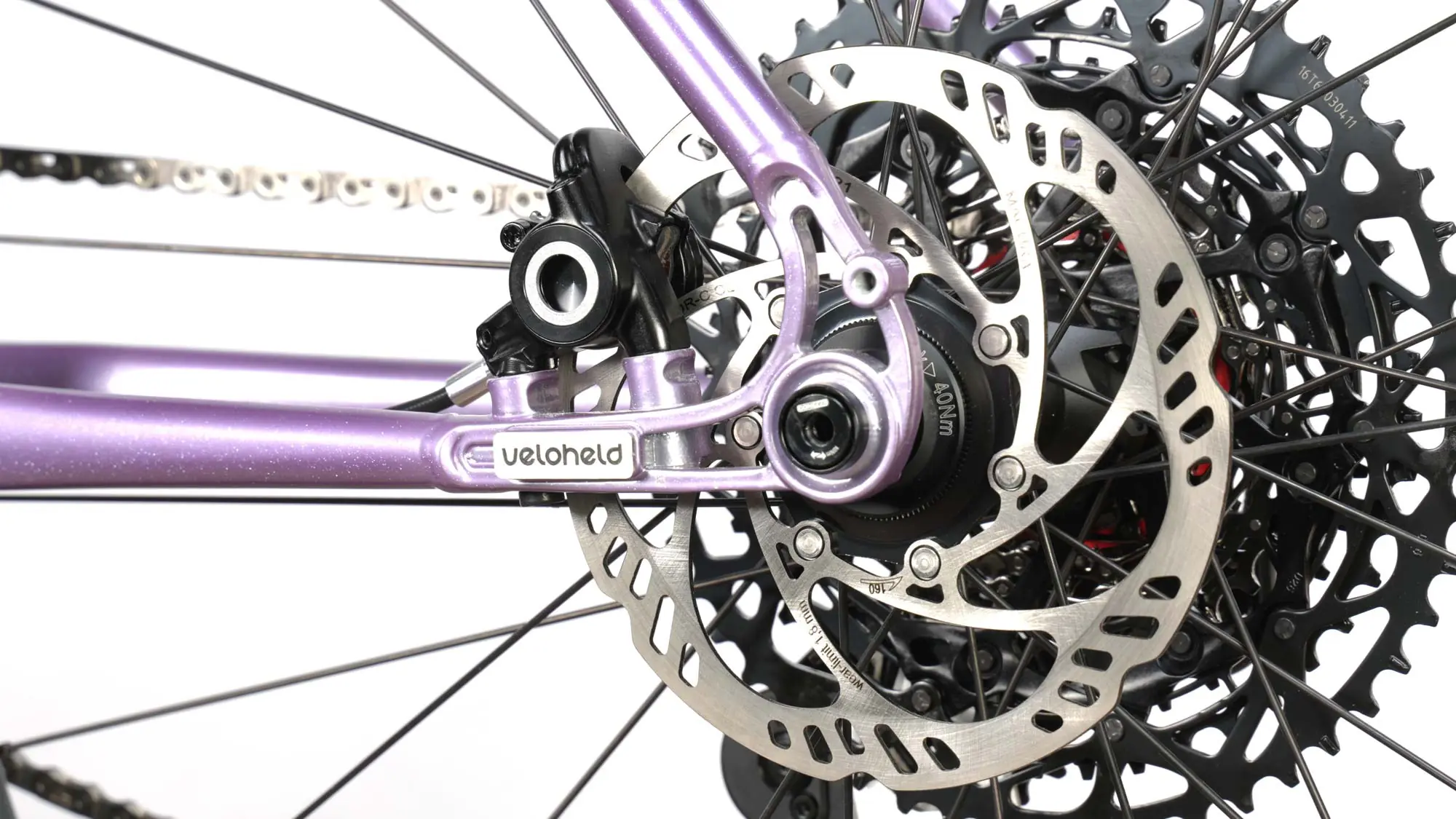

The future! The wheel’s brake mount is made of stainless steel powder with the veloheld logo printed on it.

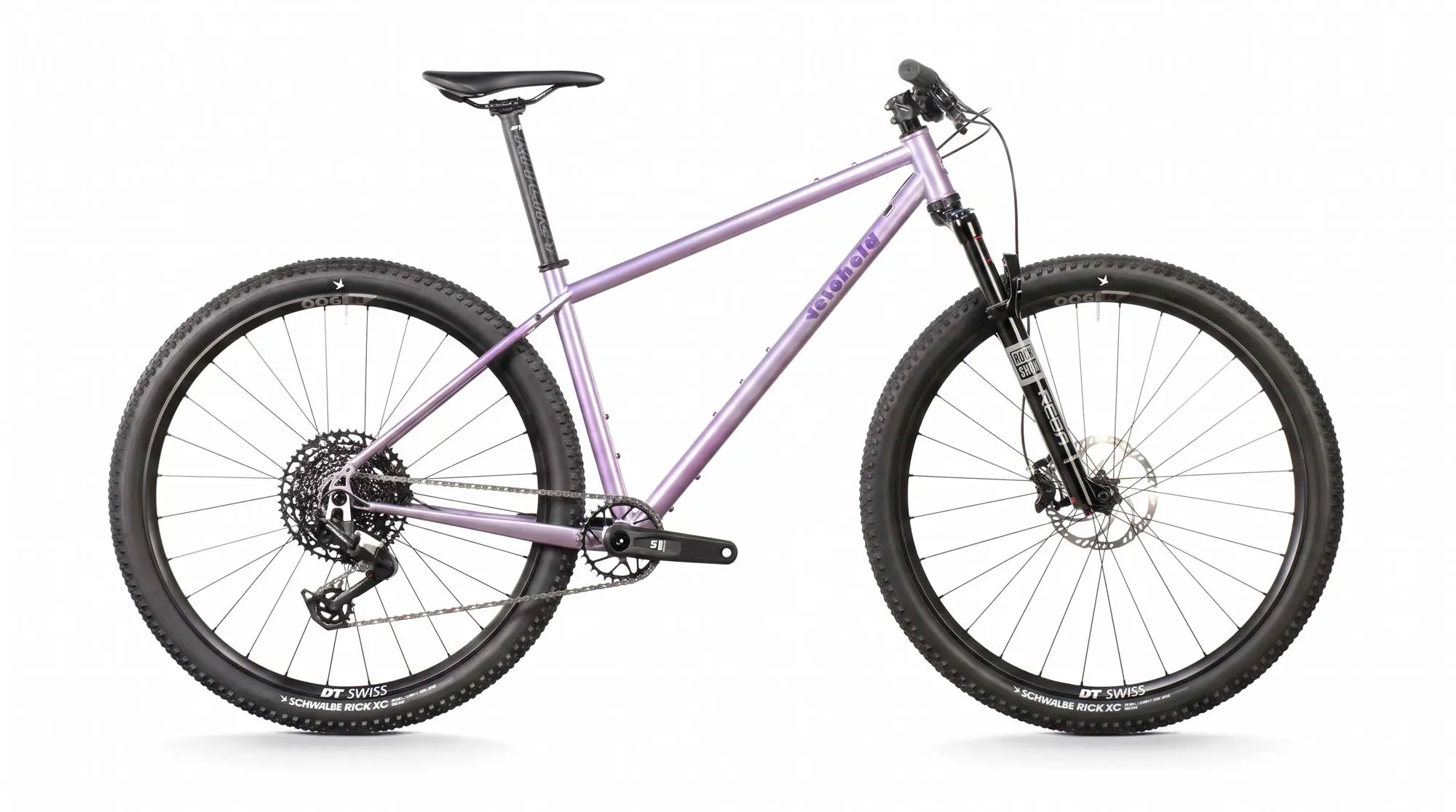

Series color too boring? Tell us your desired color and we will coat your individual veloheld.iron mountain bike!
At 1.80 m tall and 80 cm inside leg length , Daniel rides a size M frame

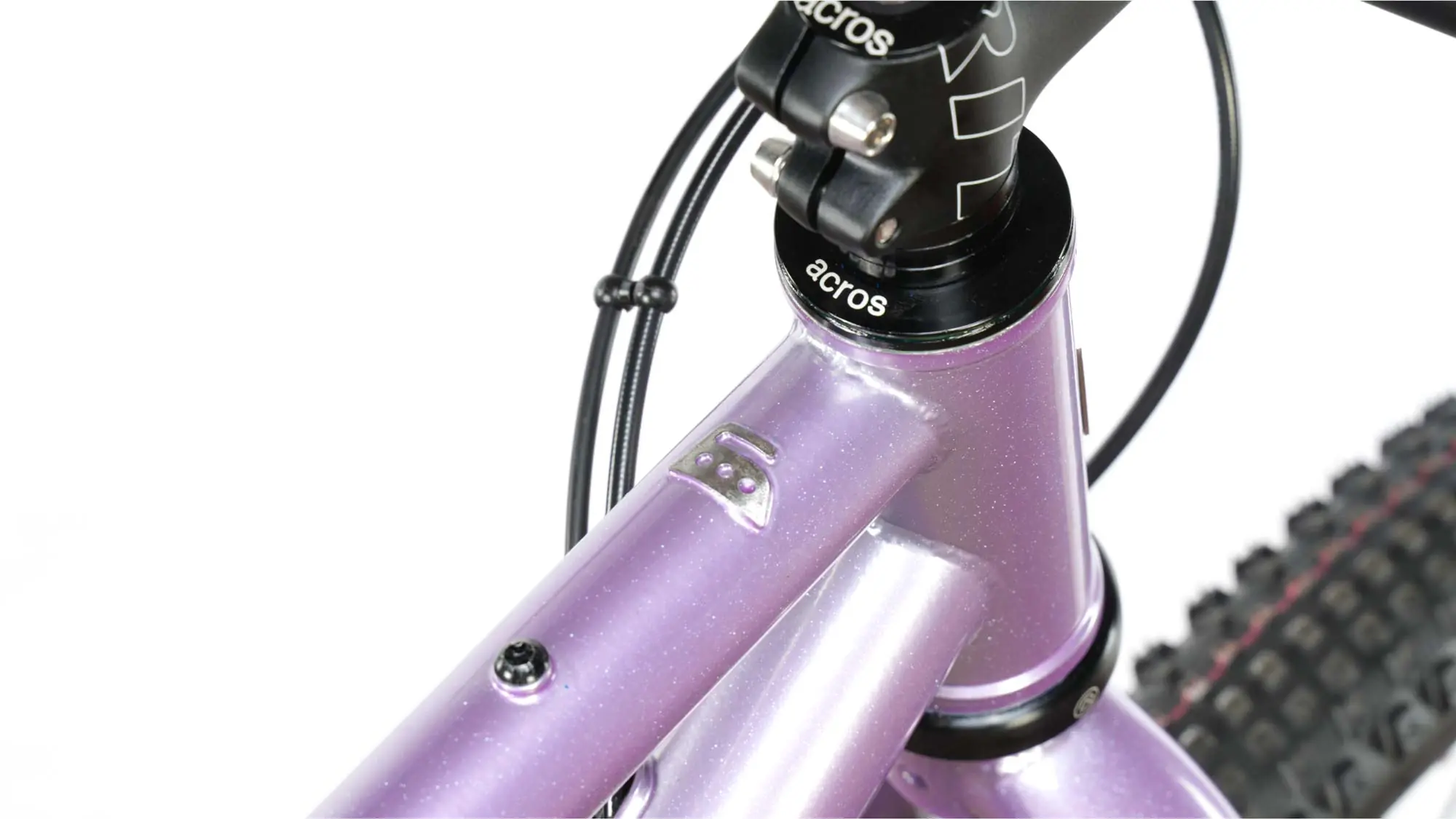

various eyelets on the frame allow you to attach different bags and accessories

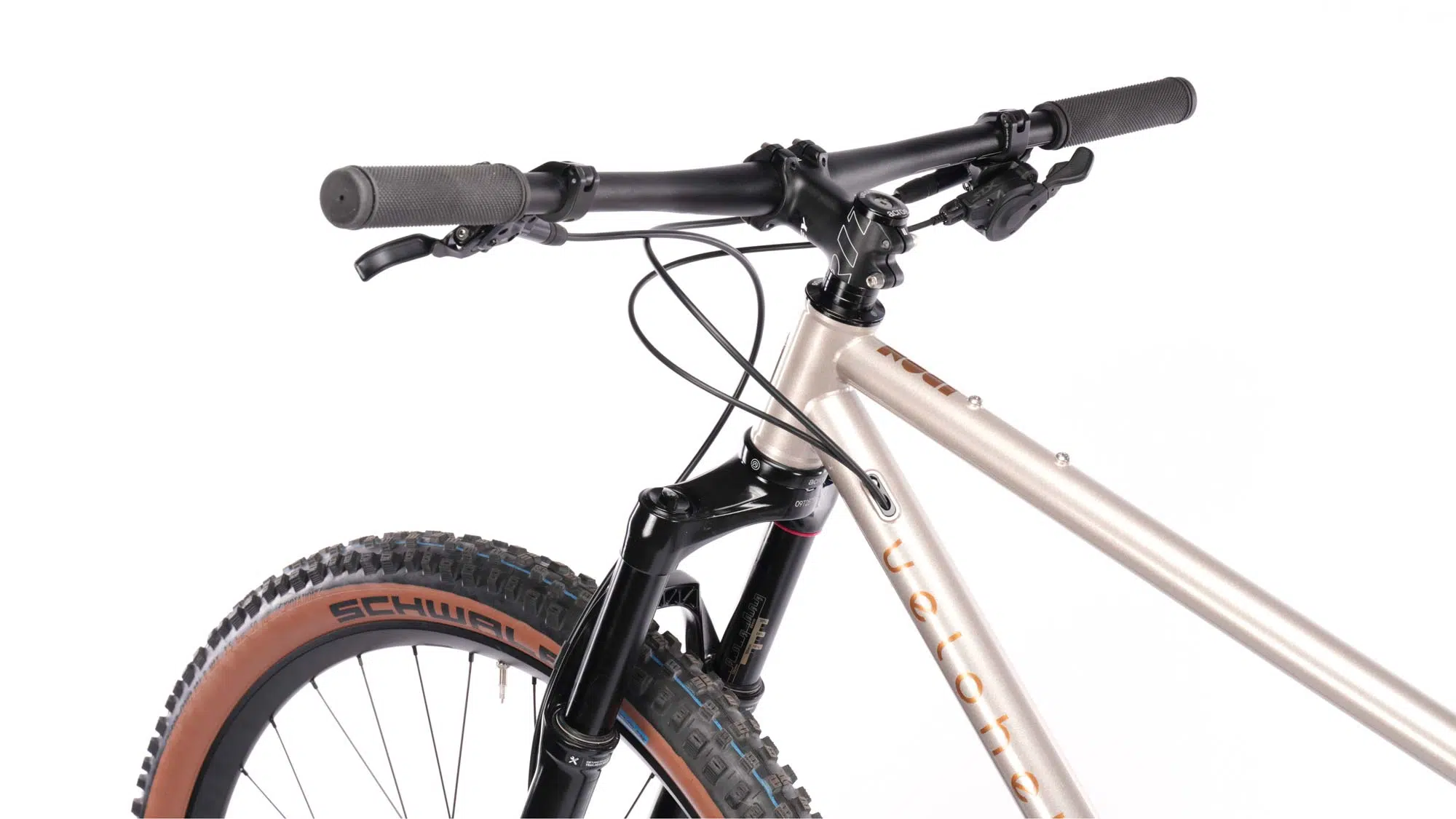

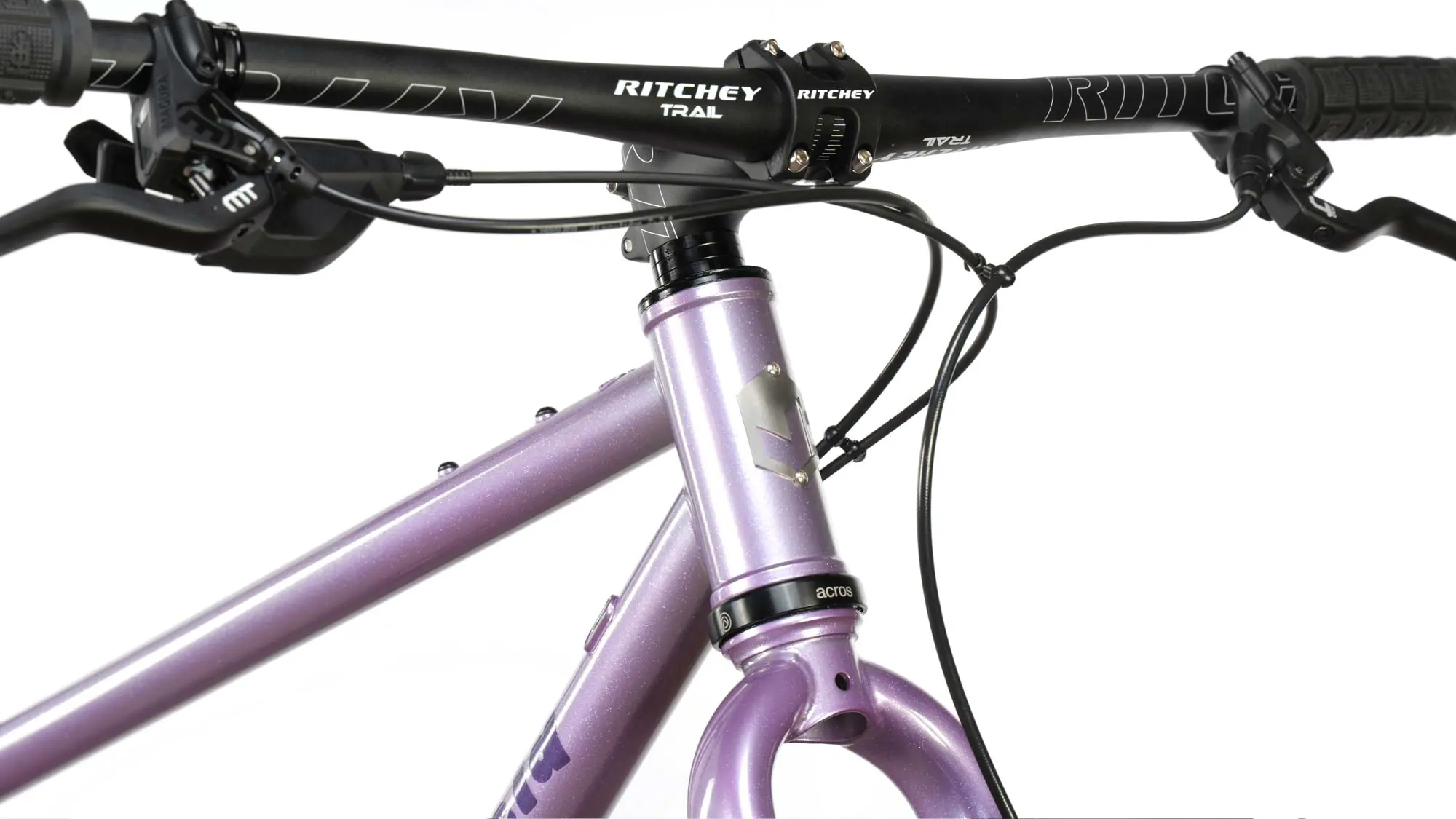

Brake and gear cables are routed through the down tube, over the T47 bottom bracket shell and into the left and right chainstays

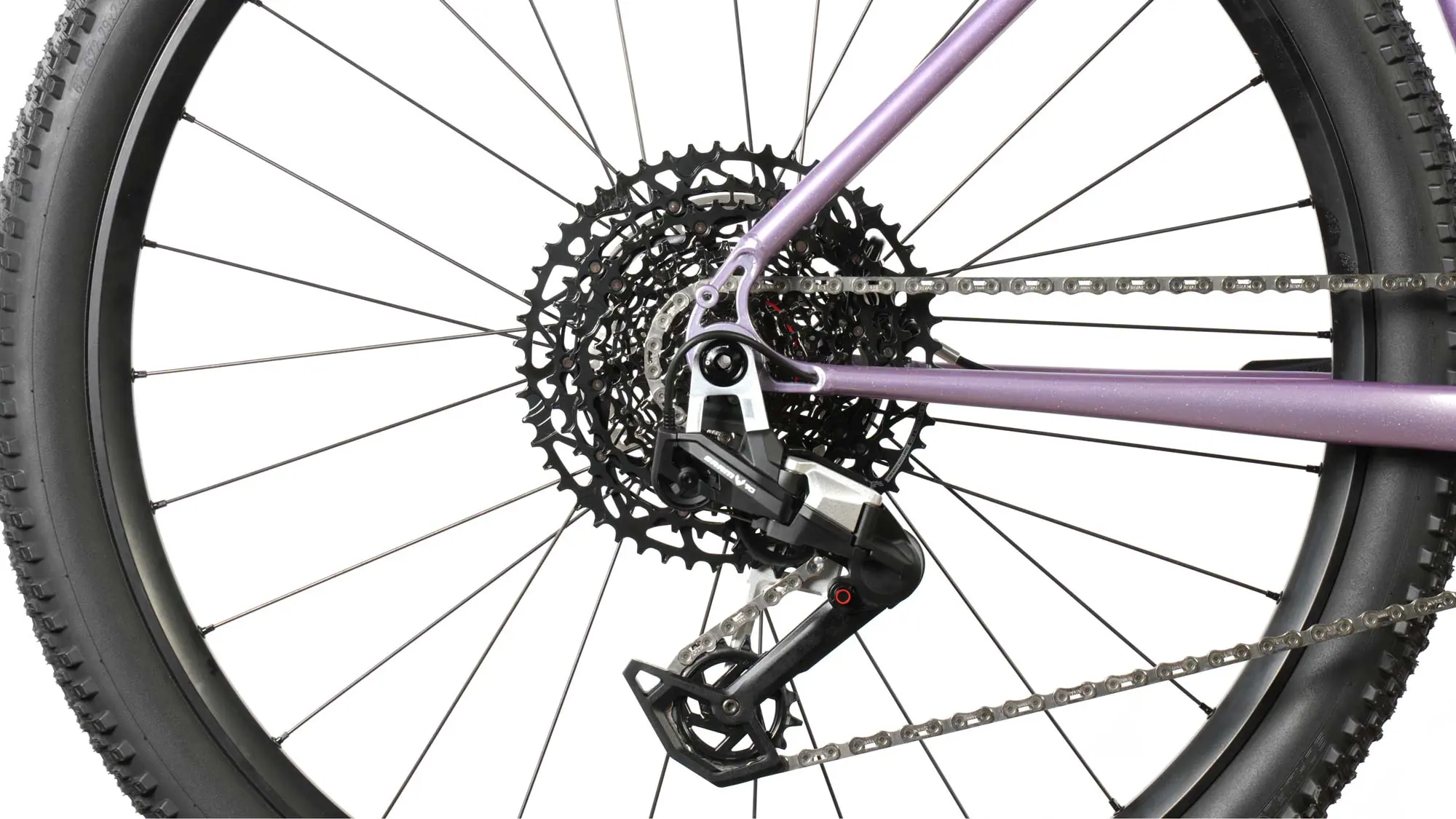

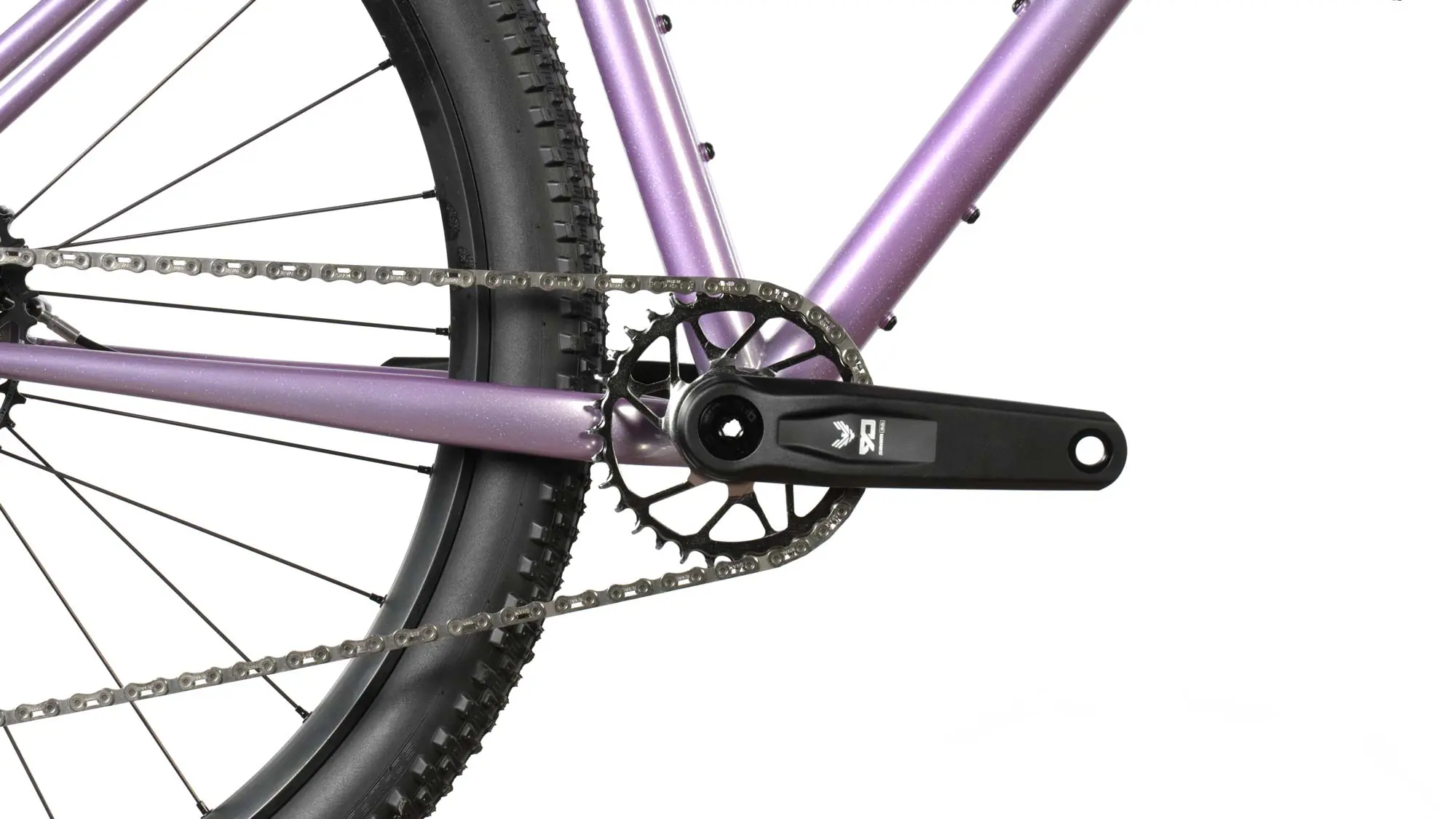

With the Shimano SLX and its 12 gears, you'll always find the right gear!
Sturdy and durable CrMo tubes from the traditional Reynolds brand for extreme load-bearing capacity
RockShox Reba RL suspension fork – 29″ | 120mm | 51mm Offset | Tapered – 15x110mm Boost – Maxle Stealth – Black Glossy
or
veloheld chromoly rigid fork, 4130 chromoly steel, 15×110 mm installation width (Boost), 1 1/8″ – 1.5″ tapered steerer tube, installation height 490 mm, 50 mm fork travel, side “triple cage” eyelets for mounting your luggage, post mount disc brake mount for max. 180 mm disc size, incl. 15x110mm thru axle
tubeless ready, rim with 35 mm outer width and 30 mm inner width, approved for max. 120 kg system weight (rider, luggage and bike)
Schwalbe Nobby Nic, 29×2.4, Bronze Skin, foldable, Tubeless Easy (delivered with inner tube)
veloheld, black
Ritchey Comp Trail Zero, BB Black, 400x 30.9
or
Rock Shox Reverb Stealth, black, 400x 30.9, 125 mm Hub
“Roman Bronze” with copper-colored decor
RAL powder coating or lacquering in gloss or matt, decor in black or silver
12.8 kg (frame size M with suspension fork)
Bikes in Category 3 are designed for rougher, unpaved paths in addition to meeting the requirements of Categories 1 and 2. Bicycles in this category are suitable for occasional jumps with a maximum height of about 60 cm. For inexperienced riders, improper landings may occur, which can significantly increase the forces involved and lead to damage and injury. This category includes MTB hardtails with short travel suspension. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
All geometries measured with 20% SAG for suspension forks
| Frame height | S | M | L | XL |
| for approx. body height in cm | 165 - 175 | 174 - 184 | 183 - 192 | ≥ 191 |
| A Seat tube length | 395 | 440 | 480 | 520 |
| B Top tube length | 580 | 603 | 625 | 649 |
| C Wheelbase | 1130 | 1154 | 1178 | 1204 |
| D Head tube length | 90 | 100 | 110 | 125 |
| E Head tube angle | 66° | 66° | 66° | 66° |
| F Seat angle | 73.6 | 73.6 | 73.6 | 73.6 |
| G Chainstay length | 435 | 435 | 435 | 435 |
| H Fork offset steel fork | 50 | 50 | 50 | 50 |
| I Bottom bracket drop | 67 | 67 | 67 | 67 |
| J Stack | 604 | 613 | 622 | 636 |
| K Reach | 410 | 430 | 450 | 470 |
| Frame height | S | M | L | XL |
| for approx. body height in cm | 165 - 175 | 174 - 184 | 183 - 192 | ≥ 191 |
| A Seat tube length | 395 | 440 | 480 | 520 |
| B Top tube length | 577 | 600 | 622 | 646 |
| C Wheelbase | 1123 | 1147 | 1171 | 1196 |
| D Head tube length | 90 | 100 | 110 | 125 |
| E Head angle | 67° | 67° | 67° | 67° |
| F Seat angle | 74.5° | 74.5° | 74.5° | 74.5° |
| G Chainstay length | 435 | 435 | 435 | 435 |
| H Fork offset steel fork | 50 | 50 | 50 | 50 |
| I Bottom bracket drop | 68 | 68 | 68 | 68 |
| J Stack | 596 | 605 | 615 | 629 |
| K Reach | 420 | 440 | 460 | 480 |
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.
To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.
You will find all the exact assembly steps in the assembly instructions.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.
If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Please register your bike here within 3 months of purchase to receive the warranty.
Send us a message with your desired bike components or give us a call on +49 (0)351 212 952 95 and we will soon build you your ultimate veloheld dream bike!
