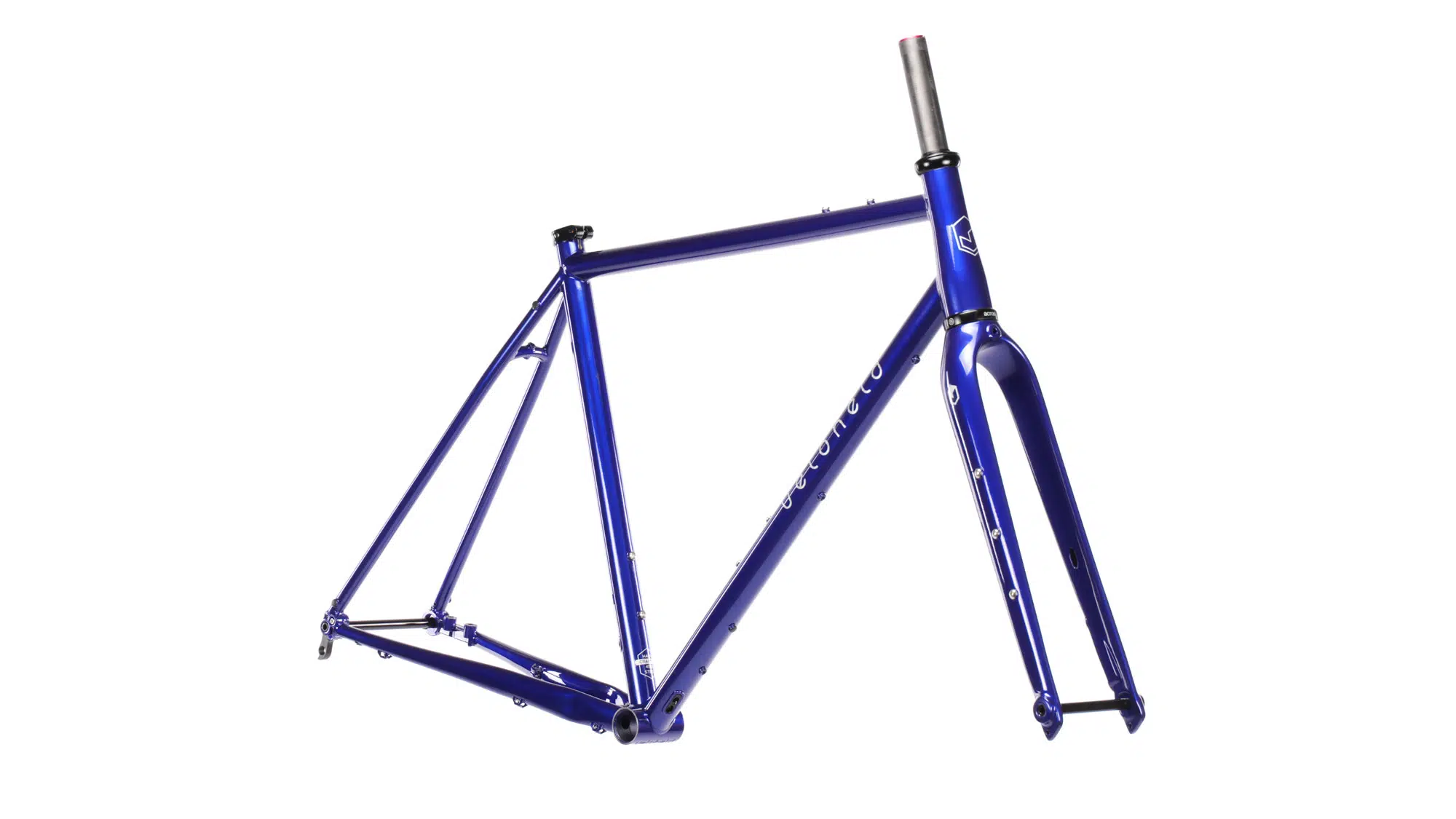

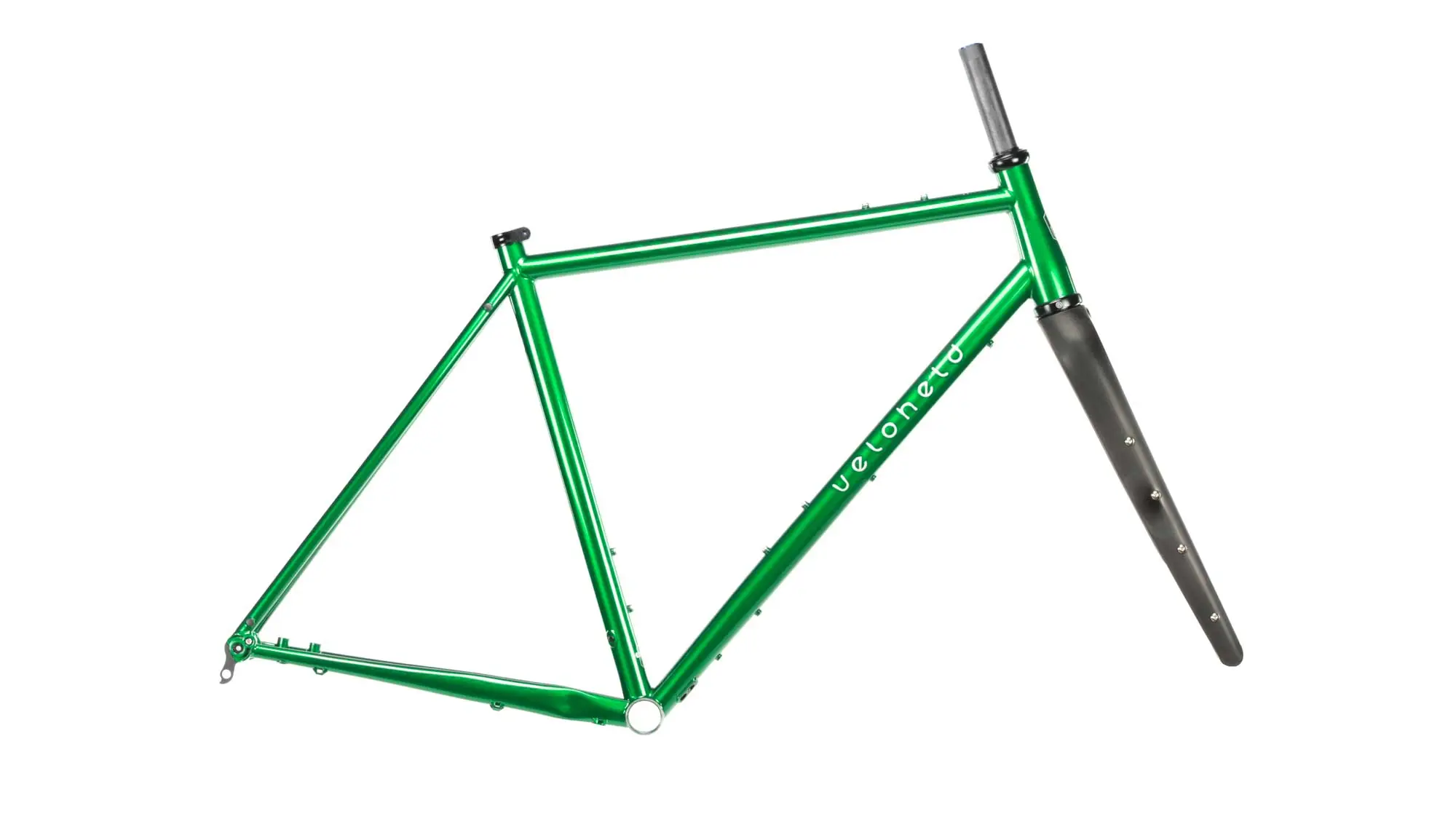

veloheld.iconX frameset

from 999,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • the new veloheld.iconX frameset – build your own personalised gravel bike

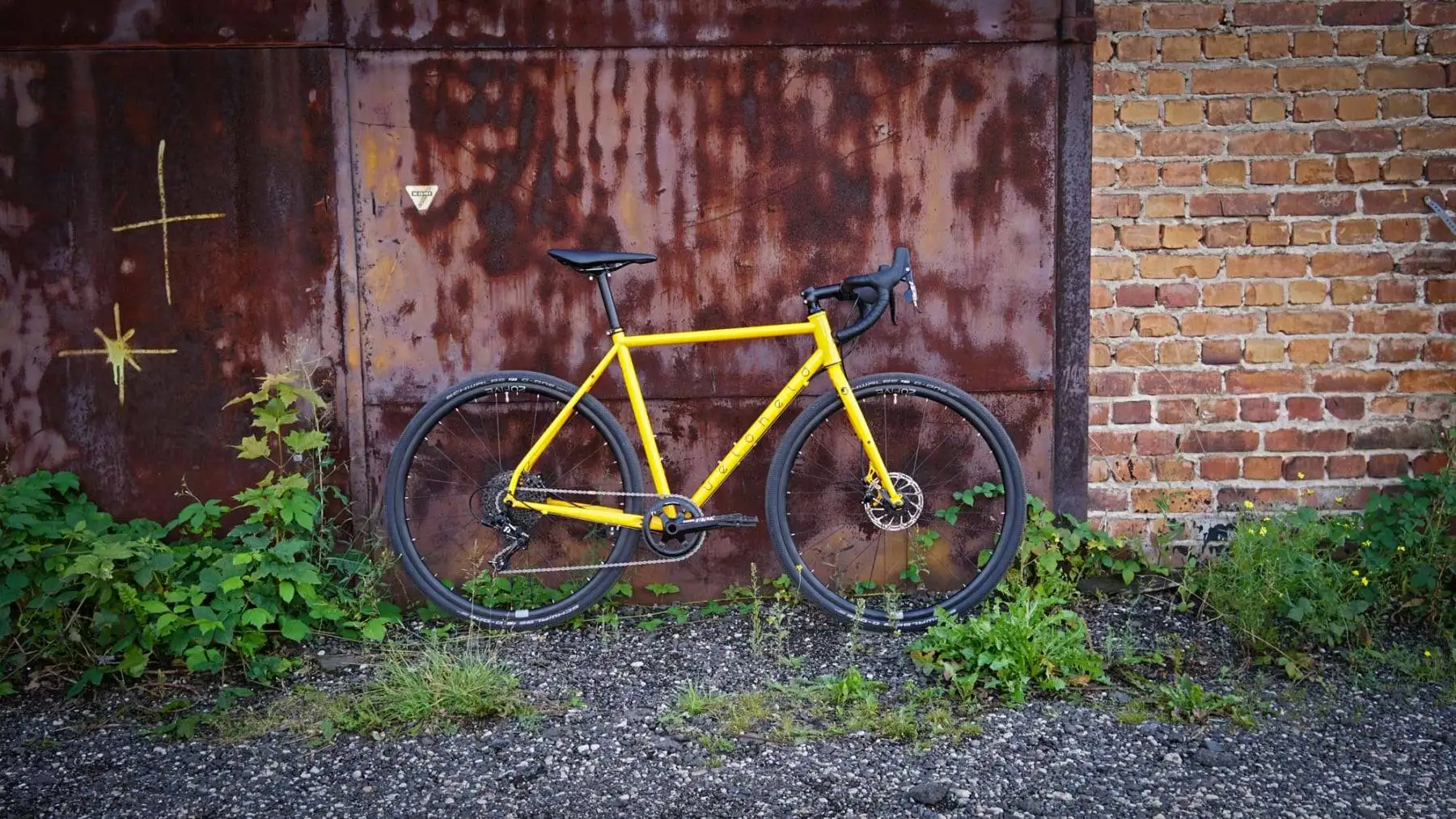

  • also available in your choice of colour – find inspiration in the gallery
  • Ready to go in no time: All bearing housings are ready for immediate installation

Delivery time

As a bicycle manufacturer, we coat each frameset individually for you. Due to the current order and delivery situation, we need 1 - 2 months after order confirmation to manufacture and ship your frame set.

Any RAL Classic colour available · glossy or matt · Decor black or silver · customised directly at our facility. Would you like a Prismatic Powders special color? Please contact us in advance by e-mail.
Would you like a Prismatic special colour or wet paint finish? Please contact us in advance by e-mail. Please also note our powder coating guidelines.

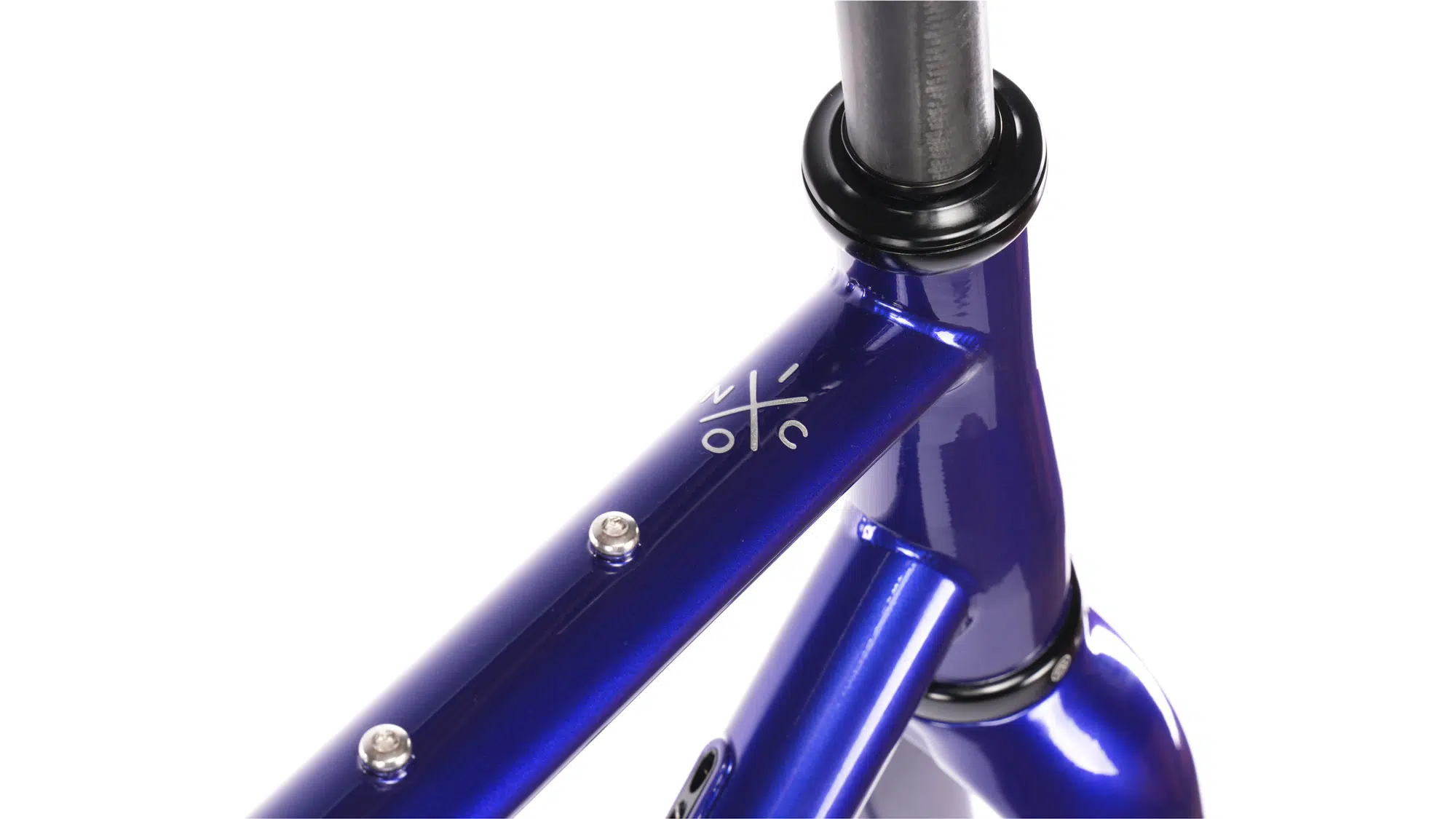

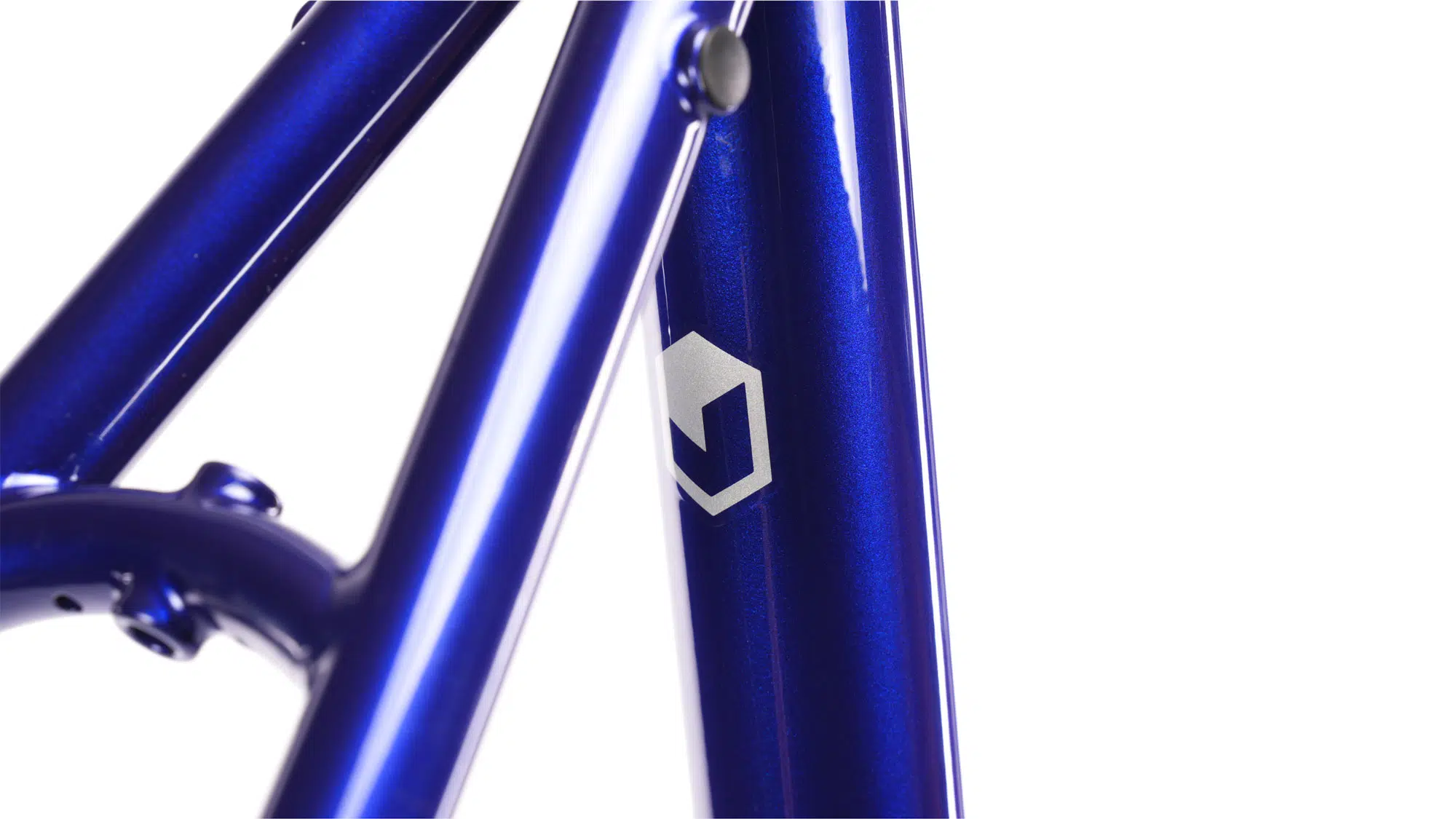

Choose your veloheld frame decal in black or silver by selecting your desired color. Please note that dark frame colors cannot be realized with black, but only with silver decor.
Choose your clear coat
Sizes S, M, L, XL and XXL = Delivery 26 August
You are unsure which size is the right one? Have a look at the geometry or let us advise you personally.
We recommend a steel fork if you intend to use the bike as a touring bike with a lot of luggage on the fork. The carbon fork is designed for a sportier ride and is only suitable for light luggage.
Jede RAL-Classic Farbe möglich · glänzend oder matt · Dekor schwarz oder silber · individuell direkt bei uns lackiert. Möchtest Du eine Prismatic Sonderfarbe? Bitte kontaktiere uns vorab per E-Mail.
Möchtest Du eine Prismatic Sonderfarbe oder Nasslackierung? Bitte kontaktiere uns vorab per E-Mail. Bitte beachte hier auch unserer Hinweise zur Pulverbeschichtung.
Wähle hier Dein veloheld Rahmendekor in schwarz oder silbern bei Auswahl Deiner Wunschfarbe. Bitte beachte, dass dunkle Rahmenfarben nicht mit schwarzem, sondern nur mit silbernen Dekor realisierbar sind.
Wähle hier Deinen Klarlack
Größe S, M, L, XL und XXL = Lieferung August 26
Du bist dir unsicher, welche Größe die richtige ist? Schau dazu in der Geometrie oder lasse dich persönlich von uns beraten.
Wir empfehlen eine Stahlgabel, wenn du das Rad als Reiserad mit viel Gepäck an der Gabel benutzen möchtest. Die Carbongabel ist eher sportlich ausgelegt nur für leichtes Gepäck geeignet.
Grand total
Ich habe noch Fragen und wünsche eine persönliche BeratungSchon ab 0% finanzieren
Discover the new veloheld.iconX.A gravel bike that takes you further – over dusty gravel tracks, through dense forests or right through the heart of the city. The new standard colour, Marrakesh Brown, captures the spirit of distant horizons: warm, earthy and timeless.The newly developed steel frame is manufactured in Europe and combines precision with durability. With UDH dropouts, sturdy T47 bottom bracket and even the option of a light cable routing for a saddle clamp rear light is the veloheld.iconX ready for your adventures, which may last longer than the daylight.

In the wild!

Flo is 1.75 m tall and rides with an inside leg length of 81 cm, frame height M.

Highlights

UDH!

Built for the future – the frame has been completely redesigned! A new detail – the UDH derailleur hanger!

Let there be light!

Clamp-mounted tail light with integrated cable routing through the seat stays and chain stays are possible

Details

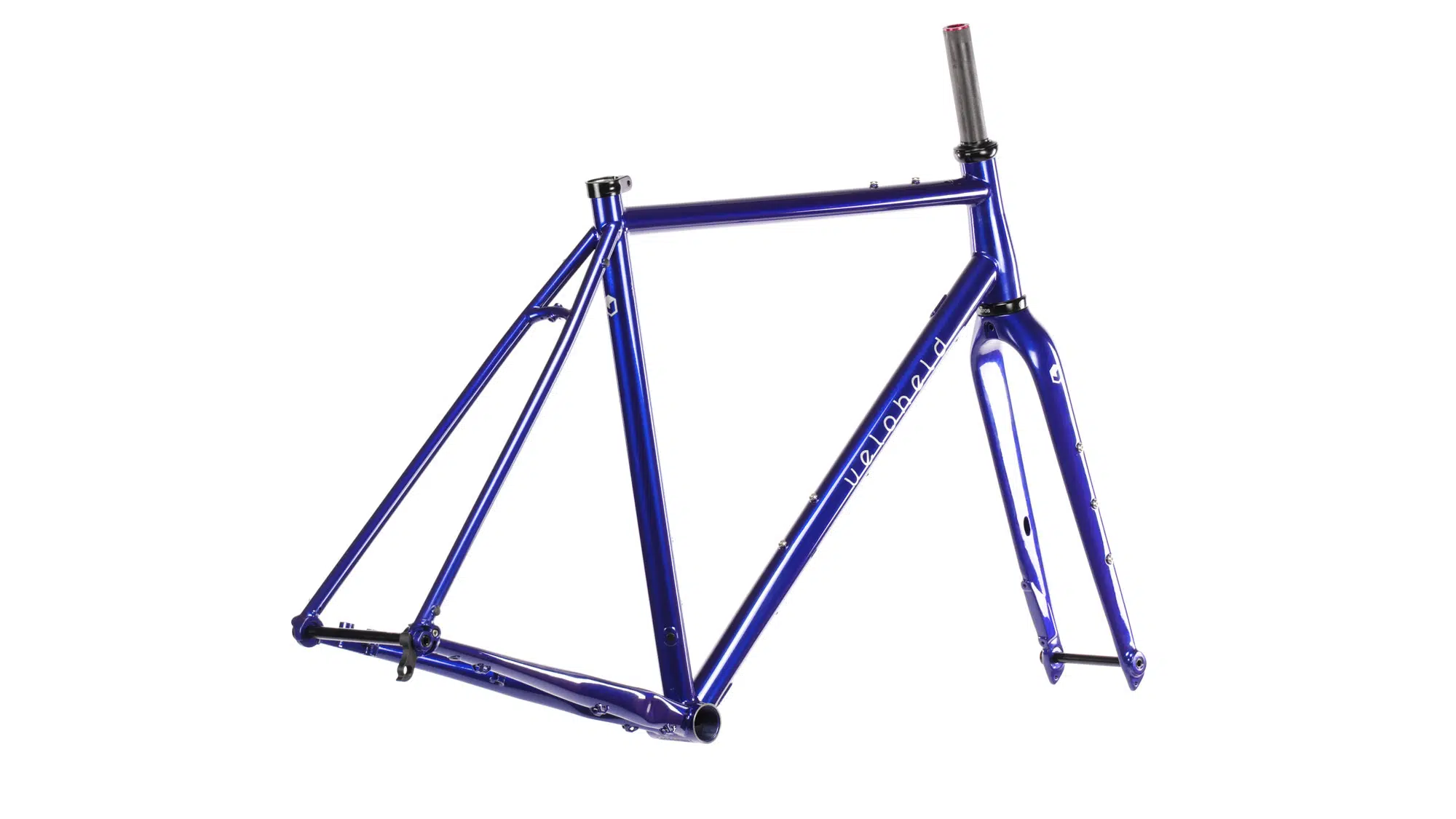

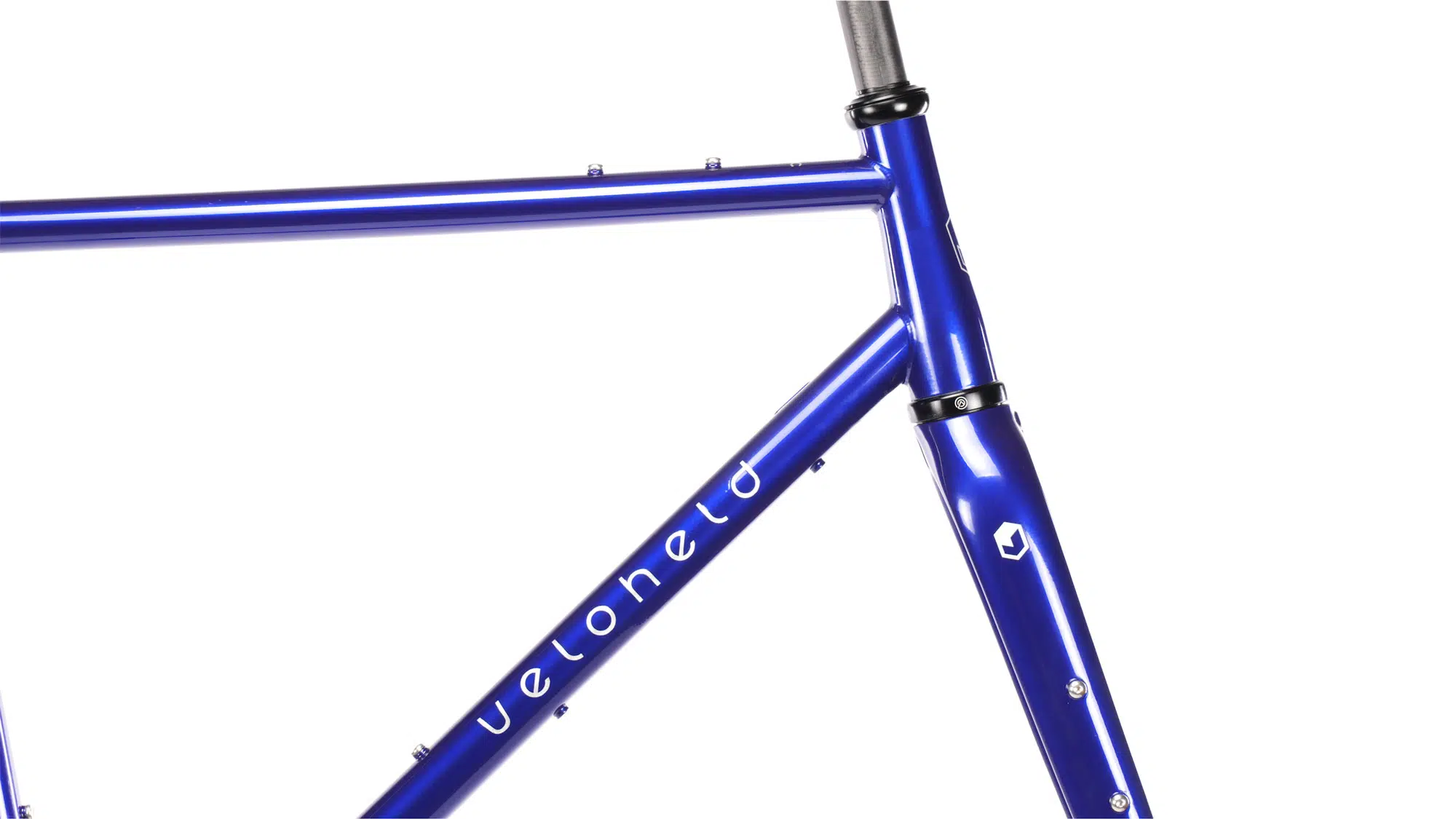

Frame

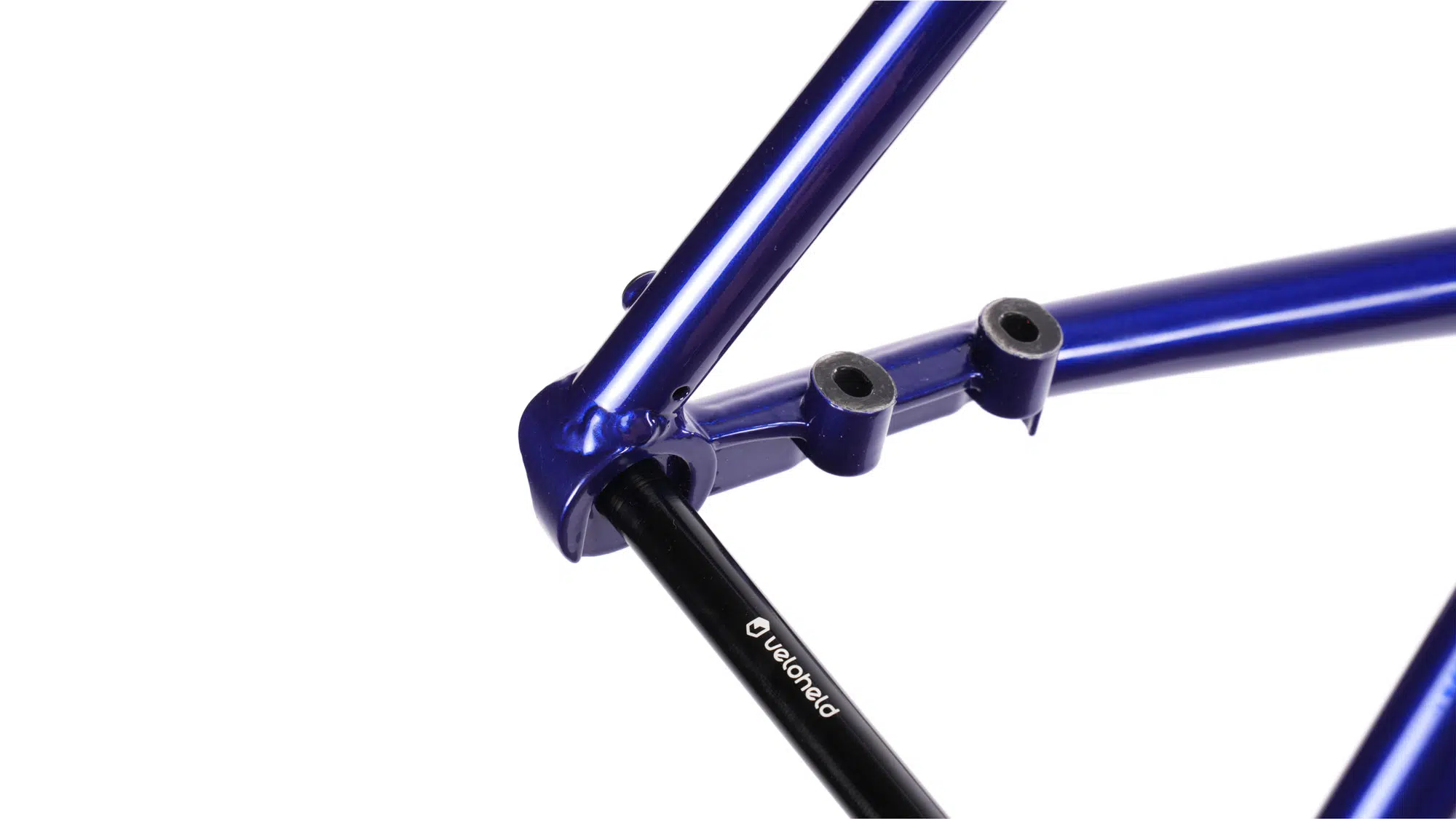

  • double butted tubes made from veloheld.CrMo steel, TIG-welded, 46mm head tube, Di2 ready, in the rear frame triangle mounted flat-mount disc brake mount for 160 mm brake discs

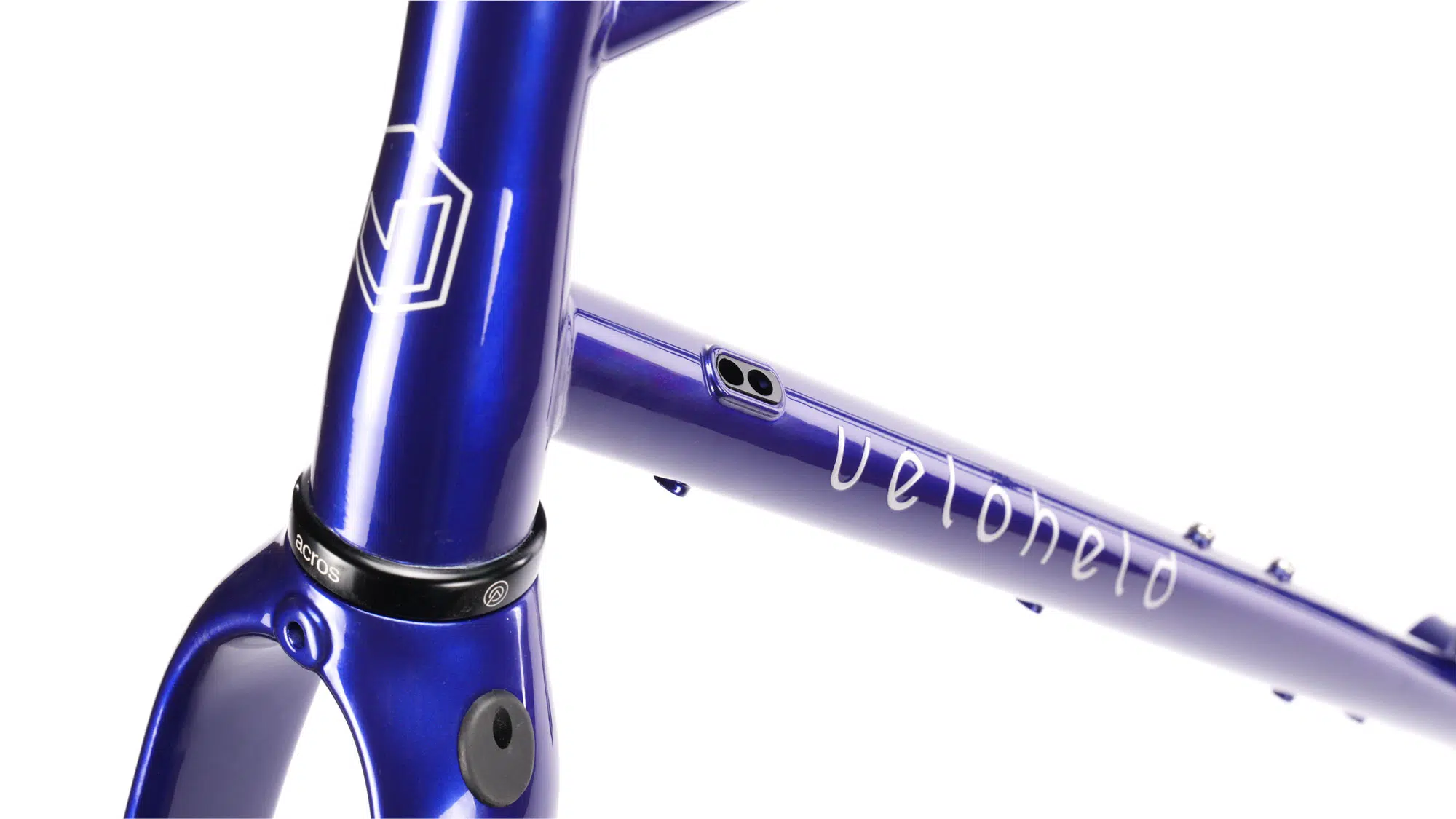

  • shifting (for 1x gears) and brake cable routing integrated in the down tube, for 2x gears a cable must be routed under the down tube
  • no cable stop on the frame for front derailleur (not compatible with mechanical 2x Campagnolo and SRAM groupsets)
  • Eyelets for mudguards and/or luggage racks

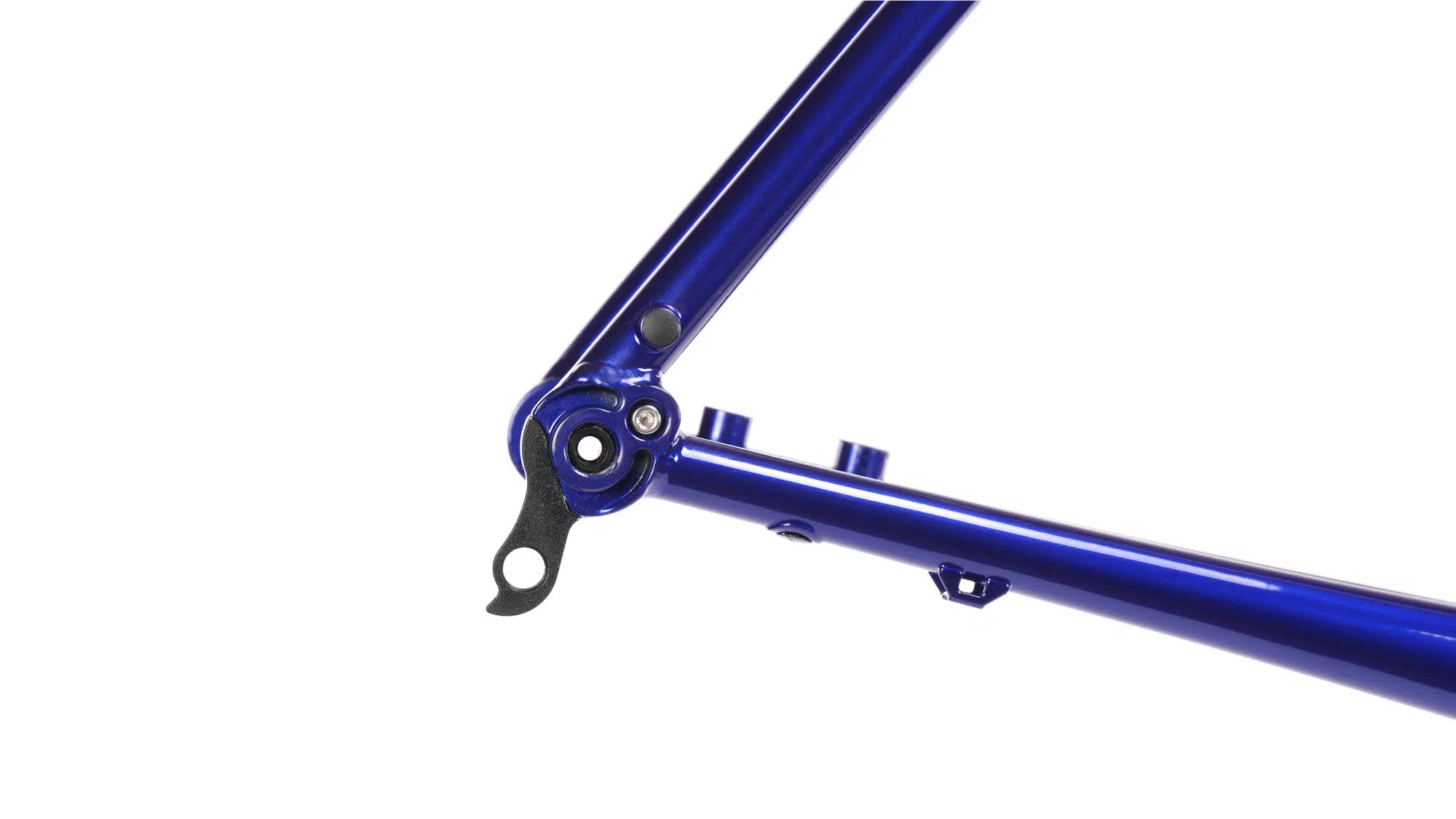

  • Stainless steel dropouts with replaceable UDH derailleur hanger and concealed kickstand mount
  • in the seat tube integrated eyelet for internal routing of the cable for a saddle clamp rear light
  • Threads for 3 bottles and a top tube bag

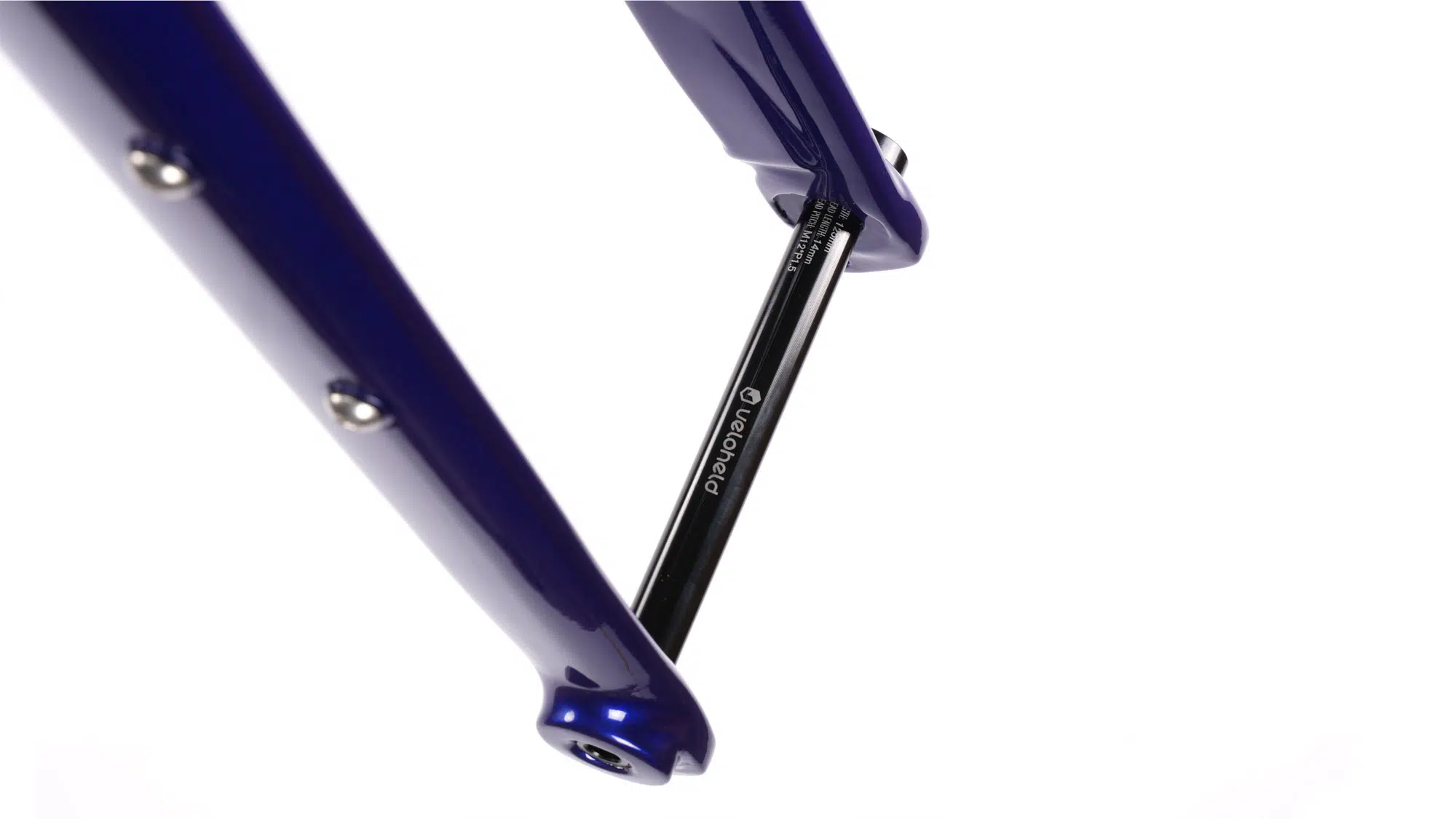

Thru axle

Frame: Axle length: 166 mm; thread length: 15 mm; pitch: M12x1.0

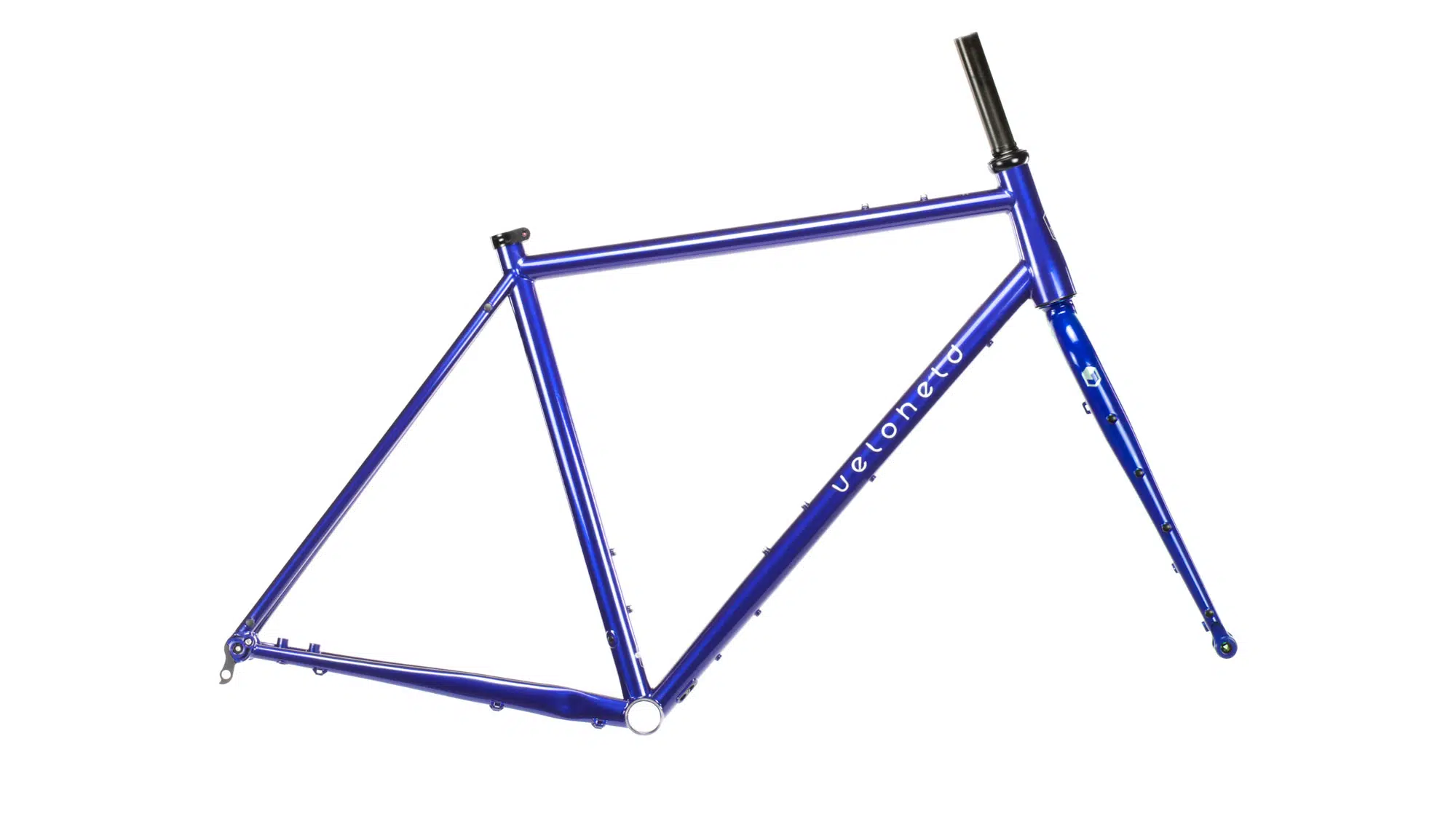

Fork

veloheld steel fork made from double-butted CrMo steel, 1 1/8″ – 1 1/2″ head tube, flat-mount disc brake mount for 140 or 160 mm discs, mounting eyelets for attaching your luggage using ‘triple cages’ or a front luggage rack (‘lowrider rack’), mudguard mounting and internal light cable routing possible, mounting dimensions: 12×100 mm incl. thru-axle, max. load capacity: 5 kg per fork leg

or

veloheld carbon fork with tapered head tube, side-mounted “Triple-Cage” eyelets for mounting your lightweight luggage (max. load capacity: 3 kg per fork side), flat-mount disc brake mount for 140 or 160 mm disc, mounting eyelets for mudguard, internal brake- and also light cable routing, mounting dimensions: 12×100 mm incl. Thru axle and expander

Drive and brakes

Cranks

max 2x 46/33t
max 1x 42t

Inner bearing

for T47, 68 mm

for disc brakes with 160 mm brake discs at the front and at the rear, Flatmount brake mounts

Wheels & tires

Wheelset

Wheel set installation dimension: 12×142 mm rear, 12×100 mm front

Tyres

max. up to approx. 50-622 (28″) or 54-584 (27.5″) mm wide tires (depending on make and rim) possible without mudguards in frame and steel fork

Cockpit

Headset

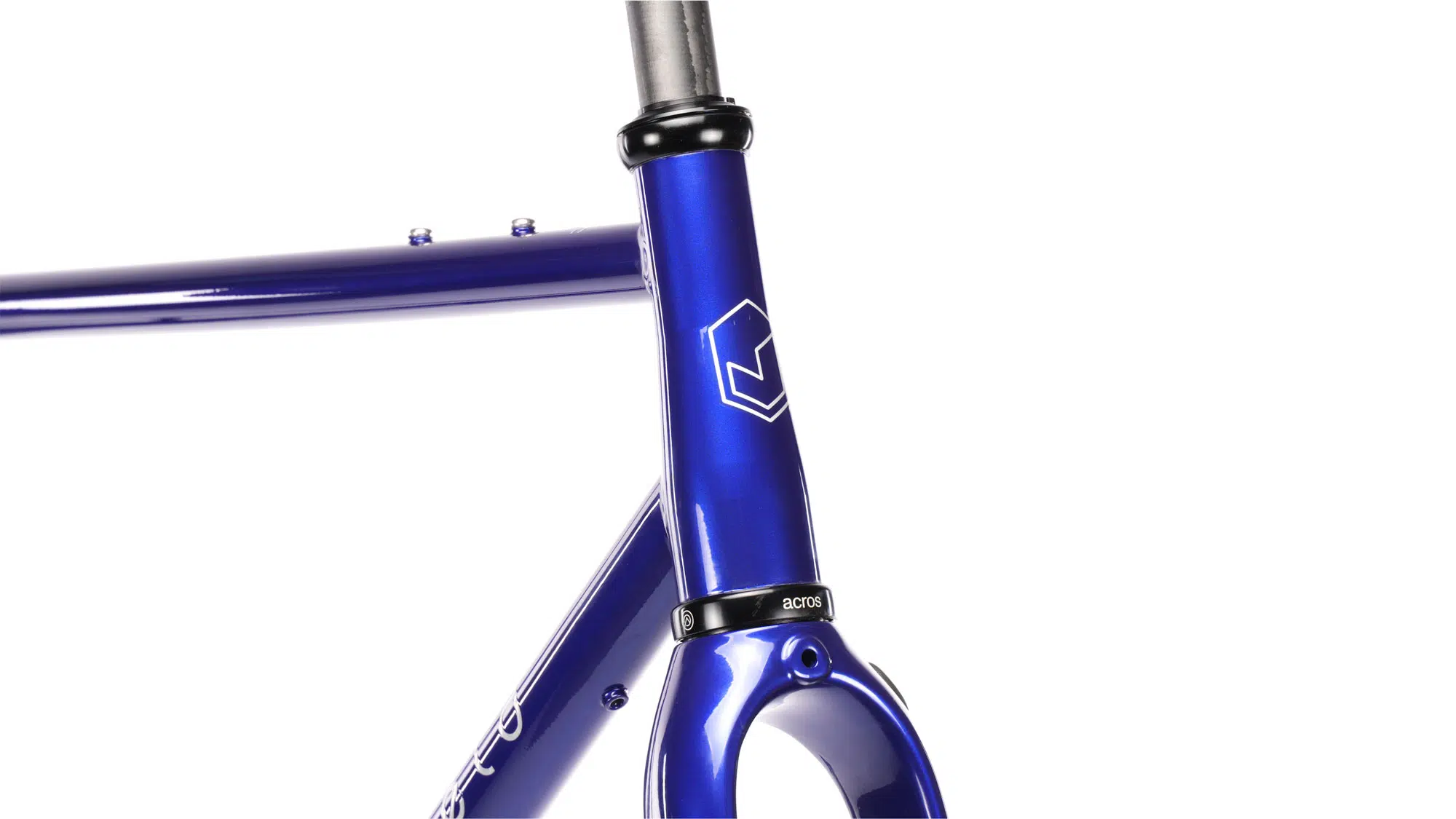

incl. Acros headset: 1 1/8″ ZS44/28.6 top and EC 44/40 bottom

Sitting

Seat post

Seatpost installation dimension: ø 27.2 mm, incl. Seat clamp made of black anodized aluminium

Miscellaneous

Sizes

XS, S, M, L, XL

Accessories

Mudguards: made of durable aluminum, powder-coated in frame color, 50 mm wide (Please note that due to the compact geometry, especially with smaller frame sizes, contact with the foot may be possible when turning sharply depending on the pedal system, shoe size and shoe shape).

Colors

Series color

Marrakesh Brown

Custom color

RAL-Classic powder coating in gloss or matt for frame and steel fork, decor in black or silver.

If you would like to have your carbon fork painted in the frame color, please contact us before placing your order.

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

approx. 2.1 kg (frame height M), approx. 1 kg steel fork, approx. 530g carbon fork

Classification

Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

Note: Subject to technical changes, errors and omissions.

Rahmenhöhe XS S M L XL XXL
Körpergröße 155–165 164–174 173–182 181–188 187–193 192–198
Innenbeinlänge 71–77 75–80 78–85 82–88 85–92 88–96
Sitzhöhe ab TL (min.) 628 664 690 726 752 778
Sitzhöhe ab TL (max.) 681 708 752 779 812 845
Überstandshöhe 733 749 783 809 823 840
Sitzrohrlänge (A) 440 470 510 540 560 580
Oberrohrlänge (B) 525,5 541,5 563 579 594,5 609,5
Radstand (C) 1023 1035 1048 1060 1072 1084
Steuerrohrlänge (D) 110 130 150 170 190 210
Lenkwinkel (E) 70 70,5 71 71,5 72 72
Sitzwinkel (F) 74 74 73,5 73,5 73,5 73
Kettenstreben (G) 437 437 437 437 437 437
Gabelvorlauf (H) 50 50 50 50 50 50
Tretlagerabsenkung (I) 79 77 77 77 74 74
Stack (J) 543 564 584,5 605 623 638
Reach (K) 370 380 390 400 410 420

Show only reviews in EN (0)

Add a review

City 50%
Tour 80%
Road 50%
Terrain 60%
Race 80%

How will the bike be delivered to me?

The bike is delivered almost fully assembled and safely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information on assembly here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools. To do this, the handlebars and stem must be turned in the direction of travel, the pedals installed and your saddle height adjusted.

Alle genauen Schritte der Montage findest Du in der Aufbauanleitung.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first to make sure that they have the bike in stock and can prepare it for you if necessary.

Wenn Du das Rad direkt bei uns kaufst, kannst Du es nach Erhalt und Montage bei Dir zu Hause auf trockenem Untergrund direkt Probe fahren. Sollte es Dir wider Erwarten nicht gefallen und/oder passen, holen wir es wieder versandkostenfrei bei Dir ab. Dazu musst Du es nur wieder sicher in den Versandkarton packen und auf die Abholung warten. Achtung: Dies gilt nicht für individuell angefertigte Wunschräder.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Bitte registriere Dein Rad innerhalb von 3 Monaten nach Kauf hier, um die Garantie zu erhalten.

What is the maximum permissible system weight?

The maximum permissible system weight for the veloheld.iconX consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes XS, S and M and 140 kg for frame sizes L, XL and XXL with steel fork. When used with a carbon fork, the limit for all sizes is 120 kg.

Can I fit a side stand?

Yes, you can mount a KSA 18 kickstand directly on the frame at the left rear dropout.

My question is not listed here...

Send us your question via the contact form or use our other contact options and we will answer your questions.
