veloheld.iron Pinion MTB Complete Bike

4.699,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • Until 31 October 2026: powder coating in any RAL Classic colour at no extra cost
  • Hand welded in Leipzig
  • Pinion C1.12 Getriebe – 12 Gänge, 600 % Bandbreite, mechanisch per Drehgriff oder elektronisch als C1.12i Smart.Shift
  • Gates CDX Riemenantrieb – leise, sauber, extrem wartungsarm
  • Mehrfach endverstärkte 25CrMo4-Rohre, WIG-geschweißt
  • Rigid fork made of steel, carbon or RockShox Reba RL with 120 mm
  • Four sizes, S to XL
  • Mounts for bottle cages, frame bag and rack

Delivery time

As a bike manufacturer, we build every bike individually for you. Due to the current order and delivery situation, we need 4 - 6 weeks after order confirmation to manufacture and ship available bikes.

Any RAL Classic color available · glossy or matt · decor in black or silver · custom painted in-house. Would you like a Prismatic special color? Please contact us in advance by e-mail.
Please also note our instructions for powder coating.
Choose your veloheld frame decal in black or silver by selecting your desired color. Please note that dark frame colors cannot be realized with black, but only with silver decor.
Choose your clear coat here
Here you can go directly to the Geometry of the bike.
Grand total
I still have questions and would like a personal consultation
Lease your veloheld
Financing from as little as 0%

No rear derailleur to get ripped off by a rock. No derailleur hanger to carry as a spare. The veloheld.iron Pinion packs twelve gears and 600 per cent range safely into the bottom bracket. You shift mechanically with a twist shifter or, with the C1.12i Smart.Shift, electronically at the push of a button – even at a standstill. Instead of a chain there is a Gates CDX belt: quiet, clean and extremely low-maintenance. That turns our steel hardtail into a bikepacking trail MTB you hardly have to look after on the road.

The geometry is deliberately not extreme and is designed for forks with 100–120 mm travel optimised. Multi-point reinforced 25CrMo4 tubes make the frame sturdy enough for rough rides through undergrowth, with 29″ tyres up to 2.4″ or 27.5″ up to 2.6″. Brake – and gear cables run internally through the frame. It is welded a33> Incidentally it is also welded in our very own frame workshop in Leipzig.

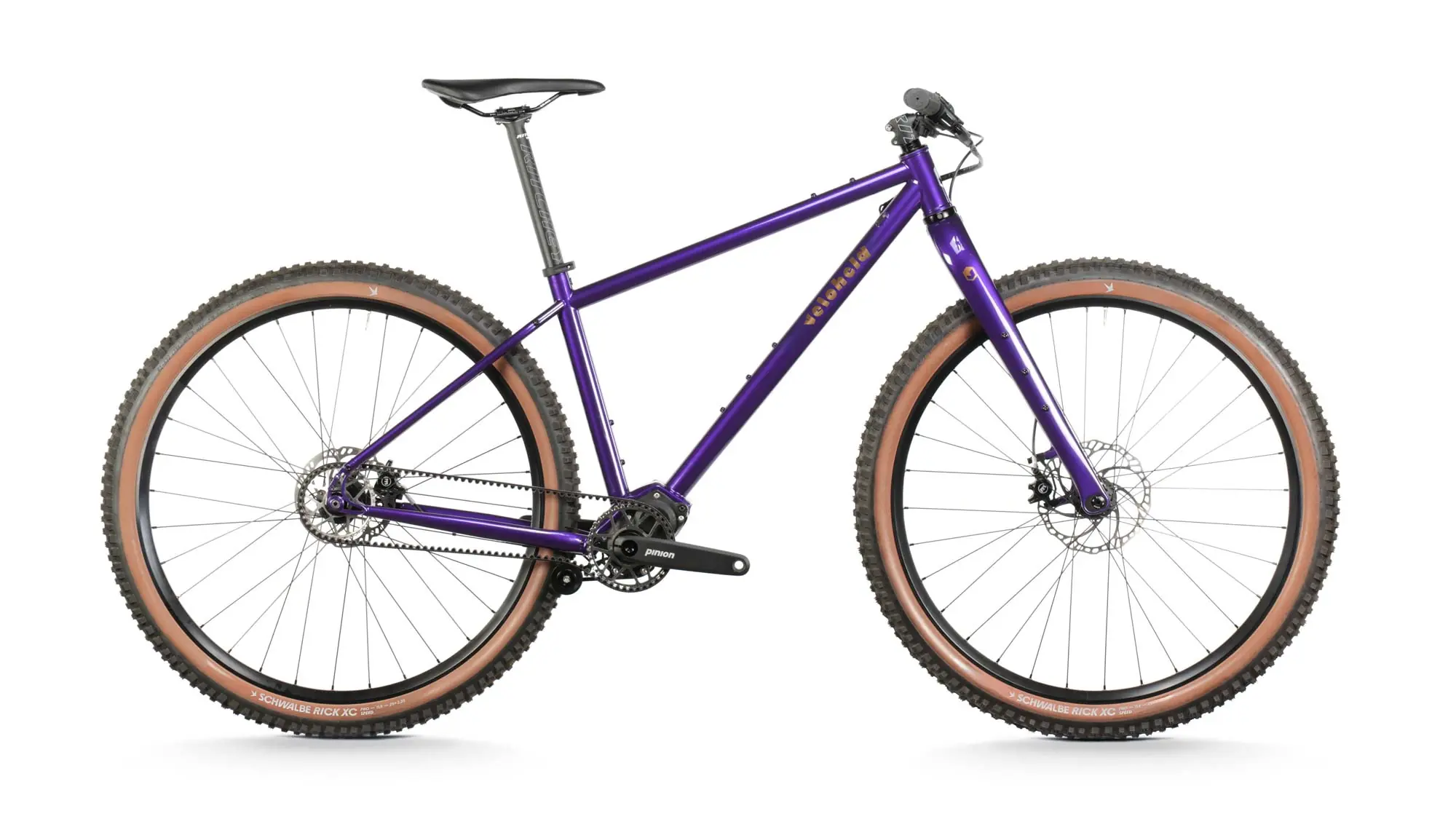

This veloheld.iron Pinion complete bike is available to you in the standard colour Lollypop Purple or in your chosen RAL colour.

Made with Love!

We weld every MTB steel frame ourselves – by hand, TIG, in our own frame building workshop in Leipzig. The tubes come from a specialist in Taiwan, the country where the best tubesets in the bicycle world have been drawn for decades. What becomes of them is made here, by us.

Only genuine with the iron

Our logo is laser-etched on the top tube. Underneath sits a geometry that is deliberately not extreme: agile enough for tight trails, calm enough when things get rough, stable enough with luggage. A steel hardtail, simply perfect for ironing your way through the undergrowth.

Be creative!

Stock color too boring? Then tell us your RAL color of choice – glossy or matt, with decal in black or silver. We coat your veloheld.iron in exactly that, one frame at a time. In the end you ride a steel hardtail you won’t run into again on any trail.

In the wild!

Daniel fährt mit 1,80 m Körpergröße und 80 cm Innenbeinlänge einen Rahmen in Größe M

Highlights

Let’s go bikepacking!

various eyelets on the frame allow you to attach different bags and accessories

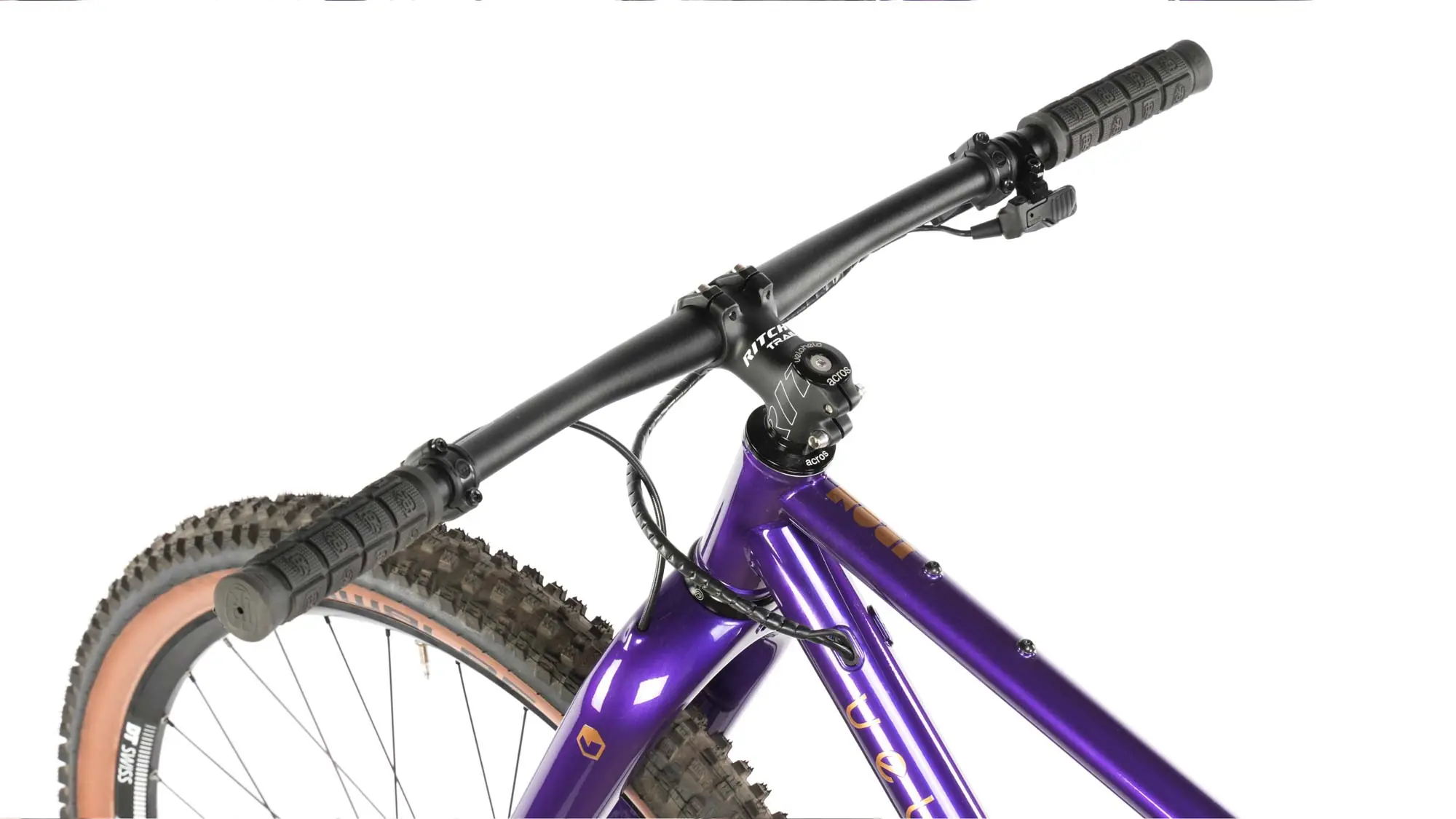

Semi-internal cable routing

Brake-, electronic shift cable and any Dropper Post cable are routed through the down tube

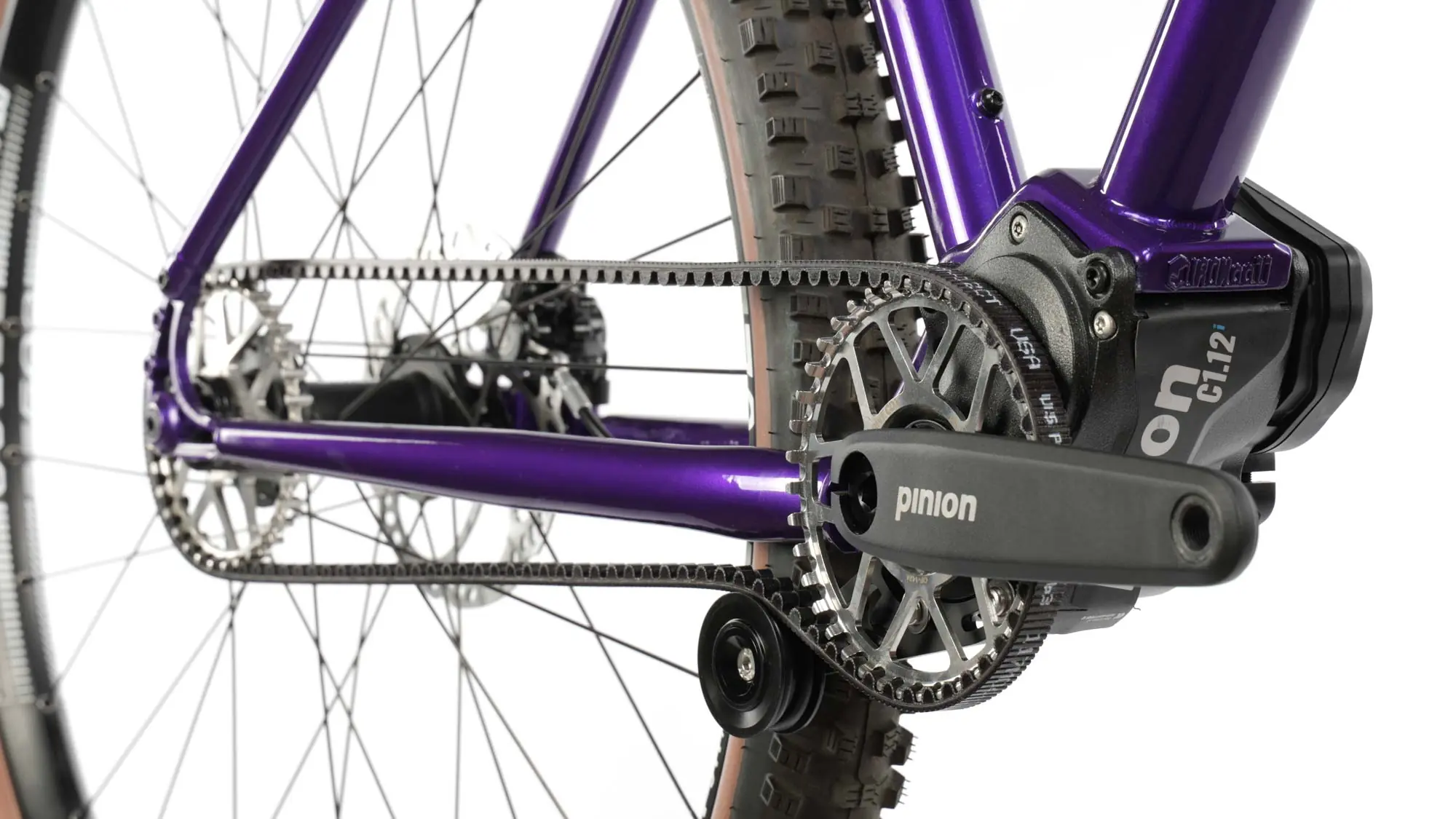

Always the right gear!

Pinion C1.12 with 12 gears and 600 % range – mechanical with twist shifter or electronic at the push of a button, and you can even shift at a standstill

Choose your fork based on its intended use!

A steel fork for bikepacking, a carbon fork for weight optimisation, or the Rock Shox for the really rough trails!

Details

Frame

  • double and triple end-reinforced, size-specific tubing in 25CrMo4 CrMo steel, hand TIG-welded in Leipzig, tubeset made in Taiwan
  • 44mm head tube
  • veloheld logo laser-etched on the top tube
  • Pinion gearbox mount
  • Riemenspannung über Spannarm mit Rolle
  • ab Unterrohr bis in die Kettenstreben integrierte Brems- und Schaltleitungsführung, für die mechanische Pinion auch Führung unter dem Unterrohr möglich, interne Dropper-Post Kabelführung im Sitzrohr möglich
  • Flat-mount disc brake mount for 160 mm brake discs located in the rear frame triangle
  • Mounting eyelets for 3 bottle cages + 1 bag holder on the top tube
  • Rack mounting eyelets on the dropouts
  • hidden KSA-18 kickstand mount on the dropout

Fork

optional

RockShox Reba RL suspension fork – 29″

  • Travel: 120mm
  • Offset: 44mm
  • Steerer: 1.5″ tapered, aluminium
  • Adjustments: external rebound, 3-position compression (open/pedal/lock)
  • Spring system: DebonAir
  • Isolator RL
  • Color: Fast Black
  • incl. Bolt On Fender, star nut, Maxle Stealth (remote available separately)
  • max. tire diameter: 758mm / max. tire width: 81mm
  • max. rotor size: 200mm / min. rotor size: 180mm
  • Crown material: forged, hollow aluminium
  • Lower leg material: magnesium
  • Axle to crown: 514mm
  • Stanchion material: 35mm straight wall aluminium

or

veloheld Chromoly rigid fork, 4130 chromoly steel, 15×110 mm hub spacing (Boost), 1 1/8″ – 1.5″ tapered steerer, axle-to-crown 490 mm, offset 50 mm, side “Triple-Cage” mounts for carrying your luggage, post mount disc brake mount for up to 180 mm rotors, internal light cable routing possible, incl. 15×110 mm thru-axle

or

veloheld Carbon rigid fork, Toray T700 carbon, 15×110 mm hub spacing (Boost), 1 1/8″ – 1.5″ tapered steerer, axle-to-crown 490 mm, offset 44 or 52 mm, side “Triple-Cage” mounts for carrying your luggage, post mount disc brake mount for up to 180 mm rotors, internal brake and light cable routing, incl. 15×110 mm thru-axle, color: UD carbon matt

Drivetrain and brakes

Gearbox

Pinion C1.12i Smart.Shift, 12 Gänge, 600 % Bandbreite, elektronisch geschaltet, inkl. Kurbel und Akku, Pinion Schalthebel rechts

or

Pinion C1.12 mit Drehgriff, 12 Gänge, 600 % Bandbreite, mechanisch geschaltet

Belt drive

Gates Carbon Drive CDX Riemen, 120 Zähne, Sprocket vorn 39 Zähne, hinten 34 Zähne

Brakes

Magura MT4, Storm rotors 180 mm front / 160 mm rear

Wheels & tires

Wheelsets

Eigenaufbau mit DT Swiss M 502 Felgen, DT Swiss 370 Nabe vorn und DT Swiss Pinion-Nabe hinten

Tyres

Schwalbe Rick XC, 29×2.4, black, folding, Tubeless Easy (delivered with inner tube)

Cockpit

Stem

Ritchey Comp Trail, BB Black, 70 mm
3 Spacer

Handlebars

Ritchey Comp Trail Flat, BB Black, width: 780mm

with Ritchey Comp Trail grips, black

Headset

Acros headset AZX-245, flat, black, ZS44/28.6, EC44/40

Sitting

Saddle

veloheld, black

Seat post

Ritchey Comp Trail Zero, BB Black, 400x 30.9

Colors

Series color

Lollypop Purple

Custom color

custom RAL powder coating or paint in gloss or matt, decal in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Classification

Bikes in Category 3 are designed for rougher, unpaved paths in addition to meeting the requirements of Categories 1 and 2. Bicycles in this category are suitable for occasional jumps with a maximum height of about 60 cm. For inexperienced riders, improper landings may occur, which can significantly increase the forces involved and lead to damage and injury. This category includes MTB hardtails with short travel suspension. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.

Note

Subject to technical changes, errors and omissions.

Note: Subject to technical changes, errors and omissions.

Rahmenhöhe S M L XL
Körpergröße 163–172 171–180 179–188 186–196
Innenbeinlänge 76–80 80–85 85–89 88–93
empfohlene minimale Sitzhöhe ab TL 673 708 752 779
empfohlene maximale Sitzhöhe ab TL 708 752 788 823
Überstandshöhe 778 803 827 846
Sitzrohrlänge (A) 395 440 480 520
Oberrohrlänge (B) 585 619 636 659
Radstand (C) 1137 1166 1185 1209
Steuerrohrlänge (D) 100 110 120 130
Lenkwinkel (E) 67° 67° 67° 67°
Sitzwinkel effektiv 75,2° 74,7° 74,7° 74,7°
Sitzwinkel Sitzrohr (real) (F) 74,5° 74,0° 74,0° 74,0°
Sitzrohr-Offset vor Tretlager 8 8 8 8
Kettenstreben (G) 437 437 437 437
Gabelvorlauf (H) 44 44 44 44
Tretlagerabsenkung (I) 65 65 65 65
Stack (J) 608 618 629 638
Reach (K) 425 450 465 485
max. Einstecktiefe Dropper-Post 200 240 270 300
Nachlauf (Trail) 111,2 110,9 110,2 110,3
Tretlagerhöhe 306 306 305 305

Show only reviews in EN (0)

Add a review

Terrain 95%
Tour 80%
Road 30%
Sport 80%

How much maintenance does the Pinion gearbox need?

Very little. The gearbox is sealed inside the frame, so dirt and water cannot reach the gears. All it needs is an oil change every 10,000 km.

How long does the Gates belt last?

A Gates CDX belt lasts as a rule considerably longer than a chain. He doesn’t need a chain. a9> a chain. It doesn’t need any oil, doesn’t stretch and is cleaned simply with water clean. For bikepacking this means: no chain oil in your luggage and no black calves.

Can I really whilst stationary and under load change gear?

Yes. The Pinion C1.12i changes gears electronically at the touch of a button: whilst riding, when stationary and under load. Forgotten to change down before the hairpin bend? No problem.

How long does the battery in the Smart last? Shift and how do I charge it?

The battery is housed safely inside the frame. According to Pinion, one charge is sufficient for over 20,000 gear changes or. up to 100 hours of riding. Charging is carried out via cable directly on the bike.

Is the Iron Pinion also available with mechanical gears?

Yes. In the configurator you can choose instead of the electronic C1.12i, the mechanical Pinion C1.12 with twist grip can be selected. The gear cables run then underneath the down tube, and the bike costs €200 less.

Which fork is right for me?

With the steel fork, you get triple-cage mounts and a hassle-free bike for bikepacking. The carbon fork saves weight. The RockShox Reba RL with 120 mm travel is the right choice if you spend a lot of time on the trails.

How will the bike be delivered to me?

The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.

What exactly do I have to install after delivery?

After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.

To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.

You will find all the exact assembly steps in the assembly instructions.

Can I test ride the bike?

If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.

If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.

Do I have an additional guarantee?

Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.

Please register your bike here within 3 months of purchase to receive the warranty.
