veloheld.iron MTB frameset

from 1.199,00 €

Base price plus Possible options and shipping + packaging

All prices incl. VAT. The actual VAT is calculated based on the delivery address and displayed in the checkout.

  • the veloheld MTB frame – Made in Germany!
  • Welded “in-house” by us
  • Top and down tube made from Reynolds 853 tubes
  • T47 bottom bracket and SRAM UDH derailleur hanger
  • “Roman Bronze” powder coating or your desired color can also be realized

Delivery time

The model is currently sold out. But don't worry, we're already working on the new version. Sign up for our newsletter here so that we can let you know as soon as it becomes available again.

Out of stock

Ich habe noch Fragen und wünsche eine persönliche BeratungSchon ab 0% finanzieren

Introducing the new veloheld.iron 2024 frame – your ultimate companion for real mountain biking challenges!
We’ve completely redesigned the frame to build the most balanced bikepacking trail MTB for you. The geometry isn’t too extreme and is optimised for forks with 100–120 mm of travel. With Reynolds 853 DZB down and top tubes, the frame is super-sturdy for really ‘rough’ rides through the undergrowth. The 29” or 27.5” tyres, up to 2.6” wide, also help you out here.

The new T47 bottom bracket allows for a “clean” routing of the gear and brake cables directly through the frame, and the universal UDH derailleur hanger keeps your rear derailleur secure. By the way, we build the frame locally in our own frame-building workshop in Leipzig.

Der veloheld.iron Rahmen ist für dich in der neuen Serienfarbe “Roman Bronze” oder auch individuell nach deinen Wünschen in einer RAL-Farbe erhältlich – natürlich auch als Komplettrad.

Made with Love!

The frames are also made from English Reynolds 853 tubes with love and know-how in our frame construction workshop in Leipzig.

3D printed

The future! The wheel’s brake mount is made of stainless steel powder with the veloheld logo printed on it.

Be creative!

Series color too boring? Tell us your desired color and we will coat your individual veloheld.iron mountain bike!

In the wild!

At 1.80 m tall and 80 cm inside leg length , Daniel rides a size M frame

Highlights

No “old iron”

3D printed signature flatmount brake mount made from stainless steel

Semi-internal cable routing

Brake and gear cables are routed through the down tube, over the T47 bottom bracket shell and into the left and right chainstays

UDH? Yes!

SRAM UDH derailleur hanger for SRAM Transmission but of course also Shimano rear derailleurs

Traditional and fast!

Reynolds 853 DZB down tube and top tube for extreme load capacity

Details

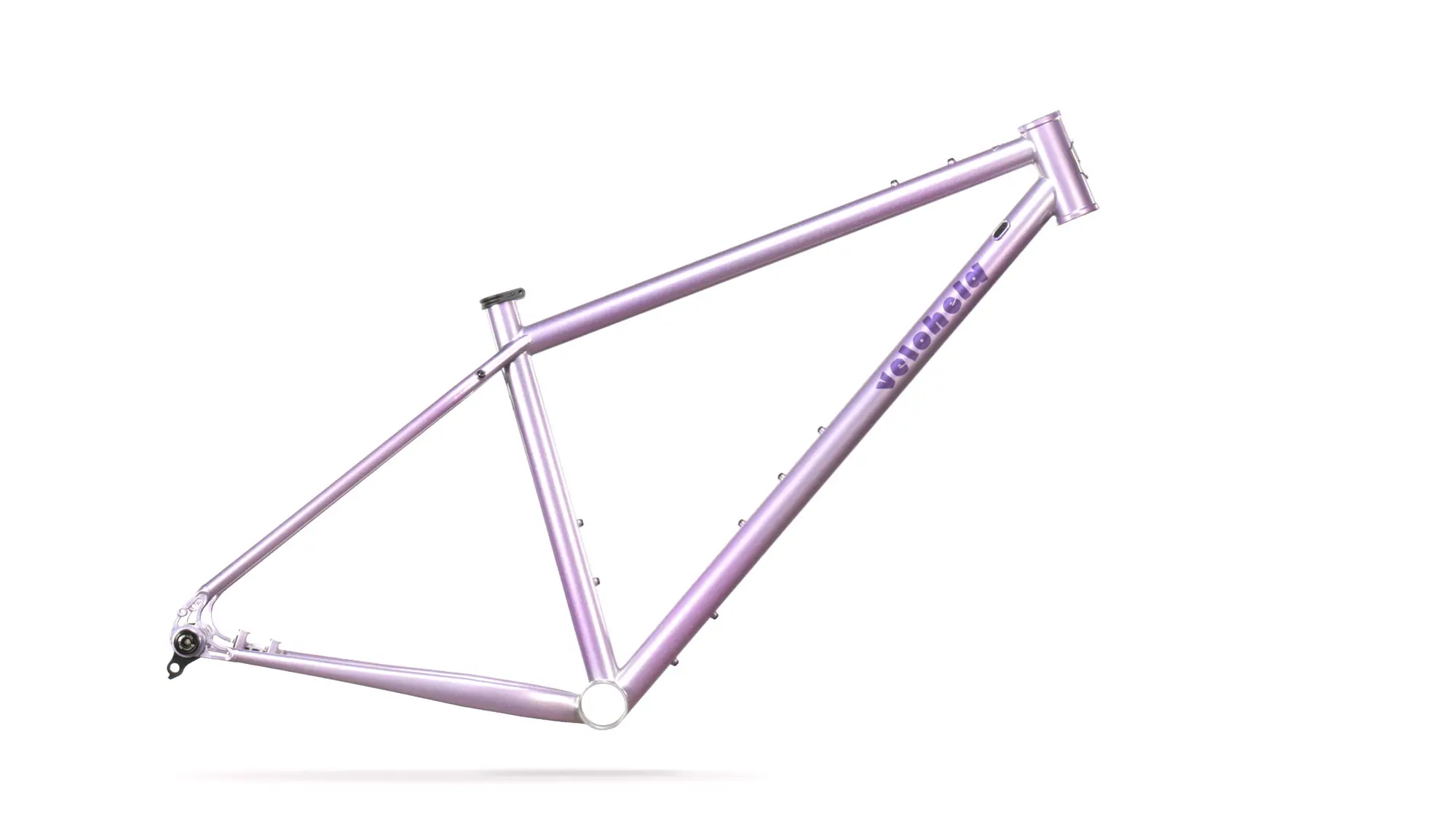

Frame

  • Double end-reinforced and size-specific tubes made from Reynolds 853 DZB (top and down tube) and 25CrMo4 steel, TIG-welded
  • 44mm head tube
  • 3D printed stainless steel logo brake mount
  • Sram UDH derailleur hanger
  • T47 bottom bracket housing
  • integrated brake and gear cable routing from the down tube to the chainstays, internal dropper post cable routing in the seat tube possible
  • Flat-mount disc brake mount for 160 mm brake discs located in the rear frame triangle
  • Mounting eyelets for 3 bottle cages + 1 bag holder on the top tube
  • Luggage carrier mounting eyelets for a maximum load capacity of 15 kg on the luggage carrier

Fork

optional

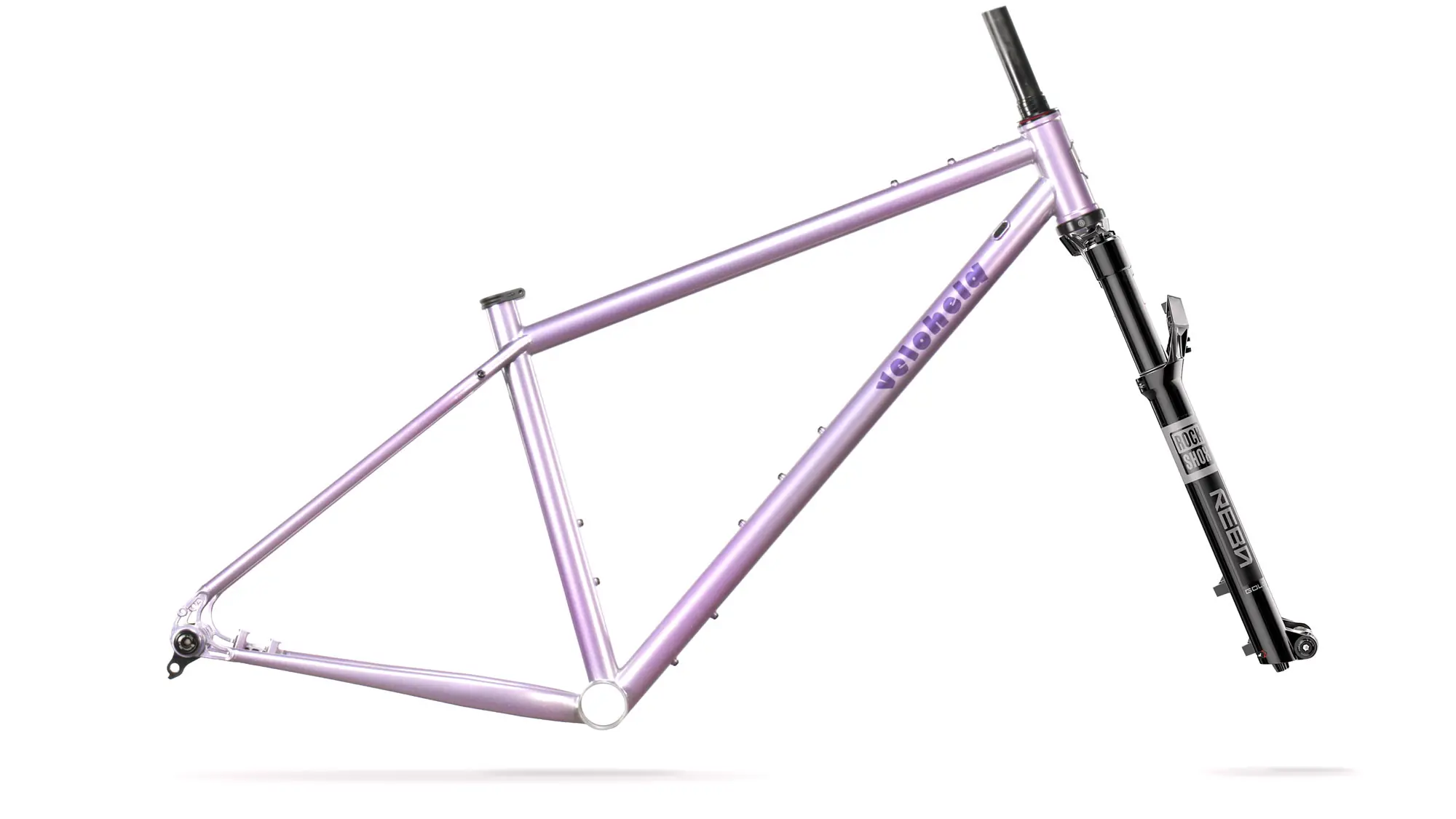

RockShox Reba RL suspension fork – 29″ | 120mm | 51mm Offset | Tapered – 15x110mm Boost – Maxle Stealth – Black Glossy

or

veloheld Chromoly Starrgabel, 4130 Chromoly Stahl, 15×110 mm Einbaubreite (Boost), 1 1/8″ – 1,5″ tapered Gabelschaft, Einbauhöhe 490 mm, Vorlauf 50 mm, seitliche “Triple-Cage” Ösen für die Montage Deines Gepäcks, Postmount Scheibenbremsaufnahme für max. 180 mm Scheibengröße, interne Lichtkabelführung möglich, inkl. 15x110mm Steckachse

or

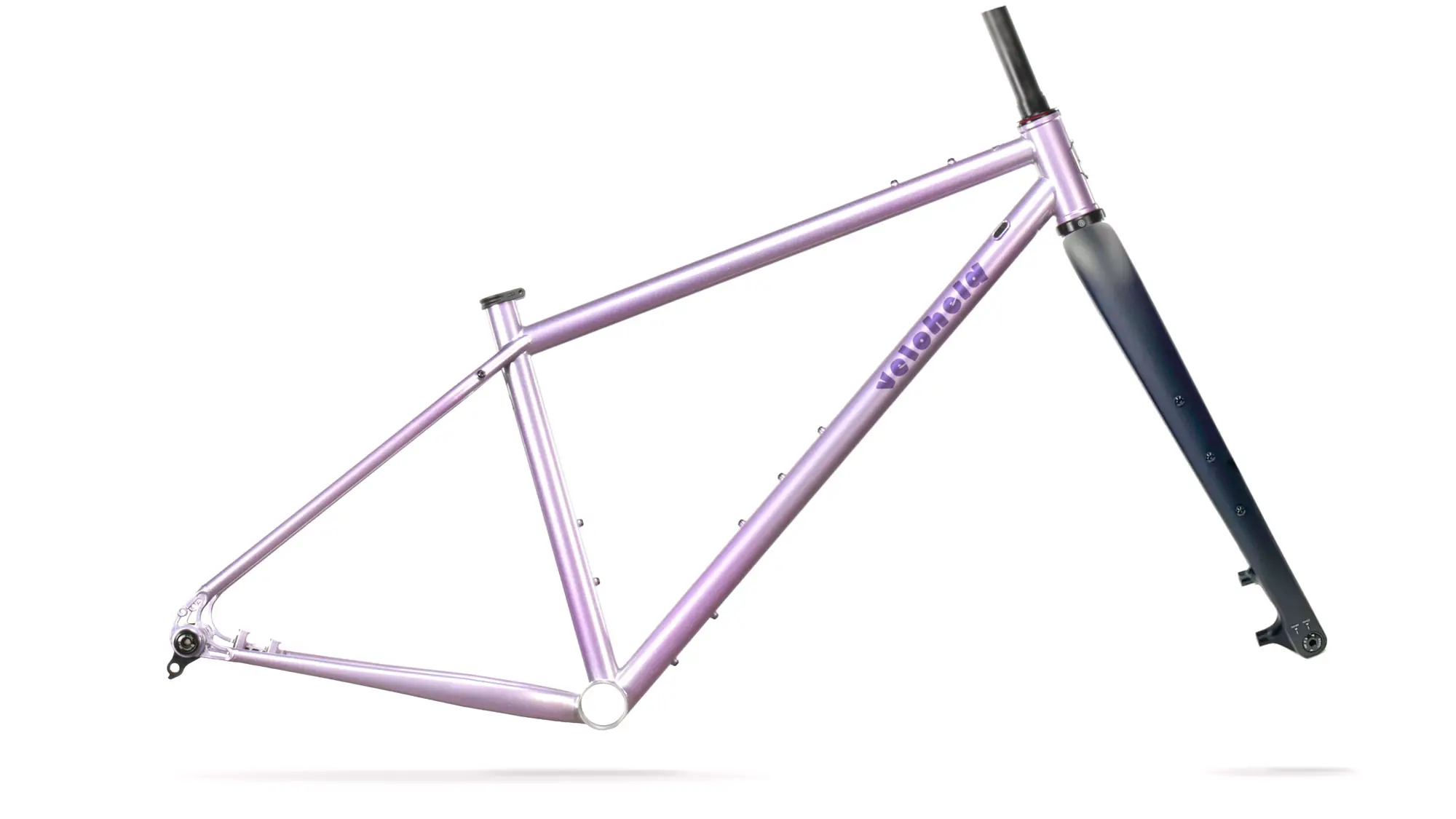

veloheld Carbon Starrgabel, Toray T700 Carbon, 15×110 mm Einbaubreite (Boost), 1 1/8″ – 1,5″ tapered Gabelschaft, Einbauhöhe 490 mm, Vorlauf 44 oder 52 mm, seitliche “Triple-Cage” Ösen für die Montage Deines Gepäcks, Postmount Scheibenbremsaufnahme für max. 180 mm Scheibengröße, interne Brems- und auch Lichtkabelführung, inkl. 15x110mm Steckachse, Farbe: UD-Carbon matt

Drive

Cranks

without

nur für 1x Antriebe, 34t maximal bei 52 mm Kettenlinie

Inner bearing

for T47, 73 mm

(optional T47 bottom bracket by Praxis Works for Shimano cranks with narrow sleeve for better cable routing available)

Brakes

recommended brake disk size 160 mm, max 180 mm brake disk possible, FM 160 brake mount

Wheels & tires

Wheelsets

for Boost 148 mm incl. Thru axle

Tyres

bei 29″ max. 2.4″ Breite

bei 27,5″ max. 2.6″ Breite

Cockpit

Headset

without

bei Auswahl mit Gabel inkl. Acros AZX-245, flat, black, ZS44/28.6, EC44/40

Sitting

Seat post

for ø 30.9 mm, incl. Seat clamp made of black anodized aluminium

Colors

Series color

“Roman Bronze” with copper-colored decal

Custom color

RAL powder coating or lacquering in gloss or matt, decor in black or silver

Powder coating?

What is powder coating and what are our quality guidelines?

Find out more here…

Weight

Frame from approx. 2400g

Stahlgabel ungekürzt ca. 1400g
(max. Systemgewicht 140 kg)

Carbon fork (uncut), approx. 730 g
(max. system weight 120 kg)

max. System weight Frame

140 kg

The maximum system weight corresponds to the combined weight of the rider and the bicycle, including all components. It includes the bicycle, the rider (including clothing) and any equipment carried on the body (e.g. a rucksack), and must not be exceeded.

Please note: When assembling a frame set into a complete bike, please take care to observe the maximum system weight specifications provided by the component manufacturers.

Note: Subject to technical changes, errors and omissions.

All geometries measured with 20% SAG for suspension forks

Geo with 120 mm suspension fork

Frame height S M L XL
for approx. body height in cm 165 - 175 174 - 184 183 - 192 ≥ 191
A Seat tube length 395 440 480 520
B Top tube length 580 603 625 649
C Wheelbase 1130 1154 1178 1204
D Head tube length 90 100 110 125
E Head tube angle 66° 66° 66° 66°
F Seat angle 73.6 73.6 73.6 73.6
G Chainstay length 435 435 435 435
H Fork offset steel fork 50 50 50 50
I Bottom bracket drop 67 67 67 67
J Stack 604 613 622 636
K Reach 410 430 450 470

Geo with 100 mm suspension fork or rigid fork

Frame height S M L XL
for approx. body height in cm 165 - 175 174 - 184 183 - 192 ≥ 191
A Seat tube length 395 440 480 520
B Top tube length 577 600 622 646
C Wheelbase 1123 1147 1171 1196
D Head tube length 90 100 110 125
E Head angle 67° 67° 67° 67°
F Seat angle 74.5° 74.5° 74.5° 74.5°
G Chainstay length 435 435 435 435
H Fork offset steel fork 50 50 50 50
I Bottom bracket drop 68 68 68 68
J Stack 596 605 615 629
K Reach 420 440 460 480
