veloheld.lane Complete bike Alfine
From 2.749,00 €
- Shimano Alfine 11-speed
- low-maintenance Gates CDX CenterTrack belt drive
- Super-bright SON LED lighting system
- also as a complete bike in your choice of colour and -spec and as frame set available
Delivery time
As a bicycle manufacturer, we build each bike individually for you. Due to the current order and delivery situation, we require 2–3 weeks from order confirmation to manufacture and dispatch bikes that are in stock.
The veloheld.lane is your timeless all-in-one bike for the city and beyond! With the low-maintenance Shimano Alfine 11-speed hub gears in combination with the oil-free Gates CentreTrack belt drive, you can enjoy your daily tours without any worries. Thanks to the bright SON lighting, commuting is no problem even in the dark.
And if the weather doesn’t play along, the long aluminium mudguards painted in the same colour as the frame ensure that you stay dry. Ready for your city or the surrounding countryside? Leave others behind and enjoy your own personal “rush hour”!
The veloheld.lane is also available as a swing version with a lower step-through or as a frame set (including fork and mudguards) – and of course in the colour of your choice!
In the wild!
At 1.89 m tall and 91 cm inside leg length, Carsten rides a size XL frame
Highlights
Efficient and easy to clean
The Shimano Alfine 11-speed hub gear with the low-maintenance Gates belt drive for city and touring
The best lighting
The SON front and rear lights are perfect for lighting up all your long and as well as short rides ideal.
Frame
- double end-reinforced tubes made from 4130 CroMoly steel, TIG-welded in the Czech Republic – the most sustainable frame material!
- EBB eccentric bottom bracket for tensioning the belt
- Stainless steel dropouts with internal IS2000 disc brake mount and KSA 18 side stand mount
- Rohloff compatible with OEM2 torque support
- Shift and light cable internal routed in the down tube
- Rust protection Interior preservation
- larger diameter down tubes and top tube for frame heights L and XL for more rigidity,
- 2 x 2 bottle cage eyelets, 2 additional eyelets for pannier racks on the seat stays
Fork
- Double butted tubes made from 4130 CroMoly
- 1 1/8" steerer
- IS 2000 brake mount
- internally routed light cable
- Eyelets for front rack
Drive
Gear hub
Shimano Alfine SG-S7001 11-speed in-hub gear system
Belt
Gates CenterTrack CDX belt, 118t
Pulley
Alfine:
front: 50t Gates Carbon Drive CenterTrack Front Sprocket, rear: 24t Gates CenterTrack CDX Sprocket
Cranks
Shimano Alfine, black, 170 mm
Inner bearing
Shimano Hollowtech II BSA
Pedals
VP-538 – black plastic body, CroMo axle, industrial bearings
Brakes
Brake lever
Shimano BL-MT501
Brake body
Shimano BR-MT501
Brake disk
Shimano SM-RT64
Front and rear brake discs with 160 mm diameter
Wheels & tires
Front wheel
Rim: Kinlin XC-279, aluminum hollow chamber, 32h, black or silver
SON 28 hub dynamo 6V/3W, black or silver (Made in Germany, 5-year guarantee)
black
Rear wheel
Rim: Kinlin XC-279, aluminum hollow chamber, 32h, black or silver
Shimano Alfine SG-S7001 11-speed hub
black
Tyres
SCHWALBE Touring/City Tyres 40-622, Colour: Black+Reflex
Cockpit
Stem
veloheld.stem – black or silver, 90 mm (S), 100 mm (M, L), 110 mm (XL)
6 spacers 0.5 mm each
black
Handlebars
veloheld arc bar – 580 mm, ø 31,8 mm, 15°
black
Grips veloheld, black
incl. Bell
Headset
Acros AH-34, black or silver, 1 1/8″, sealed industrial bearings
black
Sitting
Saddle
veloheld, black
Seat post
veloheld aluminum, black or silver, ø 27.2 mm, 350 mm
black
Miscellaneous

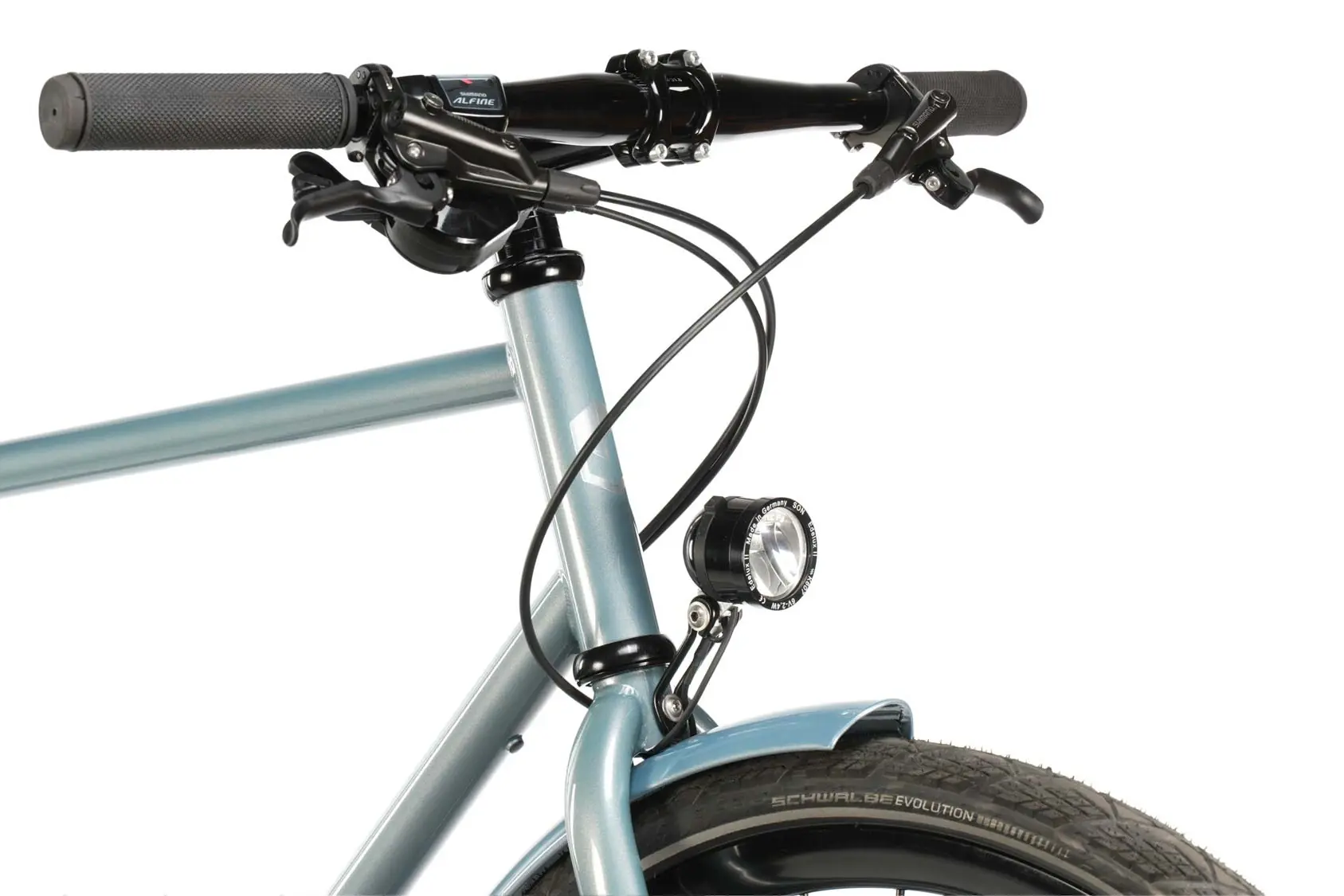

Lighting
SON Edelux II front and SON rear light with parking light function, black or silver
incl. reflectors front and rear
black
Luggage carrier
Racktime Spica integrated, black, suitable for 25 kg luggage
mudguards
made of durable aluminum, powder-coated in frame color, 50 mm width
Kickstand
incl. Hebie Fix 18 rear kickstand
Colors
Series color
Cascade Blue, glossy with silver decor
Custom color
You would like that bike in your favourite colour, then have a look here at veloheld.lane for a complete bike in your chosen colour.
Sizes
S, M, L, XL
Weight
From approx. 13.6 kg
Classification
Bikes in Category 2 are designed for well-paved paths and ensure constant contact with the ground. These bikes are primarily intended for urban mobility, making them ideal for use in road traffic and on public or authorized paths. This category includes urban bikes, city bikes, trekking bikes, and gravel bikes. The maximum allowable total weight, consisting of the rider, luggage, and bicycle, should not exceed 120 kg. Please note that this maximum weight may be further restricted depending on the usage recommendations of the component manufacturers.
Note
Subject to technical changes, errors and omissions.
Note: Subject to technical changes, errors and omissions.
| Frame height | S | M | L | XL |
|---|---|---|---|---|
| for approx. body height in cm | 165 - 175 | 174 - 185 | 184 - 190 | 189 - 195 |
| for approx. inside leg length in cm | 77 - 81 | 82 - 87 | 86 - 91 | 90 - 96 |
| A Seat tube length | 510 | 540 | 570 | 600 |
| B Top tube length | 575 | 590 | 600 | 615 |
| C Wheelbase | 1066 | 1072 | 1076 | 1080 |
| D Head tube length | 135 | 165 | 185 | 205 |
| E Head angle | 71,5° | 72° | 72,5° | 73° |
| F Seat angle | 73,5° | 73° | 73° | 72,5° |
| G Chainstay length | 440 | 440 | 440 | 440 |
| H Fork offset | 51 | 51 | 51 | 51 |
| I ca. Bottom bracket drop | 60 | 60 | 60 | 60 |
| J Stack | 567 | 597 | 618 | 639 |
| K Reach | 407 | 408 | 411 | 414 |
| Standover height | 790 | 820 | 840 | 870 |
Add a review
The bike is delivered almost fully assembled and securely packed in a cardboard box by a forwarding agent within Germany. After delivery, you can assemble it ready to ride in a few simple steps and without special tools and go on your first ride straight away. You can find all information about the structure here.
After delivery, you can quickly assemble the bike ready to ride with just a few simple steps and a few tools.
To do this, the handlebars incl. Turn the stem in the direction of travel, install the pedals and adjust your saddle height.
You will find all the exact assembly steps in the assembly instructions.
If you live near one of our dealers, you can also test ride your dream bike there. Please get in touch with the dealer first so that he really has the bike in stock and can prepare it for you if necessary.
If you buy the bike directly from us, you can test ride it on a dry surface at home after receiving and assembling it. If, contrary to expectations, you don’t like it and/or it doesn’t fit, we will collect it from you again free of charge. All you have to do is pack it safely back into the shipping box and wait for collection. Please note: This does not apply to customized bikes.
Without limiting the statutory warranty rights, we grant you a total warranty of 5 years from the date of purchase on veloheld frames and veloheld forks. You can find the exact details on our warranty and guarantee page.
Please register your bike here within 3 months of purchase to receive the warranty.
The maximum permissible system weight for the veloheld.lane consisting of bicycle, rider and luggage should not exceed 120 kg for frame sizes S and M and kg and 140 kg for frame sizes L and XL. Please note that the fork with a pannier rack may be loaded with max. 15 kg (7.5 kg per side) and the frame with a maximum of 25 kg via the carrier.
At the moment you can only mount a child seat directly on the veloheld.lane in the mid step version to mount a child seat directly on the seat tube. The veloheld.lane with high top tube is not approved for this.
Yes, you can mount a KSA18 kickstand directly on the left dropout. A Hebie Fix 18 kickstand is already fitted for you with the complete bike.
